岩石学报  2014, Vol. 30 Issue (5): 1457-1471   PDF
引用本文
栾燕, 宋谢炎, 陈列锰, 郑文勤, 田小林, 冉启渝. 2014. 四川红格层状侵入体中角闪石和金云母的矿物学特征及其成因意义. 岩石学报,30(5): 1457-1471
Luan Y, Song XY, Chen LM, Zheng WQ, Tian XL and Ran QY. 2014. Mineralogical features and petrogenetic significances of the hornblende and phlogopite of the Hongge layered intrusion, Sichuan Province. Acta Petrologica Sinica,30(5): 1457-1471 (in Chinese with English abstract)
四川红格层状侵入体中角闪石和金云母的矿物学特征及其成因意义
栾燕1,2, 宋谢炎1 , 陈列锰1, 郑文勤1, 田小林3, 冉启渝3
1. 中国科学院地球化学研究所, 矿床地球化学国家重点实验室, 贵阳 550002;
2. 中国科学院大学, 北京 100049;
3. 四川省地质矿产勘查开发局106地质队, 成都 611130
2013-9-10 收稿, 2014-1-27 改回.
基金项目：本文受国家“973”计划（2012CB416804）、矿床地球化学国家重点实验室课题（SKLOG-ZY125-06）、中国科学院国家外国专家局创新团队国际合作伙伴计划“陆内成矿作用研究团队”（KZZD-EW-TZ-20）和国家自然科学基金重点项目（40730420）联合资助.
第一作者简介：栾燕,女,1986年生,博士,矿物学、岩石学、矿床学专业,E-mail:luanyan1234@163.com
通讯作者：宋谢炎,男,1962年生,研究员,地球化学专业,E-mail:songxieyan@vip.gyig.ac.cn
摘要：红格层状岩体是峨眉山大火成岩省内带最大的赋存钒钛磁铁矿矿床的层状岩体，从底部到顶部可分为下部岩相带、中部岩相带和上部岩相带。红格岩体下部岩相带角闪（磁铁）辉石岩和角闪（磁铁）橄辉岩中角闪石含量高达5%~15%，远远高于区内其他含超大型钒钛磁铁矿矿床的层状岩体。岩体中角闪石呈嵌晶状结构，且具有均一干涉色，暗示其为岩浆成因，而非热液蚀变的产物。此外，角闪石的矿物化学特征表现为高Al2O3含量（10.5%~12.0%）、高Al/Si（0.30~0.37）和 Mg/（Fe3++Fe2++VIAl）比值（1.69~2.63）以及低Si/（Si+Ti+Al）比值（0.69~0.74），进一步表明其是直接从幔源基性岩浆中结晶形成的。金云母高MgO含量（18.7%~22.9%）的特征也说明其与幔源岩浆作用有关。角闪石和金云母的成因与红格层状侵入体的地质背景相吻合，为探讨红格岩体形成过程中的物理化学条件提供了重要的矿物学依据。根据矿物电子探针成分及其化学式计算得到岩体角闪石的结晶温度为1000~1100℃，结晶压力小于2.2kbar，结晶时的氧逸度范围在NNO-0.55到NNO+0.73之间。矿物结构关系指示岩体的磁铁矿结晶早于角闪石，因此，结合MELTs模拟计算，认为红格岩体钒钛磁铁矿矿层的形成温度为1100~1165℃，氧逸度高于NNO+0.73。红格岩体下部岩相带和中部岩相带每个旋回自下而上，角闪石的Fe3+/（Fe3+/Fe2+）比值以及全岩Fe3+/Fe2+和Mt/（Mt+Ilm）比值有规律地逐渐降低，而磁铁矿V2O3含量逐渐升高，这些特征说明Fe-Ti氧化物的分离结晶导致氧逸度逐渐降低。而上部岩相带IX旋回全岩Fe3+/Fe2+和Mt/（Mt+Ilm）比值自底部到顶部随着磁铁矿V2O3含量的降低而升高，显示出与下部岩相带和中部岩相带相反的变化趋势，表明IX旋回在分离结晶过程中氧逸度是逐渐升高的，可能是受上部岩相带富P2O5母岩浆的制约。
关键词： 角闪石     金云母     温度     压力     氧逸度     红格层状侵入体
Mineralogical features and petrogenetic significances of the hornblende and phlogopite of the Hongge layered intrusion, Sichuan Province
LUAN Yan1,2, SONG XieYan1 , CHEN LieMeng1, ZHENG WenQin1, TIAN XiaoLin3, RAN QiYu3
1. State Key Laboratory of Ore Deposit Geochemistry, Institute of Geochemistry, Chinese Academy of Sciences, Guiyang 550002;
2. University of Chinese Academy of Sciences, Beijing 100049, China;
3. 106 Geological Brigade of Sichuan Bureau of Geology and Mineral Resources, Chengdu 611130, China
Abstract: The Hongge layered intrusion hosting the largest V-Ti-magnetite deposit in the central part of the Emeishan Large Igneous Province (ELIP) can be divided into the Lower Zone, Middle Zone and Upper Zone from the bottom to the top. The contents of hornblende in the hornblende (magnetite) clinopyroxenite and hornblende (magnetite) olivine clinopyroxenite of the Lower Zone reach up to 5%~15%, which are much higher than those of other layered intrusions hosting giant Fe-Ti oxide deposits in the Central ELIP. Poikilitic texture and homogeneous interference color of the hornblende indicate that it is primary magmatic origin, rather than the product of hydrothermal alteration. Moreover, the hornblende is high in Al2O3 contents (10.5%~12.0%), Al/Si (0.30~0.37) and Mg/(Fe3++Fe2++VIAl) (1.69~2.63) ratios, and low in Si/(Si+Ti+Al) ratios (0.69~0.74), suggesting that it crystallized from a mantle-derived mafic magma. The phlogopite is high in MgO contents (18.7%~22.9%), demonstrating that it is also associated with mantle-derived magma. The genesis of the hornblende and phlogopite is consistent with the geological background of the Hongge layered intrusion, and it is thus possible to be used to estimate the thermodynamic conditions of solidification of the Hongge intrusion. The calculations using electron microprobe data indicate that the hornblende crystallized at the temperature of 1000~1100℃, the pressure of lower than 2.2kbar and the oxygen fugacity of NNO-0.55 to NNO+0.73. Magnetite crystallized earlier than hornblende in the Hongge intrusion according to lithologic textures, thus, combined with the MELTs calculation, we estimated that the Fe-Ti oxide ore layers of the Hongge intrusion crystallized at the temperature of 1100~1165℃ and the oxygen fugacity of higher than NNO+0.73. The ratios of Fe3+/(Fe3+/Fe2+) of the hornblende as well as Fe3+/Fe2+ and Mt/(Mt+Ilm) of the whole rock decrease upwards in each cycle unit of the Lower and Middle zones of the Hongge intrusion, whereas, V2O3 contents in the magnetite increase upwards, indicating that oxygen fugacity decreases upwards during fractional crystallization of magnetite. However, the whole-rock Fe3+/Fe2+ and Mt/(Mt+Ilm) ratios increase as the magnetite V2O3 contents decrease upwards in the cycle unit IX of the Upper Zone, which are opposite to those in the Lower and Middle zones, indicating that oxygen fugacity increased upwards in the cycle unit IX of the Upper Zone which is probably due to the P2O5 enriched parental magma of the Upper Zone.
Key words: Hornblende     Phlogopite     Temperature     Pressure     Oxygen fugacity     Hongge layered intrusion

1 引言

层状侵入体是镁铁-超镁铁质岩浆在岩浆房中演化的产物，记录了岩浆在岩浆房中演化的过程以及物理化学条件(Wager and Brown， 1968; Naldrett，1989; 宋谢炎等，1997; Barling et al., 2000; 钟宏等，2007; 夏昭德等，2011)。反演层状岩体形成时的物理化学条件(温度、压力、氧逸度等)已成为揭示幔源岩浆演化和岩浆矿床成因的重要手段(钟宏等，2007)，其中氧逸度变化是控制基性岩浆演化形成岩浆钒钛磁铁矿矿床的关键因素之一(Toplis and Carroll， 1995，1996; Botcharnikov et al., 2008)。前人对峨眉山大火成岩省内带层状岩体中钒钛磁铁矿形成时的温压和氧逸度条件等进行了一定的探讨，如Pang et al.(2008a，b，2009)认为铁钛氧化物是在接近液相线时与橄榄石等硅酸盐矿物同时结晶形成的，并根据磁铁矿和钛铁矿电子探针成分估计了攀枝花岩体氧化物结晶的温度和氧逸度(1000℃，FMQ>+1.5)，但由于磁铁矿和钛铁矿都发生了固溶体分离，因此根据电子探针成分估算的温度和氧逸度可能存在较大误差。张晓琪等(2011)利用攀枝花岩体没有发生固溶体分离的斜长石估算了攀枝花钒钛磁铁矿矿层形成时的温度区间(1079~1121℃)，但未对矿层形成时的氧逸度范围进行限定。Bai et al.(2012)根据磁铁矿以及母岩浆中的V含量估算了红格岩体磁铁矿结晶时的氧逸度范围(FMQ+1~FMQ+2)，但母岩浆中V含量的不确定性使得估算的氧逸度存在一定误差。所以，利用上述方法探讨钒钛磁铁矿矿层形成时的物理化学条件受到了一定限制。

红格岩体不同于峨眉山大火成岩省内带其它赋存大型钒钛磁铁矿矿床的层状岩体(如攀枝花岩体，Song et al., 2013; 白马岩体，Zhang et al., 2012)的一个显著特征是，岩体各岩相带中角闪石和金云母普遍分布，尤其是下部岩相带角闪(磁铁)辉石岩和角闪(磁铁)橄辉岩中角闪石含量高达5%~15%；并且角闪石和金云母均未发现固溶体分离形成的出溶条纹，其电子探针成分可以代表它们结晶时的原始成分。前人研究表明，角闪石和金云母的成分受温度、压力、氧逸度和熔体总成分的影响，可以反映岩浆分离结晶过程中物化条件的改变(Kesler et al., 1975; Hammarstrom and Zen， 1986; 陈光远等，1988; 周作侠，1991; Feeley and Sharp， 1996; Selby and Nesbitt， 2000; Ridolfi et al., 2008，2010)，这样就为我们估算红格岩体形成时的物理化学条件提供了一个很好的机会，所以本文试图利用角闪石和金云母的成分对红格岩体的温压以及氧逸度条件进行约束。

2 地质背景

峨眉山大火成岩省位于扬子板块西部至青藏高原东缘的广大地区，并一直延伸至越南北部，出露面积超过5×105km2(图 1)。它主要由峨眉山玄武岩、镁铁-超镁铁质层状侵入体以及同源的酸性、碱性侵入岩组成，一般认为是二叠纪峨眉山地幔柱作用的产物(Chung and Jahn， 1995; Song et al., 2001; Xu et al., 2001; 宋谢炎等，2001; Zhou et al., 2002; Zhang et al., 2006，2008，2009，2014)。攀西地区位于峨眉山大火成岩省的内带，沿南北向磨盘山-元谋断裂和攀枝花断裂带出露一系列含V-Ti磁铁矿矿床的基性-超基性层状岩体，从北向南依次为太和岩体(262±3Ma，Zhou et al., 2008)、白马岩体(262±3Ma，Guo et al., 2004)、新街岩体(259±3Ma，Zhou et al., 2002)、红格岩体(259±1.3Ma，Zhong and Zhu， 2006)和攀枝花岩体(263±3Ma，Zhou et al., 2005; 259.8±0.8Ma，Hou et al., 2012; 261.4±4.6Ma，Hou et al., 2013)(图 1)。根据岩石组合的不同，这些含矿岩体可以分为两类：(1)镁铁-超镁铁质侵入体，如红格、新街岩体；(2)镁铁质侵入体，如攀枝花、太和、白马岩体。红格岩体是攀西地区最大的赋存V-Ti磁铁矿矿床的层状岩体(攀西地质大队，1984①)。

① 攀西地质大队. 1984. 攀枝花-西昌地区钒钛磁铁矿共生矿成矿规律与预测研究报告. 166-180

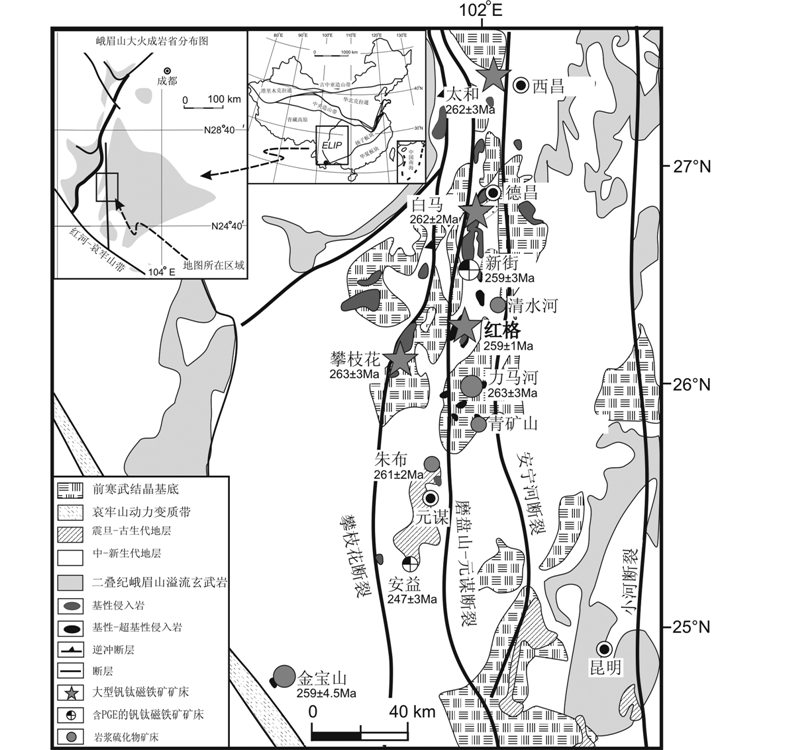

图 1 攀西地区镁铁-超镁铁质层状侵入体分布图(据Song et al., 2009)

各侵入体年龄分别引自Zhou et al.(2002，2005，2008)，Guo et al.(2004)，Zhong and Zhu(2006)，Tao et al.(2009)和Yu et al.(2014)

Fig. 1 Distribution of the layered mafic-ultramafic intrusions in the central zone of the Emeishan Large Igneous Province(after Song et al., 2009)

Ages of these intrusions are from Zhou et al.(2002，2005，2008)，Guo et al.(2004)，Zhong and Zhu(2006)，Tao et al.(2009) and Yu et al.(2014)

3 红格岩体地质特征

近水平的红格岩体呈南北走向，长约16km，宽约5~10km，厚约1.2km(图 2a，b)。地表主要出露上部岩相带的辉长岩和中部岩相带的辉石岩(图 2a)。该岩体北部侵位于中元古代片岩和变质砂岩中，南部侵位于新元古代的白云质灰岩中；在岩体东北角，上部岩相带的辉长岩与峨眉山玄武岩直接接触。由于后期二叠纪花岗岩和正长岩的侵入(255.2±3.6Ma，Xu et al., 2008)，红格岩体与围岩的接触 关系被破坏，部分岩体呈捕掳体被包裹在花岗岩中(图 2a，b)。

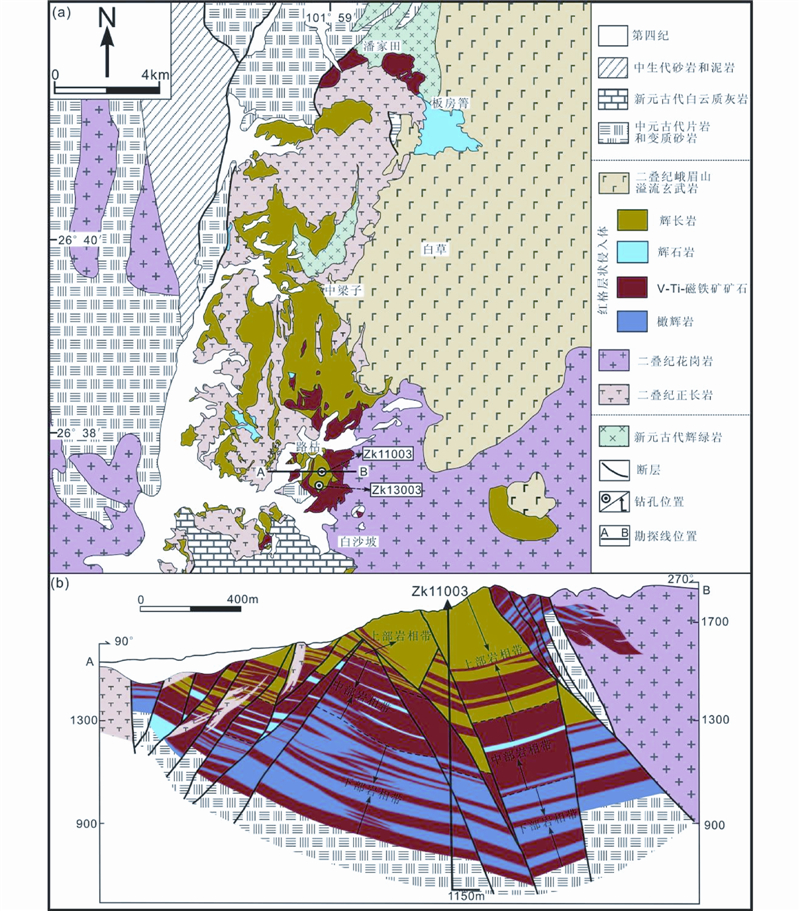

图 2 红格层状岩体地质简图(a)和勘探线剖面图(b)(据四川106地质队，2010①修改)

Fig. 2 Simplified geological map(a) and cross section of the exploration line(b)of the Hongge layered intrusion
①四川106地质队.2010.四川省攀西地区钒钛磁铁矿整装勘查项目报告

根据矿物组合及含量变化，特征矿物相(磷灰石、橄榄石)的出现和消失以及岩石结构构造特征等，红格岩体从下往上可分下部岩相带、中部岩相带和上部岩相带3个岩相带(Luan et al., 2014)。下部岩相带以含量高达5%~15%的角闪石为特征；中部岩相带以块状矿石的出现为特征；上部 岩相带以大量自形磷灰石的出现为特征(Luan et al., 2014)。

下部岩相带可以分为4个旋回(从下往上依次为I、II、III、IV)，每个旋回从下往上伴随着橄榄石的减少，由下部的角闪(磁铁)橄辉岩过渡为上部的角闪(磁铁)辉石岩(表 1)。中部岩相带可以分为4个旋回(从下往上依次为V、VI、VII、VIII)，伴随着Fe-Ti氧化物的减少，每个旋回由下部的块状矿石，向上过渡为磁铁橄辉岩、磁铁辉石岩或者(磁铁)辉长岩(表 1)。上部岩相带可以分为2个旋回(IX、X)，旋回IX主要为磷灰石磁铁辉长岩，旋回X主要为磷灰石辉长岩，间夹少量磷灰石磁铁辉长岩层(表 1)。

表 1 红格岩体岩性及造岩矿物结构特征 Table 1 Lithological features and mineral assemblages of the Hongge intrusion
4 角闪石和金云母的产出特征

角闪石主要赋存在岩体下部岩相带的角闪(磁铁)辉石岩以及角闪(磁铁)橄辉岩岩中。角闪辉石岩中含有70%~75%单斜辉石，8%~20% Fe-Ti氧化物，7%~10%角闪石，<5%橄榄石以及少量的斜长石和磷灰石。角闪橄辉岩中含有10%~35%橄榄石以及40%~75%单斜辉石，而角闪磁铁辉石岩和角闪磁铁橄辉岩中磁铁矿含量超过20%。在中部和上部岩相带中，角闪石含量一般小于3%，局部含量可达5%~15%(表 1)。红格岩体角闪石主要有以下三种形态(表 1、图 3)：(1)嵌晶状角闪石(粒度可达5cm)，其中包裹橄榄石、单斜辉石以及Fe-Ti氧化物等矿物(图 3a)，主要分布在下部岩相带；(2)填隙状角闪石，呈它形充填在单斜辉石、橄榄石及Fe-Ti氧化物颗粒之间(图 3b，e)，主要分布在下部岩相带，在中部岩相带和上部岩相带的局部出现；(3)反应边角闪石，构成单斜辉石的反应边(图 3c)，在三个岩相带中均会出现。

图 3 红格岩体角闪石和金云母单偏光下结构特征

(a)-角闪磁铁橄辉岩中嵌晶状角闪石包裹橄榄石和自形Fe-Ti氧化物；(b)-角闪辉石岩中的填隙状角闪石；(c)-磁铁橄辉岩中的角闪石反应边结构；(d)-角闪辉石岩中金云母充填在单斜辉石颗粒之间，并包裹自形Fe-Ti氧化物；(e)-磁铁辉石岩中的填隙状角闪石；(f)-磁铁辉石岩中的自形-半自形金云母.Ox-Fe-Ti氧化物；Ol-橄榄石；Cpx-单斜辉石；Hb-角闪石；Phl-金云母Fig. 3 Textures of hornblende and phlogopite from the Hongge intrusion under plane-polarized light

(a)-poikilitic hornblende enclosing olivine and euhedral Fe-Ti oxides in hornblende magnetite olivine clinopyroxenite；(b)-interstitial hornblende in hornblende clinopyroxenite；(c)-hornblende reaction rims in the magnetite olivine clinopyroxenite；(d)-phlogopite enclosing euhedral Fe-Ti oxides and filling between clinopyroxene grains in hornblende clinopyroxenite；(e)-interstitial hornblende in magnetite clinopyroxenite；(f)-euhedral-hypidiomorphic phlogopite in magnetite clinopyroxenite. Ox-Fe-Ti oxide; Ol-olivine; Cpx-clinopyroxene; Hb-hornblende; Phl-phlogopite

金云母在红格岩体中分布不均，主要出现在下部岩相带，一般含量低于4%，局部含量达到5%~8%(表 1)。金云母解理发育，呈他形填隙状并包裹自形的Fe-Ti氧化物颗粒(图 3d)或者呈自形-半自形状(图 3f)。

5 分析方法及结果

角闪石和金云母电子探针成分分析在中国科学院地球化学研究所电子探针实验室完成。分析仪器为：日本岛津公司生产的EMPA-1600电子探针。分析条件为：加速电压25kV，电流10nA，分析束斑直径为10μm。分析时所用标样为：美国生产的标样SPI#2753-AB，分析精度为0.01。主要氧化物百分含量的分析误差<2%，分析结果见表 2、表 3。

表 2 红格岩体角闪石的主要氧化物组成(wt%) Table 2 Major oxides of hornblende from the Hongge intrusion (wt%)

表 3 红格岩体金云母的主要氧化物组成(wt%) Table 3 Major oxides of phlogopite from the Hongge intrusion(wt%)

根据角闪石化学分子式(表 2)，角闪石阳离子特征为：CaB=1.72~1.9，(Na+K)A=0.66~0.92。按国际矿物学协会角闪石专业委员会提出的命名原则，红格岩体角闪石属于钙角闪石(CaB≥1.5，(Na+K)A≥0.5)。按钙角闪石的进一步分类命名原则，红格岩体角闪石Si=5.91~6.34，Mg/(Mg+Fe2+)=0.65~0.78，投影到Si-Mg/(Mg+Fe2+)图解上定名为韭闪石、镁绿钙闪石和钛闪石(图 4)(Leake et al., 1997)。红格岩体角闪石化学成分显示以下特征：富镁(13.0%~15.0%)、富CaO(11.0%~12.5%)和贫钾、富钠(K2O=0.5%~1.5%，Na2O=2.0%~3.0%)。其TiO2含量主要分布在3.5%~5.0%之间，Al2O3含量主要在10.5%~12.0%之间(表 2)。

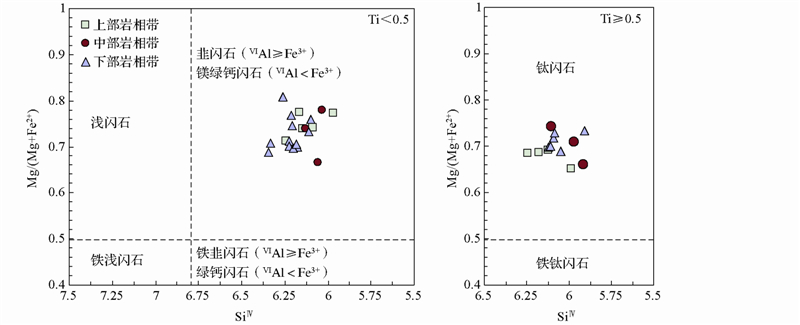

图 4 红格岩体角闪石分类与命名(据Leake et al., 1997)Fig. 4 Classification of the hornblende in the Hongge intrusion(after Leake et al., 1997)

在云母的Mg-(AlVI+ Fe3++Ti)-(Fe2++Mn)分类图解中(图 5)(Foster，1960)，红格岩体的云母成分投点均在金云母区域。红格岩体金云母具有高镁、低铝、低铁的特征(MgO=18.7%~22.9%，Al2O3=13.1%~15.2%，FeOT=6.30%~11.4%)。其K2O含量为8.65%~9.82%，Na2O含量为0.02%~0.96%，CaO含量小于0.14%，K/Na比值大于16.7，显示高钾、低钠、贫钙的特征。

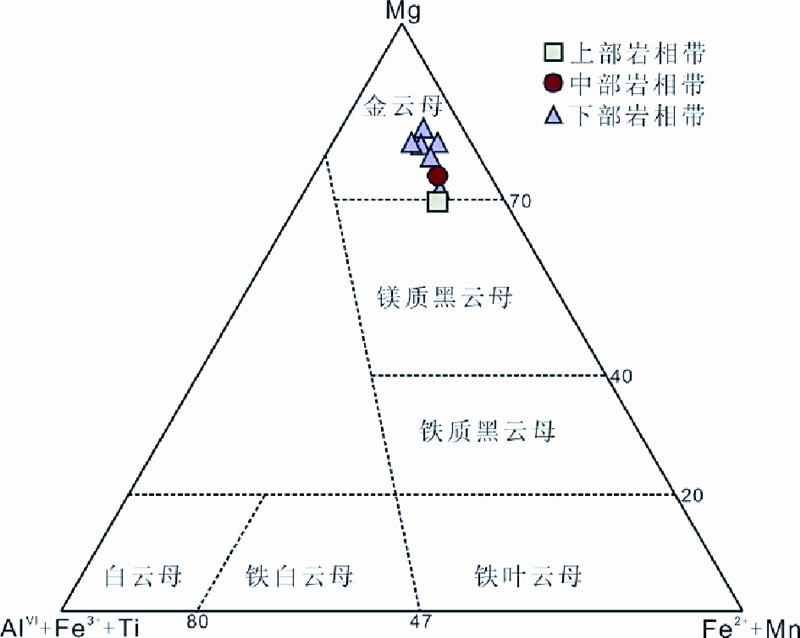

图 5 红格岩体云母Mg-(AlVI+Fe3++Ti)-(Fe2++Mn)分类图解(据Foster，1960)

Fig. 5 Mg-(AlVI+Fe3++Ti)-(Fe2++Mn)diagram of the mica in the Hongge intrusion(after Foster，1960)

6 讨论

角闪石的成分除受其寄主岩浆总成分的影响外，很大程度上与岩浆的结晶条件(温度、压力、氧逸度、水逸度、碱度等强度参数)有关。前人研究表明，随着压力的升高，钙质角闪石的Si含量降低，全铝AlT、AlVI和Na2O含量则升高；AlIV与Ti呈正相关关系，与温度、压力及氧逸度有关，角闪石中AlIV和Ti含量随温度的升高而增加，而AlVI含量随温度的变化不明显(Hammarstrom and Zen， 1986; Blundy and Holland ，1990; Ague，1997; Ridolfi et al., 2008，2010)。红格岩体角闪石和金云母的镜下观察未发现固溶体分离形成的出溶条纹，其电子探针成分可以代表它们结晶时的原始成分，因此，角闪石和金云母成分可以用来估算红格岩体形成时的物理化学条件。

6.1 角闪石和金云母的成因

角闪石的嵌晶状结构及其在光学显微镜下显示的均一干涉色均表明红格岩体的角闪石是岩浆成因的，而非后期热液蚀变的产物(Luan et al., 2014)。红格岩体角闪石Al2O3含量为10.5%~12.0%，Si/(Si+Ti+Al)=0.69~0.74，结合钙质角闪石的Al2O3-TiO2分类图解(图 6a)可知，红格岩体角闪石具有幔源岩浆角闪石的特征(Al2O3>10%，Si/(Si+Ti+Al)≤0.765)(姜常义和安三元，1984)；其Al/Si比值为0.30~0.37，Mg/(Fe3++Fe2++VIAl)比值为1.69~2.63，具有中-基性岩浆角闪石的特征(Al/Si=0.10~0.67，Mg/(Fe3++Fe2++VIAl)=1.50~2.0)，在Al/Si-Mg/(Fe3++Fe2++VIAl)图解上，投影在中-基性岩浆角闪石区域(图 6b)(据薛君治等，1987)。将红格岩体金云母的化学分析结果在MgO-FeOT/(MgO+FeOT)图上投点，主要落在幔源岩浆相关区域(图 6c)(周作侠， 1986，1988)，暗示红格岩体金云母的形成也与幔源岩浆作用有关。上述特征都说明红格岩体角闪石和金云母都是与幔源岩浆作用有关的原生矿物。

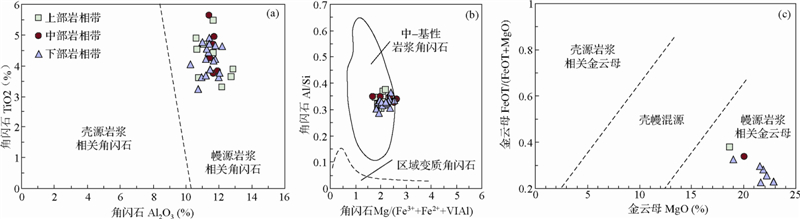

图 6 红格岩体角闪石和金云母成因判别图解

(a)-角闪石Al2O3-TiO2图解(据姜常义和安三元，1984)；(b)-角闪石Mg/(Fe3++Fe2++VIAl)-Al/Si图解(据薛君治等，1986)；(c)-金云母MgO-FeOT/(FeOT+MgO)图解(据周作侠，1986)

Fig. 6 Binary plots of the hornblende and phlogopite from the Hongge intrusion

(a)-Al2O3-TiO2 diagram of hornblende(after Jiang et al., 1984);(b)-Mg/(Fe3++Fe2++VIAl)-Al/Si diagram of hornblende(after Xue et al., 1986);(c)-MgO-FeOT/(FeOT+MgO)diagram of phlogopite(after Zhou，1986)

6.2 角闪石结晶温度和压力估算

邓晋福(1983)提出了通过Ca/(Ca+Na+K)数值计算角闪石结晶温度的公式：

根据公式(1)计算得出，红格岩体角闪石的结晶温度为1000~1100℃，与Luan et al.(2014)通过MELTs模拟计算得出的角闪石结晶温度(~1080℃)相吻合。如图 3a所示，Fe-Ti氧化物呈自形被角闪石包裹，说明Fe-Ti氧化物结晶早于角闪石，其结晶温度也高于角闪石。Luan et al.(2014)通过MELTs模拟得出磁铁矿开始结晶的温度为1165℃，所以红格岩体钒钛磁铁矿矿层的形成温度大致为1100~1165℃，略高于攀枝花层状岩体中钒钛磁铁矿矿层的形成温度(1079~1121℃，张晓琪等，2011)，这可能是因为红格岩体母岩浆富含水分，从而促进了磁铁矿的早期结晶(Luan et al., 2014)。

Ernst and Liu(1998)给出了从玄武质岩浆中结晶的角闪石中Al2O3和TiO2含量随温度、压力同时变化的曲线格子，可用于半定量估算角闪石结晶时的温度和压力。红格岩体角闪石Al2O3含量主要分布在10.5%~12.0%，TiO2含量在3.5%~5.0%左右(表 2)，通过内插法得出角闪石结晶时温度在960~1040℃之间，而压力小于2.6kbar(图 7)。这种半定量方法估算的角闪石结晶温度明显低于根据公式(1)定量计算的角闪石结晶温度(1000~1100℃)，所以其估算的压力也偏大，通过角闪石结晶温度(1000~1100℃)校正后得出其结晶压力小于2.2kbar，暗示红格岩体的侵位深度小于7.3km。

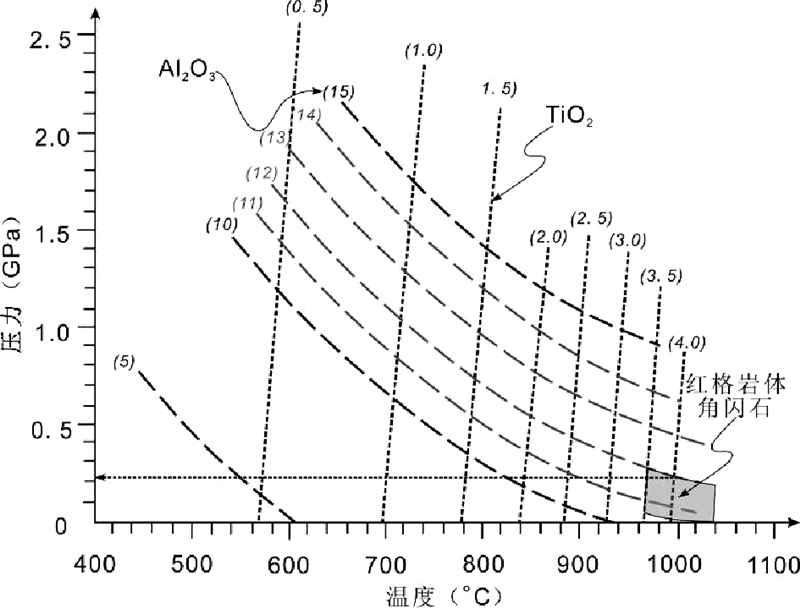

图 7 角闪石Al-Ti温压曲线格子(据Ernst and Liu， 1998)

Fig. 7 Temperature and pressure grid of Al-Ti in hornblende(after Ernst and Liu， 1998)

6.3 氧逸度估算及其相对变化

角闪石和金云母中都含有变价元素Fe，其Fe3+/Fe2+比值对氧逸度(fO2)的变化非常敏感。如图 8a，b所示，下部岩相带和中部岩相带每个旋回内，从下往上红格岩体角闪石Fe3+/(Fe3+/Fe2+)比值逐渐降低，与全岩Fe3+/Fe2+和Mt/(Mt+Ilm)比值的变化一致(图 8c，d)，暗示下部岩相带和中部岩相带每一次新补充的岩浆在结晶分异过程中氧逸度是逐渐降低的。Ridolfi et al.(2008)得出了根据角闪石分子式计算其结晶时氧逸度的公式，并且他们对公式进行了校正(Ridolfi et al., 2010)：

根据公式(2)计算出红格岩体角闪石结晶时氧逸度变化范围在NNO-0.55到NNO+0.73之间(表 2、图 8b)。

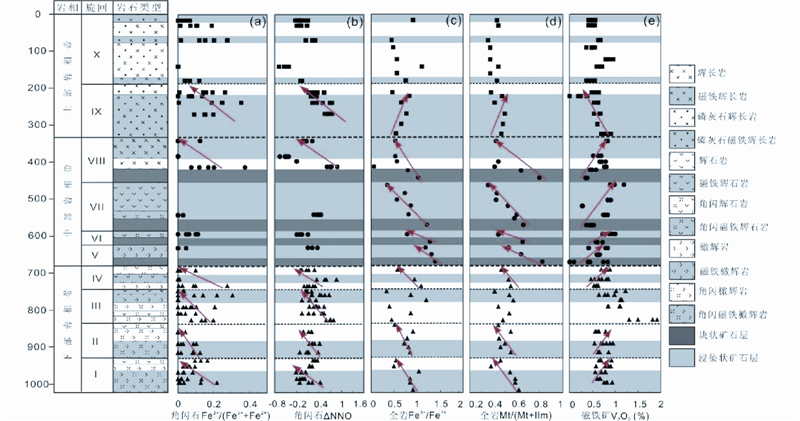

图 8 红格岩体角闪石Fe3+/(Fe3++Fe2+)比值(a)和氧逸度(b)，全岩Fe3+/Fe2+(c)和Mt/(Mt+Ilm)比值(d)，以及磁铁矿V2O3含量(e)随深度变化柱状图

全岩和磁铁矿数据来自Luan et al.(2014)

Fig. 8 Stratigraphic variations of the Hongge hornblende Fe3+/(Fe3+/Fe2+)ratios(a) and oxygen fugacity(b)，the whole-rock Fe3+/Fe2+ and Mt/(Mt+Ilm)ratios(c and d，respectively)，the magnetite V2O3 contents(e)

The whole-rock and magnetite data are from Luan et al.(2014)

如图 9所示，红格岩体三个岩相带金云母在Fe3+-Fe2+-Mg图解中投点均位于NNO(镍-氧化镍)缓冲剂附近并与其平行(Wones and Eugster， 1965)，说明红格岩体金云母结晶时的氧逸度为NNO(~FMQ+0.7)，与公式(2)计算得出的角闪石氧逸度相吻合。而根据角闪石成分计算得出其形成温度为1000~1100℃(见上文)，即其对应的氧逸度绝对值(lgfO2)在-10.8到-8之间(图 10)。红格岩体角闪石和金云母都属于晶间矿物，其结晶温度低于磁铁矿的结晶温度(~1165℃，Luan et al., 2014)，而且其结晶时的氧逸度也是低于磁铁矿的。所以，推测红格岩体磁铁矿结晶时的氧逸度高于NNO+0.73(FMQ+1.43)，在1165℃时的绝对氧逸度也大于-7.3(图 10)。

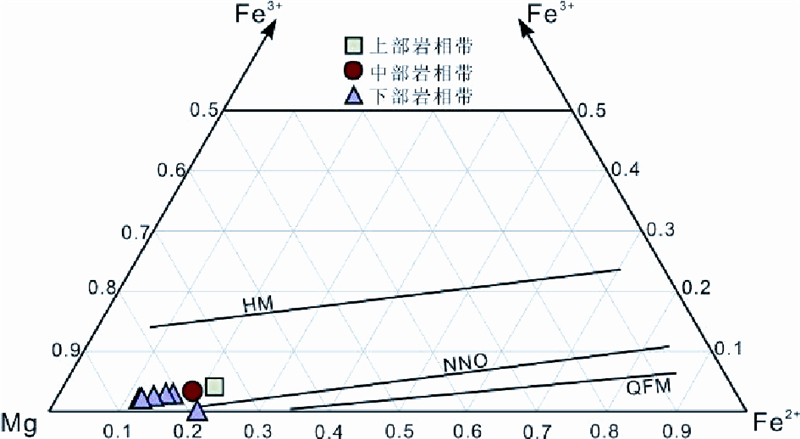

图 9 红格岩体金云母Fe3+-Fe2+-Mg三元图解(据Wones and Eugster， 1965)

Fig. 9 Fe3+-Fe2+-Mg ternary diagram of phlogopite in the Hongge intrusion(after Wones and Eugster， 1965)

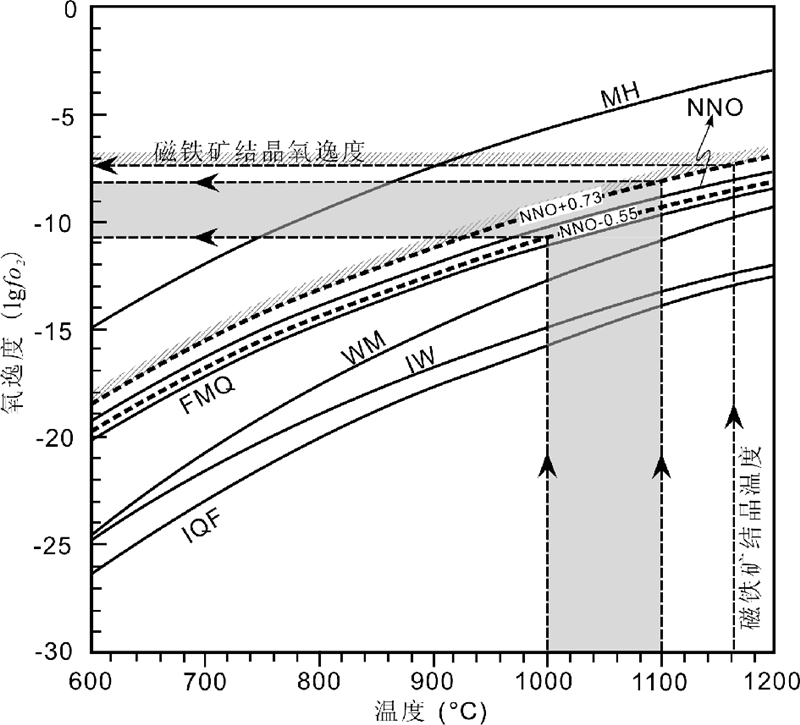

图 10 红格岩体角闪石lgfO2-T曲线图

实线代表氧缓冲剂(据Eugster and Wones， 1962)，虚线代表红格岩体角闪石结晶时的氧逸度

Fig. 10 Plots of lgfO2 vs. T diagram of the hornblende from the Hongge intrusion

Solid represents oxygen buffer(after Eugster and Wones， 1962) and dash represents the oxygen fugacity when the hornblende of the Hongge intrusion crystallized

V作为一种变价元素对氧逸度的变化也非常灵敏，其在磁铁矿与硅酸盐熔体之间的分配系数主要受到氧逸度的影响(Horn et al., 1994; Canil， 1999，2002; Toplis and Corgne， 2002; Mallmann and O’Neill，2009)。V在磁铁矿中主要以V3+的形式存在，而岩浆中V的价态随着氧逸度的升高可能从V3+变成V5+，所以磁铁矿中V的含量会随着氧逸度的升高而降低。V在磁铁矿中的分配系数(DV磁铁矿/玄武质岩浆=26，Rollinson，1993)远远高于其在钛铁矿中的分配系数(DV钛铁矿/玄武质岩浆=8.8~9.2，Dygert et al., 2013)，所以磁铁矿发生钛铁矿的固溶体分离时，其V含量基本不受影响，因此磁铁矿中的V可以用来估算氧逸度的相对变化。如图 8e所示，下部岩相带和中部岩相带每个旋回自下而上，磁铁矿中V2O3含量是逐渐升高的，因为伴随着磁铁矿的结晶，岩浆中的Fe3+/Fe2+比值和氧逸度随之降低。这与下部岩相带和中部岩相带全岩Fe3+/Fe2+和Mt/(Mt+Ilm)比值，以及角闪石Fe3+/Fe2+比值反映的氧逸度变化相吻合。而在上部岩相带IX旋回中，从下往上全岩Fe3+/Fe2+和Mt/(Mt+Ilm)比值随着磁铁矿V2O3含量的降低而逐渐升高，与下部岩相带和中部岩相带的变化规律相反(图 8c，d，e)，暗示IX旋回在分离结晶过程中氧逸度是升高的，这可能与上部岩相带母岩浆中的P2O5有关。红格岩体上部岩相带母岩浆与下部岩相带和中部岩相带的残余岩浆混合后富集P2O5(Luan et al., 2014)。Toplis et al.(1994a，b)的实验研究表明玄武质熔体中的P2O5会还原熔体中的Fe3+，从而抑制磁铁矿的结晶。但随着磷灰石的大量结晶，熔体中的P2O5含量逐渐降低，导致Fe3+/Fe2+比值升高和氧逸度逐渐升高，磁铁矿结晶受到的抑制作用也随之逐渐减小。所以全岩Fe3+/Fe2+和Mt/(Mt+Ilm)比值从下往上逐渐升高，而磁铁矿中的V2O3含量逐渐降低。但上部岩相带IX旋回中角闪石的Fe3+/Fe2+比值与下部岩相带和中部岩相带角闪石变化一致，并未呈现出相反的变化趋势。这是因为磷灰石大量结晶消耗了熔体中的P2O5，残余岩浆中的P2O5含量降低，导致其对残余岩浆中Fe3+/Fe2+比值的影响减小。所以，从残余岩浆中结晶出来的角闪石的Fe3+/Fe2+比值不受P2O5影响，显示出与下部岩相带和中部岩相带角闪石相同的变化趋势。

7 结论

(1)红格岩体角闪石的结晶温度为1000~1100℃，推测钒钛磁铁矿矿层的形成温度大致为1100~1165℃。

(2)红格岩体角闪石的结晶压力小于2.2kbar，暗示红格岩体的侵位深度小于7.3km。

(3)红格岩体角闪石和金云母结晶时的氧逸度为NNO-0.55~NNO+0.73，估算磁铁矿结晶时的氧逸度高于NNO+0.73。

(4)下部岩相带和中部岩相带每个旋回自下而上，角闪石Fe3+/(Fe3+/Fe2+)比值以及全岩Fe3+/Fe2+和Mt/(Mt+Ilm)比值有规律地逐渐降低，暗示每一次新补充的岩浆随着磁铁矿的结晶分异，氧逸度总是逐渐降低的。而上部岩相带IX旋回氧逸度的升高是受上部岩相带母岩浆中P2O5的制约。

致谢 野外考察得到了四川106地质队的大力帮助；在中国科学院地球化学研究所矿床地球化学国家重点实验室完成电子探针分析过程中，得到周国富研究员、刘世荣副研究员给予的诸多指导和帮助；在此一并深表谢意！
