Introduction

Bambusa pervariabilis × Dendrocalamopsis grandis, a major species native to China, is an important component of the ecological barrier to soil erosion in the Changjiang River basin. This hybrid bamboo is prevalent in warm and humid bamboo-growing areas all over China, and has significantly contributed to the building of this ecological barrier. Arthrinium phaeospermum (corda) M. B. Ellis, which is a novel pathogenic fungus that causes hybrid bamboo wilting and death, was recently discovered in regions of forest reclamation (from farmland) in the Middle and Upper Reaches of the Changjiang River (Zhu et al. 2009). This fungus can also infect other bamboo species, including Phyllostachys heterocycla (Xia et al. 1995) and Phyllostachys prominens (Ma et al. 2003). The occurrence and spread of this bamboo blight has been closely monitored (Zhu et al. 2009), but very few studies have been conducted on the pathogenic mechanism of A. phaeospermum.

Phytotoxins are major pathogenic factors in the infection of host plants. Plant pathogens produce many toxic compounds that can overcome disease resistance of many host species or multiple resistance mechanisms of one host (Dong 1995; Zhang 1996). A total of 21 species of pathogenic fungi from nine genera are known to produce host-specific toxins (HSTs), whereas at least 60 species are known to produce nonhost-specificity toxins (NHSTs) (Andrie et al. 2008; Amnuaykanjanasin and Daub 2009; Meca et al. 2009; Kim et al. 2010). With the development of new extraction and purification technologies, many fungal toxins have been isolated and characterised (Bok et al. 1999). Previous studies focused mainly on polysaccharides (including glycoproteins) (Abang et al. 2009), hemiterpenes (Rattan 2010), alkaloids (Fumiharu et al. 2006; Lorenz et al. 2009; Uhlig et al. 2010) and reductones (Raoudha et al. 2006; Xu et al. 2010), but the toxicity of A. phaeospermum compounds has only been reported in human studies (Vijayakumar et al. 1996; Bloor 2008). We reported on the protein AP-toxin produced by A. phaeospermum, which played an important role in mediating the phytotoxic activities of A. phaeospermum (Li et al. 2013). But whether other type of phytotoxin produced from this fungus contribute to bamboo wilting disease, is unknown.

Dibutyl phthalate (DBP) is a common phthalate acid ester (PAE) used in many different industrial processes. As of this writing, most toxicology studies on DBP have focused on its carcinogenic and estrogenic effects (Pedersen and Larsen 1996) on aquatic animals (Patyna and Cooper 2000) and hydrophytes (Staples et al. 1985), bioaccumulation in the food chain (Peijnenburg and Struijs 2006), degradation methods (Yuan et al. 2002), acute toxicity to mature marine fish species (Lin et al. 2003) and reproductive toxicity to generative cells of mature organisms (Adams et al. 1995). Natural DBP has also been isolated from Mimusops elengi (Ruikar et al. 2010), Streptomyces (Lee 2000; Roy et al. 2006) and Penicillium bilaii (Savard et al. 1994), and can mediate the toxicity and antimicrobial activity of these species. Whether DBP can be produced in toxic quantities by A. phaeospermum has not been established.

Our primary objective was to isolate and purify the nonprotein toxic secondary metabolite from A. phaeospermum by column chromatography, thin layer chromatography (TLC) and high-performance liquid chromatography (HPLC). Once the toxin was confirmed, our second objective was to determine the molecular structure by mass spectrometry (MS), nuclear magnetic resonance (NMR) and infrared spectroscopy (IR).

Materials and methods Fungal cultures and plant samples

The pathogenic fungus A. phaeospermum was provided by the Key Laboratory of Forest Protection of Sichuan Province and isolated from diseased B. pervariabilis × D. grandis. The fungus was revived from storage at -20 ℃ by pipetting a thawed suspension onto potato dextrose agar (PDA) plates and grown at 25 ℃ for 5 days. Hybrid bamboo (1-year-old) samples were collected from the bamboo-growing areas of reclaimed farmland (elevation 393–1431 m, mean annual temperature of 16 ℃ and annual precipitation of 1400–1700 mm) in Sichuan, China.

Preparation of crude toxin

Mycelial discs (5 mm) were grown in bottles containing 100 μL of modified Fries nutrient solution for liquid culture (Pestka et al. 1985) (containing 20 g/L dextrose, 5 g/L tartaric acid ammonium, 1 g/L NH₄NO₃, 1 g/L KH₂PO₄, 0.5 g/L MgSO₄·7H₂0, 0.1 g/L NaCl, 0.1 g/L CaC1₂·2H₂O, and 1 g/L yeast extract). Sterile distilled water was cultured as a blank control and worked through all the steps below to eliminate the effects of the test apparatus and basic isolation procedure. After 15 days of growth in a rotary shaker (140 rpm) in the dark at 26 ℃, the culture was filtered over double gauze and the supernatant was centrifuged at 6000 rpm for 10 min. The clarified supernatant was then mixed with an equal volume of methanol. The mixture was centrifuged at 6000 rpm for 10 min and condensed to 5 μL by vacuum evaporation at 40 ℃. This process was repeated three times to obtain three batches of crude toxin sample. Extracts were stored at -20 ℃.

Determination of the developing solvent

According to the permittivity and polarity of different solvents, more than 100 different solvent systems were tested by varying the volume ratio. The crude toxin and blank control were spotted on silica gel plates (5 cm × 10 cm) with an equal volume of solvent and the distance travelled by the solvent system was determined. After the developing solvents were volatilised, the coloration spots were examined with iodine vapour. The optimal developing solvent was determined by the maximum Rf value (distance travelled by the compound/distance travelled by the solvent front).

Purification of the toxin and assay of activity

The crude toxin and blank control were respectively loaded onto silica gel for column chromatography (100–200 mesh) with the selected eluent and the flow rate was maintained constant at 2 mL/min. Under these conditions, the volume of each pure compound collected was less than 1 mL after drying by distillation. Samples were arranged in order of elution time until the silica gel column turned white and the eluent contained no material after drying. The compounds were dissolved in H₂O and combined with the same samples from the next trial of silica gel column chromatography. The combined products from three purification trials were stored at -20 ℃.

The impregnation method (Ho et al. 1996) was used to test the toxicity of the purified products against hybrid bamboo. The clean shoots were cultured in solution containing 1 mL of 100 μg/mL of each purified compound in centrifuge tubes. The symptoms (wilting and brown discoloration) of the branches and leaves were surveyed after culturing at 22 ℃ for 24 h (12 h light and 12 h dark). Each treatment was repeated three times.

Assay of the purity of the toxin

TLC and HPLC were used to test the purity. In TLC, after developing on the TLC, the purified compound was stained with phosphomolybdic acid hydrate and iodine vapour. For HPLC, the purified compound was analysed using an 1101LC system (Agilent, USA) with automatic sampler (G1316A) and variable wavelength detector (G1314A) set to absorbance at 276 nm. The HPLC column was a VPODS C18 5 lm reversed-phase capillary chromatography column (4.6 mm × 150 mm). The eluent was a mixture of A and B phases (A phase: 65 % acetonitrile; B phase: 35 % H₂O) at a flow rate of 1.0 μL/min with a linearity of 10 lL at 30 ℃. The DBP standard was obtained from Beijing Beihua Hengxin Technology Co. Ltd. (China).

Identification of the toxin structure

For mass spectrometry (MS) analysis, the selected sample (AP-1) was scanned using a MS-QP2010 Plus MS (Shimadzu, Japan) with electron impact ionisation (EI). The voltage of the ionisation chamber was 70 eV and the temperature was 250 ℃. Both ¹H and ¹³C nuclear magnetic resonance (NMR), with distortionless enhancement by polarisation transfer (DEPT) and heteronuclear multiple quantum coherence (HMQC) NMR (Unity Inova, 400 MHz; Varian, USA), were obtained for AP-1 in the solvent CDCl₃. The internal standard was (CH₃)₄Si. For infrared (IR) spectroscopic analysis, the IR absorption spectrum was analysed using a 170 SX IR spectrophotometer (Nicolet, USA) with disc-formed samples of KBr.

Bioassay

Puncture assay (Cuq et al. 1993) was used to test the symptoms induced by A. phaeospermum (5 × 10⁶ CFU/ mL), the purified toxin (100 μg/mL), or standard dibutyl phthalate (100 μg/mL) to bamboo joints in the field. Control plants were treated with an equal volume (1 mL) of the following: 1) sterile distilled water and 2) sterile distilled water cultured under the same condition as toxin. Each treatment protocol was repeated on 50 plants. After 5, 10, 15, and 20 days, the numbers and areas of brown rhombic spots on the stems were recorded.

The spot area was calculated using the following formula: S (cm²) = (a × b)/2 (S: rhombic spot area; a, b (cm): two diagonals). All data were subjected to one-way ANOVA to determine the significance of individual differences at p < 0.05. Significant differences between means were computed using the LSD post hoc test. All statistical analyses were conducted using the SPSS commercial statistical package (SPSS, Version 13.0 for Windows, SPSS Inc., Chicago, USA).

Results Optimal developing solvent

Only four solvent combinations yielded at least five clear spots on the TLC plates. Among these combinations, we determined that methanol: ethyl acetate: H₂O at 7:1.5:3 was the optimal ratio as determined by the Rf values (Table 1).

Purified toxins and their activity

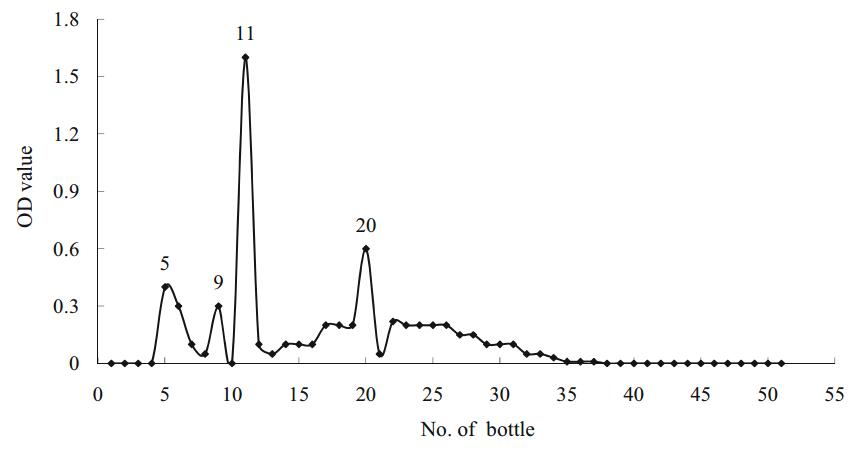

From the crude toxin cultured from mycelia, we collected 51 separate volumes that attained a maximum absorption at 276 nm during the entire elution time (4 days). The optical density of compound No.11 was the highest, whereas Nos. 5, 9 and 20 were in the mid-range. No substance was found above sample No. 38 (Fig. 1).

Compound No. 11 was obtained as a flaxen oily transparent liquid (A1) and showed one spot on TLC (Fig. 2). This sample also had the highest bioactivity (Table 2) and turned the stems of hybrid bamboo to brown and caused the leaves to wilt. The sensitivity of leaves was higher than that of branches (Table 2). After treatment with compound A1 for 24 h, the leaves exhibited chlorisis, wilting, and putrescence. By contrast, treatment with another toxin (compound A2, a white powder isolated from sample No. 20) did not evoke this response until 72 h after application. After 5 days, wilting was observed (Fig. 3), and compound No. 11 yielded the most serious wilting. Based on these results, compound No. 11 was subjected to structural analysis.

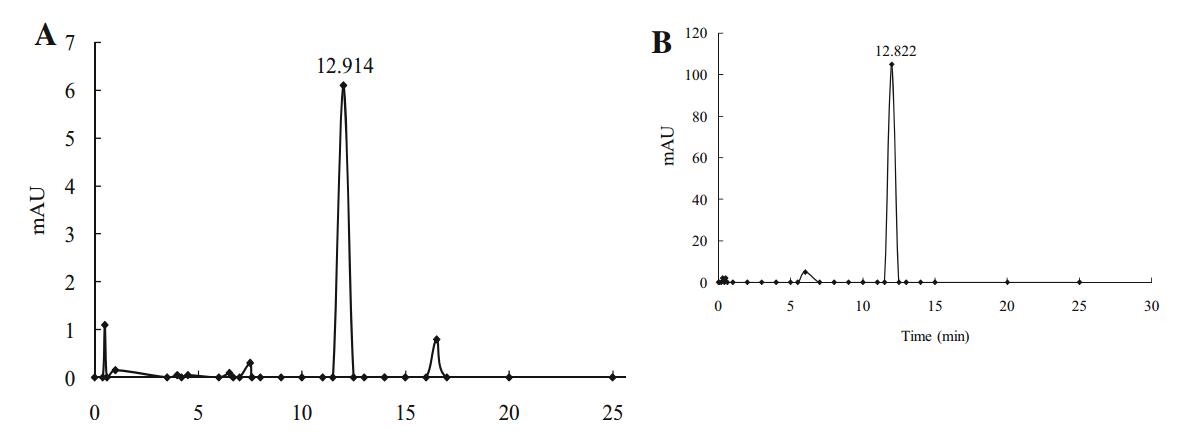

HPLC analysis of A1 showed that this compound had an absorption peak at 12.914 min (Fig. 4a) and was designated as AP-Ⅰ according to the naming conventions for plant pathogenic toxins. Compared with the HPLC results of standard substances (Fig. 4b), AP-Ⅰ was presumed to be dibutyl phthalate.

Structure of the toxin AP-Ⅰ

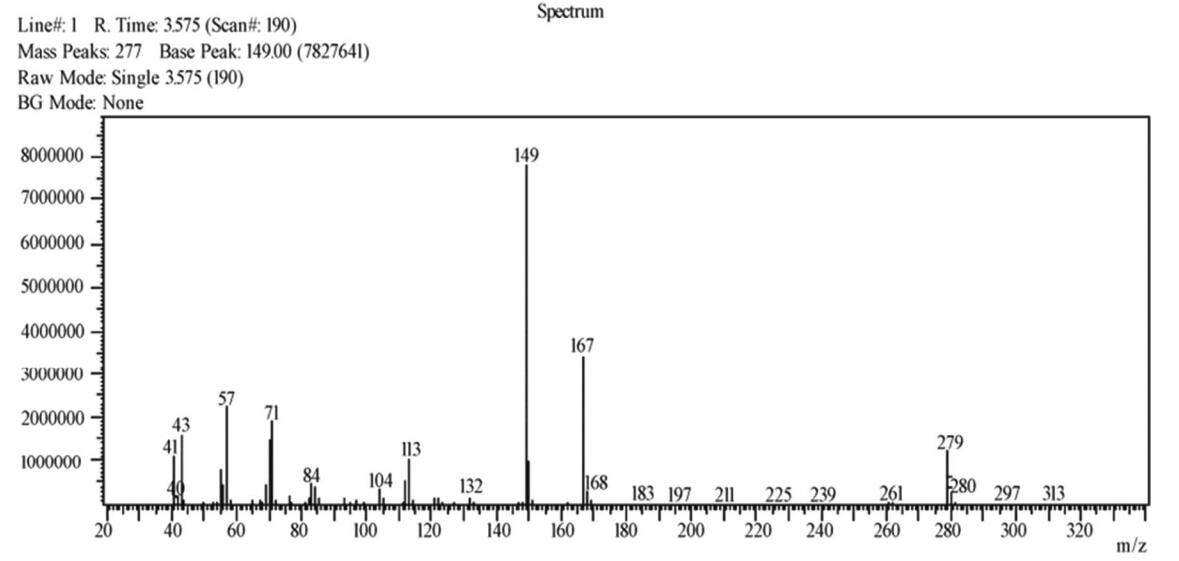

MS (Fig. 5) revealed the peaks of the cracking ions of carboxylate carbonyl carbon at m/z 43, 57, and 71, and phthalate base at m/z 149, which was considered for the characterisation of phthalate ester with lateral chains larger than two carbons. Considering an [M+H]⁺ ion peak at 279, the molecular weight of AP-Ⅰ was inferred to be 278.

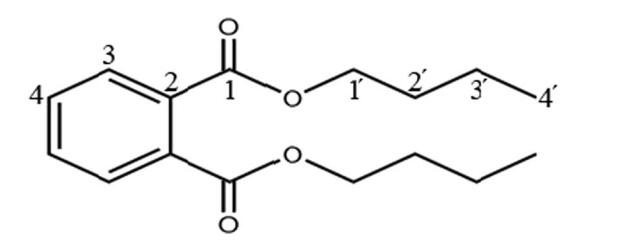

NMR analysis (Table 3) indicated the presence of two methyl groups, six methylene units (two O-bearing methylenes), four sp² aromatic carbons, two sp² quaternary carbons and two carbonyl carbons. The ¹H NMR spectrum showed a characteristic AA'BB' system at δ7.71 (2H, dd, J = 9.12, 2.11 Hz) and 7.26 (2H, dd, J = 8.78, 2.63 Hz), as well as ¹³C NMR data at δ132.47 (s), 128.79 (d) and 130.86 (d), which indicate that the compound had a diortho-substituted aromatic ring.

IR spectrum showed a –C–(CH₂)₂–CH₃ group (2860.09–2959.55 cm^-1 indicated ν_CH, 1380.59 and 1463.40 cm^-1 indicated δ_CH3 and δ_CH2), an aromatic system (3070.53, 1600.09, and 742.78 cm^-1), and an ester moiety (1731.80 and 1271.03 cm^-1), which indicate carbonyl and phenyl functional groups. These data suggest that compound AP-Ⅰ was dibutyl phthalate. The structural formula is illustrated in Fig. 6.

Activity of the toxin AP-Ⅰ

The symptoms induced by toxin AP-Ⅰ were compared with those induced by A. phaeospermum and dibutyl phthalate in naturally growing bamboo (50 plants each). Brown rhombic spots appeared on the stems of all 150 plants treated. Moreover, the spot areas of AP-Ⅰ-treated plants were not significantly different from those produced by DBP throughout the observation period. By contrast, AP-Ⅰ-induced spots were larger than those produced by A. phaeospermum treatment before day 10, but similar after day 15 (Table 4). This difference in response time may reflect the slower action of the live pathogen compared with the purified toxic metabolite. With respect to the shape, area, and colour of these disease spots, the results suggest that the toxin AP-Ⅰ was the main pathogenic factor of A. phaeospermum, and it was verified to be dibutyl phthalate.

Discussion

Many studies have reported on the pathogenic toxins produced by fungi (Ueno et al. 1973; Brain and Harold 1994; Shizawa et al. 1995; Ostry and Anderson 2009). However, the toxins from pathogenic A. phaeospermum have not been identified. Bloor (2008) demonstrated that A. phaeospermum can produce arthrinic acid while infecting humans, which indicated that the toxic substance is a polyhydroxy acid (PHA). However, we found that this fungus produced a novel ester phytotoxic compound, dibutyl phthalate.

TLC and HPLC analyses showed two active toxic compounds, namely, AP-Ⅰ (a flaxen oil) and AP-Ⅱ (a white powder), with AP-Ⅱ being the less toxic compound. Thus, compound AP-Ⅰ was considered to be the pathogenic factor that caused the typical lesions on hybrid bamboos. Moreover, a previous study confirmed that dibutyl phthalate can be produced by Micromonospora sp. on a halophyte (Shi et al. 2005), Streptomyces albidoflavus (Roy et al. 2006), Cryphonectria parasitica (Han and Zhu 2009) and Enterobacter sp. (Fang et al. 2010). Further tests by MS, NMR, and IR spectroscopy indicated that compound AP-Ⅰ was dibutyl phthalate (C₁₆H₂₂O₄, molecular weight = 278). In addition, the bioassay reconfirmed that AP-Ⅰ was the pathogenic factor dibutyl phthalate.

In the process of purification, bioactive substances produced in low amounts can be easily lost. Many of these rare compounds, or their combinations, can still cause plant damage (Zhu et al. 2005). However, once these multiple compounds are separated from each other, their bioactivities become weak or are lost completely and un-detected using a bioassay (Zhang et al. 2003; Zhu et al. 2003). Similarly, our results show that the activity and action sites of different compounds were distinct, suggesting that plant diseases could be caused by different compounds acting separately or synergistically. Moreover, the purified toxin produced a much more rapid pathological response than the fungal infection, which was probably due to the higher concentration of toxin in the bioassay solution than the concentration of toxin released quickly from the natural pathogen.

In conclusion, highly toxic dibutyl phthalate was isolated from A. phaeospermum. This study is the first report on the production of non-protein toxin by A. phaeospermum, which also causes bamboo blight. Further preparation and isolation are required to assess the toxic activity of this and other compounds, alone and in combination. Furthermore, the natural concentration and action site should be studied. These results provide the foundation for studies on the pathogenic mechanisms of A. phaeospermum and may lead to methods for inactivating this toxin and rescuing ecologically valuable bamboo hybrids.

Acknowledgments

This research was supported by the National Natural Science Foundation of China (31070578) and the National Natural Science and Technology Resources Sharing Platform of China (2005DKA21207-13).
