He Wenjie, Jing Lin, Zhang Wendong, Dong Xing'an, Zou Yan, Liu Xin, Lv Xin, Chen Peng, Liao Jiazhen, Zhang Xiao, Xiao Rong, Wei Yuechang. Plasmonic metallic Bi-modified defective Bi₄Ti₃O₁₂ nanosheets with upward migrating electrons for efficient photocatalytic NO removal and NO₂ inhibition[J]. Chin. Chem. Lett., 2026, 37(2): 111357

Wenjie He^a,b, Lin Jing^a, Wendong Zhang^c, Xing'an Dong^b,d, Yan Zou^b, Xin Liu^a, Xin Lv^a, Peng Chen^c, Jiazhen Liao^a,*, Xiao Zhang^c, Rong Xiao^c, Yuechang Wei^e,*

Over the past half-century, photocatalysis has been widely applied to environmental control [1-3], including antibiotic degradation [4], VOCs removal [5], and Cr(VI)-containing wastewater purification [6]. The performance of photocatalytic reactions depends on factors such as light absorption, electron-hole separation, active radical generation, and surface oxidation capacity. To enhance photocatalytic performance, the photoelectric properties of materials must be adjusted, typically by introducing heteroatoms or composites to disrupt the material's charge balance, thereby improving light absorption, charge separation, and carrier migration [7-10].

The efficient generation of surface-active radicals is essential for pollutant degradation, which requires rapid light response and carrier transfer to the catalyst surface. Researchers have optimized material properties through ion doping, metal loading, and defect construction to improve performance [11-14]. For low-concentration atmospheric NO purification, low-energy consumption photocatalysis is an ideal choice [15]. However, in continuous flow reactors, the catalyst's deep oxidation capacity is limited, and surface deactivation caused by by-products affects NO degradation efficiency [16, 17]. Additionally, the by-product NO₂, is more toxic than NO, so its suppression in photocatalysis process is crucial for effective NO purification. Bi₄Ti₃O₁₂ is an Aurivillius-type layered compound with a high oxidation potential due to the hybridization of Bi 6s and O 2p orbitals, making it a suitable catalyst for NO degradation [18-22]. Modification of Bi₄Ti₃O₁₂ with plasmonic metallic bismuth, can improve light absorption and electron mobility [23-25]. Meanwhile, defect sites are often constructed on the surface/interface of materials to decrease the band gap [26-29], and oxygen vacancies (OVs) are the most common defect sites usually constructed for oxide semiconductor modification, which can play the electrons enrichment center for boosting the generation of active radicals [30-33].

In this work, we developed Bi₄Ti₃O₁₂ nanosheets modified with plasmonic metallic bismuth and oxygen vacancies by in-situ reduction. This modification significantly enhanced the photoelectric properties of the material. The optimized catalyst, BTOR2, demonstrated superior performance in removing ppb-level NO and suppressing NO₂ generation compared to unmodified Bi₄Ti₃O₁₂. Mechanisms for active radical generation and deep oxidation were elucidated through electron spin resonance (ESR) and in-situ DRIFTS analyses. This study offers insights into enhancing radical generation and pollutant purification via photocatalysis.

Phase analysis is shown in Fig. 1a, the X-ray diffraction (XRD) patterns of Bi₄Ti₃O₁₂ (BTO) and Bi-modified defective Bi₄Ti₃O₁₂ nanosheets (BTORX, X = 1, 2, 3 refer to NaBH₄/Bi₄Ti₃O₁₂ molar ratios of 20%, 40%, and 60%, respectively) display typical diffraction peaks at 2θ = 23.3°, 30.1°, 32.8°, 39.7°, 47.3°, and 57.2°, corresponding to orthorhombic Bi₄Ti₃O₁₂ (JCPDS No. 35-0795). After reduction treatment, a new peak at 2θ = 37.2°, attributed to hexagonal metallic Bi (JCPDS No. 44-1246), appears in BTOR1, BTOR2, and BTOR3, confirming the successful introduction of metallic Bi. The electron paramagnetic resonance (EPR) analysis was used to quantify oxygen vacancies (OVs) in BTO and BTOR2. Under dark conditions, a Lorentzian line with g = 2.003 was observed (Fig. 1b), indicating OVs exist in as-synthesized catalysts [34]. BTOR2 exhibited a stronger magnetic signal than BTO, reflecting higher OVs density due to NaBH₄ reduction. OVs can create defect levels, promoting electron transfer between valence and conduction bands, aiding radical species generation [35]. Under 10-min light irradiation, BTOR2 showed a stronger increase in magnetic signal than BTO, indicating higher carrier mobility of BTOR2 under light. All materials exhibited thin sheet-like morphologies (~50 nm thickness, Fig. S1 in Supporting information) with intact structures after reduction (Figs. 2a-e, and h). At 10 nm resolution, BTOR2 showed a heterostructure with metallic Bi clusters (~5 nm, marked in yellow) distributed on Bi₄Ti₃O₁₂ nanosheets (Fig. 2i), while BTO displayed a uniform structure (Fig. 2f). Lattice fringes with spacings of 2.7248 Å and 0.9277 Å correspond to the (200) facet of orthorhombic Bi₄Ti₃O₁₂ and the (2110) facet of hexagonal Bi, respectively (Figs. 2g and j). These results confirm the successful synthesis of metallic Bi-modified defective Bi₄Ti₃O₁₂ nanosheets.

Figure 1

	Download: JPG larger image

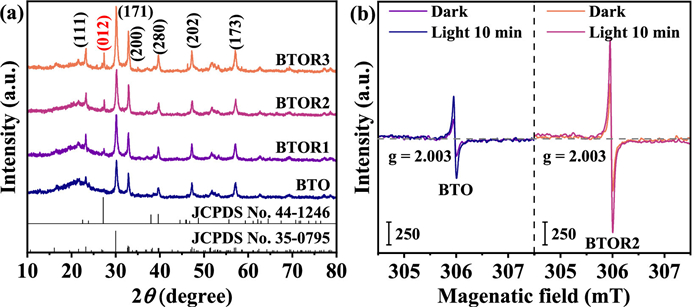

Fig. 1. (a) The XRD pattern of BTO and BTORX (X = 1, 2, 3). (b) The low-temperature solid-state EPR spectra of BTO and BTOR2.

Figure 2

	Download: JPG larger image
Fig. 2. The scanning electron microscope (SEM) images of BTO (a), BTOR1 (b), BTOR2 (c) and BTOR3 (d). Transmission electron microscope (TEM) and high-resolution transmission electron microscope (HRTEM) images of BTO (e-g) and BTOR2 (h-j).

X-ray photoelectron spectroscopy (XPS) analysis was conducted to study the surface composition of BTO and BTORX (X = 1, 2, 3). The XPS survey spectra (Fig. S2a in Supporting information) show Bi, Ti, O, and C elements, confirming the purity of materials. High-resolution spectra for Bi, Ti, and O are shown in Figs. S2b-d (Supporting information). Peaks at 164.4 eV and 159.1 eV correspond to Bi³⁺ (Bi 4f_5/2, 4f_7/2). Metallic Bi peaks were undetected, possibly due to surface oxidation in air. Peaks at 466.2 eV, 464.0 eV, and 458.1 eV correspond to Bi 4d_3/2 (Bi³⁺) [36], Ti 2p_1/2 (Ti⁴⁺), and Ti 2p_3/2 (Ti⁴⁺), respectively. The O 1s spectrum shows lattice oxygen peaks (530.3 eV, 529.8 eV) assigned to Ti-O and Bi-O bonds, and a 532.8 eV peak for adsorbed oxygen (O-H or H₂O). These results confirm the chemical composition of the materials.

The photocatalytic NO purification performance of BTO and BTORX (X = 1, 2, 3) was evaluated by the removal of ppb-level NO and the increment of NO₂ under light irradiation in a continuous flow reactor. C_NO/C₀ represents the variation of NO concentration. As shown in Fig. 3a, all materials responded to light and decreased the concentration of the NO within 5 min. The NO removal rates after 30 min for BTO, BTOR1, BTOR2, and BTOR3 were 40.5%, 46.5%, 62.3%, and 53.1%, respectively. The modified Bi₄Ti₃O₁₂ materials outperformed the original Bi₄Ti₃O₁₂, and BTOR2 achieving the highest NO removal efficiency of 62.3% (For comparison, see Table S1 in Supporting information). The NO₂ increments after 5 min of illumination were 195, 20, 10, and 405 ppb for BTO, BTOR1, BTOR2, and BTOR3, respectively (Fig. 3b). The release of toxic NO₂ by BTO and BTOR3 poses health risks, limiting their practical application. The formation of NO₂ is effectively inhibited and NO purification is improved for BTOR2, it indicates that the surface oxidation properties of Bi₄Ti₃O₁₂ are optimized by metallic Bi and oxygen vacancies. Stability tests showed that BTOR2 has application potential, and its performance remained stable after five cycles (Fig. S3 in Supporting information).

Figure 3

Download: JPG larger image

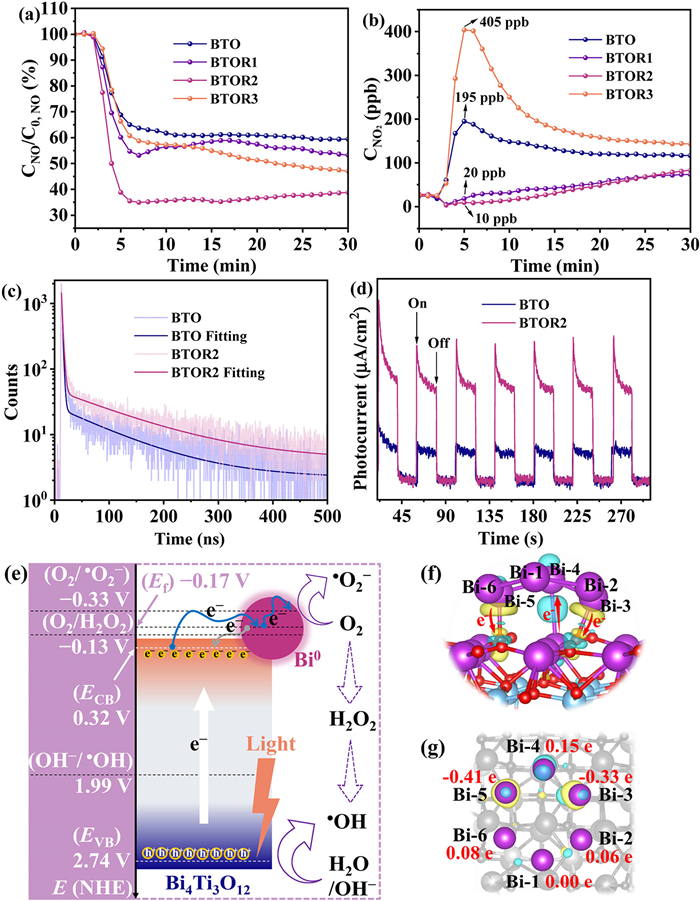

Fig. 3. Time-dependent NO concentration for BTO and BTORX (X = 1, 2, 3) (a) and corresponding NO2 increments (b). The ns-level time-resolved fluorescence spectra (c), photocurrent density vs. irradiation time (d) for BTO and BTOR2. The photocatalytic active radical species generation process over Bi/Bi4Ti3O12-OVs (e). The charge density difference (f) and Bader charge (g) between Bi4Ti3O12 and metallic Bi.

The efficiency of light absorption and electron-hole pair separation are key factors in photocatalytic performance. The UV-vis DRS spectra (Fig. S4a in Supporting information) show that as the reducing agent amount increased, the light absorption edges of BTORX (X = 1, 2, 3) catalysts occurred red-shifted, and the visible light response also increased. It is due to the localized surface plasmon resonance (LSPR) effect of metallic Bi, and the increased absorption confirms more plasmonic metallic Bi presence in modified Bi₄Ti₃O₁₂. According to the evaluated band gaps (Fig. S4b) and empirical equations (Eqs. S1 and S2 in Supporting information), the E_CB and E_VB edges of Bi₄Ti₃O₁₂ are calculated to be 0.32 V and 2.74 V, respectively (Supporting information). Figs. S4c and d (Supporting information) show the Bi-O and Bi-Bi bonds in different perspectives (View-1 and View-2 in Supporting information), the electron localized function of Bi/Bi₄Ti₃O₁₂-OVs demonstrates strong interaction (marked in red) between Bi₄Ti₃O₁₂ and metallic Bi, aiding the transfer of carriers. The charge carrier lifetime is 2.36 ns for BTOR2, longer than the 1.83 ns for BTO (Fig. 3c), indicating better charge mobility. Fig. 3d shows fast photocurrent rise and decay during light-dark cycles, with BTOR2 achieving a higher current than BTO, indicating efficient charge separation and rapid electron migration. The heterojunction between metallic Bi and Bi₄Ti₃O₁₂ effectively separates e⁻/h⁺ pairs and promotes carrier transfer.

The process of photocatalytic active radical generation over Bi/Bi₄Ti₃O₁₂-OVs is illustrated in Fig. 3e. Electron-hole pairs generated in Bi₄Ti₃O₁₂ under light illumination. The E_VB of Bi₄Ti₃O₁₂ (2.74 V) is more positive than the redox potential of OH⁻/^•OH (1.99 V), enabling the generation of ^•OH radicals from adsorbed H₂O/OH⁻ by holes. The DFT calculation results of charge density difference (Fig. 3f) and Bader charge (Fig. 3g) are analyzed. The quantification and visualization results demonstrate that electrons could transfer between Bi₄Ti₃O₁₂ and metallic Bi. The free electrons of metallic Bi (Fermi level is -0.17 V) transfer to the conduction band (E_CB = 0.32 V) of Bi₄Ti₃O₁₂. Meanwhile, the free electrons of Bi₄Ti₃O₁₂ also can jump to metallic Bi by light stimulation in theory. Importantly, the free electrons could be further transited to a more negative energy level than the redox potential of O₂/^•O₂⁻ (-0.33 V) through the light-induced LSPR effect. Thus, the adsorbed O₂ could be oxidized to ^•O₂⁻ radicals or H₂O₂ species (O₂ + 2e⁻ + 2H⁺ → H₂O₂), and the H₂O₂ species could be further transformed into ^•OH radicals. In summary, ^•OH and ^•O₂⁻ radicals are the primary active species responsible for NO oxidation.

ESR analyses were performed on Bi₄Ti₃O₁₂ and BTOR2 to trace active radical species. The results (Figs. 4a and b) show no signal in the dark. Under light, both BTO and BTOR2 exhibit six characteristic peaks of DMPO-^•O₂^-, with BTOR2 showing stronger intensities (Fig. 4a). Additionally, four characteristic peaks with a 1:2:2:1 intensity ratio were assigned to the DMPO-^•OH adduct, with BTOR2 displaying stronger signals than BTO again (Fig. 4b). The results indicate that metallic Bi and oxygen vacancies enhance the production of ^•O₂^- and ^•OH radicals.

Figure 4

	Download: JPG larger image

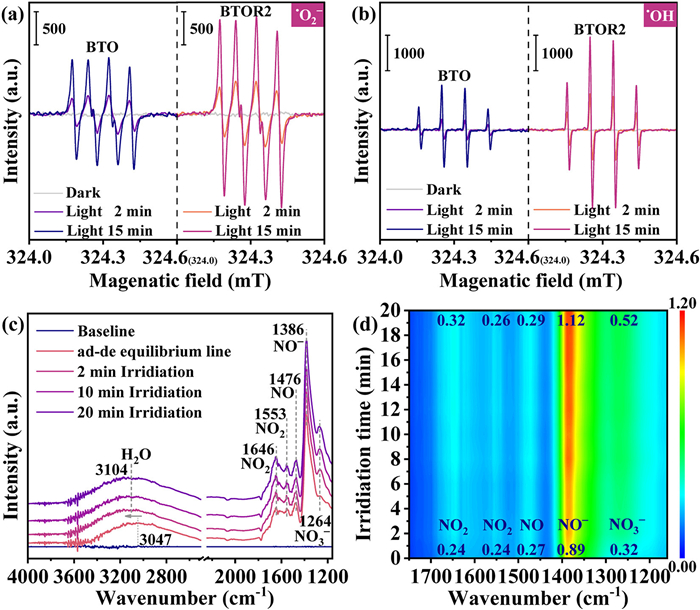

Fig. 4. DMPO spin-trapping ESR spectra of BTO and BTOR2 methanol dispersion for DMPO-•O2− (a) and aqueous dispersion for DMPO-•OH (b). In-situ DRIFTS of photocatalytic NO oxidation over BTOR2 (c) and the heat map of the characteristic peaks change with light exposure time (d).

Based on the described mechanism and experimental findings, the improved photocatalytic efficiency of Bi/Bi₄Ti₃O₁₂-OVs composites is attributed to the combined influence of metallic Bi and oxygen vacancies. The photosensitive electrons of Bi₄Ti₃O₁₂ will gather on the metallic Bi and migrate upward, thus the LSPR effect of metallic Bi can enhance the surface oxidation performance of the material.

An in-situ DRIFTS experiment was conducted at a gas flow rate of 25 mL/min (C_NO = 50 ppm) to study the photocatalytic NO oxidation mechanism on Bi/Bi₄Ti₃O₁₂-OVs. Fig. 4c shows the time-dependent infrared characteristic peak evolution under light. The baseline represents the background after subtracting the initial material surface peak under the helium atmosphere. After the adsorption and desorption equilibrium was reached on the surface of BTOR2, a series of characteristic peaks appeared (Table S2 in Supporting information). The broad peak at 3047 cm^-1 is assigned to adsorbed H₂O (O-H stretching vibration) [37], and peaks at 1476 cm^-1, 1646 cm^-1, and 1553 cm^-1 correspond to NO and NO₂ molecules [38, 39]. The NO molecule is activated into NO^- (detected at 1386 m^-1) after electron transfer [40, 41]. Under light irradiation, the H₂O peak shifts to 3104 cm^-1, indicating enhanced adsorption strength and contributing to ^•OH radical generation. The NO₃^- peak at 1264 cm^-1 [42] confirms the deep photocatalytic oxidation of NO to NO₃^-. Fig. 4d shows the heat map of peak changes with light exposure time. After illumination, NO and NO₂ accumulate slightly, while NO^- intensity increases from 0.89 to 1.12, indicating the activation of NO to NO^- and subsequent oxidation to NO₃^-. The intensity of NO₃^- increased from 0.32 to 0.52, confirming successful purification of NO/NO₂.

In summary, this work presents a unique plasmonic metallic Bi-modified defective Bi₄Ti₃O₁₂ nanosheets catalyst. The LSPR effect of metallic Bi and the abundant oxygen defects in the as-synthesized Bi/Bi₄Ti₃O₁₂-OVs materials lead to enhanced visible light absorption and improved photogenerated carrier migration compared to the original Bi₄Ti₃O₁₂. DFT calculations of the electron local function reveal a strong interaction between the surface metallic Bi and the Bi₄Ti₃O₁₂ substrate, facilitating the transfer of photogenerated carriers. Moreover, the quantitative Bader charge and visualize charge density difference analysis results further demonstrate that free electrons can migrate from Bi₄Ti₃O₁₂ to metallic Bi, with subsequent jump to higher energy level beyond the E_redox of O₂/^•O₂^-, promoting conversion of O₂ to ^•O₂^- radicals. The in-situ DRIFTS analysis demonstrates that the Bi/Bi₄Ti₃O₁₂-OVs can respond to light rapidly for the adsorption strength enhancement of H₂O molecules, which benefits the generation of ^•O₂^- radicals. The key intermediate species, NO^-, was further traced, and its highly reducing state leads it to be oxidized to NO₃^- more readily than NO. The results show that the optimized metallic Bi-modified defective Bi₄Ti₃O₁₂ nanosheets catalysts exhibit excellent photocatalytic performance (62.3%) while minimizing toxic NO₂ formation for stable deep NO oxidation. This study offers significant insights that can enhance research on effective photocatalysts for controlling air pollution.
