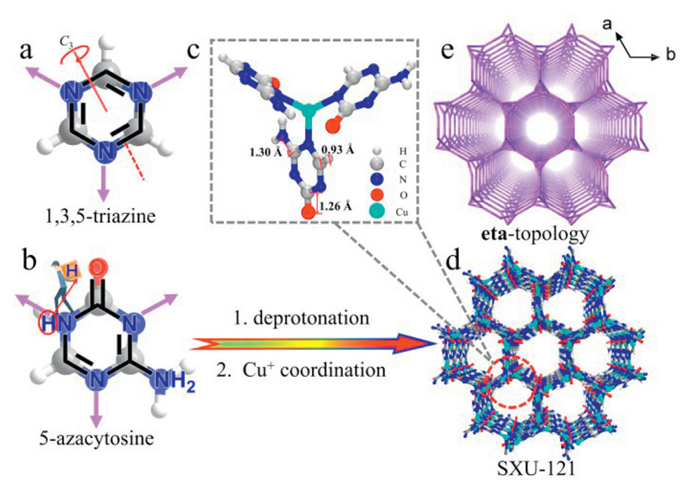

The three N atoms on 1,3,5-triazine ring possess excellent coordinating abilities and high C₃ symmetry distribution (Fig. 1a), they offer a unique advantage in synthesizing highly symmetrical metal-organic frameworks (MOFs) like eta, pto, bor topology [1–3]. Compounds containing 1,3,5-triazine rings such as melamine and its derivatives, typically are very common industry products and have very low costs and high stability, making them highly promising for the synthesis of low-cost, high-stability MOFs [4–8]. However, current researches predominantly involves the direct coordination of neutral 1,3,5-triazine rings, which leads to MOFs with insufficient stability and large amount of counter ions which block the MOF pores, hindering the performance of related MOFs on many aspects, especially gas adsorption and separation [9–11]. Consequently, the challenge of synthesizing stable and porous MOFs containing 1,3,5-triazine rings remains a significant and meaningful research topic.

Inspired by the ligands like imidazolates, triazolates or pyrazolates in the metal azolate frameworks [12–15], which are known for their outstanding stability, we envision to select ligand with protonated nitrogen atoms on the 1,3,5-triazine ring to overcome the stability problems of 1,3,5-trizine based MOFs. By removing the protons and allowing the ring nitrogen atoms to coordinate with metal ions, we can directly obtain neutral 1,3,5-triazine based MOF materials while significantly enhancing their stability and keeping their permanent porosity. But how can we introduce protons onto the nitrogen atoms? It is found that the hydroxypyridine moiety possesses two tautomers, one of which allows the nitrogen atom to become protonated in the -keto tautomer form [7,16–18]. Therefore, if hydroxyl groups can be introduced onto the carbon atoms of the 1,3,5-triazine ring, it should exhibit similar tautomers. Based on the above consideration, we focused our attention on a compound with a hydroxyl group on the triazine ring: 5-azacytosine (Fig. 1b). It is expected to hold the potential to construct stable, porous 1,3,5-trizine based target MOFs.

In this study, by reacting 5-azacytosine with copper ions under solvothermal conditions, we have synthesized a neutral ultramicroporous Cu(Ⅰ) framework SXU-121. This MOF showcases an eta-topology with permanent porosity and high density of Cu(Ⅰ) open sites. SXU-121 could retain its structural stability after 1 day in boiling water, demonstrating the feasibility of using 1,3,5-triazine ring derivatives as organic ligands to construct highly stable MOFs. Moreover, SXU-121 demonstrates high CO₂ adsorption capacity and CO₂/N₂ adsorption selectivity at 298 K. This will open the avenue for constructing a class of metal-triazine framework materials with a wide range of functionalities.

Transparent, needle-shaped crystals of SXU-121 were obtained by solvothermal reaction of Cu(NO₃)₂·3H₂O and 5-azacytosine in N,N-dimethylformamide (DMF) solvent at 120 ℃ for 3 days (30% yield, materials and synthetic procedures please refer Supporting information). Single-crystal X-ray diffraction analysis revealed that SXU-121 crystallizes in the trigonal crystal system with the space groups of P3₂21 (Table S1 in Supporting information). In SXU-121, each asymmetric unit includes one Cu⁺ and one deprotonated 5-azacytosine. One negatively charged N atom on the 1,3,5-triazine ring forms a charge-assisted coordination bond with the Cu(Ⅰ) ion, with a bond length of 1.989 Å. The remaining two N atoms form traditional Cu-N coordination bonds with lengths of 1.996 Å and 2.007 Å (Fig. 1c), respectively. These connections ultimately result in the formation of a neutral framework and 1D hexagonal channels with a pore diameter of 6.19 Å along the crystallographic c-axis (Fig. 1d), exhibiting a 3-connected eta-topological structure (Fig. 1e). The nitrogen atom of the amino group forms hydrogen bond with the oxygen on adjacent carbonyl group of the triazine ring (N-H⋯O, 2.97 Å, 166.14°) (Fig. S1 in Supporting information), which may be critical in inducing SXU-121 synthesis. The C═O double bond can be verified through the C═O bond length of 1.26 Å and the appearance of the absorption peak in Fourier transform infrared (FI-IR) spectroscopy at 1629 cm⁻¹ (Fig. 2a), suggesting that 5-azacytosine ligand is presented as a carbonyl tautomer form. Similarly, the presence of this absorption peak is observed at the same position of SXU-121 (Fig. 2a), indicating that the C═O double bond is still retained in SXU-121. In the high-resolution X-ray photoelectron spectroscopy (XPS) of Cu 2p for SXU-121, the existence of the Cu⁺ with binging energies of 953.4 and 933.3 eV and the existence of the Cu²⁺ with binging energies of 956.1 and 935.4 eV suggest that a small amount of monovalent copper were oxidized to divalent copper during the crystal synthesis process (Fig. 2b). The Cu LMM Auger emission spectroscopy displays Cu LMM peaks with kinetic energy of 571.8 eV and 569.4 eV (Fig. 2c) giving further evidence that the presence of monovalent and bits of divalent copper in SXU-121. The pore size of SXU-121 is 6.19 Å as predicted by the Zeo++ software, classifying it within the ultramicroporous category [19]. The theoretical porosity of SXU-121 is 53.9% based on PLATON calculations with a probe radius of 1.8 Å [20].

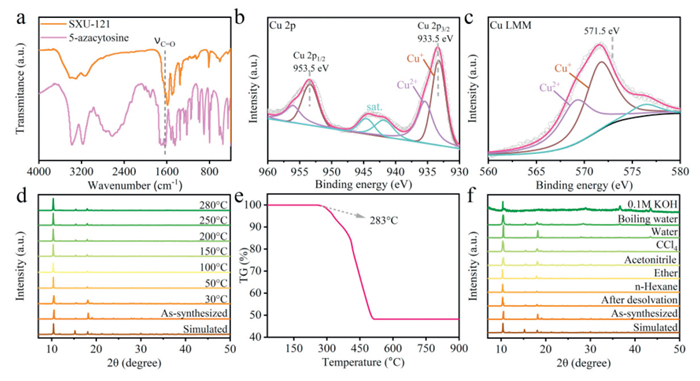

The purity of bulk crystalline SXU-121 was confirmed through good accordance with the powder X-ray diffraction (PXRD) pattern simulated from the crystallographic information files (Fig. 2d). The thermal stability of SXU-121 was explored by thermogravimetric (TG) analysis combined with variable temperature powder X-ray diffraction (VTXRD). The TG curves revealed that the framework remains stable up to 280 ℃ as the temperature increases. SXU-121 underwent a two-step weight loss after 280 ℃ (Fig. 2e). The first step of weight loss occurred between 283 ℃ and 400 ℃ with continued exothermic reactions taking place in this interval, which is thought to be due to the polymerisation process of the organic ligand. The second step of weight loss occurred above 400 ℃ and is accompanied by a continuous exothermic reaction, which can be attributed in part to the decomposition of the polymer generated above. Furthermore, the consistent PXRD patterns at different temperatures confirm that SXU-121 can remain stable above 280 ℃ (Fig. 2d). To evaluate the chemical stability of SXU-121, the as-synthesized materials were treated under various conditions. After SXU-121 samples were placed in water, boiling water, 0.1 mol/L KOH solution, pH 2 solution and various organic solvents (n-hexane, ether, acetonitrile, CCl₄) for 24 h, the chemical stability of SXU-121 was then explored by PXRD experiments. Under pH 2 acidic conditions, the structure tends to collapse, with noticeable changes observed in the PXRD pattern (Fig. S2 in Supporting information). Apart from this, the structure could be well retained after 24 h of treatment within other solutions or solvents except for 0.1 mol/L KOH solution with crystallinity decreased (Fig. 2f).

Prior to single component gas adsorption test, the SXU-121 sample was first activated. Approximately 100 mg of freshly synthesized SXU-121 crystals was placed in a 20 mL glass vial, repeatedly washed with dimethylformamide (DMF) under ultrasonication, and then immersed in 20 mL of ethanol for 72 h at ambient temperature. Throughout this period, the ethanol was refreshed every 12 h. Subsequently, the single crystals were filtered and subjected to vacuum drying treatment at 100 ℃ for 24 h. The PXRD curve of the vacuum dried SXU-121 as shown in Fig. 2f is in accordance with the simulated pattern, confirming its stability after activated. Following this, the vacuum-dried SXU-121 was degassed at 100 ℃ for 12 h and its N₂ adsorption at 77 K was then evaluated. Although the theoretical pore size of SXU-121 (6.19 Å) is larger than the kinetic diameter of N₂ molecule (3.8 Å), the N₂ adsorption isotherm at 77 K demonstrated almost no N₂ adsorption (Fig. 3a). This may be related to the fact that the open pore of SXU-121 has a weak affinity for N₂ which has been reported before [21]. Through adsorption experiment of CO₂ under conditions of 195 K, it was found that at a relative pressure of 1.0, the adsorption capacity reaches 70 cm³/g. The Brunauer-Emmett-Teller (BET) and Langmuir specific surface area were calculated to be 188 and 267 cm²/g, respectively, with a porosity of 9.2%. This performance is far from the results obtained from theoretical calculations. This may be related to the characteristics of the sample itself, and this phenomenon has been reported in the literatures before [22,23].

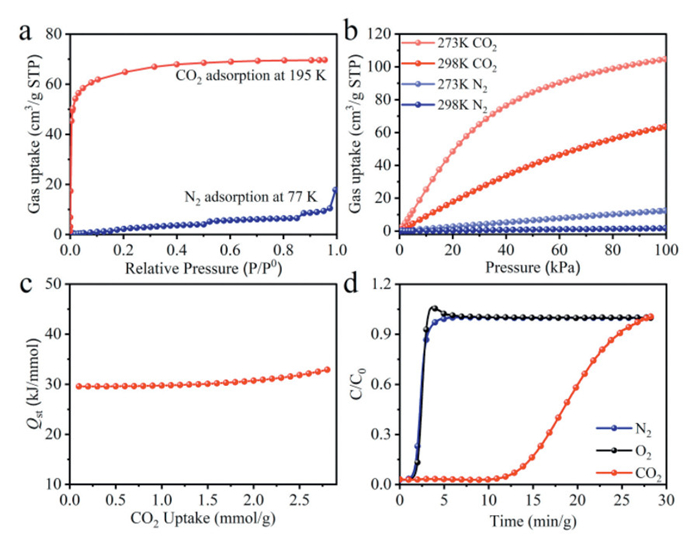

Although N₂ adsorption cannot demonstrate the permanent porosity of SXU-121, the large CO₂ adsorption capacity at ambient temperature does prove that SXU-121 possesses superior porosity (Fig. 3b). Since SXU-121 adsorbs almost no N₂ even at 77 K, it is reasonable to assume that SXU-121 is highly selective for CO₂ over N₂ at ambient temperature. Consequently, we conducted a more detailed study on the single-component adsorption of CO₂ and N₂ at 273 K and 298 K (Fig. 3b). The maximum adsorption amounts of CO₂ reach as high as 104.71 cm³/g and 63.56 cm³/g at 273 K and 298 K at 1 atm, respectively. This adsorption capacity is comparable to that of some well-known MOFs reported in the literature such as PCN-200, SIFSIX-3-Cu, SIFSXI-3-Zn (Table S2 in Supporting information) [24,25]. After the CO₂ adsorption-desorption tests at 298 K, the framework structure of SXU-121 remains intact through its unchanged PXRD pattern (Fig. S3 in Supporting information). By contrast, the maximum uptake of N₂ is only 12.13 cm³/g at 273 K. Specially, under the 298 K condition of our interest, SXU-121 reveals almost no adsorption of N₂ (1.68 cm³/g), which is much less than CO₂ as expected.

Ideal adsorbed solution theory (IAST) was applied to quantitatively calculate the selectivity of CO₂ over N₂. The calculated selectivity of CO₂/N₂ (15/85, v/v) mixtures at 298 K and 1 bar is as high as 9.51 × 10⁷ (Fig. S4 in Supporting information). This value is quite high [23,26–33], possibly due to the extremely low amount of N₂ adsorption, which might cause some deviation in the calculated value (Table S2). However, this also indirectly indicates that the MOF has very high selectivity for CO₂. The affinity toward guest molecules was evaluated by the heat of adsorption (Q_st), according to Clausius-Clapeyron equation. On the basis of the adsorption isotherms at 273 K and 298 K (Fig. S7 in Supporting information), the calculated Q_st of SXU-121 toward CO₂ was slightly increased from 29.56 kJ/mol to 32.91 kJ/mol with CO₂ uptake increasing from 0 to 2.8 mmol/g (Fig. 3c). Such level of Q_st is moderate, indicating that the adsorption of CO₂ is physisorption, which is crucial for reducing energy consumption during CO₂ desorption in practical applications.

In order to validate the practical separation performance, breakthrough experiments have been performed and CO₂/O₂/N₂ feed gas in a volume ratio of 1/21/78 flowed over a packed bed of SXU-121 with a flow rate of 2 mL/min at 298 K (Fig. 3d). The results demonstrated that SXU-121 can effectively separate CO₂ from the mixture under ambient conditions. N₂ and O₂ were first eluted from the outlet with no detectable CO₂ found. CO₂ can be restored in the column until it broke at 9 min/g. From the above experiments, the designed SXU-121 can be deemed as a suitable material for one-step CO₂/N₂/O₂ separation.

The capability of SXU-121 to adsorb single-component gases, specifically light hydrocarbons were also assessed at temperatures of 273 K (Fig. S5 in Supporting information) and 298 K (Fig. S6 in Supporting information). At 298 K and 1 atm, SXU-121 exhibited adsorption capacities of 64.45 cm³/g for C₂H₂, 58.63 cm³/g for C₂H₄, and 61.08 cm³/g for C₂H₆. SXU-121 did not demonstrate significant selective adsorption toward those gases. For C₃H₆ and C₃H₈, the adsorption capacities were 31.07 cm³/g and 8.74 cm³/g, respectively. Although both of the adsorption capacity are not high, they exhibit significant selective adsorption for C₃H₆ compared to C₃H₈. IAST calculation was also applied to estimate the selectivity of C₃H₆/C₃H₈ (50/50, v/v). The calculated selectivities of C₃H₆/C₃H₈ for equimolar binary mixtures at 298 K and 1 bar was 1.68 × 10⁷ (Fig. S8 in Supporting information). Under identical conditions, the CH₄ adsorption amount of SXU-121 is 18.20 cm³/g, which is much lower than that of C₂H₂, meaning that SXU-121 has a certain degree of selectivity to C₂H₂, and it has the prospect of biogas purification application. The calculated selectivity of C₂H₂/CH₄ for equimolar binary mixtures at 298 K and 1 bar is 14.59 (Fig. S9 in Supporting information).

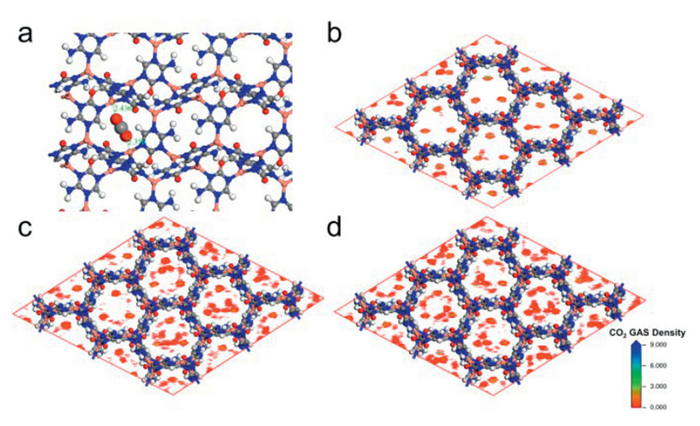

To elucidate the mechanism of interactions between SXU-121 framework and CO₂ gas molecules, we employed Grand Canonical Monte Carlo (GCMC) simulations using the crystallographic information file of SXU-121 as the input model. The computational results, as shown in Fig. 4a, indicate that the adsorbed CO₂ molecules were most preferentially adsorb between two open Cu(Ⅰ) sites. The distances between the two oxygen atoms of the CO₂ molecule and the adjacent Cu(Ⅰ) are 2.356 Å and 2.436 Å, respectively. These distances are significantly smaller than the sum of the van der Waals radii of Cu and O (2.92 Å), indicating a very strong interaction between Cu(Ⅰ) sites and CO₂ molecules. The distribution of adsorbed CO₂ by SXU-121 were also simulated under various pressures (Figs. 4b-d). At low pressures (10 kPa), CO₂ molecules preferentially adsorb around the Cu(Ⅰ) atoms, and as the pressure increases, the concentration of CO₂ molecules within the 1D channels also increases. These results also indicate that CO₂ is preferentially adsorbed near the Cu(Ⅰ) sites and once all the Cu(Ⅰ) sites are occupied, CO₂ molecules are then adsorbed within the pores.

In conclusion, by employing one 1,3,5-triazine derivative (5-azacytosine) as organic linker, we have successfully constructed a Cu(Ⅰ) MOF SXU-121 with all organic linkers and metal ions three-connected to form a rare eta topology. SXU-121 features excellent water and thermal stability, as well as permanent porosity. SXU-121 exhibits rather high selectivity for CO₂ at ambient temperature and achieves selective adsorption of CO₂ under breakthrough experiment conditions over N₂ and O₂. Due to the diversity of 1,3,5-triazine derivatives and their ease of functionalization, we believe this will pave the way for synthesizing a class of metal-triazine framework materials with a wide range of functionalities.
