Decoction is an efficient form of drug delivery in traditional Chinese medicine (TCM), embodying the holistic perspective of TCM and the concept of syndrome differentiation and treatment. The chemical constituents of TCM originate from diverse sources and possess distinctive structures which are susceptible to molecular recognition during the decoction process, leading to the formation of self-assembled nanoparticles (SAN) through non-covalent bonds, such as electrostatic attraction, van der Waals forces, π-π stacking, and hydrogen bonding [1-8]. The chemical composition of SAN of TCM may involve proteins, polysaccharides, lipids, and small molecule active ingredients [9-11]. Iitsuka et al. [12] determined the polysaccharide content in Astragalus decoction to be 78% by liquid chromatography-mass spectrometry (LC/MS). Zhao et al. [13] reported the polysaccharide content of SAN in Naoluo Xintong decoction as 82.75%, with a protein content of 6.20%. Liang et al. [1] isolated SAN from the co-decoction of Angelica sinensis and Astragalus membranaceus, identifying a total of 43 components, including saponins, flavonoids, amino acids, phthalides, organic acids, and other constituents. The rich chemical composition of SAN of TCM and its nanostructure hold promising potential for efficient drug delivery.

It has been reported in the literature that SAN of TCM promote the absorption of active ingredients in the body and play a crucial role in the efficacy of the decoction [14-16]. Wu et al. [17] found that SAN in Coptis chinensis decoction had the ability to regulate the tight junctions between intestinal epithelial cells, improving berberine transport through active transport and endocytosis. Wang et al. [18] discovered that SAN from the co-decoction of Coptis chinensis and liquorice exhibited a stronger inhibition of S. aureus proliferation and removal of S. aureus biofilm compared to the Decoction and the non-SAN fraction. It can be seen that SAN of TCM is also an important material basis for the efficacy of medicine.

However, the particle size of the SAN obtained from the decoction of TCM is not uniform and is prone to aggregation, which, in turn, affects the efficacy of the drug [10,19]. Our group discovered that the self-assembly process of TCM can be improved through the pH-driven method. In this approach, TCM is initially decocted using a non-neutral solvent. Subsequently, upon adjusting the decoction to a neutral pH using a pH-adjusting agent, the pH-driven formation of SAN of TCM exhibited uniform particle size and demonstrated good stability.

Our group conducted a preliminary analysis of the formation process of pH-driven SAN in TCM using Herpetospermum caudigerum Wall. as a model drug. Given the complex composition of TCM, analyzing the intermolecular forces among its chemical components in detail can be challenging. To address this, we isolated Herpetospermum caudigerum Wall. polysaccharide (HCWP), the primary carrier, and herpetrione (Her), the major active components in SAN. Subsequently, we employed the pH-driven method to prepare Her-HCWP SAN (Supporting information methods 2.1) and investigated the interaction between Her and HCWP under varying pH conditions, examining its self-assembly mechanism at different pH levels.

The impact of the Her and HCWP combination at different pH values (9.5–11.5) on the average particle size, zeta potential, and morphology of Her-HCWP SAN was investigated. As depicted in Fig. 1, the average particle size of Her-HCWP SAN decreased with increasing pH. Simultaneously, the negative surface charge of Her-HCWP SAN initially increased and then stabilized. Notably, Her-HCWP SAN_11.5 exhibited a zeta potential of −53.58 ± 3.69 mV, significantly larger than that of Her-HCWP SAN_9.5 and Her-HCWP SAN_10.0 in absolute value. The heightened surface charge of Her-HCWP SAN_11.5 fosters robust electrostatic repulsion between nanoparticles, reducing aggregation and enhancing stability [20]. Fig. 2 shows the transmission electron microscope (TEM) images of Her-HCWP SAN formed under different pH drives. The Her-HCWP SAN fabricated under high pH values exhibited a spherical-like structure with clear boundaries between particles, while the Her-HCWP SAN fabricated under low pH driving exhibited agglomeration. As shown in Fig. 2E, Her-HCWP SAN_11.5 demonstrated minimal inter-particle adhesion and no agglomeration. This observation implies that Her-HCWP SAN_11.5 exhibits superior stability, as supported by the zeta potential results.

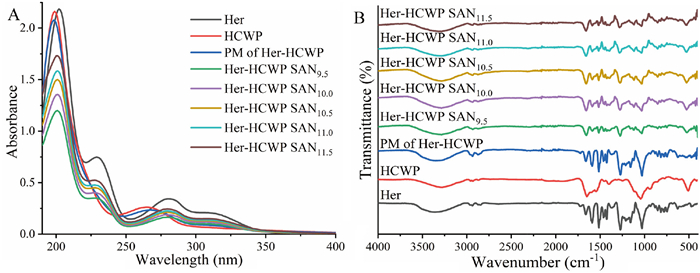

The intermolecular interactions between Her and HCWP during the formation of Her-HCWP SAN were investigated using ultraviolet–visible spectroscopy (UV–vis) and Fourier transform infrared spectroscopy (FTIR). As shown in Fig. 3A, the characteristic absorption peaks of Her were at 202, 229, and 280 nm, and those of HCWP were at 199 and 264 nm. After self-assembly, the absorption peak of HCWP at 264 nm disappeared, and the intensities of the absorption peaks of Her at 229 and 280 nm decreased, suggesting that intermolecular interactions between Her and HCWP occurred under alkaline conditions [21]. Fig. 3B illustrates the characteristic peaks of HCWP for amide I (C=O stretching vibration) and amide II (N—H bending vibration and C—N stretching vibration) appeared at 1649 and 1544 cm⁻¹, respectively. When comparing Her-HCWP SAN_9.5, Her-HCWP SAN_10.0, Her-HCWP SAN_10.5, Her-HCWP SAN_11.0, and Her-HCWP SAN_11.5 with HCWP, the absorption peaks of amide II shifted from 1544 cm⁻¹ to 1551, 1554, 1554, 1555, 1555 cm⁻¹ with a reduction in intensity, indicating a potential contribution from the electrostatic interaction between Her and HCWP [22,23]. The absorption peak of Her at 3359 cm⁻¹ corresponds to the hydroxyl group's telescopic vibration absorption. However, the absorption peak of the Her-HCWP SAN shifted to 3311 cm⁻¹, indicating the presence of hydrogen bonding interactions during the formation of Her-HCWP SAN [24,25]. Additionally, Her exhibits C—O stretching vibrational absorption peaks at 1271 and 1029 cm⁻¹ in aromatic and fatty ethers [26], respectively. Both peaks shift to higher wave numbers after self-assembly. In addition, the intensities of the C—H stretching vibrational absorption peaks in Her-HCWP SAN at 2936 and 2873 cm⁻¹ were significantly reduced compared to those in physical mixtures (PM) of Her-HCWP, indicating the presence of hydrophobic interactions during the self-assembly process of Her and HCWP [27]. These findings suggest that hydrogen bonding interactions, hydrophobic forces, and electrostatic attraction are involved in the formation of Her-HCWP SAN.

The thermal stability of Her, HCWP, PM of Her-HCWP and Her-HCWP SAN was assessed through thermogravimetric and thermogravimetric differential curves. As shown in Fig. 4A, the initial weight loss of Her-HCWP SAN (40–115 ℃) is attributed to the evaporation of water. The subsequent weight loss (220–350 ℃) is more concentrated compared to the broader range observed in the PM of Her-HCWP (160–420 ℃), indicating intermolecular assembly and rearrangement. Analysis of the thermogravimetric curves reveals that, at 600 ℃, the total weight loss of Her-HCWP SAN is lower than that of Her and HCWP, indicating enhanced thermal stability through self-assembly [28]. Specifically, at 600 ℃, Her-HCWP SAN_9.5 exhibited a 45% weight loss, while Her-HCWP SAN_11.5 showed only 35%, indicating the higher thermal stability achieved by preparing Her-HCWP SAN at high pH values.

The thermal analysis of Her, HCWP, PM of Her-HCWP, and Her-HCWP SAN is depicted in Fig. 4C. The PM of Her-HCWP exhibited an endothermic band in the temperature range of 70–150 ℃, corresponding to the dehydration process. In comparison, the band of adsorption associated with the dehydration process in Her-HCWP SAN shifted to a lower temperature and was less endothermic. Additionally, the degradation heat absorption peak of HCWP at 225 ℃ disappeared from the differential scanning calorimetry (DSC) curves of Her-HCWP SAN, suggesting changes in water content and thermal stability following the self-assembly of Her with HCWP [29]. Diffraction information of the crystals was obtained using X-ray diffraction (XRD). As shown in Fig. 4D, both Her and HCWP exhibit a broad diffraction peak at 2θ = 21.0°, indicating their amorphous nature. After self-assembly, the 2θ = 21.0° diffraction peak in Her-HCWP SAN decreases or disappears, signifying an enhanced amorphous property [30]. This improvement contributes to increased drug solubility and oral bioavailability [31]. Additionally, the diffraction peaks at 2θ = 28.2°, 40.3°, 50.0°, and 58.5° in Her-HCWP SAN correspond to characteristic peaks of KCl, with differences in peak intensity resulting from varying amounts of KCl produced during acid-base neutralization at different pH values in the preparation process [32].

From a thermodynamic perspective, the self-assembly process needs to resist the reduction of free energy and negative entropy components, which must be achieved by weak intermolecular interaction forces [33,34]. To elucidate the forces that maintain the nanostructures, we introduced various chemicals into Her-HCWP SAN solutions prepared at different pH values to determine the intra-particle interaction forces. Tris-glycine buffer disrupts electrostatic interactions, sodium dodecyl sulfate (SDS) disrupts hydrophobic interactions, and urea acts as a hydrogen bond disruptor [35]. As illustrated in Fig. 5, the particle sizes of Her-HCWP SAN prepared at different pH values exhibited a significant increase with the addition of SDS, underscoring the substantial impact of hydrophobic interactions on Her-HCWP SAN at different pH values. Notably, Her-HCWP SAN_11.5 displayed a smaller change in particle size after the addition of SDS compared to other Her-HCWP SAN groups, possibly indicating a weakened hydrophobic interaction force between Her and HCWP at pH 11.5. Furthermore, the particle size of Her-HCWP SAN_11.5 increased significantly after the addition of urea, highlighting the substantial role of hydrogen bonding in the formation of Her-HCWP SAN_11.5 at this stage. In contrast, Her-HCWP SAN_9.5, Her-HCWP SAN_10.0, Her-HCWP SAN_10.5, and Her-HCWP SAN_11.0 showed no significant changes in particle size after the addition of Tris-glycine buffer and urea. This indicates that hydrogen bonding and electrostatic attraction do not play a dominant role in the binding of Her to HCWP within the pH range of 9.5–11.0.

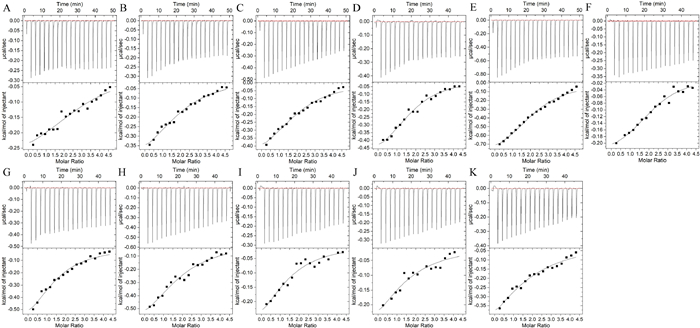

To further explore the binding behavior of Her and HCWP at different pH values, the thermodynamic parameters of the interaction between Her and HCWP at 25 ℃ were determined using the isothermal titration calorimetry (ITC) method. As can be seen from Fig. 6, the heat flow is negative at all pH values, indicating that the interaction between Her and HCWP is exothermic and becomes more exothermic with increasing pH values. Computer simulations of the microthermal titration data were carried out by Nano ITC analysis software and the obtained thermodynamic parameters are summarized in Table 1. As observed in Table 1, ΔG was less than 0 at different pH values, indicating that the binding of Her to HCWP was spontaneous. ΔG was much lower than the energy of covalent bond formation (about −95.56 kcal/mol), suggesting that the binding of Her to HCWP occurs via non-covalent bonds [35,36]. While ΔG decreases with increasing pH values, the change is not significant. This phenomenon may be attributed to the occurrence of an enthalpy-entropy compensation effect, where a decrease in one factor is compensated by an increase in the other factor [37-39]. ΔH < 0 and ΔS > 0 for Her binding to HCWP suggests that the binding of the two molecules is driven by enthalpy and entropy. The ΔH of the system decreased with increasing pH values, and the ΔH at pH 11.5 was 2.87 times higher than the ΔH at pH 9.5, suggesting that the importance of electrostatic attraction, hydrogen bonding, and van der Waals' forces in the binding of the two molecules increased with increasing pH [40]. However, the absolute value of −TΔS is much larger than that of ΔH at all pH values, indicating that ΔS, determined by hydrophobic interactions, plays a dominant role in the binding of the two molecules [41,42]. Additionally, temperature and salt ion strength play crucial roles in the self-assembly process of Her with HCWP. The rise in temperature, coupled with an increase in salt ionic strength, results in a decrease in the K_a value of Her and HCWP, thereby significantly influencing the morphology of Her-HCWP SAN [43].

In summary, we systematically investigated the interactions of Her and HCWP and their self-assembly mechanisms at different pH values through thermodynamic and multispectral analysis. With increasing pH, the interaction force between Her and HCWP strengthens, resulting in a stronger binding and the formation of Her-HCWP SAN characterized by a smaller particle size, higher zeta potential, more regular morphology, and improved thermal stability. Her-HCWP SAN formation involved hydrogen bonding, electrostatic attraction, and hydrophobic forces. The strengthening of hydrogen bonding and electrostatic attraction with increasing pH values is noteworthy. Importantly, the role of ΔS, influenced by hydrophobic interactions, is crucial in governing the binding between the two molecules. At higher pH levels, the binding constants of Her and HCWP increase, and the process becomes more exothermic, significantly contributing to the stability of Her-HCWP SAN. This study deepens our understanding of the interactions between small-molecule active ingredients and macromolecules in TCM across various pH values. Moreover, it elucidates the scientific principles of pH-driven enhancements in TCM self-assembly phenomena. This study provides valuable insights for controlling and improving the self-assembly phenomenon of TCM, facilitating its application in the pharmaceutical industry.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgment

This work was supported by the National Natural Science Foundation of China (Nos. 81873092, 82174074).
