Currently, medicine residues (peculiarly antibiotics) has aroused wide concern because of their omnipresent emergence and potential harmful impact on the water eco-environment [1–4]. The predictability of future results show the world consumption of antibiotics will grow rapidly to 110,000 tons in 2030 [5–9]. These abused antibiotics are widely found in a variety of water environment, including rivers, lakes, groundwater and effluent from sewage treatment plant, even our drinking water [10–16]. Among antibiotics, oxytetracycline (OTC), a type of tetracycline antibiotics, is comprehensively applied for veterinary and human medicine [17–24]. In fact, the OTC concentration in groundwater and surface water was detected to be ng/L to µg/L level, which could pose a significant threat to the public health and ecosystem even at trace concentration [25–27]. As a result, it is of high importance to exploit the efficient and green methods for achieving effective antibiotics removal [28–32].

The Fenton process via H₂O₂ activation is deemed as the most promising process for degrading antibiotics by reason of its high-efficiency [33–37]. However, its full-scale and practical application was restricted by some unavoidable detriments, such as the high transportation cost and explosibility of H₂O₂, iron sludge problem and narrow pH ranges (2.5–3.0) of Fenton process [38–41]. Recent, sodium percarbonate (Na₂CO₃·1.5H₂O₂, SPC) has been extensively employed as a solid substitute of H₂O₂ for Fenton process in water treatment, because of its high stability during the production, transport, storage and usage [42–48]. In addition, SPC can be applied in a wider range of work pH, it is also applied as a buffer in Fenton reaction for preventing a drop in pH [49–53]. As part of our group’s current interest on the sewage remediation [54], herein, we have first synthesized basic copper molybdate (BCM) nanoblocks with the molecular formula of Cu₃(MoO₄)₂(OH)₂ as an efficient and heterogeneous catalyst for antibiotics degradation via percarbonate activation. First, the structure and morphology of BCM nanoblocks was investigated by fully physical characterizations. Then, the performance, degradation pathways and mechanism of OTC degradation catalyzed by BCM nanoblocks via percarbonate activation were investigated.

As demonstrated in Fig. S1 (Supporting information), BCM nanoblocks was synthesized by hydrothermal reaction of Na₂MoO₄ and Cu(NO₃)₂·xH₂O at 150 ℃ for 6 h. The nature crystalline phase of BCM nanoblocks was evaluated by XRD. The characteristic diffraction peaks of Cu₃(MoO₄)₂(OH)₂ (020), (021), (101), (130) and (200) lattice planes clearly appeared in Fig. S2a (Supporting information), illustrating the synthesis of Cu₃(MoO₄)₂(OH)₂ [55]. In Fig. S2b (Supporting information), texture structure of BCM nanoblocks was checked by BET. BCM nanoblocks exhibited a mean pore diameter of 0.697 nm, total pore volume of 0.048 cm³/g and BET surface area of 6.683 m²/g, suggesting a micropore structure [56]. As shown in Fig. S2c (Supporting information), the sum XPS of BCM nanoblocks exhibited that the co-existence of Cu, Mo and O. The pair peaks of 934.70 eV and 954.53 eV appeared in Fig. S2d (Supporting information), illustrating the presence of Cu(Ⅱ) [57]. In Fig. S2e (Supporting information), the Mo 3d was divided into two peaks of 232.31 eV (Mo 3d_5/2) and 235.45 eV (Mo 3d_3/2), which was assigned to Mo^Ⅵ [58–60]. As presented in Fig. S2f (Supporting information), the O 1s was divided into two peaks of lattice oxygen (O_latt, 530.36 eV) and adsorbed oxygen (O_ads, 531.56 eV) [55]. Furthermore, the morphology and nanostructure of BCM nanoblocks was also determined by scanning electron microscope (SEM), transmission electron microscope (TEM), and high resolution TEM (HRTEM). As shown in Figs. 1a-e, BCM nanocomposite exhibited a structure of nanoblocks. As demonstrated in Fig. 1f, Cu₃(MoO₄)₂(OH)₂ (101) and (130), whose lattice distances were 0.41 nm resp. 0.36 nm, were recorded in BCM nanoblocks, further confirming the formation of Cu₃(MoO₄)₂(OH)₂ [61]. In addition, the precise localization of Cu, Mo and O elements in BCM nanoblocks was also measured by EDX elements mapping. In Figs. 2a-e and Fig. S3 (Supporting information), it is clear that BCM nanoblocks was composed of Cu, Mo and O elements, suggesting the formation of Cu₃(MoO₄)₂(OH)₂.

Figure 1

	Download: JPG larger image

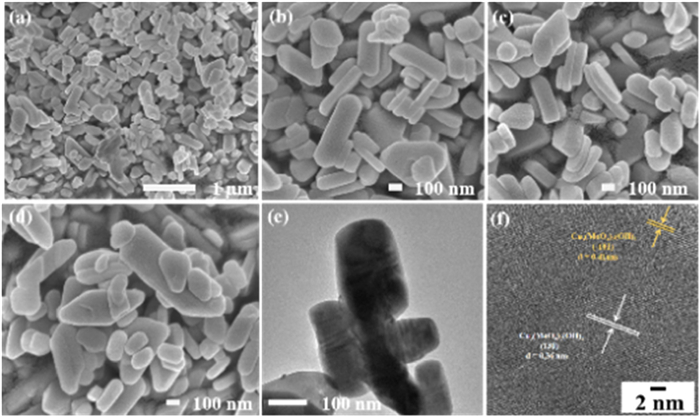

Fig. 1. (a-d) SEM, (e) TEM and (f) HRTEM of BCM nanoblocks.

Figure 2

	Download: JPG larger image

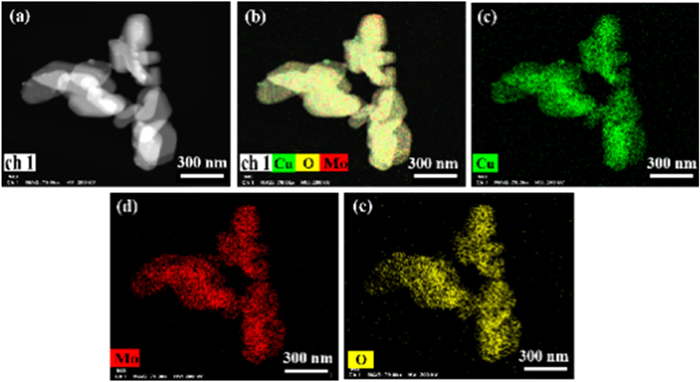

Fig. 2. (a) STEM, (b) combined Cu, Mo and O, (c) Cu, (d) Mo, (e) O compositional mapping.

For studying the catalytic activity of BCM nanoblocks in OTC degradation by percarbonate activation, OTC degradation over Fe₂(MoO₄)₃, NiMoO₄ and BCM nanoblocks were tested in Fig. S4 (Supporting information). First, NiMoO₄ and Fe₂(MoO₄)₃ were synthesized under the same process as BCM nanoblocks. Then, Fe₂(MoO₄)₃ and NiMoO₄ were measured by XRD and SEM. Figs. S5 and S6 (Supporting information) exhibited that the successful formation of Fe₂(MoO₄)₃ and NiMoO₄ in XRD. The SEM result exhibited that Fe₂(MoO₄)₃ and NiMoO₄ possessed a nanoblock (Fig. S7 in Supporting information) and nanorod (Fig. S8 in Supporting information) structure, respectively. The OTC degradation was conducted by 20 mg/L of OTC, 0.2 g/L of sodium percarbonate, 0.25 g/L of catalyst and 50 mL of deionized water at 30 ℃. The order of OTC degradation efficiency as follow: BCM nanoblocks (80.01%) > Fe₂(MoO₄)₃ (59.99%) > NiMoO₄ (12.12%), highlighting the key role of BCM nanoblocks in activating SPC to degrade OTC.

As BCM nanoblocks presented the superior catalytic activity in OTC degradation, its kinetic study, including BCM nanoblocks concentration, SPC concentration, initial OTC concentration and degradation temperature, had been further investigated. First, OTC degradation was carried out with various BCM nanoblocks concentrations from 0.1 g/L to 0.49 g/L. Fig. 3a elucidated that OTC degradation rate was positive correlation, where the slope is 0.3, with BCM nanoblocks concentrations. Next, the impression of SPC concentration on OTC degradation was also tested in Fig. 3b, OTC removal efficiency was heightened, with slope of 0.27, as the increase of SPC concentration. Then, OTC degradation was carried out with different initial OTC concentrations from 10 mg/L to 50 mg/L. Fig. 3c illustrated that OTC removal efficiency decreased with the increase of initial OTC concentrations. In Fig. 3d, it is clear that OTC degradation efficiency rose as the enhancement of degradation temperature. Based on the Arrhenius law, the E_a was found to be 55.79 kJ/mol, Moreover, tetracycline (TC) and chlorotetracycline (CTC) had been also degraded by BCM/SPC system in 40 min (Fig. S9 in Supporting information).

Figure 3

Download: JPG larger image

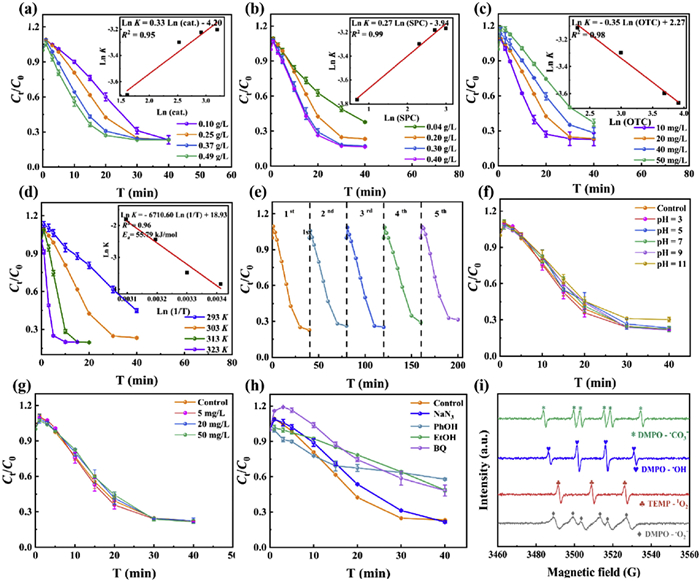

Fig. 3. Influences of (a) BCM nanoblocks, (b) SPC concentration, (c) initial OTC concentration, (d) degradation temperature, (e) stability of BCM nanoblocks, (f) pH, (g) humic acid on OTC degradation. (h) Effect of BQ (0.2 mmol/L), NaN3 (0.2 mmol/L), EtOH (1.6 mol/L) and PhOH (3.98 mmol/L) on OTC degradation over BCM/SPC. (i) EPR spectra of BCM/SPC system. Reaction Condition: 20 mg/L of OTC, 0.25 g/L of BCM, 0.2 g/L of SPC at 30 ℃.

The stability of BCM nanoblocks in OTC degradation via percarbonate activization was also tested for further practical application [62]. When OTC degradation was over, BCM nanoblocks was re-obtained and recycled by filtration for the next degradation. As demonstrated in Fig. 3e, BCM nanoblocks had been successfully reused 5 times in OTC degradation without any efficiency decrease. Then, 5^th reused BCM nanoblocks was measured by XRD and SEM, the result exhibited that 5^th reused BCM nanoblocks remained the same crystalline state (Fig. S10 in Supporting information) and morphology (Fig. S11 in Supporting information) as the fresh one. In addition, the Cu concentration in the solution, after completion of OTC degradation, was less than 1 ppm upon by ICP, confirming BCM was a true heterogeneous catalyst on OTC degradation.

As pH played a key parameter on the OTC degradation, OTC removal over BCM/SPC system was further conducted at various initial pH from 3 to 11. Fig. 3f described that BCM/SPC system played the highly catalytic performance in OTC removal at pH 3-11. This result confirmed that BCM/SPC system could work in a much wider pH range, compared with H₂O₂ [63]. The effect of humic acids (HA), as the common natural organic matter, on OTC degradation catalyzed by BCM/SPC system was also measured in Fig. 3g [64]. It is clear that HA played a negligible role on OTC degradation, even at 50 mg/L of HA, indicating that the BCM/SPC system owned an excellent anti-interference ability for natural organic matter in OTC degradation.

For revealing the mechanism of OTC degradation via percarbonate activation, the reactive oxygen species (ROS) in BCM/SPC system had been identified by quenching experiments. Explicitly PhOH, benzoquinone (BQ), NaN₃ and EtOH were used for quenching ^·CO₃⁻, ^·O₂⁻, ¹O₂ and ^·OH, respectively [65]. As presented in Fig. 3h, it is clear that all of PhOH (3.98 mmol/L), BQ (0.2 mmol/L), NaN₃ (0.2 mmol/L) and EtOH (1.6 mol/L) exhibited an inhibitory effect on OTC degradation. This result indicated the co-presence of ^·CO₃⁻, ^·O₂⁻, ¹O₂ and ^·OH in BCM/SPC system, which was also confirmed by EPR analysis (Fig. 3i). Then, the dosage of PhOH, BQ, NaN₃, or EtOH was reduced to 0.2 mmol/L. As shown in Fig. S12 (Supporting information), the result indicated that only BQ played a inhibitory effect on OTC degradation, suggesting ^·O₂⁻ was the major ROS in BCM/SPC system. For investigating the possible OTC degradation pathways, the total content of organic carbon (TOC) and high resolution mass spectrum (HR-MS) were employed to measure the degraded OTC solution for determining its mineralization rate and degradation intermediates. The TOC analysis indicated 15.62% of OTC were completely mineralized into CO₂ and H₂O. As it can been seen in Fig. S13 (Supporting information), OTC molecule peak of m/z 461 disappeared in HR-MS, suggesting that OTC molecules were degraded into small intermediates. In Fig. S14 (Supporting information), fourteen kinds of intermediates had been confirmed by Mass library [66,67]. Based on quenching tests, EPR result, HR-MS analysis and relevant literature [68,69], a plausible mechanism of OTC degradation over BCM/SPC system was proposed in Fig. 4. First, OTC and SPC molecules wereanchored at the surface of BCM nanoblocks. Immediately, SPC molecules were decomposed into ^·CO₃⁻, ^·O₂⁻, ¹O₂ and ^·OH by BCM nanoblocks. Then, OTC molecules, after the attack of multiple reactive oxygen species, were degraded into short-chain intermediates, which were further mineralized into CO₂ and H₂O.

Figure 4

	Download: JPG larger image
Fig. 4. Mechanism of SPC activation and OTC degradation on BCM.

In addition, this BCM/SPC system’s catalytic performance with other catalytic systems for OTC degradation was also compared in Table S1 (Supporting information) [66,70–76]. The result shown that BCM exhibited the superior catalytic performance in activating SPC for OTC degradation.

In summary, basic copper molybdate (BCM) nanoblock with the molecular formula of Cu₃(MoO₄)₂(OH)₂ has been synthesized as an efficient and heterogeneous catalyst for antibiotics degradation via percarbonate activation. First, fully physical characterizations confirmed BCM nanocomposite exhibited a structure of nanoblocks. Compared with other molybdates, the order of OTC degradation efficiency as follow: BCM nanoblocks (80.01%) > Fe₂(MoO₄)₃ (59.99%) > NiMoO₄ (12.12%), highlighting the key role of BCM nanoblocks in activating SPC to degrade OTC. We also found that BCM/SPC system could work in a much wider pH range, compared with H₂O₂. Then, BCM/SPC presented a high anti-interference ability for natural organic matter in OTC removal. EPR results and Quenching tests demonstrated that the co-presence of ^·CO₃⁻, ^·O₂⁻, ¹O₂ and ^·OH in BCM/SPC system. This study provides an excellent Mo-based catalyst for activating percarbonate in antibiotics removal.
