With rapid industrial development, metal contamination is a significant issue to potable water security [1]. Among the metal ions, mercury ion (Hg²⁺) is recognized as one of the most hazardous metal contaminants [2,3], which would pose a significant threat to human health and environmental ecology. When mercury ions enter the human body, the mercury ions will cooperate with thiol group in proteins, thus significantly affecting human mental and neurological function [4,5]. There is thus urgent need for a system capable of sensitively and efficiently detecting mercury ions in wastewater. At present, various detection techniques have been successfully developed to recognize mercury ions, such as chromatography, inductively coupled plasma-mass spectrometry, atomic fluorescence technology and electrochemistry. Among which, fluorescence sensors exhibit great potential due to their simplicity, excellent sensitivity and selectivity [6–10]. Currently, various responsive mechanisms, including intramolecular charge transfer, inner filter effect and chelation quenched fluorescence, have been employed for the detection of mercury ions.

So far, carbon dots (CDs) have received wide attention because of their excellent water solubility, low toxicity, biocompatibility, chemical stability and good energy and charge transfer properties [11–13]. Owing to these advantages, CDs are considered as promising fluorescent probes for the detection of Hg²⁺ [14–16]. However, the high-cost of the raw material and low production yield hinder the development of industrial applications of CDs. Recently, a variety of raw biomass materials (juice, grapefruit peel, rice husk, etc.) have been used as carbon precursors to address these issues. Cellulose, the most abundant natural biomass on the earth, is renewable, non-toxic, completely biodegradable, and exhibits excellent biocompatibility [17–19]. It represents a promising and inexhaustible raw material for the preparation of carbon nanomaterials that could realize the sustainable future development of human society. More importantly, the synthesized CDs from carboxymethyl nanocellulose (C-CNC) possess abundant carboxyl groups, offering the potential for chemical modification. Recent research has reported on various carboxymethyl nanocellulose-based CDs with excellent biodegradability, compatibility and optical properties [20,21]. However, the existing cellulose-based CDs are still largely underdeveloped with a bottleneck generated by the low quantum yield and the limited fluorescence sensing capacity. Notably, the CDs doped with the N, B, S and other elements can effectively tune the photoluminescence properties and enhance the quantum yield [22–24]. Moreover, CDs doped with different elements contain abundant functional groups on their surfaces, which can improve the sensitivity for metal ions [25]. We thus expected that the nanocellulose-based CDs could be further modified with various functional groups for enhanced optical performance and sensing properties.

With this research, a series of CDs including CDs containing carboxyl groups (CDs-C), amine-modified CDs (CDs-N), boron oxygen-modified CDs (CDs-B) and sulfhydryl-modified CDs (CDs-S) were prepared using a one-pot hydrothermal method. As expected, the four CDs display a visible blue emission and excitation-dependent properties. Moreover, the four CDs as sensors were employed to detect Hg²⁺. Notably, the CDs-N exhibited excellent sensitivity and selectivity for Hg²⁺ compared with other functional group modified CDs. Density functional theory (DFT) calculations confirmed that the high binding energy of CDs-N to Hg²⁺ and charge transfer between spatially separated amine groups contribute to the strong fluorescence quenching. The CDs-N was used as a fluorescent ink for anti-counterfeit printing. Furthermore, CDs-N was successfully encapsuled into a hydrogel for the detection and removal of Hg²⁺.

Four types of CDs were prepared via a hydrothermal treatment method using C-CNC as the carbon source. As shown in Fig. 1a, all samples demonstrate a typical spherical shape and a good dispersity in aqueous solution. The average size of the synthesized CDs-C, CDs-N, CDs-B and CDs-S were determined to be 0.47, 1.12, 0.55 and 0.52 nm, respectively. Moreover, the chemical structure and composition of four CDs were measured using Fourier transform infrared (FT-IR) analysis. In Fig. 1b, the CDs-C show the -OH stretching vibrations at 3300 cm⁻¹ and the characteristic band of C=O at 1771 cm⁻¹, which indicates the presence of carboxylic acid groups on the CDs-C. The stretching vibrations peak of -NH₂ and C-N on CDs-N are found at 1569 and 1070 cm⁻¹, respectively [26]. For the CDs-B, the emergence of peaks at 1030, 1190 and 1450 cm⁻¹ imply the presence of the B-O-C, C-B and B-O bonds [27]. It was also found C-S stretching vibrations at 1153 cm⁻¹ in the CDs-S. These FT-IR analyses confirmed that the -NH₂, B-O bond and -SH groups are successfully loaded on the CDs. Furthermore, the presence of carboxyl groups on CDs-N, CDs-B, and CDs-S was found to be inconspicuous. The incorporation of distinct functional groups into CDs enables diverse detection outcomes when applied to different samples. To further confirm the above FT-IR results, the X-ray photoelectron spectrum (XPS) of the CDs-C, CDs-N, CDs-B and CDs-S were also investigated. In the XPS spectrum, the C, O, N, B and S elements can be observed in the four different CDs (Fig. 1c). The C 1s spectra of CDs-C can be divided into three peaks at 284.7, 286.1 and 288.2 eV, which corresponded to C-C, C-O and C=O bonds, respectively (Fig. 1d). The result demonstrated the existence of carboxyl group on the CDs-C. After modification, the slight change of C 1s can be seen (Fig. S1 in Supporting information). For the CDs-N, the C 1s showed three components that are assigned to C-C (284.6 eV), C-O/C-N (285.9 eV) and C=O (287.8 eV) bonds (Fig. S1a in Supporting information). The difference in C 1s of 288.7 eV (C=O/C-O-B) in the CDs-B and 285.6 eV (C-O/C-N/C-S) in the CDs-S were observed (Figs. S1c and e in Supporting information). The observed difference of four CDs further suggested that the reaction between the C-CNC and different functional groups. For the CDs-N, the N 1s reveal the presence of C-N-C (399.1 eV), O=C-N (399.9 eV) and N-H (400.9 eV) groups, which further suggests the successful reaction of the urea with the carboxyl group in C-CNC (Fig. 1e) [28]. Based on the above experimental evidence, it can be deduced that the four CDs possess different functional groups, which can generate different fluorescence and sensing properties.

Figure 1

	Download: JPG larger image
Fig. 1. Characterization of CDs-C, CDs-N, CDs-B and CDs-S. (a) Transmission electron microscopic (TEM) images and particle size distribution of CDs-C, CDs-N, CDs-B and CDs-S. Scale bar: 20 nm. (b) FT-IR spectra of CDs-C, CDs-N, CDs-B and CDs-S. (c) XPS survey spectrum. (d) High resolution XPS spectra of C 1s of CDs-C. (e) The N 1s spectra of CDs-N.

Subsequently, the photophysical properties of four CDs were examined in detail. As shown in Figs. 2a–d, the ultraviolet-visible (UV-vis) spectra displayed a peculiar absorption band in the range of 200–300 nm for the four types of CDs, which may be related to the π-π^* transitions. The weak absorption shoulder at 300–450 nm is related to the n-π^* transition of C=O on the surface [25]. The observations confirm that the functional surface states can produce different energy states. Moreover, the four solutions of CDs exhibited a bright blue fluorescence under UV light. All CDs displayed a strong fluorescence emission at 434-437 nm under excitation at 360 nm. Furthermore, CDs-C, CDs-N, CDs-B and CDs-S displayed excitation-dependent properties, with emission maxima at 438, 435, 437 and 452 nm, respectively, under the optimal excitation wavelength of 360 and 380 nm (Figs. 2e–h). The fluorescence tunability of four types of CDs is presumably due to the inhomogeneity of the particle sizes and the numerous emissive traps of surface states formed by the -OH, -COOH, -NH₂, B-O bond and -SH functional groups. Moreover, the relative quantum yield of the CDs-C, CDs-N, CDs-B and CDs-S were determined to be 0.98%, 2.8%, 1.25% and 10.46%, respectively.

Figure 2

Download: JPG larger image

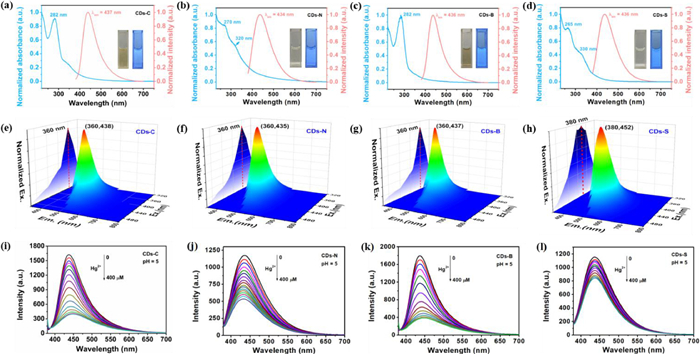

Fig. 2. Fluorescence properties of CDs-C, CDs-N, CDs-B and CDs-S. (a–d) Normalized absorbance and intensity of CDs-C, CDs-N, CDs-B and CDs-S (insert: images of CDs-C, CDs-N, CDs-B and CDs-S solutions under UV irradiation). (e) The 3D fluorescence spectra of CDs-C, (f) CDs-N, (g) CDs-B and (h) CDs-S at different excitation wavelengths. (i–l) Fluorescence response of the CDs-C, CDs-N, CDs-B and CDs-S (0.25 mg/mL) with different concentrations of Hg2+ (0–400 µmol/L) (λex = 360 nm).

To further explore the fluorescence mechanism, the four CDs were used to detect Hg²⁺. Upon the addition of Hg²⁺, the fluorescence intensity of the CDs-C showed a significant decreased under 360 nm excitation (Fig. 2i). Simultaneously, the CDs-N, CDs-B and CDs-S also displayed a similar fluorescence quenching in the presence of Hg²⁺ (Figs. 2j–l). By calculating the emission intensity ratio of I₀/I versus the concentration of Hg²⁺ (0–100 µmol/L), an excellent linear response was obtained with R² = 0.988 (Fig. S2a in Supporting information). The detection limit of the CDs-C, CDs-N, CDs-B and CDs-S were calculated to be 1.95 × 10⁻⁵ mol/L, 8.29 × 10⁻⁶ mol/L, 1.05 × 10⁻⁵ mol/L and 2.53 × 10⁻⁵ mol/L based on 3 δ/k (where δ stands for the standard deviation of the blank four CDs solutions, and k is the slope of the linear plots.), showing a good sensitivity for Hg²⁺ [29]. In addition, four types of CDs showed a great selectivity for Hg²⁺ (Fig. S3 in Supporting information). These results indicate that energy transfer can occur between the CDs and Hg²⁺ in solution, thus resulting in a distinct fluorescence quenching. For comparison, it was found that the CDs-N exhibit a better detection capability toward Hg²⁺. The fluorescence lifetimes and zeta potential of four CDs indicate that a high affinity between the amino group on the CDs-N and the Hg²⁺ may contribute to the excellent fluorescence performance (Fig. S4 and Table S1 in Supporting information). Meanwhile, the pH investigation further confirmed that the applicability of CDs-N for Hg²⁺ (Fig. S5 in Supporting information).

In order to further understand the luminescence and detection mechanism of the four CDs, molecular modelling based on DFT was performed. The proposed structure for the four CDs is a single layer graphene as the carbon core (Fig. S6 in Supporting information). It can be seen that the functional groups functionalized coronene models exhibit a planar structure, and the electron pair on functional groups and the π orbital of coronene formed a big conjugated π orbital, generating interactions with the Hg²⁺ ions. The distances between Hg²⁺ and the carboxyl (-COOH), amino (-NH₂), boron oxygen (-B-O) and sulfhydryl (-SH) groups of the four CDs were 3.636, 3.604, 3.578 and 2.645 Å, respectively, indicating that the interactions existed among CDs with mercury ions. In addition, the corresponding binding energies (BE), Mulliken charges of Hg²⁺ as well as the charges transfer from four CDs to Hg²⁺ were calculated (Table S2 in Supporting information). Notably, the BE of CDs-N/Hg²⁺ is calculated to be −357.43 kcal/mol, which is much higher than the other three complexes with BEs values ranging from −346.94 kcal/mol to −356.47 kcal/mol. The excellent BE of CDs-N/Hg²⁺ indicated that the -NH₂ on the surface of CDs-N have a higher affinity for Hg²⁺. Moreover, the superior charge transfer from CDs-N to Hg²⁺ (2.011) further confirmed that the CDs-N preferred to form stable complexes with Hg²⁺ rather than the other three CDs. The above results revealed that the CDs-N can preferentially detect Hg²⁺ over the other three CDs, which was in good agreement with the fluorescent selectivity and sensitivity of the CDs for Hg²⁺.

The identification of the charge transfer process between functional groups and Hg²⁺ ions as a quenching mechanism for fluorescence CDs provides a powerful toolbox for a better understanding of their use in technological applications. Inspired by the excellent optical properties, the prepared CDs-N can be applied in diverse applications including anti-counterfeiting, sensing and adsorption of metal ions.

These high-performance CDs-N with excellent photostability exhibit great potential for anti-counterfeiting applications. The experiment is carried out using a pen with an aqueous solution of CDs-N as the fluorescent ink (Fig. 3a). In Fig. 3a, the CDs-N were used and painted on a hybrid filter membrane for investigating the anti-counterfeiting properties. The rich surface functional groups confer the CDs-N with good adhesion to the hybrid filter membrane, and hence diverse fine patterns (watering cans, clouds, butterflies and flowers) were obtained by writing with a pen (Fig. 3a). It can be clearly observed that these patterns are basically colorless and invisible in sunlight, while exhibiting a bright blue light under UV irradiation. Encouraged by the excellent properties, CDs-N aqueous was coated on a hybrid filter membrane for information encryption under daylight and information decryption under UV light (Fig. 3b). The numeral "888" is hand-drawn using a fountain pen and visible under daylight. Remarkably, even when a portion of the numeral "8" is entirely covered with Hg²⁺ solution and allowed to dry, the displayed numeral under daylight remains unchanged as "888". However, under 365 nm ultraviolet excitation, distinct numerals such as "123", "456", "666", "678", and "789" become discernible. These results again corroborate the strong quenching effect of Hg²⁺ on CDs-N and highlights the remarkable potential of CDs-N for highly effective anti-counterfeiting applications. In addition, the fluorescence code can also be achieved using a smart phone. As shown in Fig. S7 (Supporting information), the quick response (QR) code on the filter paper displayed a bright blue QR code under UV irradiation.

Figure 3

	Download: JPG larger image
Fig. 3. Anti-counterfeiting application of CDs-N. (a) Images of printed patterns on hybrid filter membrane for CDs-N. (b) Images of information encryption using the CDs-N ink in daylight and under UV light.

Moreover, the QR code produced no information under daylight, while the stored message "carbon dots" can be obtained by scanning with a smartphone under UV irradiation, suggesting that the information could be encrypted multiple times and transmitted using this material. These results confirmed that the anti-counterfeiting technology with CDs-N can provide a promising application in the field of high-level security.

Inspired by the sensing properties of CDs, the four CDs were encapsuled into a cellulose-based hydrogel by hydrogen bonding to prepare fluorescent hydrogels for the simultaneous detection and adsorption of Hg²⁺ ions [30,31]. As shown in Fig. 4a, the scanning electron microscope (SEM) images confirmed that the cellulose-based hydrogel exhibited a porous structure and three-dimensional network, which would provide numerous adsorption sites for the removal and detection of Hg²⁺ ions. Moreover, energy-dispersive X-ray spectroscopy (EDS)-mapping indicates uniform dispersion of C, O and N elements in the cellulose-based hydrogel, suggesting that the hydrogel contains various functional groups for the adsorption of metal ions (Fig. 4b). The fluorescent hydrogels were prepared by immersing the four CDs into a cellulose-based hydrogel network for the sensing and removal of Hg²⁺ (Fig. 4c). As shown in Fig. 4d, the sodium carboxymethyl cellulose/CDs-N (CA/CDs-N) hydrogel exhibits a fluorescence quenching upon the addition of the Hg²⁺. Similar fluorescence quenching was observed for the CA/CDs-C, CA/CDs-B and CA/CDs-S hydrogels (Fig. S8 in Supporting information). A linear response of four fluorescent hydrogels toward Hg²⁺ was observed (Fig. 4e). The detection limit of four fluorescent hydrogels were calculated to be 8.53 × 10⁻⁵, 4.73 × 10⁻⁵, 9.01 × 10⁻⁵ and 2.51 × 10⁻⁴ mol/L, respectively. Particularly, the CA/CDs-N showed a better fluorescence sensing for Hg²⁺, which is consistent with the above results for the four CDs solutions. In addition, the fluorescent hydrogel also showed an obvious fluorescence quenching for Hg²⁺ in the coexistence of multiple heavy metal ions (Fig. S9 in Supporting information). The excellent fluorescence quenching may be ascribed to the higher coordination interaction between Hg²⁺ and the functional groups of the CDs-N. Furthermore, the excellent mercury uptake capacity suggest that the CA/CDs-N hydrogel could be an effective sensor for environmental remediation (Fig. S10 and Table S5 in Supporting information).

Figure 4

	Download: JPG larger image
Fig. 4. Applications of fluorescent hydrogels. (a) SEM images and (b) EDS mapping of cellulose-based hydrogel. (c) Schematic of fluorescent hydrogel for the detection and adsorption of Hg2+. (d) The fluorescence intensity of CA/CDs-N hydrogel for Hg2+. (e) Fluorescence intensity ratios (I0/I) of the CA/CDs-N hydrogel for Hg2+ (λex = 360 nm).

In summary, the green synthesis of fluorescent CDs from C-CNC and dopants (urea, boron acid, glutathione) were achieved using a hydrothermal method. The four CDs synthesized exhibited good dispersion in aqueous solution and good fluorescence properties. Moreover, CDs-C, CDs-N, CDs-B and CDs-S were applied as the highly selective, sensitive, and effective sensors for the detection of Hg²⁺. CDs-N was found to have a better sensitivity for Hg²⁺ with a detection limit of 8.29 × 10⁻⁶ mol/L, which was associated with the high affinity between the -NH₂ of the CDs-N and Hg²⁺. DFT calculations further revealed that CDs-N preferred to absorb Hg²⁺ on the surface and they can form stable complexes. Based on its high-performance, the CDs-N were successfully used as fluorescence inks for anti-counterfeiting applications. Furthermore, the fluorescent hydrogels containing CDs-N were used to detect and remove Hg²⁺, revealing its potential in real world environmental applications. Moreover, the exhausted hydrogel materials can be vulcanized and then used for solar steam generation, realizing the sustainable development of materials. This study not only provides a green method for the preparation of CDs for the sensing of mercury ions, but also helps understand the fluorescence mechanism and the performance of CDs in existing technological applications.
