Citation

Li Chuan, Han Yangyang, Zhai Yanan, Li Ke, Liu Xingzhong, Zhang Zhuan, Jia Cai, Che Yongsheng. Phomaketals A and B, pentacyclic meroterpenoids from a eupC overexpressed mutant strain of Phoma sp.[J]. Chin. Chem. Lett., 2024, 35(7): 109019

Chuan Li^a,1, Yangyang Han^a,1, Yanan Zhai^b, Ke Li^a, Xingzhong Liu^c, Zhuan Zhang^a, Cai Jia^a,*, Yongsheng Che^a,*

Tropolonic sesquiterpenes are a class of meroterpenoids derived from the polyketide tropolone including its rearranged products, and the terpenoid humulene via intermolecular hetero–Diels–Alder reactions [1–13]. Tropolonic sesquiterpenoids can generally be grouped into three major categories based on the presence of tropolone(s) [1–6], its rearranged product(s) [4–8], or both as the polyketide counterparts of the structures [6,9–12]. Notable examples of unique tropolonic sesquiterpenes co-isolated with eupenifeldin have been reported from the species of Phoma, Neosetophoma, and Phomopsis [6,10–12], in which the tropolone moiety in eupenifeldin was replaced by furan-2(5H)-one, 3a,7a-dihydro-2H-furo[3,2-b]pyran-2,5(3H)–dione, and 3a,6a-dihydro-4H-cyclopenta[b]furan-4-one, respectively. Due to their diverse structure characteristics, and profound biological effects [1–18], tropolonic sesquiterpenoids have attracted much attention from synthetic chemists and biochemists [19–28].

Our prior chemical investigation of a strain of Phoma sp., isolated from a soil sample from the Qinghai-Tibetan plateau, Tibet, People's Republic of China, has afforded a variety of bioactive tropolonic sesquiterpenes with unique structural features [10,11]. Recently, we identified the biosynthetic gene cluster (BGC) responsible for the biosynthesis of eupenifeldin (eup) in Phoma sp., and confirmed that the oxidase EupC, highly homologous to TropC [22], catalyzed formation of the tropolone skeleton [25]. Since overexpression of key genes in BGCs has been demonstrated to be an effective approach to genetically manipulate the production of natural products, and to effectively expand structural diversities [29–31], oxidative modification of tropolone unit is expected to produce a variety of ring-contracted and other rearranged congeners. Based on this consideration, the strain Phoma sp. eupCOE was prepared by overexpressing eupC in the wild-type (WT) strain of Phoma sp. The high-performance liquid chromatography (HPLC) fingerprint of the crude extract of Phoma sp. eupCOE revealed the presence of metabolites that were different from those produced by the WT strain (Fig. S1 in Supporting information). Further chemical investigations of this extract led to the isolation of two unique tropolonic meroterpenoids that have been named phomaketals A and B, a new biogenetically related analogue pughiinin B (1–3; Fig. 1), and the known noreupenifeldin B (4) [6]. Details of the isolation, structure elucidation, cytotoxicity evaluation, and putative biogenesis of these compounds are reported herein.

Figure 1

	Download: JPG larger image

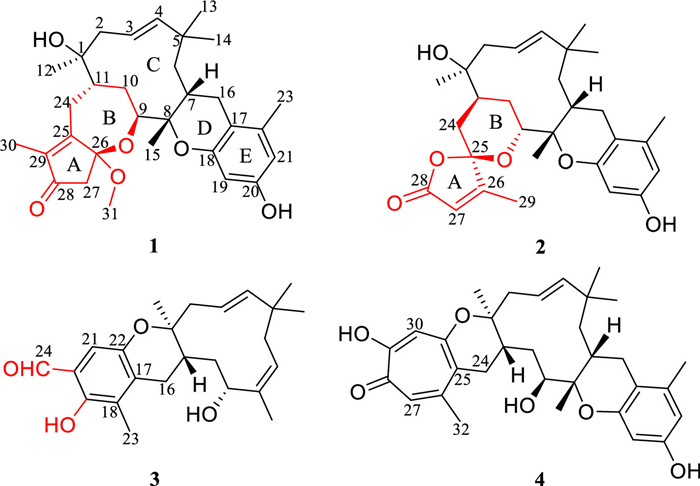

Fig. 1. Chemical structures of compounds 1–4.

Phomaketal A (1) was assigned the molecular formula C₃₁H₄₂O₆ (11 degrees of unsaturation) based on its high-resolution electrospray ionization mass spectroscopy (HRESIMS) and nuclear magnetic resonance (NMR) data (Table S1 in Supporting information). Analysis of its NMR data revealed the presence of seven methyl groups with one O-methyl, six methylene units, three methines including one oxygenated, 10 olefinic/aromatic carbons with four protonated ones, four sp³ quaternary carbons (three oxygenated carbons including one with double oxygenation at δ_C 103.8), and an α,β-unsaturated ketone carbon at 204.6 ppm. These data accounted for all of the NMR resonances of 1 except for two unobserved exchangeable protons, and required 1 to be a pentacyclic compound. Interpretation of the ¹H and ¹³C NMR spectroscopic data for 1 revealed the presence of the same tetrahydrohumulene moiety, a dihydro-2H-pyran unit, and a tetrasubstituted aryl ring, corresponding to fragments C–E, respectively, as those typically found in the known compound phomanolide A [10], but the remaining portion was significantly different, warranting a detailed two-dimensional (2D) NMR analysis. Analysis of the ¹H–¹H correlation spectroscopy (COSY) NMR data of 1 (Fig. 2) defined three isolated spin-systems of C-2–C-4, C-6–C-16 (via C-7), and C-9–C-24 (via C-10 and C-11), HMBC correlations from H₃–12 to C-1, C-2, and C-11, H₃–13 and H₃–14 to C-4, C-5, and C-6, H₃–15 to C-7, C-8 and C-9, and from H-6a and H₂–16 to C-8 established the 11-membered humulene unit (C), and a tetrasubstituted aryl ring (E), as confirmed by the heteronuclear multiple-bond correlation (HMBC) cross-peaks from H-19 to C-17, C-18, and C-20, H-21 to C-17, C-22, and C-23, and from H₃–23 to C-17, C-21, and C-22. While those correlations of H-16a with C-6, C-7, and C-8, and of H-16b with C-8, C-17, and C-18, plus the chemical shift values for C-8 (δ_C 79.7) and C-18 (δ_C 154.6) indicated that C-8 and C-18 are both attached to the same oxygen atom to form a dihydro-2H-pyran ring (D). In turn, correlations from H₂–24 to C-11, C-25, and C-26, H₃–30 to C-25, C-28, and C-29, and from H₂–27 to C-25 (δ_C 135.6), C-26, C-28 (δ_C 204.6), and C-29 (δ_C 167.5) established a cyclopentenone ring with an α,β-unsaturated ketone moiety (C-25–C-28 via C-29), and a methyl group located at C-29, completing the 2-methylcyclopent-2-en-1-one moiety (A), which was connected to C-11 of humulene unit (C) via C-24. The HMBC correlations from H-9 and H₃–31 to C-26, as well as the chemical shift value for C-9 (δ_C 70.1) and the doubly-oxygenated nature of C-26 (δ_C 103.8), suggested that the two C-26 attached oxygen atoms were individually connected to C-9 and C-31 to form an oxepane moiety (B) in 1. The HMBC correlations (Table S2 in Supporting information) from the exchangeable proton at 4.59 ppm to C-1, C-2, and C-11, and from that at 8.96 ppm to C-19, C-20, and C-21, located the two free hydroxy groups at C-1 and C-20, respectively. Collectively, the gross structure of 1 was tentatively assigned as shown.

Figure 2

	Download: JPG larger image

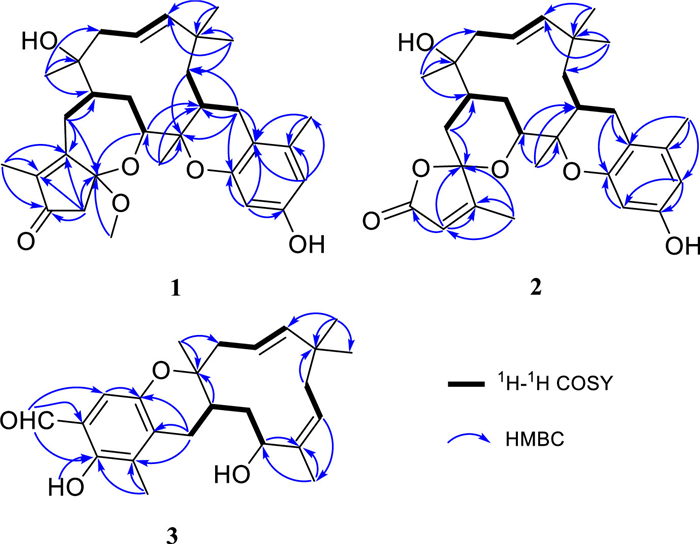

Fig. 2. Key 1H–1H COSY and HMBC correlations of 1–3.

The relative configuration of 1 was deduced by analysis of the ¹H–¹H coupling constants and nuclear Overhauser effect spectroscopy (NOESY) data (Fig. 3). The C-3/C-4 olefin was assigned the E-geometry based on the large J value of 16.2 Hz observed for H-3/H-4. The large trans-diaxial type J values of 15.0 and 12.0 Hz for H-7/H-6a and H-11/H-24a, respectively, revealed their axial orientations [10]. NOESY correlation of H₃–30 and H-24b revealed the Z-geometry for C-25/C-29 olefin. Correlation of H₃–15 with H-7 indicated that these protons are on the same face of the ring system, whereas those of H-9 with H-6a, H-24a, and H₃–31 and of H₃–12 with H-24a placed them on the opposite face of the molecule. The absolute configuration of 1 was deduced by comparison of the experimental and simulated electronic circular dichroism (ECD) spectra (Fig. 4) generated by time-dependent density functional theory (TDDFT) for the (1S,7R,8S,9S,11S,26S)−1 (1a) and (1R,7S,8R,9R,11R,26R)−1 (1b) enantiomers [32]. The MMFF94 conformational search followed by B3LYP/6–31G(d) TDDFT reoptimization afforded seven lowest energy conformers for 1a (Table S5 in Supporting information). The overall calculated ECD spectra of 1a and 1b were then generated by Boltzmann weighting of each conformer. The experimental ECD curve of 1 nearly identical to the calculated ECD spectrum of 1a, suggesting that 1 has the 1S,7R,8S,9S,11S,26S absolute configuration.

Figure 3

	Download: JPG larger image

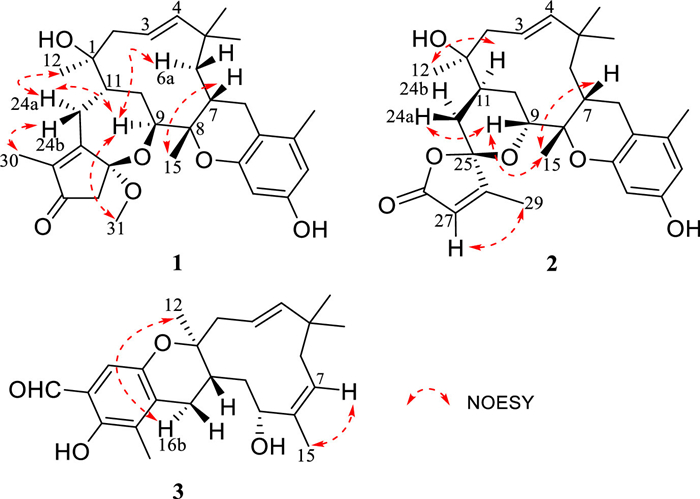

Fig. 3. Key NOESY correlations of 1–3.

Figure 4

	Download: JPG larger image

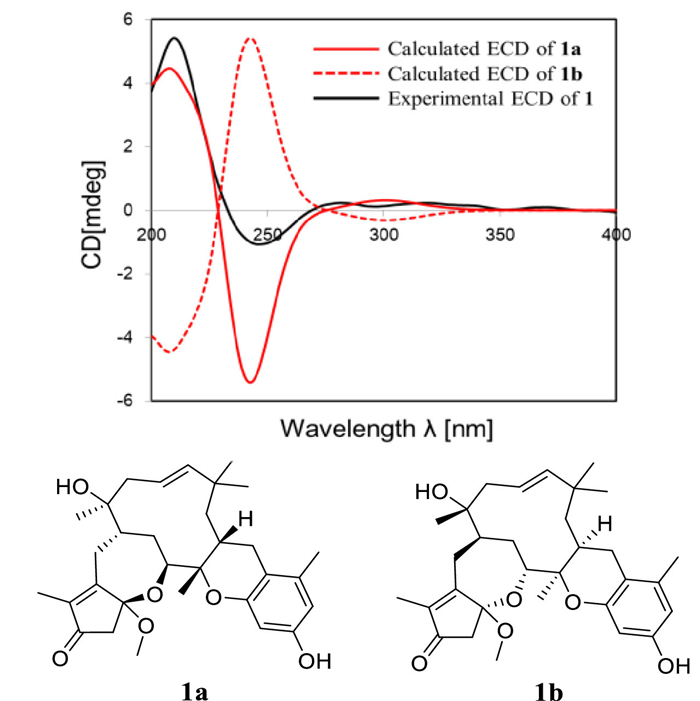

Fig. 4. Experimental ECD spectrum of 1 in MeOH and the calculated ECD spectra of 1a and 1b enantiomers.

The molecular formula of phomaketal B (2) was determined to be C₂₉H₃₈O₆ (11 degrees of unsaturation) by its HRESIMS and the NMR data (Table S1). The ¹H and ¹³C NMR spectroscopic data of 2 revealed the presence of the same partial structure (rings C–E) as that found in 1. However, resonances for the remaining portion differed significantly from those of 1. Detailed analysis of the 2D NMR data was performed to establish the different portion of the structure. The HMBC cross-peaks from H-24a to C-25 and from H₃–29 to C-25, C-26, and C-27 led to the connection of C-25 to C-24 and C-26, with the C-29 methyl group located at C-26. Correlations from the olefinic proton H-27 to C-26 and C-28 (δ_C 170.6) indicating that the carboxylic carbon C-28 is allylic to the C-26/C-27 olefin, establishing a 3-methylpent-2-enoate moiety, which was located at C-11 based on the HMBC correlation from H₂–24 to C-11 and relevant ¹H–¹H COSY NMR data. In addition, the two exchangeable protons (δ_H 4.56 and 8.95, respectively) presented in 2 were individually assigned to the free hydroxy groups attached to C-1 and C-20 by relevant HMBC correlations (Table S2). Considering the unsaturation requirement, the chemical shifts values for the C-9 oxymethine carbon (δ_C 75.7) and C-28 carboxylic carbon (δ_C 170.6), plus the doubly oxygenated nature of C-25 (δ_C 109.3), the two C-25 bonded oxygen atoms were each connected to C-9 and C-28 by default to complete the 4-methyl-1,6-dioxaspiro[4.5]dec–3-en-2-one moiety (A and B), even though no additional evidence for these linkages was provided by the HMBC data. Collectively, the gross structure of 2 was established as shown.

The relative configuration of 2 was also proposed on the basis of the ¹H–¹H J values and NOESY data. The C-3/C-4 olefin was assigned the E-geometry by the large J value observed for H-3/H-4 (15.6 Hz). NOESY cross-peaks of H-7/H₃–15/H-9/H-24a placed these protons on the same face of molecule, while the large trans-diaxial type J value of 13.2 Hz for H-11/H-24a, and a NOESY cross-peak of H-11/H₃–12 revealed opposite orientation for these protons. Additional correlations of H₃–29 with H-27 allowed assignment of the Z-geometry for the C-26/C-27 olefin. The absolute configuration of 2 was proposed by comparison of the experimental and simulated ECD spectra. The ECD spectra of four isomers (2a–d; Fig. 5) were calculated to represent all the possible configurations, and the experimental ECD spectrum of 2 reasonably agreed with that calculated for 2c (Tables S6 and S7 in Supporting information), suggesting the 1S,7R,8S,9R,11S,25R absolute configuration. To validate the configuration of C-25, the ¹³C NMR chemical shifts of 2a and 2c (Tables S8 and S9 in Supporting information), showing similar ECD spectra, were calculated using the gage-including atomic orbitals (GIAO) method [33]. The root-mean-square error (RMSE) between experimental and the calculated ¹³C NMR data and the DP4+ probability analysis revealed 100% probability of the 25R-configuration for 2c (Table S11 in Supporting information). And based on the coefficient values, 2c was the best match (R² = 0.9965; Fig. S29 in Supporting information), supporting the absolute configuration proposed for 2 by ECD calculations. Therefore, the absolute configuration of 2 was established as 1S,7R,8S,9R,11S,25R.

Figure 5

	Download: JPG larger image

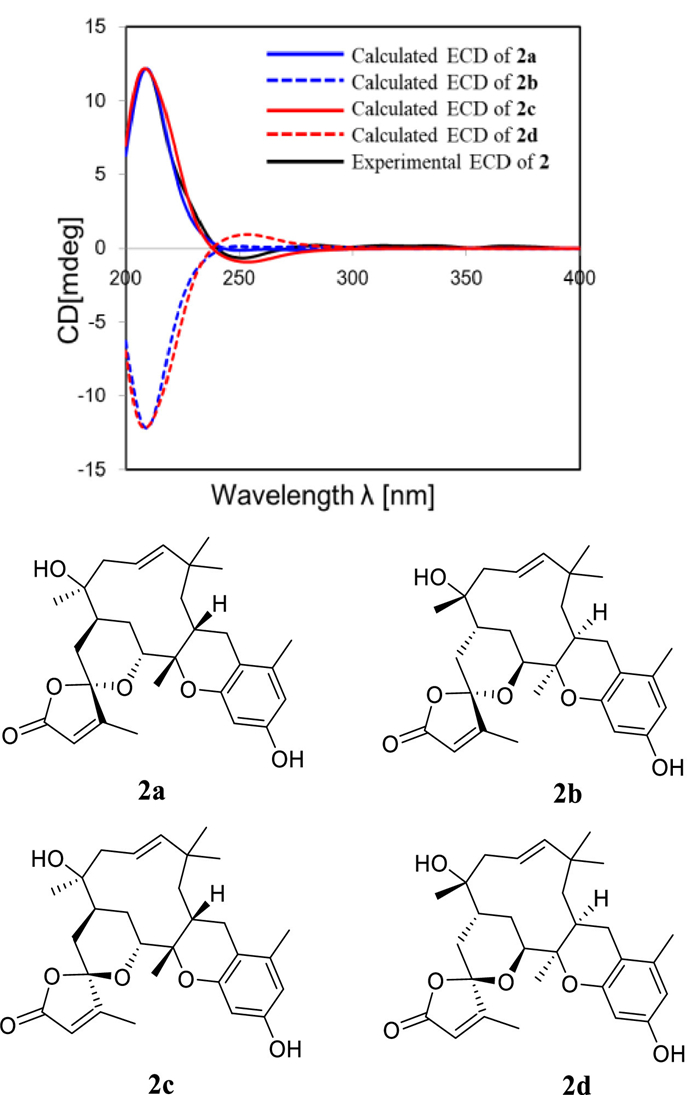

Fig. 5. Experimental ECD spectrum of 2 in MeOH and the calculated ECD spectra of 2a–d.

The molecular formula of pughiinin B (3) was established as C₂₄H₃₂O₄ by HRESIMS. Analysis of its ¹H and ¹³C NMR spectroscopic data (Table S3 in Supporting information) revealed structural similarity to those of the known metabolite pughiinin A [7], except that the chemical shift of C-19 (δ_C 108.7) was shifted significantly downfield to 152.9 ppm, and the resonances for C-20 and attached hydroxy proton were replaced by those for an aldehyde functionality (δ_H/δ_C 9.73/196.1) in 3. These observations were supported by the HMBC correlations of OH-19 with C-19 and C-20, and of H-24 with C-19, C-20, and C-21, allowing assignment of the gross structure of 3 as shown. The relative configuration of 3 was deduced on the basis of the ¹H–¹H coupling constants and NOESY data (Fig. 3), and was further confirmed by X-ray crystallography using Cu Kα radiation (Fig. 6) (CCDC: 2239679), from which the absolute configuration was determined to be 1S,9R,11S based on the value of the Flack parameter, −0.04(4).

Figure 6

	Download: JPG larger image

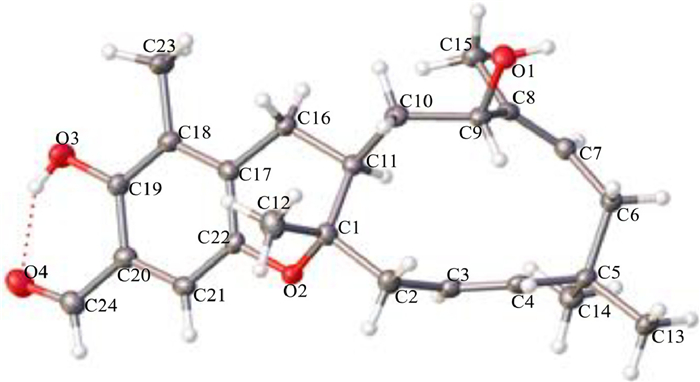

Fig. 6. Thermal ellipsoid representation of 3 (the ellipsoid contour probability level is 50%).

Compound 4 was readily identified as noreupenifeldin B by comparison of its optical rotation value, HRESIMS, and NMR data (Table S4 in Supporting information) with those reported [6,26]. Although its relative configuration was first assigned by NOESY data [6], and later reported from other fungus [26], its absolute configuration remained unassigned. To correlate biogenesis of the co-isolated metabolites, it is necessary to assign its absolute configuration, which was deduced in the current work by comparison of the experimental and calculated ECD spectra for (1S,7R,8S,9S,11S)−4 (4a) and (1R,7S,8R,9R,11R)−4 (4b) conformers (Fig. S30 in Supporting information). The MMFF94 conformational search and TDDFT reoptimization at the B3LYP/6–31G(d) basis set level afforded two lowest energy conformers for 4a (Table S13 in Supporting information). The experimental ECD spectrum of 4 was nearly identical to that calculated for 4a, suggesting the 1S,7R,8S,9S,11S absolute configuration.

Compounds 1–4 were evaluated for antiproliferative effects against three tumor cell lines, SUPB15 (human acute lymphocyte leukemia), EL4 (mouse lymphoma cells), and H9 (human T lymphoma leukemia) (Table 1). Compound 1 showed activity only against SUPB15 cells, with an 50% inhibitory concentration (IC₅₀) value of 4.85 µmol/L, 2 did not show detectable activity at 100 µmol/L, 3 was active toward EL4 cells, with an IC₅₀ value of 36.87 µmol/L. Compound 4 displayed the expected activity against all three tumor cell lines, with IC₅₀ values of 0.36–27.08 µmol/L, while the positive control daunorubicin showed IC₅₀ values of 18.38–272.20 nmol/L.

Table 1

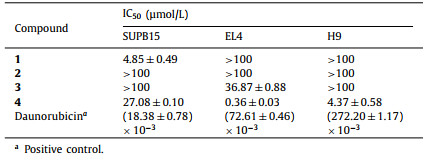

Table 1 Cytotoxicity of compounds 1–4.

Table 1 Cytotoxicity of compounds 1–4.

Although several natural products showing partial structural similarity to phomaketals A (1) and B (2) have been reported [10–12], compounds 1 and 2 are new and unique additions of the tropolonic meroterpenoid class of compounds possessing the unprecedented pentacyclic skeletons. Compound 1 possesses a unique 5/7/11/6/6 skeleton with the rare 2,3,4,5,8,8a-hexahydro-7H-cyclopenta[b]oxepin-7-one moiety, with a thiophene isolated from the plant Artemisia rupestris as the only precedent incorporating the same unit [34]. While compound 2 possesses an unprecedented C-25-spirofused 5/6/11/6/6 pentacyclic core incorporating a rare 1,6-dioxaspiro[4.5]dec–3-en-2-one unit, with fungal natural products sequoiamonacins A and B [35] and talaromyacins A–C [36], and plant metabolites spirochensilides A and B [37] as the precedents incorporating this moiety. To our knowledge, compounds 1 and 2 are the first examples of oxidative modification of the tropolone and pyran moieties (B) that are fused to the humulene (C) at C-9/C-11. Compound 3 is a new tropolonic meroterpenoid with an aldehyde functionality, and its absolute configuration was assigned for the first time by X-ray crystallography. In addition, the absolute configuration of the known noreupenifeldin B (4) was proposed for the first time by ECD calculations. Biogenetically, tropolone orthoquinone methide (b') and humulenol (c and c') could be the biosynthetic precursors for 1–4 (Scheme 1), first undergo a hetero Diels–Alder reaction to form the key intermediates neosetophomone B (6) [6,24] and 9-R-neosetophomone B (6′), and followed by reactions including hetero–Diels–Alder reaction, oxidative ring-contraction and –cleavage [4–6], rearrangement [10–12], and lactonization via different routes to form 1–4 [22–28]. These results have further demonstrated the feasibility for generation of structurally unique and diverse tropolonic meroterpenoids by manipulating the key biosynthetic genes.

Scheme 1

	Download: JPG larger image

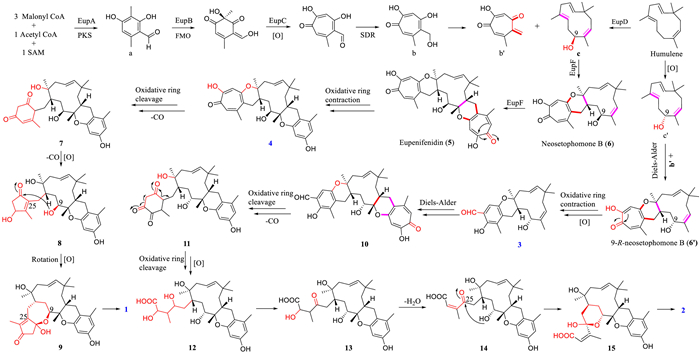

Scheme 1. Hypothetical biosynthetic pathways for 1–4.

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

We gratefully acknowledge financial support from the National Natural Science Foundation of China (No. 82003628) and the CAMS Innovation Fund for Medical Sciences (Nos. 2021-I2M-1-030, 2021-I2M-1-028, and 2021-1-I2M-2-002).

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.109019.
