It is more urgent to deal with the climate change problems and reduce carbon dioxide emissions [1]. Carbon peak and carbon neutrality have received more attention in recent years. Hydrogen has become one of the most promising alternative clean sources which is comparable with fossil fuels without any carbon dioxide emission [2,3]. Electrolysis of water has become one of the most efficient ways in hydrogen and oxygen energy production [4,5]. In the process of electrolysis of water, catalysts with highly electrochemical activity and stability are crucial for water splitting [6,7]. For now, Pt is deemed to be the most efficient catalyst for HER. However, the scarcity and high costs have hindered the application of Pt [8,9]. Therefore, exploitation of catalysts without Pt or using little Pt has become research hotspot [10–12].
Chevrel phase compounds are a group of inorganic materials that can play important roles in electrochemical energy storge and electro-catalysis due to the unique crystal structure and properties. Different kinds of electrochemical reduction reactions can be found on Cheverl phases (CPs, Mo6×8) [13,14]. The structure of CPs is highly tunable [15], in which the electronic structures are versatile with different charge transfer performance (Fig. S1a in Supporting information). Moreover, the biggest characteristic of CPs is its high electronic conductivity, which is because the delocalized metallic bonds in the Mo6 cluster, resulting in the metal-like properties [16]. The metal-like properties of CPs are favorable for the electrochemical reduction reactions, which is similar to 1T MoS2 [17,18]. Meanwhile, low-coordinated Mo-S in MoS2 (Fig. S1b in Supporting information) exhibits low hydrogen adsorption free energy [19], of which the HER performance can be close to Pt in acidic media in theory [20]. Nevertheless, the rate-determining step is affected by the energy barrier during the process [21]. A large number of researches show that the energy barrier of water dissociation on MoO2 (Fig. S1c in Supporting information) is relatively low [22–24]. Considering the low hydrogen adsorption free energy of MoS2, low water dissociation of MoO2 and high electroconductibility of Mo6S8, the combination of the abovementioned materials seems to be a feasible mean for improving HER performance. In addition, the highly efficient catalytic performance of Pt is undeniable [25]. Therefore, preparation of catalysts with low Pt loading or Pt-free is a desired orientation in developing HER performance [26]. Commonly, the preparation of nano-size Pt or large surface area and high stability carrier with low Pt is the main means to reduce the application amount of Pt [27,28]. Various substrates such as carbon [29], MXenes [30], sulfide [31], and heterojunction [32]. Besides, different kinds of metal sulfide [33–35], oxide [36–38], cobalt-based compound [39] and metal-free catalysts [40] have been developed over wide pH values. Meanwhile different technologies for overall water splitting have also been carried out [41–43]. Studies in recent years have shown that the MoO2 and MoS2 based composites are mainly prepared by hydrothermal or high temperature solid sintering methods, which require high temperature and long duration [23,44,45]. However, the traditional methods are hash and dangerous which is not fitting the conditions of industrial manufacturing [46]. Chen et al. first reported an ultra-fast and simple synthesis method for nanomaterials by Joule heating [47–50], which provide a new horizon in nanomanufacturing [51–54]. Herein, we demonstrated our findings on low loading of Pt as decoration to Mo6S8. The following ultra-fast HTS method (Fig. S2 in Supporting information) was introduced to obtain nano-composites of Pt/MoS2/MoO2/Mo6S8 for the first time with enhanced HER performance, which provide a fast synthetic method in nano-composites. Schematic illustration of preparation and action mechanism was presented in Fig. 1. Pt/MoS2/MoO2/Mo6S8 nano-composite was derived from Pt/Mo6S8 by one-step HTS, which was used in the following tests.
|
Download:
|

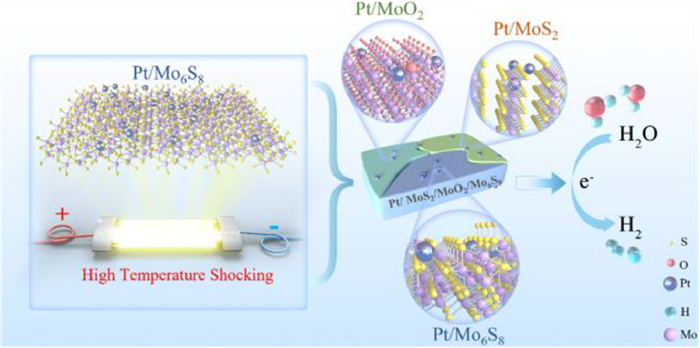

| Fig. 1. Schematic illustration of preparation and action mechanism of Pt/MoS2/MoO2/Mo6S8. | |
As shown in Fig. S3a (Supporting information), the crystalline phase of Mo6S8 was characterized by XRD. The peaks of XRD pattern matches well with space group of R3̅ space group (PDF#24–0319) with a = b = 9.1833(3) Å and c = 10.8716(5) Å [55]. And it displayed a size of several hundred nanometers (200–1000 nm) in length width (Fig. S3b in Supporting information). After Pt loading (the loading amount described in the figure is feed ratio rather than practical loading, which will be identified by ICP), the diffraction peaks also can be well matched to PDF#24–0319, while with broadening of peaks as shown in Fig. S4a (Supporting information), which indicating the declining in particles sizes. It also can be found in Fig. S5 (Supporting information) that after loading Pt, the size of Mo6S8 becoming smaller and Pt particles can be detected in SEM with uniform element distribution and trace Pt can be detected in mapping. 10% Pt/Mo6S8 was selected to be treated by HTS. As shown in Fig. S4b (Supporting information, the MoO2 (PDF#32–0671), MoS2 (PDF#37–1492) and Mo6S8 (PDF#27–0319) can be observed, indicating the synthesis of MoS2/MoO2/Mo6S8 composite in the system.
The SEM and HRTEM images of Pt/MoS2/MoO2/Mo6S8 catalyst were showed in Figs. 2a and b. The feed ratio of 10% Pt nanoparticles decorated on MoS2/MoO2/Mo6S8 (Pt/MoS2/MoO2/Mo6S8) can be seen and a number of ultra-fine Pt nanoparticles can be seen which has been distributed uniformly on the base. After HTS, the particles are mostly reduced into 100 nm, the size of which is smaller compared to the ones in Fig. S5a. The HRTEM image in Fig. 2c proves the heterostructure of MoS2 and MoO2 with two clear diffraction lattice stripes 0.202 nm and 0.240 nm, attributing to (006) lattice plane of MoS2 and (200) lattice plane of MoO2. And Pt particles can be clearly seen anchoring on the base. The lamellar structure can be observed in Fig. 2d and the diffraction lattice stripes is about 0.64 nm, corresponding to Mo6S8 with a characteristic plane of (101). The selected regions in the HRTEM image were further analyzed by Fast Fourier Transform and Inverse Fast Fourier Transform (inset), which reveals clear diffraction lattice stripes with 0.23 nm, which is corresponding to (111) diffraction lattice stripe of Pt. Meanwhile, the defect of Mo6S8 and ultra-thin lamella loading nano Pt particles can be observed in the edge of the bulk materials (Figs. 2e–h). The EDX elemental mapping images in Fig. 2i indicated the homodisperse of Mo, S, O and Pt elements in Pt/MoS2/MoO2/Mo6S8 catalyst. Especially, Pt particles distribution on the base is clear. The results in Fig. S6 (Supporting information) showed that the mass fraction of Pt is about 6.73%, which is close to the result of ICP-OES result of ~4%.
|
Download:
|

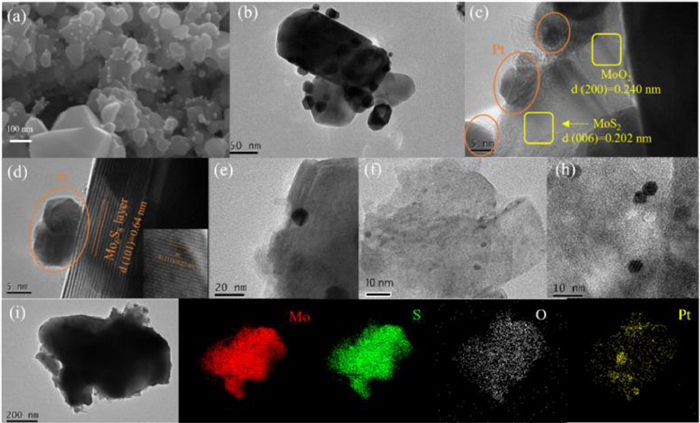

| Fig. 2. (a) SEM image of Pt/MoS2/MoO2/Mo6S8. (b–h) HRTEM images of Pt/MoS2/MoO2/Mo6S8. (i) EDS-mapping of Pt/MoS2/MoO2/Mo6S8. | |
These valence states of Pt/MoS2/MoO2/Mo6S8 were estimated by XPS. The elements of Mo, S, O and Pt can be detected on the surface of catalyst in Fig. S7a (Supporting information). While in Fig. S8a (Supporting information), the element of O is not found, which is consistent to the results of XRD. Figs. S7b and c (Supporting information) were the XPS spectra of Mo 3d and S 2p. The peaks of Mo 3d which were at 228.0 eV and 231.1 eV indicated the delocalized metallic bonds (Mo-Mo). And Mo4+ and Mo6+ also have been also detected, in which Mo4+ is corresponding to the Mo in MoO2 and MoS2, while Mo6+ may be due to the surface oxidation. The characteristic peak of Mo-S for MoS2 can be detected clearly at 226.1 eV in Fig. S7b, which is different from the Mo state of the unshocked in Fig. S8b (Supporting information). The S 2p XPS shows that there are two peaks at 163.1 eV and 161.8 eV go with S 2p1/2 and S 2p3/2 corresponding to S2- (Fig. S7c). And before shocking, the S remains parts of the valence between −2 and 0, which mostly belongs to Mo6S8 phase (Fig. S8c in Supporting information). The Pt 4f XPS was shown in Fig. S7d (Supporting information). It can be seen that Pt 4f splits into two peaks at 71.25 eV (Pt 4f7/2) and 74.80 eV (Pt 4f5/2), corresponding to metallic Pt0. Moreover, before shocking, another pair of peaks were detected at 72.09 eV and 75.12 eV, which belongs to Pt2+ (Fig. S8d in Supporting information), indicting after shocking, parts of Pt2+ has been reduced to Pt0 [25].
The liner sweep voltammetry (LSV) curves was tested to evaluate the overpotential of different Pt loading amount Mo6S8 in Fig. 3a. The overpotential at 10 mA/cm2 was used to compare the activity of the catalysts. The catalysts treated with different process show different HER activity. When the feed ratio is 10% (practical amount of 4%), the Pt/Mo6S8 catalyst exhibits smaller overpotential of 190 mV than the Mo6S8 catalyst of 320 mV. Then different time of HTS treating was applied to treat the catalyst of 10% Pt/Mo6S8. As shown in Fig. S9 (Supporting information), when the treating time of HTS is 30 s, the HER performance has been improved a lot compared with the other treating time of the catalysts. As shown in Fig. S10 (Supporting information), lager granular sizes of the base and loading Pt particles are induced by long HTS treating time, indicating decreased active specific surface area, leading to severe activity loss. After 800 ℃ high temperature shocking for 30 s (labeled as Pt/MoS2/MoO2/Mo6S8), the overpotential has been further reduced to 124 mV (Fig. 3b). Moreover, its mass activity is 6.2 mA/µgPt at −124 mV vs. RHE, almost 2 times relative to 20% Pt/C. The HER performance of different Pt/substrates was investigated in Fig. S11 (Supporting information). It can be seen that among three kinds of Pt/substrates with the same initial feed quantity (10%), Pt/MoO2 exhibits lower overpotential than Pt/MoS2 and Pt/Mo6S8. While Pt/MoS2/MoO2/Mo6S8 still exhibits the lowest overpotential, which may due to the defects and MoO2/MoS2 heterostructure in the composite. Besides, as shown in Fig. S12 (Supporting information), Pt/MoS2/MoO2/Mo6S8 exhibits lower overpotential of 150 mV compared with the catalysts of Mo6S8 and Pt/Mo6S8 under basic electrolyte. And the stability under basic electrolyte is inferior to acid electrolyte.
|
Download:
|

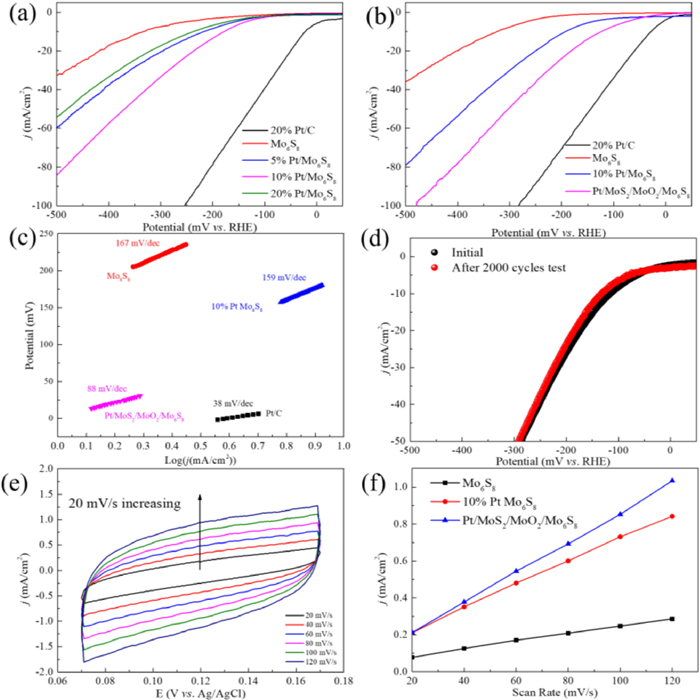

| Fig. 3. (a) LSV curves of different Pt loadings of Mo6S8 catalysts. (b) Comparison of LSV curves of different catalysts. (c) Comparison of Tafel slope of different catalysts. (d) LSV curve after 2000 cycles. (e) CV curves of Pt/MoS2/MoO2/Mo6S8 at different potential scanning rates. (f) Linear fitting of the currents of Pt/MoS2/MoO2/Mo6S8 vs. scan rates. | |
HER kinetics was evaluated by Tafel slope, which can be got by fitting the Tafel equation (η = a + b log j) [56]. The Tafel slope of Pt/MoS2/MoO2/Mo6S8 (88 mV/dec) is smaller than Mo6S8 (167 mV/dec) and Pt/Mo6S8 (159 mV/dec) in Fig. 3c. The smaller Tafel slope of Pt/MoS2/MoO2/Mo6S8 compared with Mo6S8 and Pt/Mo6S8 illustrates that the HER velocity of Pt/MoS2/MoO2/Mo6S8 was faster when the overpotential increases. There are three kinds of reactions involved in hydrogen evolution mechanism. The mechanisms that affect the HER process are mainly Tafel reaction, Heyrovsky reaction and Volmer reaction, when the Tafel slope is 30, 40, 120 mV/dec. The catalyst of Pt/MoS2/MoO2/Mo6S8 with Tafel slope of 88 mV/dec indicates that the HER was determined by the Volmer-Heyrovsky mechanism, suggesting that the Volmer reaction is the rate-determining step and in this reaction protons were converted to the adsorbed hydrogen atoms [57].
Another important indicator to evaluate the electrochemical catalysts is the stability. The HER performance after 2000 CV cycles was shown in Fig. 3d. There is no attenuation in LSV curve of the catalyst compared with the one before cycles, suggesting anchoring of Pt is strong on the surface of MoS2/MoO2/Mo6S8 base.
The effective surface area (ECSA) test was also used to evaluate the activity of catalysts, which can be obtained by testing CV curves under different scan rates. The corresponding CV curves were measured under different scan rates ranging from 20 mV/s to 120 mV/s in potential range of 0.07–0.17 V vs. SCE where no Faraday reaction is reacted (Figs. 3d and e, Fig. S13 in Supporting information). Cdl can be calculated through the j obtained at 0.12 V vs. SCE in CV and scan rates curves from Fig. 3f. The slope of the curve j is twice of Cdl [58]. The Cdl of Pt/MoS2/MoO2/Mo6S8 is 7.8 mF/cm2, demonstrating the maximum amounts of active sites, more than those of Pt/Mo6S8 (6.15 mF/cm2) and Mo6S8 (2.01 mF/cm2). Thus, it deems that the higher ECSA can be partly attributed to the nanostructure, and the other reason is that the heterostructure and defects in Pt/MoS2/MoS2/Mo6S8 can facilitate the electron transfer.
To further elucidate the properties of the catalysts, the morphology and element distribution of Pt/MoS2/MoO2/Mo6S8 after 2000 cycles operation were analyzed. The SEM images shows that Pt/MoS2/MoO2/Mo6S8 catalyst has been distributed on the carbon paper uniformly (Figs. 4a and b). The layered morphology of Pt/MoS2/MoO2/Mo6S8 is still preserved, and the Pt nano particles can be observed clearly (Fig. 4c). At the same time, the anchoring of Pt nano-particles can be also detected in the HRTEM images (Figs. 4d–f). The results of EDS-mapping indicated that the elements distribution is homogeneous and clearly Pt particles can be detected by mapping (Fig. 4g). The mass amount of Pt detected in EDS is 10.56% (Fig. S14 in Supporting information) without decreasing, indicating the high stability of the catalyst. Moreover, as shown in Fig. S15 (Supporting information), even after 100 h electrolysis the intact morphology of Pt/MoS2/MoO2/Mo6S8 is still preserved, and the Pt nano particles can be observed clearly. And XPS of the catalyst after cycling was carried out to confirm the valence change during HER. As shown in Fig. S16 (Supporting information), it can be seen that the valence states of S and Pt are remain the same. While Mo6+ which may be due to the surface oxidation has been disappeared during HER process, indicating the high stability of the catalyst.
|
Download:
|

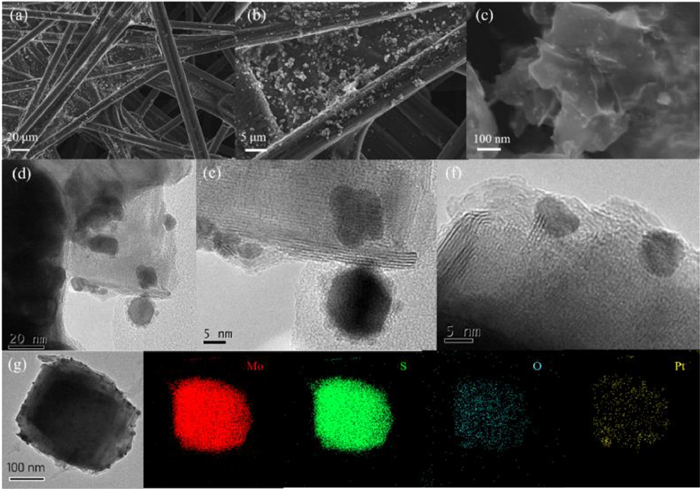

| Fig. 4. (a–c) SEM images, (d–f) HRTEM images, (g) EDS-mapping of Pt/MoS2/MoO2/Mo6S8 after 2000 CV cycles. | |
In summary, a novel MoS2/MoO2/Mo6S8 nano-composite with low Pt loading (4%) was synthesized by ultra-fast HST for HER performance. The obtained Pt/MoS2/MoO2/Mo6S8 nano-composite displays well HER electrochemical performance with overpotential of 124 mV and a Tafel slope of 88 mV/dec. Volmer reaction is the main influence factor in the HER process. Strikingly, the mass activity is 6.2 mA/µgPt at −124 mV vs. RHE, almost 2 times relative to 20% Pt/C. Moreover, Pt/MoS2/MoO2/Mo6S8 exhibits high stability with no decay in LSV after 2000 cycles and the integrity was observed in morphology after cycles. The work in this study may provide new avenues to develop highly efficient noble metal-doped nano composites in electrochemistry.
