Photoinduced bismuth vanadate-catalyzed C(sp2)-H functionalization
Rong-Nan Yia, Wei-Min Heb,*
a Key Laboratory of Food & Environment & Drug Monitoring and Testing of Universities in Hunan Province, Hunan Police Academy, Changsha 410138, China;
b School of Chemistry and Chemical Engineering, University of South China, Hengyang 421001, China

Visible light-induced organic reactions have gained much attention in recent years due to their mild conditions and high efficiency [1,2]. In this context, many efficient photocatalysts including transition metal complexes and organic dyes have been developed for various organic transformations. However, most of them are homogeneous photocatalysts, which cannot be recycled after the reaction leading to high costs and pollution. Recently, great efforts have been devoted to the development of low-cost, efficient, and recyclable heterogeneous photocatalysts for organic reactions from the perspective of green chemistry. For example, the heterogeneous photocatalytic systems based on semiconductors like carbon nitride (C3N4) [3,4], perovskites (CsPbBr3) [5], zinc indium sulfide (ZnIn2S4) [6], tungsten selenide (WSe2) [7], graphene oxide [8], organic polymers [9], etc., have been demonstrated to be potential photocatalysts for various organic transformations.

In a typical heterogeneous photocatalytic system, the semiconductor photocatalyst absorbs the photon of light, in which the photogenerated electrons and holes are produced. The photogenerated electrons could function as a reductant in a reduction process, while the holes could act as oxidants in an oxidation process. Therefore, it is feasible to apply these semiconductors as photocatalysts for various organic reactions, in which single electron reduction/oxidation processes are generally involved.

Very recently, the research group of Chen and Yu at Zhengzhou University disclosed that bismuth vanadate could be a versatile heterogeneous catalyst for photocatalytic functionalization of C(sp2)–H bonds (Scheme 1) [10]. It was found that the prepared BiVO4 is a universal and robust heterogeneous photocatalyst for the functionalization of C(sp2)−H bonds to construct different types of arenes and heteroarenes under visible light irradiation at ambient conditions. This heterogeneous catalyst approach features the benefits involving recyclable catalysts, additive-free, mild conditions, and wide applicability.

Download:

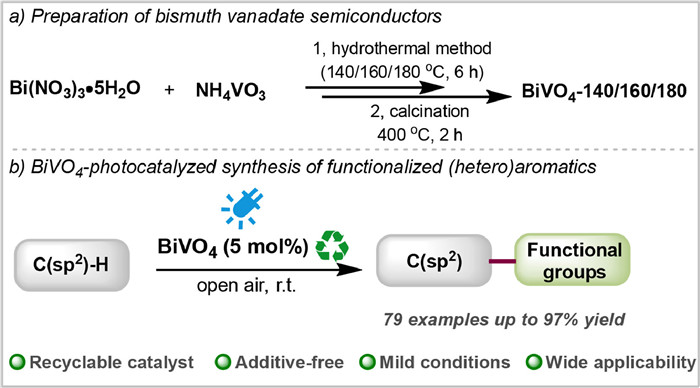

Scheme 1. Catalyst preparation and BiVO4-photocatalyzed functionalization of C(sp2)−H bonds.

Firstly, three bismuth vanadate semiconductors (BiVO4–140/160/180) were prepared by a self-developed combined hydrothermal/calcination method. They were also characterized by XRD, UV–vis absorbance, photocurrent, photoluminescence, hydrodynamic particle size, and SEM. The results show that the BiVO4–180 prepared using the 180 ℃ hydrothermal method has better optoelectronic properties and smaller particle sizes. Subsequently, BiVO4–140/160/180 were used in complex organic synthesis, with BiVO4–180 demonstrating the best photocatalytic properties.

As shown in Schemes 1 and 2, various C(sp2)–H functionalized target aromatic/heteroaromatics (79 examples, up to 97% yield) such as tetrahydroquinoline-succinimide fused heterocycles, tetrahydroquinolines, 3-(p-(N, N-dimethyl)benzyl) indoles, α-aryl α-amino acid esters, and thiocyanation/vulcanization/selenation (hetero)aromatics were smoothly synthesized including modification of drugs and dipeptide esters. Additionally, the BiVO4–180 semiconductor photocatalyst can be recycled and reused up to 8 times with no significant change in catalytic activity and structure. This strategy also applies to sunlight as a light source.

Download:

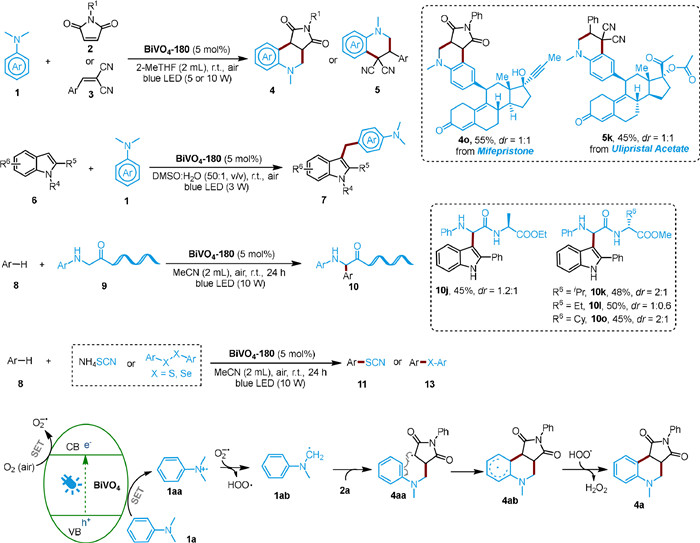

Scheme 2. BiVO4-photocatalyzed reactions and plausible mechanism.

A plausible mechanism for this strategy was proposed as shown in Scheme 2. First, under visible light irradiation, an electron in the BiVO4–180 valence band (VB) is excited to the conduction band (CB), leaving a hole (h+) on VB. 1a then undergoes a single electron transfer (SET) with the hole to produce intermediate 1aa. At the same time, an electron in the CB undergoes a SET with O2 in the air to form O2•−. Next, 1aa loses a proton to O2•−, rendering radical 1ab together with HOO. The addition of 1ab to 2a leads to the formation of radical 4aa which subsequently experiences an intramolecular cyclization, affording radical intermediate 4ab. 4ab then proceeds hydrogen abstraction by HOO to give the product 4a with the release of H2O2.

In conclusion, Chen and Yu's group recently prepared the bismuth vanadate semiconductors (BiVO4–140/160/180) and subsequently investigated their photocatalytic activities. It has been demonstrated that BiVO4–180 is a universal and robust heterogeneous photocatalyst for the functionalization of C(sp2)-H bonds to construct different types of arenes and heteroarenes. Significantly, the BiVO4–180 can be recycled and reused up to 8 times with no significant change in catalytic activity and structure. Outstanding advantages of those developed reactions include mild conditions, recyclable catalysts, and wide applicability. Compared with commercial materials, the self-prepared semiconductor has a smaller particle size and exhibits better photocatalytic activity. Such a strategy to enhance photocatalytic activity by controlling the size of semiconductors may bring a bright future for heterogeneous photocatalytic organic synthesis.

Although the results showed the potential of bismuth vanadate as a versatile photocatalyst, they were obtained under laboratory conditions. Scaling up this catalyst for industrial or large-scale production processes would require consideration of its practicality and scalability. Moreover, further studies are needed to evaluate its long-term stability and durability under various conditions.
