Cooperative metal-ligand reactivity for bond activation and catalysis is a powerful strategy in the development of homogenous catalysts [1-7]. Significantly, it can widely expand the use of base metal catalysts for sustainable transformations and organic synthesis [8-17]. During the renaissance of nickel catalysis over recent years [18,19], the ligand scaffolds were well designed and operated in a synergistic fashion with the metal to participate in reaction sequences and serving as a Lewis base [20-30], an electron reservoir [31-33] or through dearomatization-aromatization [34-36]. These studies have promoted nickel catalysis in many important applications [34-50], such as hydroboration of CO₂ [13], production and oxidation of H₂ [51-54], and hydrosilylation of alkenes [31,32,34].

Our group has explored metal-ligand cooperation (MLC) chemistry on a Cp*M(1,2-Ph₂PC₆H₄X) (M = Fe, Co or Ni; X = S, HN or O) platform. By switching the M-X pair and modifying the electronic and steric factors at the phosphorus, a new class of half-sandwich complexes has been developed and used in a multitude of catalytic reactions [55-62]. These M-X complexes have shown intriguing reactivity in activation of hydroboranes [57], ammonia-borane [58], epoxides [59] and terminal alkynes [60,61]. In studies of cooperative B-H bond activation of HBpin, we found that the reactivity of Cp*M(1,2-Ph₂PC₆H₄X) is sensitive to the M-X pair, which also affects catalytic performance of the complex. For example, the Fe−S complex, Cp*Fe(1,2-Ph₂PC₆H₄S), is inert toward HBpin but can activate aryl epoxides for their hydroboration [59]. In contrast, the Ni−O complex, Cp*Ni(1,2-Ph₂PC₆H₄O), achieves activation of HBpin at its Ni−O bond [62].

When the anionic coordination site is changed however from oxygen to sulfur, Cp*Ni(1,2-Ph₂PC₆H₄S), regains its stability toward HBpin (Scheme 1a).

Nickel-based cooperative B-H bond activation is attractive because it allows direct use of HBpin rather than exogenous activators to generate Ni(Ⅱ)−H species for catalytic hydro-boration reactions. In the Cp*Ni(1,2-R₂PC₆H₄X) half-sandwich system, the parent nickel complex and the resulting hydride intermediate both have an 18-electron configuration, and are stable in air. The challenge to achieve such MLC catalysis is not only activation of the B-H bond but also generation of a sufficiently active hydride intermediate, HNi—X(Bpin) that allows the hydro-boration sequences to proceed [15,62].

Building on our previous work with the Ni−O complex, we aimed to investigate the synergistic effects of Ni−X on cooperative B-H bond activation and the catalytic performance in hydroboration reactions associated with subtle tuning of the Ni−X and the ancillary phosphine. Herein, we describe two new nickel complexes Cp*Ni(1,2-Cy₂PC₆H₄O) (1) and Cp*Ni(1,2-Ph₂PC₆H₄NH) (2) which participate in cooperative B-H bond activation, and report their catalytic performance in hydroboration of unsaturated organic compounds containing C=X groups (Scheme 1b).

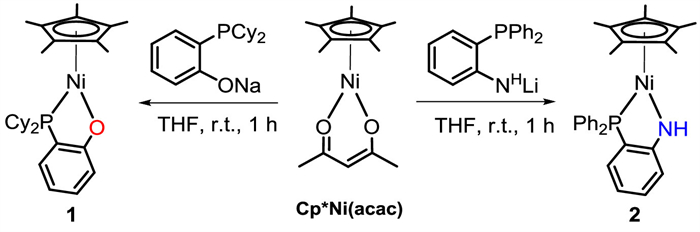

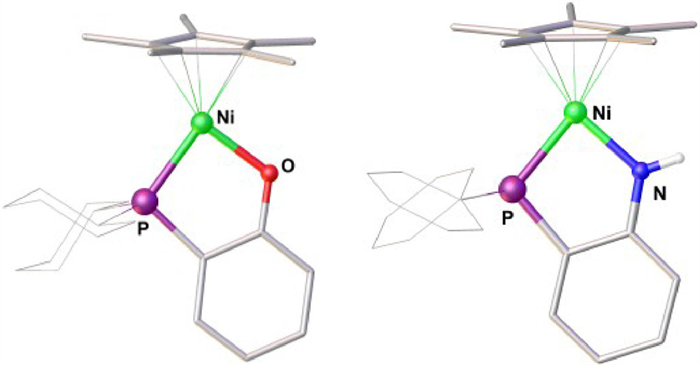

According to a previously reported method [62], complexes 1 and 2 were synthesized independently by treating a solution in THF of Cp*Ni(acac) with equimolar amounts of 1,2-Cy₂PC₆H₄ONa or 1,2-Ph₂PC₆H₄NHLi (Scheme 2). Complexes 1 and 2 were isolated as air-stable yellow solids in yields of 90%–94%. In their ³¹P NMR spectra, the C₆D₆ solution of the complexes have a sharp singlet at δ 41.82 for 1 and 45.07 for 2. The solid-state structures of 1 and 2 were confirmed by X-ray crystallography (Fig. 1). They both exhibit a framework similar to that of Cp*Ni(1,2-R₂PC₆H₄X), which adopts a two-legged piano-stool geometry. The Ni-P bond lengths in 1 (2.1558(7) Å) and 2 (2.1382(6) Å) are very close to those reported for Cp*Ni(1,2-Ph₂PC₆H₄O) (2.1290(1) Å) and Cp*Ni(1,2-Ph₂PC₆H₄S) (2.1140(1) Å) [62].

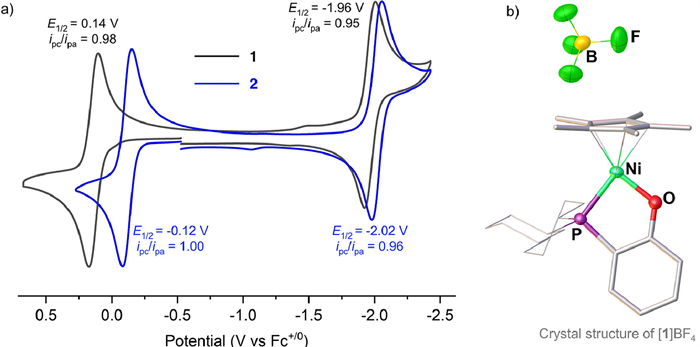

The redox properties of 1 and 2 were investigated by cyclic voltammetry (Fig. 2a). They both exhibit two reversible redox events, which were tentatively assigned to the Ni(Ⅱ)/Ni(Ⅲ) and Ni(Ⅰ)/Ni(Ⅱ)) couples. The oxidation potential of 1^+/0 was observed as 0.14 V vs. Fc^+/0, about 0.26 V less negative than that of 2^+/0 (−0.12 V vs. Fc^+/0). However, their reduction potentials −1.96 V for 1^0/- versus −2.02 V for 2^0/- differ only slightly. These results indicate that the metal center of the Ni−N complex is more electron-rich compared with that in the Ni−O complex.

At −30 ℃, oxidation of 1 by AgBF₄ in CH₂Cl₂ was conducted on a preparative scale. The resulting cationic Ni(Ⅲ) complex, was isolated in 97% yield, and its structure was successfully determined by X-ray crystallography (Fig. 2b). Although the framework of 1⁺ in [1]BF₄ is almost identical to that of 1, some bond lengths and angles are slightly different. For example, the oxidation leads to an increase in the Ni−P distance from 2.1558(7) Å in 1 to 2.2307(6) Å in [1]⁺, while the Ni−O distance decreased from 1.886(2) Å to 1.8229(15) Å.

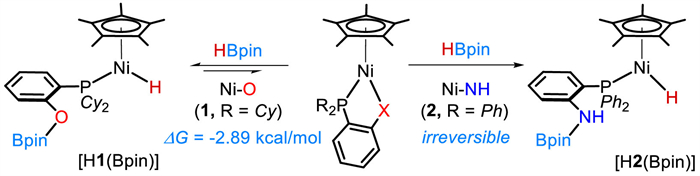

Both 1 and 2 react with HBpin to afford a Ni(Ⅱ)−H species, but show different reactivities in activation of the B-H bond (Scheme 3). The reaction of 1 with 4 equiv. of HBpin in C₆D₆ was conducted in the J. Young NMR tube and monitored by NMR spectroscopy. After 3 h, the ³¹P NMR spectroscopic studies indicated that 1 had been completely converted to a new hydride species [H1(Bpin)] which has a ³¹P signal at δ 71.72. In the ¹H NMR spectra, a characteristic hydride resonance was displayed at δ −22.34 as a doublet (d, J = 103.2 Hz). When 1.2 equiv. of HBpin was used, we found that 1 cannot be completely consumed even after reacting for 48 h. The reaction ultimately provided an equilibrium mixture of 1 and [H1(Bpin)] in a ratio of approximately 3.62:1.00 as determined by the ³¹P NMR spectrum, revealing a calculated equilibrium constant (K_eq) of 131.9. These experimental observations indicate that the activation at the Ni-O complex is reversible [62]. The free energy change for the reaction of 1 with HBpin was calculated based on the equilibrium constant, as −2.89 kcal/mol at 298 K.

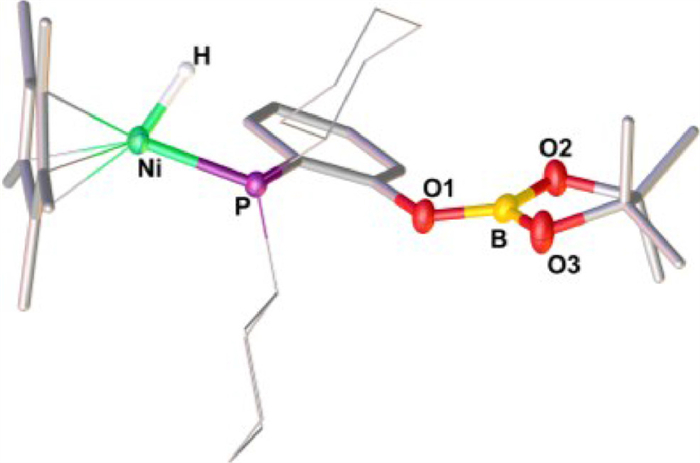

Slow diffusion of hexane into the solution of 1 reacting with excess HBpin at −30 ℃ provided brown-red crystals of [H1(Bpin)], some of which were suitable for X-ray single crystal diffraction. Crystallographic analysis of [H1(Bpin)] confirmed the solid-sate structure of a neutral nickel hydride, adopting a piano-stool type, 18-electron configuration (Fig. 3). Judging from the structure, the B-H bond of HBpin was added across the Ni−O bond to provide a Ni(Ⅱ)−H bond. The O atom is connected to the boryl moiety but detached from the metal center. The hydride position was located and the length of the Ni−H bond was found to be 1.42(2) Å, in the range of 1.32–1.65 Å reported for the Cp*NiH(PR₃) systems [18,62,63].

Unlike the Ni−O complex (1), the Ni−NH complex (2) reacts irreversibly with HBpin. With the stoichiometric reaction of 2 with HBpin at room temperature (r.t.) for 1 h, NMR studies indicated that 2 was cleanly converted to the nickel(Ⅱ) hydride, [H2(Bpin)]. Only one ³¹P NMR signal was observed at δ 38.99 and in the ¹H NMR spectrum, a hydride signal showed at δ −19.81 as a doublet with J_P−H = 97.9 Hz. The ¹¹B NMR spectrum displayed a broad signal at δ 23.4, while ¹¹B coupling with the hydride nuclei was not observed, indicative of a complete cleavage of the B-H bond. Upon redissolving the solid of [H2(Bpin)] in C₆D₆, the ³¹P NMR spectrum continued to display only one signal at 38.99 for [H2(Bpin)], and the formation of 2 was not observed within 24 h at r.t. These studies indicate the addition of HBpin to this Ni−N system is irreversible.

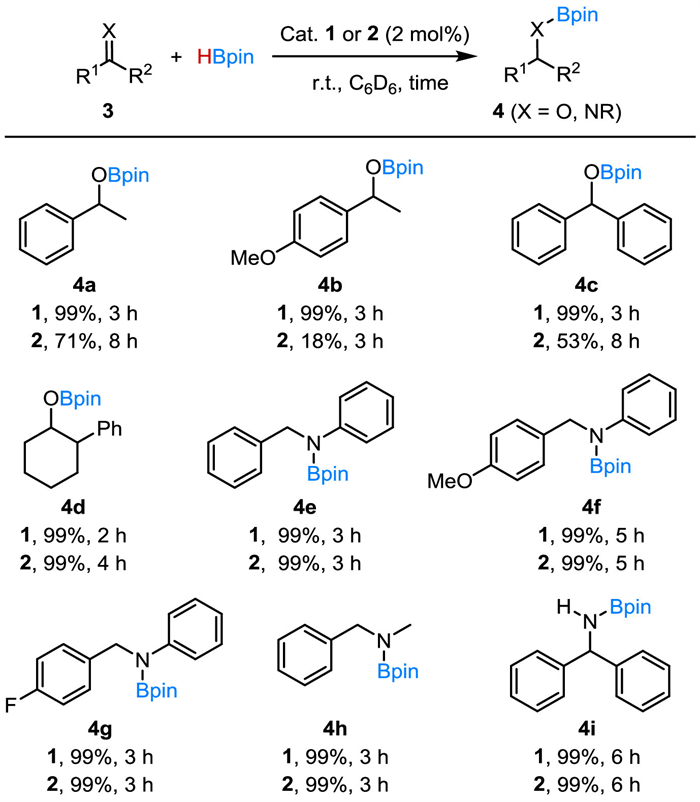

In view of the activation of HBpin, we subsequently evaluated the catalytic performance of 1 and 2 in hydroboration of ketones and imines (Scheme 4). The hydroboration reactions were performed with 1.5 equiv. of HBpin and 2 mol% catalyst loading in C₆D₆ at r.t. Complex 1 showed high catalytic activity in the hydroboration of ketones, while 2 was found to be less active. In the presence of 2 mol% of 1, acetophenone, 4-methoxyacetophenone and benzophenone all underwent smooth hydroboration, and were reduced to the corresponding boronate esters (4a-4c) nearly quantitatively within 3 h. When 2 was used as a catalyst, the hydroboration reactions proceeded much more slowly. The reaction of 4-methoxyacetophenone with HBpin for 3 h for example under the catalytic conditions produced 4b in only 18% yield. With 2 mol% of 2, the reaction of benzophenone with HBpin for 8 h produced the boronic ester (4c) in 53% yield, compared to the 99% yield of 4c that was obtained within 3 h using the catalyst (1). Interestingly, 2-phenylcyclohexan-1-one (4d), a cyclic alkyl-substituted ketone, can be efficiently hydroborated in a reasonable reaction time, using either 1 or 2 as the catalyst.

Complexes 1 and 2 both are efficient catalysts in the hydroboration of imines. Under the catalytic conditions, N-benzylideneaniline and its derivatives with electron-donating or electron-withdrawing substituents at the para-position of the benzyl group all allowed for the hydroboration producing the desired borylated amines (4e-4g) in excellent yields. The hydroboration was not affected by varying the substituents on the imine nitrogen atom. At a 2 mol% catalyst loading, ketimines such as N-alkylimine and diphenylmethanimine were completely hydro-borated to the amine products (4h, 4i) within 3 h.

Catalytic selective reduction of N-heterocycles through hydrosilylation or hydroboration is particularly interesting, because it provides valuable dihydropyridine compounds [58,64-69]. The related transformation using nickel-based catalysis has been reported only rarely [13,14,62]. In this way, we subsequently evaluated the catalytic performances of the half-sandwich nickel complexes on the hydroboration of pyridines. Compared to 1, a greatly diminished catalytic activity was shown by 2, and was demonstrated by hydroboration of 4-methyl pyridine (5b) (Eq. 1).

(1)

On the basis of the pyridine hydroboration catalyzed by 1, we investigated the substrate scope for this nickel-catalyzed dearomatization reaction (Scheme 5). Upon 1,2-hydroboration para-substituted pyridines afforded the dihydropyridine products (6b, 6c). Hydroboration of 3-methoxypyridine (6d) was proved to be difficult for the Lewis acid B(Me)Ar₂^F catalysis [70]. With the present Ni-catalyzed protocol, 5d was regioselectively hydroborated to the 1,2-product in a moderate yield (6d, 62%). The electronic and steric factors at the N-heterocycle ring appear to affect the regioselectivity of the outcome. For the substrate with a meta-substituted -Bpin functional group (5e), the reaction produced a mixture of the 1,2-, 1,4- and 1,6-dearomatized isomers in a ratio of 6e/6e′/6e″ = 21/45/34. Probably as a result of the steric hindrance, ortho-substituted pyridines such as 2-methylpyridine (5f) are not suitable for the hydroboration. This Ni−O system exhibits good activity in reduction of benzo fused N-heterocycles. Hydroboration of quinoline gave a mixture of 1,2-and 1,4-products (6h/6h′ = 36/64) in 85% yield. When a methyl group was introduced at the para-position of quinoline, as in 4-methylquinoline (5i), the 1,2-regiospecific reduction was achieved exclusively. Other N-heteroarenes such as isoquinoline (5j), acridine (5k), phenanthridine (5l) and methyl-1H-benzo[d]-imidazole (5m) all underwent regioselective hydroboration smoothly to provide the dearomatized dihydropyridine analogues (6j-6m) with good to excellent yields.

Combining our previous studies of the mechanism [62,69] with the stoichiometric HBpin activation by 1, we propose that the catalytic pyridine hydroboration is initiated by formation of [H1(Bpin)] through addition of the B-H bond across the Ni−O bond (Scheme 6). The resulting H—Ni(Ⅱ)—O(Bpin) species interacts with pyridine by coordination of the substrate with the boron atom of the Bpin moiety (Int1), and this facilitates the transfer of hydride from Ni(Ⅱ)-H to the ortho-carbon of the pyridine ring (Int2). Once the pyridine ring is dearomatized, the hydroboration can be accomplished by the cleavage of the O-B bond to release the 1,2-product, recovering the Ni−O catalyst.

In conclusion, we have demonstrated cooperative B-H bond activation in HBpin by half-sandwich Ni−O and Ni−N complexes which feature anionic coordination sites, and their participation in the catalytic hydroboration of unsaturated organic compounds. The reactions involve addition of the B-H bond across the Ni−X bond, giving rise to H—Ni(Ⅱ)—X(Bpin) hydride intermediates with an anionic site X-stabilized boron moiety. Notably, subtle tuning of the Ni−X pair and support for the ancillary phosphine significantly affects the reactivity and catalytic performance of Cp*Ni(1,2-R₂PC₆H₄X).

The reversible activation of HBpin by the Ni-O complex is essential to the catalytic hydroboration of N-heteroarenes, probably because activation of the N-heterocyclic ring in some degree by coordination with the Bpin moiety of H—Ni(Ⅱ)—O(Bpin) is necessary for completion of the subsequent hydride reduction step. In the case of H—Ni(Ⅱ)—N(Bpin), the irreversible binding of a Bpin moiety at the nitrogen site makes its interaction with and activation of a pyridine substrate unfavorable, resulting in low catalytic activity for the hydroboration. It is less likely that the hydroboration of ketones and imines by the Ni−X complexes might proceed through a different mechanism, i.e., transfer of the hydride from H—Ni(Ⅱ)—X(Bpin) to the C=X group is prior to the Bpin transfer [71,72].
