Hydrogen energy is regarded as the most potential clean energy in the 21^st century owing to its high combustion heat value and carbon-free emissions. Photocatalytic hydrogen evolution via water splitting represents one of the most promising routes for obtaining hydrogen energy [1, 2]. To achieve this target, it is required to develop low-cost, efficient, environmentally friendly and stable hydrogen evolution photocatalysts [3, 4]. Anatase titanium dioxide (TiO₂), one of the first-generation photocatalyst, has been well studied since 1972 for hydrogen production [5-9]. Many inorganic metal oxides and sulfides such as VO₂, Ga₂O₃, and MoS₂ were then developed for photocatalytic hydrogen production [10-12]. However, these photocatalysts can only be excited under ultraviolet or near-ultraviolet light that occupies only ~4% of the solar light [13, 14]. Photocatalysts driven by visible-light (the main part of the solar spectrum) are more promising candidate materials for hydrogen energy.

Recently, polymeric materials have also received wide attention since they possess the merits of finely controllable chemical structures and electronic properties via synthetic protocols, which endow them with multiple redox potentials to enable various photocatalytic applications [15-18]. Conjugated polymers, of which the properties can be easily tuned via copolymerizing different monomers into conjugated backbones, have also been developed as efficient photocatalysts for visible-light-driven hydrogen evolution [19-21]. However, traditionally used conjugated polymers show linear structures with nonporous characteristics and low surface area. Effective photocatalysts are required to exhibit large surface areas, which can enhance the adsorption of reactants and offer substantial reactive sites. Moreover, large surface areas enable more light to be harvested and also possess continuous pore channels which facilitate the transfer of reactant molecules [22, 23].

Conjugated microporous polymers (CMPs), featured with extended π-conjugation, high specific surface area, excellent physicochemical and photocatalytic stability, and tunable chemical structure and electronic properties, have received wide attention as polymeric photocatalysts for hydrogen evolution [24-28]. By controlling chemical structures, bandgaps, and morphologies, series of CMPs have been demonstrated for visible-light-driven hydrogen evolution [29-34]. However, most of the reported CMP materials possess a hydrophobic skeleton, which leads to a poor dispersion in water [35]. The correspondingly CMPs show defective interface between organic photocatalysts and water, which limits the performance of hydrogen evolution. In additions, the current synthetic routes of CMPs usually require precious metal catalysts and harsh reaction conditions [36].

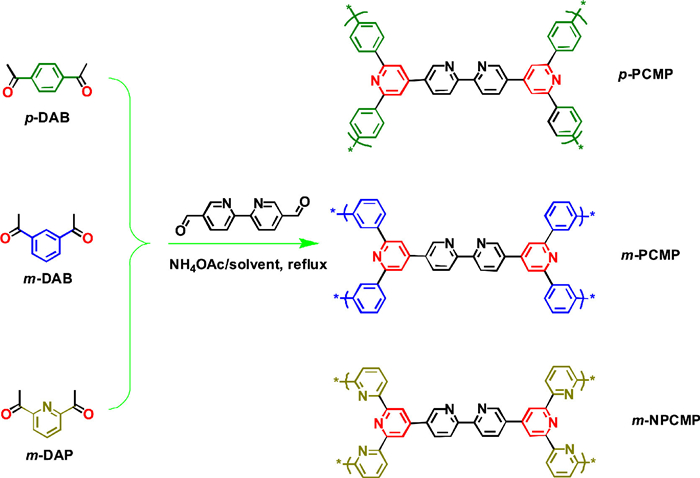

In this work, we present a simple metal-free approach to synthesize a series of pyridyl conjugated microporous polymers (PCMPs) via the Chichibabin pyridine reaction between aromatic aldehydes and ketones (Scheme 1). This new synthetic method can be performed at a mild temperature without using expensive metal catalysts, which offers a green route toward hydrogen evolution reaction (HER) photocatalysts. The incorporation of pyridyl nitrogen atoms can improve the wettability of CMPs at the molecular level. The introduction of nitrogen atoms can effectively improve the photo-generated carrier mobility in the system by promoting the rapid propagation of carriers in the π-conjugated structure. By adjusting the nitrogen content, the position and width of the polymer band gap can be changed to tune the photocatalytic activity [37]. Therefore, numerous nitrogen-containing porous polymers, such as covalent organic frameworks (COFs) [38-40], covalent triazine frameworks (CTFs) [41, 42], chelating conjugated polymers [43] and CMPs [44-46] have been designed for photocatalysts.

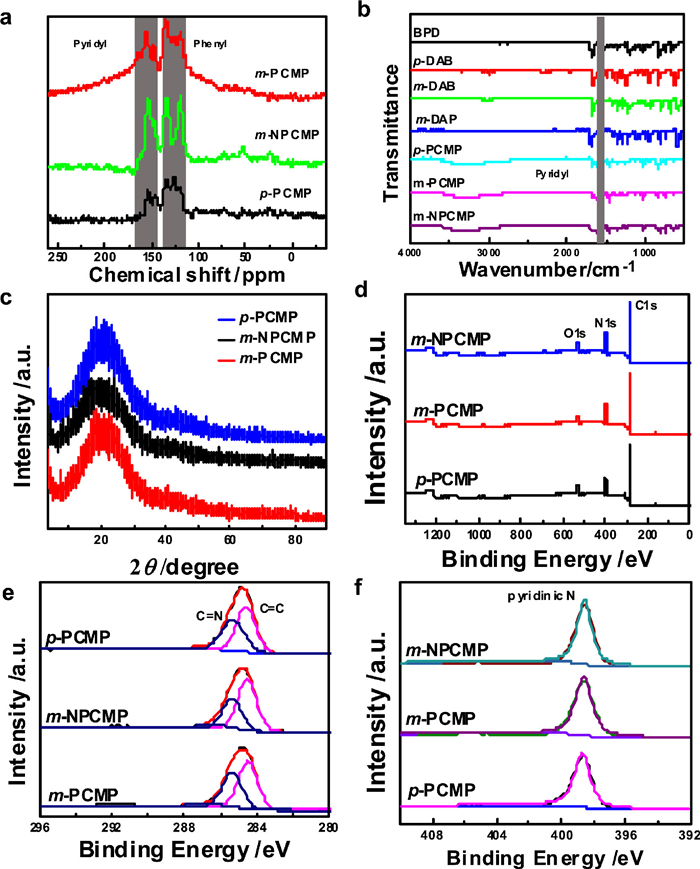

The chemical structure of the as-synthesized polymers was verified using solid-state ¹³C nuclear magnetic resonance (NMR), Fourier transform infrared (FT-IR), X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS). The solid-state ¹³C NMR spectra of PCMPs (Fig. 1a) show three peaks at ~154 ppm, ~147 ppm and ~135 ppm, which are ascribed to the pyridyl groups, and the peaks at ~126 ppm and ~120 ppm arise from the phenyl groups. Fig. 1b shows the FT-IR spectra of PCMPs and corresponding monomers. The peak at ~1600 cm⁻¹ can be attributed to the C=N bond of the pyridine rings, which indicates the completion of the cyclization reaction. The XRD patterns (Fig. 1c) of PCMPs show broad peaks of amorphous polymers at 2θ = 20°, being attributed to π-π interlayer stacking between benzene groups and pyridine groups.

Fig. 1d shows the XPS survey spectra of PCMPs, which confirms the existence of C, N element being consistent with previous results [47]. The C 1s core-level XPS spectra (Fig. 1e) also confirm that two independent peaks at 284.6 eV and 285.4 eV represent C=C and C=N bonds, respectively. The N 1s core-level XPS spectra (Fig. 1f) show a single peak at ~398.7 eV owing to pyridyl N, which also indicates the successful synthesis of PCMPs. The thermogravimetric analysis (TGA) scans (Fig. S1 in Supporting information) demonstrated that the polymer started to decompose at 400 ℃, but still maintained 50%−60% at char yields at 1000 ℃, which proves the good thermal stability of 3D skeleton of PCMPs.

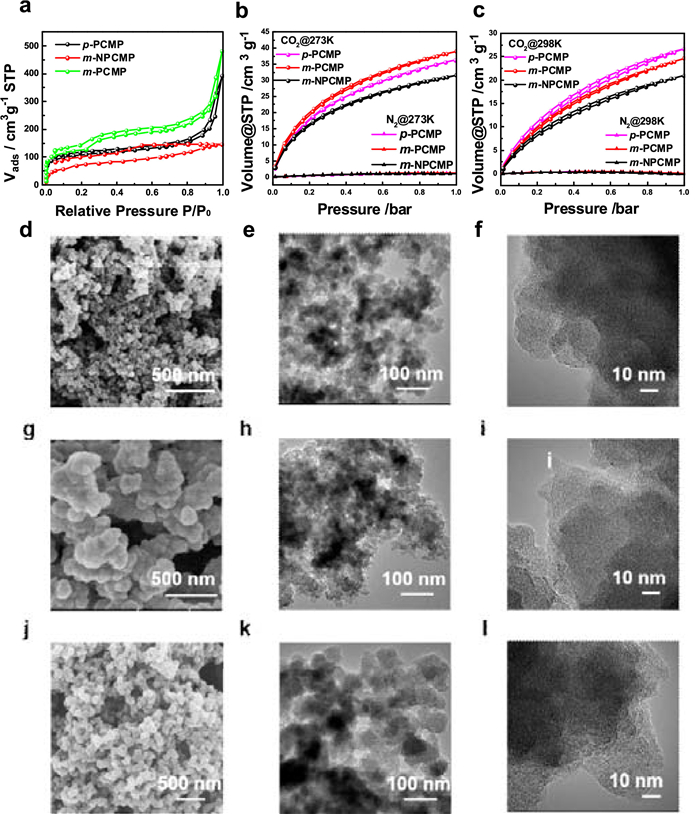

The N₂ adsorption/desorption isotherms of PCMPs show a typical Ⅰ/Ⅳ type curve, and the adsorption amount of N₂ increased sharply at the low-pressure range (P/P₀ < 0.5), which indicates large amounts of microporous structures existed in as-synthesized polymers (Fig. 2a and Fig. S2 in Supporting information). The Brunauer-Emmett-Teller (BET) surface area is up to 418 m²/g for m-PCMP. The pore size distribution of PCMPs is in the range of micropore. In addition, the results of CO₂ and N₂ adsorption of the PCMPs at 273 K and 298 K further demonstrated the porous structure of PCMPs were consistent with the above results (Figs. 2b and c).

The morphologies of the PCMPs were observed using scanning electron microscopy (SEM) and transmission electron microscopy (TEM) images (Figs. 2d-l). The morphology of the PCMPs obtained from different reaction monomers is similar, demonstrating the uniform sizes of nanoparticles. The particle size of m-PCMP is the largest with an avenge diameter of 30 nm, and the accumulation of particles forms mesopores and macropores. HR-TEM further proves that there are a large number of micropores in these three polymers, which is consistent with the results of N₂ adsorption/desorption curve test.

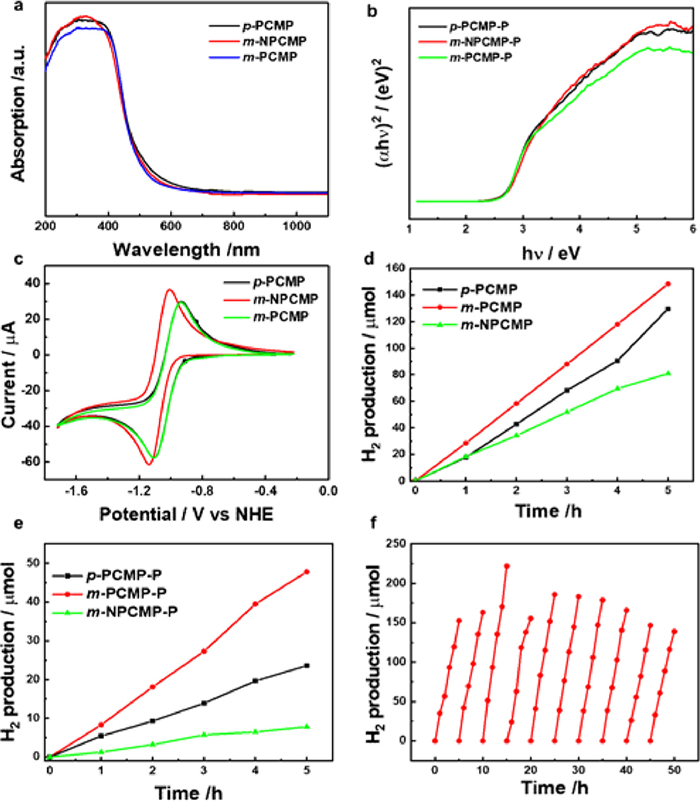

The solid ultraviolet (UV) absorption spectra (Fig. 3a) show the light absorption ranges of PCMPs are similar (200–500 nm). The optical bandgaps estimated from the T_auc plot are 2.65 eV-2.71 eV (Fig. 3b) and the conduction band (CB) positions are −1.00 eV to −1.15 eV (Fig. 3c). The calculation results demonstrate that the bandgaps of PCMPs polymers are larger compared to the theoretical bandgaps of water splitting, which indicate that all polymers have sufficient bandgaps for photocatalytic hydrogen evolution reaction, and are expected to be used as photocatalysis of water to produce hydrogen in the visible light range (Table S1 in Supporting informamtion).

The photocatalytic water splitting experiments were performed using PCMPs powders suspended in water with chloroplatinic acid hexahydrate (H₂PtCl₆·6H₂O) as the co-catalyst and triethanolamine (TEOA) as the hole sacrificial agent. Figs. 3d and e show the photocatalytic hydrogen production in the ultraviolet-visible range of PCMPs. The H₂ production rate of m-PCMP, p-PCMP and m-NPCMP under UV–vis light irradiation (λ > 320 nm) is 29.86 µmol/h, 25.93 µmol/h and 16.18 µmol/h, respectively, and 9.56 µmol/h, 4.72 µmol/h and 1.56 µmol/h under visible light irradiation (λ > 420 nm), respectively.

These results indicate that the photocatalytic hydrogen producing activity is related to the molecular structure of polymers that the groups in different substitution positions of benzene rings make the differences inactivity. The polymers prepared using different aromatic ketone monomers would have different pore structures. Specifically, p-PCMP, formed by the deoxycyclization of para-aromatic aldehyde and para-aromatic ketone, shows relatively regular polymer structure with homogeneous pore size of micropores (~0.6 nm, Fig. S2). Due to the presence of excessive pyridine nitrogen atom, the steric hindrance of 2,6-diacetylpyridine was larger than para-aromatic ketone, and the pores formed were smaller after polymerization. The meta-aromatic ketone cyclized the polymer to produce pores with different pore sizes. From the pore size distribution curve, it could be seen a large number of micropores and mesopores, which means the polymer had excellent multi-stage pore structure.

Moreover, the different chemical structure results in different electronic structure. In order to evaluate the light stability of the materials, m-PCMP was used for continuous photocatalytic hydrogen production for 50 h (λ > 320 nm), and vacuum degassed every 5 h as a cycle to determine its hydrogen production (Fig. 3f). The polymer exhibits excellent photocatalytic stability, and the photocatalytic hydrogen production rate of the polymer in each cycle was basically maintained at 30.00 µmol/h without significant attenuation. After 40 h of light irradiation, the photocatalytic activity decreased slightly, but still maintained a high hydrogen production capacity, and the photocatalyst could still maintain a high hydrogen production rate of 27.80 µmol/h in the last cycle. After the photocatalytic cycle experiment was completed, we performed an infrared spectrum and scanning electron microscope tests on the recovered samples. As shown in Fig. S3, the structure of the polymer did not change significantly, indicating that m-PCMP has excellent light stability and structural stability. In summary, the materials we prepared have excellent hydrogen production activity as photocatalysts, and the hydrogen production rate is higher than that of most organic porous material catalysts (Table S1).

In conclusion, we have synthesized a series of photocatalysts that decompose water to produce hydrogen and discussed the influence of different reaction solvents on catalyst performance. The synthesized PCMPs have excellent porosity and photoelectric properties. The obtained PCMPs demonstrate good photocatalytic hydrogen production activity. Especially, due to the narrower bandgap and richer hierarchical pore structure, m-PCMPs show excellent photocatalytic activity in the ultraviolet-visible and visible light range, which the hydrogen production rate is as high as 29.86 and 9.56 µmol/h, respectively. The synthesis method we reported provides a new route to obtain high-efficiency organic semiconductor catalysts suitable for the field of photocatalysis.
