Polycyclic polyprenylated acylphloroglucinols (PPAPs), most of which feature highly oxygenated and densely substituted bicyclo[3.3.1]nonane-2,4,9-trione core, have become one of the hotspots in the natural products research field [1-3]. The enolizable β-diketones and β,βʹ-triketones in the core are versatile units to undergo ring-opening and further rearrangement reactions, which have strikingly expanded the structural complexity and diversity of PPAPs [4, 5]. Up to date, 40 bicyclo[3.3.1]nonane-derived seco-PPAPs, including 1,2-seco, 2,3-seco, 3,4-seco, 1,9-seco, 1,2;4,5-diseco, and their highly cyclized derivatives with intriguing architectures, have been reported [2,6-10]. It is noting that seco-PPAPs exhibit a wide range of biological activities, including anti-inflammatory [8], anti-tumor [9,10], acetylcholinesterase (AChE) inhibitory activities [11], and multidrug resistance reversal activity to adriamycin resistant cancer cell lines [12].

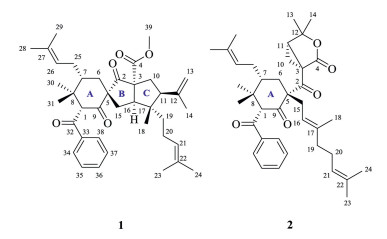

In our continuous high-performance liquid chromatography-diode array detection (HPLC-DAD) and proton nuclear magnetic resonance (¹H NMR) guided pursuit of benzoyl-PPAPs from Hypericum beanii (H. beanii) [13,14], hyperbenzones A (1) and B (2), together with one known biosynthetic congener otogirinin D (3) [15] were isolated (Fig. 1 and Scheme 1). Notably, hyperbenzone A (1) is the first example of 1,2-seco-PPAP with an unprecedented spiro[bicyclo[3.3.0]octane-3,1ʹ-cyclohexane]-2,2ʹ-dione motif, while hyperbenzone B (2) possess an unusual 4,4-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one moiety. Compounds 1 and 2 could biogenetically arise from an assumed bicyclo[3.3.1]nonane PPAP precursor via 1,2-seco retro-Claisen rearrangement and chemodivergent radical cascade cyclizations. Determination of the planar structures of 1 and 2 based on high resolution electrospray ionization mass spectroscopy (HRESIMS) and two-dimensional nuclear magnetic resonance (2D NMR) experiments, while the establishment of their absolute configurations was confirmed by X-ray diffraction analysis, and gage-independent atomic orbital (GIAO) NMR chemical shift calculations with DP4+ analyses, and comparison of the experimental and calculated electronic circular dichroism (ECD) data. Detailed herein are the isolation, structural elucidation, and the plausible biosynthetic pathway of compounds 1–3 along with their in vitro effects against nonalcoholic steatohepatitis (NASH).

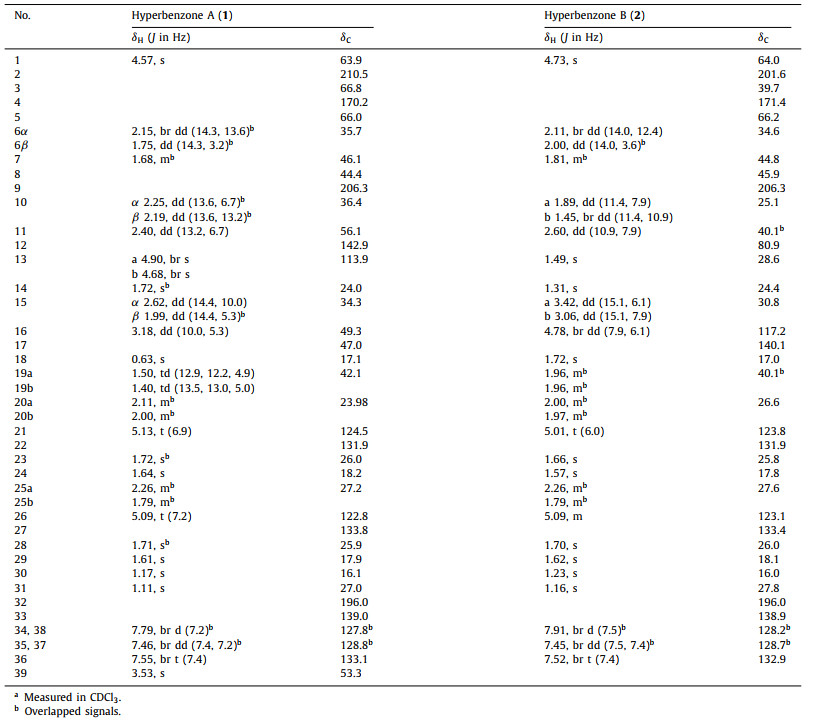

Hyperbenzone A (1) was isolated as a white powder and eventually as colorless needle crystals from MeOH—H₂O (90:10) system. The molecular formula was assigned from the HRESIMS protonated molecular ion at m/z 601.3877 [M + H]⁺ (calcd. 601.3888) as C₃₉H₅₂O₅, which indicated 14 indices of hydrogen deficiency. The ¹H NMR spectrum (Table 1) showed obvious signals of five aromatic protons (δ_H 7.79, 2H, br d, J = 7.2 Hz; 7.55, 1H, br t, J = 7.4 Hz; and 7.46, 2H, br dd, J = 7.4, 7.2 Hz), four olefinic protons (δ_H 5.13, t, J = 6.9 Hz; 5.09, t, J = 7.2 Hz; 4.90, br s; and 4.68, br s), and nine methyls (δ_H 3.53, s; 1.72, s, overlapped; 1.72, s, overlapped; 1.71, s; 1.64, s; 1.61, s; 1.17, s; 1.11, s; and 0.63, s). The ¹³C NMR (Table 1) and distortionless enhancement by polarization transfer (DEPT) spectra, in conjunction with a heteronuclear single quantum coherence (HSQC) experiment, indicated characteristic resonances of two non-conjugated carbonyl groups (δ_C 210.5 and 206.3), a benzoyl group (δ_C 196.0, 139.0, 133.1, 128.8 × 2, and 127.8 × 2), an ester carbonyl group (δ_C 170.2), two trisubstituted olefine (δ_C 133.8, 131.9, 124.5, and 122.8), and one terminal double bond (δ_C 142.9 and 113.9). These functionalities accounted 11 out of 14 indices of hydrogen deficiency, and the remaining three ones were attributable to the existence of a tricyclic ring system in 1.

Two-dimensional NMR spectra analysis allowed the assembly of units a and b and their connectivity in 1 (Fig. 2). The correlations from the gem-dimethyl groups Me-30 and Me-31 to C-1, C-7 and C-8, from H₂-6 to C-5, C-7 and C-9, and from H-1 to C-7, C-8 and C-9 in the heteronuclear multiple bond correlation (HMBC) spectrum, as well as ¹H–¹H correlation spectroscopy (COSY) cross-peak of H₂-6/H-7 established a cyclohexanone ring A in unit a. The locations of the benzoyl and an isoprenyl group at C-1 and C-7, respectively, were assigned by the HMBC correlations from H-1 to C-32, and from H₂-25 to C-6, C-7, C-8 and C-26. Thus, unit a with a cyclohexanone ring A was defined as shown in Fig. 2.

The HMBC correlations from H₂-15 to C-2, C-5, C-16 and C-17, from H-16 to C-2, C-3, C-5, C-10, C-11, C-15 and C-17, and from H-11 to C-3, C-10, C-16 and C-17 as well as the spin systems of H₂-10/H-11, and H₂–15/H-16 indicated the presence of a hexahydropentalen-1(2H)-one moiety (rings B and C) in unit b. The correlations from H₂-10 and H-16 to C-4, from Me-39 to C-4, from Me-14 and H₂-13 to C-11, from Me-18 and H₂-19 to C-11, C-16, and C-17, and from H₂-20 to C-19 and C-21 in the HMBC spectrum indicated the locations of a methyl ester, an isopropenyl, a methyl, and a homoprenyl group in unit b. Finally, the diagnostic-HMBC correlations from H₂-6 to C-2, C-5, and C-15, and from H₂-15 to C-5 and C-9 disclosed the connectivity of units a and b via a C-5 spirocenter. Thus, an unprecedented spiro[bicyclo[3.3.0]octane-3, 1ʹ-cyclohexane]-2,2ʹ-dione scaffold in 1 was identified as depicted (Fig. 2).

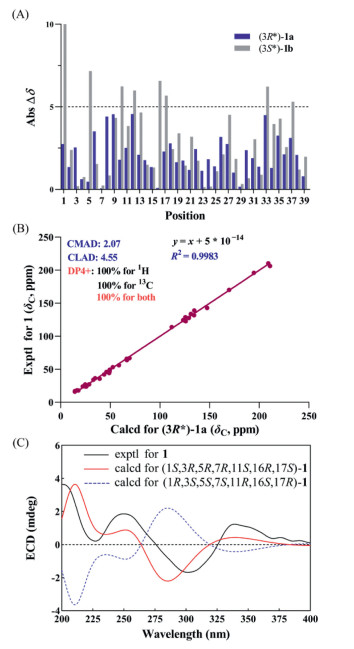

The relative configuration of hyperbenzone A (1) was determined using a rotating-frame Overhauser effect spectroscopy (ROESY) experiment, in which correlations of H-1/H-7, H-1/Me-31, H-6α/Me-30, and H-6α/H-25b supported that H-1 and H-7 in unit a are β-oriented (Fig. 2D). The ROESY cross-peaks of H-1/H-7, H-10α/H-11, Me-18/H-10β, and Me-18/H-15β indicated the α-orientations of H-11 and H-16, and the β-orientation of Me-18 (unit b). In addition, the key ROESY correlations of H-1/H-15α, and Me-18/H-6β indicated that the C-15 to C-17 hemi-sphere in unit b is located at the upside of the C-5 spirocenter (Fig. 2D). However, due to the absence of obvious ROESY correlations between Me-39 with other protons, the relative configuration of C-3 was still indistinct. To tackle this problem, we carried out computational modeling of NMR chemical shifts of two possible C-3 epimers, named (3R^*)-1a and (3S^*)-1b. The absolute difference between calculated and experimental ¹³C NMR chemical shifts of (3R^*)-1a were within 5 ppm, while the calculated ¹³C NMR chemical shifts of (3S^*)-1b showed large discrepancies at C-1, C-5, C-10, C-12, C-16, C-17, C-33, and C-37 (Fig. 3A). Further, the DP4+ NMR chemical shift calculation method confirmed the assignment of an R^* configuration for C-3 (Fig. 3B and Fig. S1-1A in Supporting information). Thus, the C-3 methyl ester group in 1 was assigned as α-orientation (3R^*). Then, we tried many recipes to obtain a suitable single crystal for X-Ray diffraction analysis, but only got a thin needle crystal for Mo Kα radiation analysis. And the relative configuration of 1 was thus confirmed by the subsequent crystallographic analysis (Fig. 2E) [CCDC 2091426], which is also consistent with that of (3R^*)-1a. On the basis of this well-defined relative configuration of 1, the absolute configuration of 1 was confirmed as 1S,3R,5R,7R,11S,16R,17S by ECD theoretical calculations (Fig. 3C).

Hyperbenzone B (2) was purified as a yellow oil. The molecular formula of 2 was determined as C₃₈H₅₀O₅ on the basis of its HRESIMS and ¹³C NMR data (Table 1) and indicated 14 indices of hydrogen deficiency. Comparison of its 1D (Table 1) and 2D NMR spectroscopy data with those of 1 indicated that 2 had the same benzoyl group and cyclohexanone ring A. A comprehensive analysis of DEPT and HSQC spectra suggested that C-3 (δ_C 39.7) is a quaternary carbon, C-11 (δ_C 40.1, overlapped) is a tertiary carbon, and C-19 is a secondary carbon (δ_C 40.1, overlapped). The prominent HMBC correlations from H-10a to C-3, from H-10b to C-11, and from H-11 to C-3 and C-10, as well as ¹H–¹H COSY cross-peaks of H₂-10/H-11 established a cyclopropane ring in compound 2. And the HMBC correlations from to H₂-10 to C-4 and C-12, from H-11 to C-4 and C-12, and from gem-dimethyl groups Me-13 and Me-14 to C-11 and C-12 indicated the presence of a 4, 4-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one moiety in compound 2 (Fig. 4A), which is similar to that in a known compound hypercohin K [16]. In addition, a geranyl group was deduced by the HMBC correlations from allylic Me-18 to C-16, C-17 and C-19, from H-21 to C-19, C-20 and C-22. Furthermore, the correlations from H₂-15 to C-2, C-5, C-6 and C-9, and from H₂-6, H₂-10, and H-11 to C-2 in the HMBC spectrum indicated the locations of the geranyl group and 4, 4-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one moiety (Fig. 4A). Thus, the planar structure of 2 was determined.

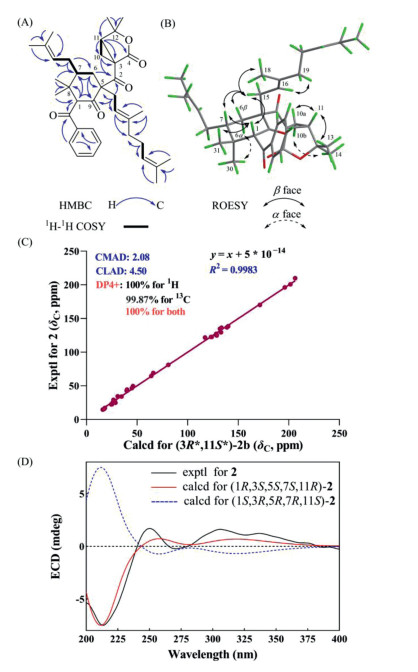

The ROESY correlations observed from H-1/H-7, H-1/Me-31, H-6α/Me-30, H₂-15/H-1, H₂-15/H-6β, and H₂-15/H-7 implied that H-1, H-7 and the methylene H₂-15 were on the same face with β-orientations, while the benzoyl group, the prenyl group at C-7 and C-2 carbonyl group were on the same face with α-orientations (Fig. 4B). Further, the 16E configuration of C-5 geranyl moiety was confirmed by the ROESY correlations occurring between Me-18 and H-15a and between H₂-19 and H-16 (Fig. 4B). The structural inflexibility of the 3-oxabicyclo[3.1.0]hexan moiety in 2 restricted that the relative configurations of the bridgehead C-3 and C-11 should be 3S^*,11R^* or 3R^*,11S^*. This assignment was also confirmed by the cross-peaks of H-11/Me-13, H-11/H-10a, and H-10b/Me-14 in its ROESY spectrum. To further confirm the relative configuration of C-3 and C-11, a quantum chemical prediction of ¹H and ¹³C chemical shifts of two isomers (1S^*,3S^*,5R^*,7R^*,11R^*)-2a and (1S^*,3R^*,5R^*,7R^*,11S^*)-2b were conducted. The absolute difference between calculated and experimental ¹³C NMR chemical shifts of (1S^*,3R^*,5R^*,7R^*,11S^*)-2b were within 5 ppm, while the calculated ¹³C NMR chemical shifts of (1S^*,3S^*,5R^*,7R^*,11R^*)-2a showed large discrepancies at C-3, C-11, and C-33 (Table S3-4 in Supporting information). Further, applying the DP4+ algorithm to shielding tensors produced 100% confidence that 1S^*,3R^*,5R^*,7R^*, 11S^* best fits the experimental data (Fig. 4C and Fig. S1-1B in Supporting information). The absolute configuration of 2 was determined by comparative analysis of computed and experimental ECD spectra, which assigned the 1R,3S,5S,7S,11R (Fig. 4D) absolute configuration for 2.

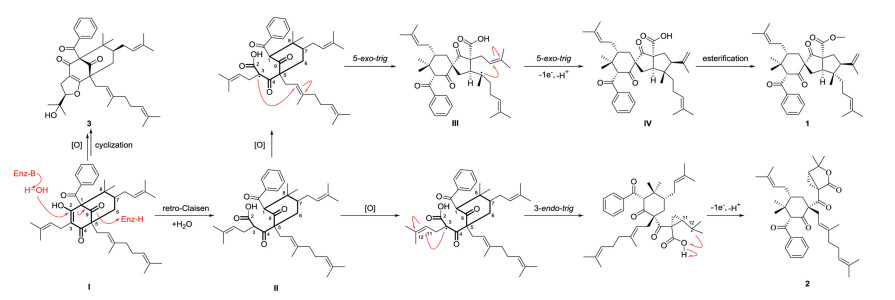

Inspired by the structure of a co-isolated known PPAP (3) with a C-5 geranyl-decorated bicyclo[3.3.1]nonane core, a plausible biogenetic pathway (Scheme 1) was proposed, in which compounds 1–3 were deemed to be derived from an assumed bicyclo[3.3.1]nonane PPAP precursor (Ⅰ). Starting from the precursor Ⅰ, an O-cyclization step led to compound 3. Then, through a pivotal retro-Claisen rearrangement of the enolizable β,β′-triketone motif, the key intermediate Ⅱ with a typical 1,2-seco-bicyclo[3.3.1]nonane-derived core was constructed [17-19]. Further, the chemodivergent radical cascade cyclizations between a β-keto acid group and pendent prenyl or geranyl groups in the structure of Ⅱ yielded compounds 1 and 2. The 5-exo-trig radical cyclization of a functionalized β-keto acid group and geranyl group led to the intermediate Ⅲ, which would undergo another 5-exo-trig radical cyclization to the intermediate Ⅳ and then esterification to give compound 1 [20]. Referring to the similar radical cyclization, Ⅱ could also undergo a 3-endo-trig radical cyclization of the β-keto acid moiety and Δ^11,12 double bond in the pendent prenyl moiety to afford compound 2 [20].

Growing evidences have supported the beneficial role of natural products in treating NASH [21-23]. In the previous reports, many sub-types of PPAPs exhibited significant anti-NASH activity [24, 25]. Compound 1 showed no cytotoxicity against HepG2 cell lines up to 200 μmol/L, while compounds 2 and 3 showed no cytotoxicity against HepG2 cell lines up to 50 μmol/L (Fig. S1-4 in Supporting information). The effects of 1–3 on cellular lipid levels were explored in a palmitic acid-exposed [26, 27] HepG2 cell model using the lipophilic dye BODIPY 493/503 [28]. The images of lipophilic dye BODIPY 493/503 in Fig. 5 showed that 1 and 3 could inhibit lipid accumulation in HepG2 cells. Furthermore, quantitative analysis of intracellular lipid droplets showed that 1 and 3 could decrease the lipid droplets in a dose-dependent manner (Fig. S1-5 in Supporting information). These results indicated that compounds 1 and 3 might be appealing to medicinal chemists for further investigation as a potential protective agent against NASH development.

In summary, 1,2-seco and rearranged bicyclo[3.3.1]nonane PPAP possessing an unprecedented spiro[bicyclo[3.3.0]octane-3,1ʹ-cyclohexane]-2,2ʹ-dione core and an unusual 4,4-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one moiety, hyperbenzones A (1) and B (2), respectively, along with a known biosynthetic congener otogirinin D (3) [15], were isolated from H. beanii. Biogenetically, the 1,2-seco retro-Claisen rearrangement in combination with the following chemodivergent radical cyclizations from a bicyclo[3.3.1]nonane PPAP precursor afforded compounds 1 and 2. In addition, the bioassay showed that both compounds 1 and 3 could decrease intracellular lipid accumulation in a palmitic acid-induced NASH cell model. This work indicated that the cleavage and further cyclization of the enolizable β, βʹ-triketone moiety in the bicyclo[3.3.1]nonane core of PPAP could continuously generate significant structural complexity and diversity of PPAPs.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (Nos. 31900287 and 81773886), the 111 Project from Ministry of Education of China and the State Administration of Foreign Export Affairs of China (No. B18056), and Special fund from the Central Committee for guiding local scientific and technological development of Shenzhen (No. 2021Szvup161).

Appendix A. Supplementary data

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.11.011.
