Silicone rubber (SR) is a kind of polymer with the Si-O-Si backbone and organic groups attached to Si atom. Since Si-O bond has a higher dissociation energy compared with C-C bond [1], SR is more stable during lifetime than polyolefin. Therefore, it has a wide range of applications in extreme environment such as high temperature and high-energy radiation. However, how to make it more stable in such severe environment still needs to explore. Nowadays, many researches on modification of SR have been conducted, including physical mixing or chemical modification. The physical introduction of SiO2 [2], carbon nanotube [3] or clays [4] can improve the performance of SR, while these fillers often tend to aggregate in some degree. Another remedy to modify SR is to form chemical bond between the fillers and SR, which often uses complicated synthesis route.
Polyhedral oligomeric silsesquioxane (POSS) is one new type of nano-hybrid organic-inorganic material with the typical formula RSiO1.5. It is showed that organic substituents attached to the inorganic cage make POSS easier to mix with the polymer matrix. The incorporation of POSS into polymers can dramatically improve its mechanical properties [5, 6], thermal stability [7, 8], flame retardancy [9], radiation resistance [10-12], ionic conductivity [13, 14] and dielectric properties [15]. Recently, there are some articles about POSS/SR nanocomposite, mainly focusing on mechanical property and thermal stability of the composites. Chen et al. synthesized novel POSS as cross-linkers to prepare novel POSS/SR nanocomposite with special three-dimensional structure [16], and they found the composites had significantly enhanced thermal stabilities, mechanical properties and hardness as compared to the SR prepared with the conventional cross-linkers. Bai et al. prepared chemical-modified liquid SR with octalvinyl POSS (OvPOSS) by the hydrosilylation reaction [5], and the results showed that the thermal stability of POSS was improved. It is widely believed that chemical incorporation of POSS into the matrix have significant effect on the performance of SR. However, Xu et al. synthesized three kinds of POSS (aminopropyl, mercaptopropyl and chloropropyl) to physically mix with silicone resins by thermal curing [8]. They found that POSS can improve the performance of SR by physical blend.
In addition, previous studies have shown that POSS/polymer composites have better radiation resistance than the matrix due to that the rigid inorganic core of POSS is not easy to be damaged under irradiation. Even at high dose, the inorganic core of POSS will turn to a dense and stable SiO2 layer attached to the surface of the materials, protecting it from further degradation. For example, Qian et al. found that POSS/polyimide blends could resist atomic oxygen (AO) attack, which could be used as the outer surface material of spacecraft [10]. And Wang et al. prepared a kind of durable AO-resistant coatings that are capable of autonomously healing mechanical damage under low earth orbit environment [11]. This coating was comprised of 2-ureido-4[1H]-pyrimidinone functionalized polyhedral oligomeric silsesquioxane (UPy-POSS) that forms hydrogen-bonded three-dimensional supramolecular polymers. The preparation of high-performance SR nanocomposite with excellent radiation resistance is of great importance in engineering applications. However, there are few reports on the study of radiation resistance of POSS/SR nanocomposite.
In this work, to develop a simple remedy for improving the thermal property and radiation resistance of SR, epoxy-POSS (ePOSS) with better compatibility with SR was synthesized by oxidizing OvPOSS with meta-chloroperoxybenzoic acid, and characterized by FTIR, NMR and MS (synthesis and characterization of ePOSS as shown in Supporting information). Then ePOSS/SR nanocomposites were prepared by simple solution blending (experimental section in the supporting information). To explore the effects of ePOSS on the matrix, the cross-linking density, mechanical properties, thermal stability and radiation resistance were studied, respectively. Fig. 1a showed the TG thermograms of OvPOSS, ePOSS, SR and ePOSS/SR nanocomposites. Contributed to the stiff inorganic core, OvPOSS was very stable until the temperature reached 252 ℃. Above 252 ℃, OvPOSS powder began to sublimate [17]. Finally, only 5.3% residue remains at 278 ℃. However, the oxidized ePOSS did not tend to sublime when heating in the nitrogen. That is, the thermal stability of ePOSS was higher than OvPOSS, and its highest weight loss rate existed at 289 ℃ (Fig. 1b). From Fig. 1c, it was found that the residue of ePOSS at 700 ℃ was SiO2, and the actual residue was 77.1%. It is worth mentioning that the introduction of ePOSS significantly improved the thermal decomposition temperature of the SR matrix. Here we defined the temperature at the mass loss of 5% is T5, same as T10. As shown in Table S1 (Supporting information), T5 increased from 310 ℃ of SR to 421 ℃ of ePOSS/SR6 nanocomposites, with about 34.8% growth. In addition, T10 increased from 329 ℃ of SR to 484 ℃ of ePOSS/SR6 nanocomposites, with nearly 47.1% growth. It was reported that the thermal decomposition mechanism of SR consists of unzip degradation and rearrangement degradation [18]. In the unzip degradation stage, the terminal hydroxyl groups of SR would bite back into the main chain and cause unzip degradation. In the rearrangement decomposition reaction, the Si-O-Si backbone would be broken randomly, and rearrangement degradation occurs.
|
Download:
|

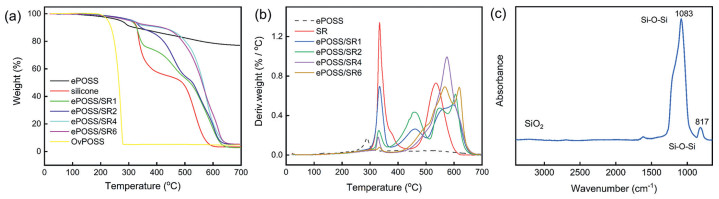

| Fig. 1. (a) TG and (b) DTG thermograms of ePOSS, SR and ePOSS/SR nanocomposite in the nitrogen atmosphere; (c) FTIR spectra of the residue remaining after ePOSS was heated to 700 ℃. | |
As shown in Fig. 1b, the first weight loss peak at 300 ℃~400 ℃ corresponding to the unzip decomposition stage gradually decreased and shifted to a higher temperature. When the content of ePOSS is 6 wt%, only a small peak remains in this decomposition stage, indicating that the unzip degradation reaction was almost inhibited by ePOSS. Resulting from the physical interaction between ePOSS and the SR matrix, the introduction of ePOSS significantly increased the thermal decomposition temperature of SR. In the related literature, Zhang et al. prepared vinyl-POSS-reinforced SR with chemical bond, and found the ΔT5 is only 18 ℃ when the content of vinyl-POSS is 6 wt% [19], the same content as in our work. And Xu et al. published an article on greatly improving thermal stability of silicone resins by modification with aminopropyl-POSS by forming hydrogen bond between aminopropyl-POSS and silicone resins [8], in which ΔT5 of the composite is 45 ℃ at the content of aminopropyl-POSS 1 wt%. However, aminopropyl-POSS begins to aggregate when the content continues to increase, and the thermal stability of the composites obviously decreases. In our work, ePOSS significantly improves the thermal stability of SR by simple physical mixing. ePOSS/SR6 nanocomposites had excellent properties and thermal stability, which was selected as the experimental sample of radiation resistance, and SR as the control sample. By comparison, the effect of fillers and absorbed doses on the properties of SR were explored. Finally, the radiation crosslinking and degradation mechanisms of ePOSS/SR nanocomposite were analyzed via structural characterization and measurement of radiolysis products. Fig. 2a compared the ve-total of SR and ePOSS/SR6 nanocomposites at different absorbed doses. With the increase of the absorbed dose, the ve-total of SR and ePOSS/SR6 nanocomposites gradually increased, and ve-chem of ePOSS/SR6 nanocomposites increased more obviously than that of SR. The higher absorbed dose was, the more free radicals generated in the polymer. Then the free radicals caused the crosslinking between the polymer chains, so the ve-total increased with the increasing absorbed dose. In addition, the side chain of ePOSS would react with the chain of the polymer under irradiation, leading to the higher growth of v of ePOSS/SR nanocomposite. And this phenomenon was similar to the previous studies on the effect of SiO2 filler on SR radiation stability [20].
|
Download:
|

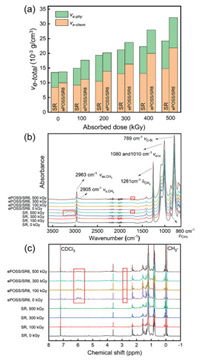

| Fig. 2. In the air, the ve of SR and ePOSS/SR6 nanocomposites at different absorbed doses (a); ATR-FTIR spectra of SR and ePOSS/SR6 nanocomposites with different absorbed doses (b) and 1H NMR spectra of soluble substance from SR to ePOSS/SR6 nanocomposites dissolved in CDCl3 before and after irradiation (c). | |
The surface functional groups of SR and ePOSS/SR6 nanocomposites at different absorbed doses were analyzed by ATR-FTIR (Fig. 2b). By comparison, it was found that the ATR-FTIR spectra of SR at different absorbed dose were consistent in those of ePOSS/SR nanocomposites, excepting that SR at 300 kGy and 500 kGy had new absorption vibration peaks at 3142 cm−1 and 3050 cm−1, which may be belonged to the absorption of hydroxyl group. However, no new absorption peaks appeared in the ePOSS/SR6 at 300 kGy and ePOSS/SR6 at 500 kGy, indicating the presence of ePOSS can slow down the oxidation process of the SR surface. The soluble substance from SR to ePOSS/SR6 nanocomposites with different absorbed dose in CDCl3 were characterized by 1H NMR. Compared with irradiated SR at different absorbed dose, all of the irradiated ePOSS/SR6 nanocomposite had characteristic peaks at 2.6 ~ 2.9 ppm and 5.7~6.1 ppm, which corresponded to the C–C bonds and epoxy bonds of ePOSS (Fig. 2c), respectively. That is, ePOSS would escape from the SR matrix and dissolve in CDCl3 during the soaking process, which further proved that it was physically mixed in the SR matrix. However, as discussed about ve-chem above, chemical bonds formed between the reactive side chain of ePOSS and the matrix under irradiation. So these two characteristic peaks gradually became weaker with the increasing absorbed dose. In addition, no new characteristic peaks appeared in the spectra of SR and ePOSS/SR6 nanocomposites after 500 kGy, which means that no significant degradation of the samples occurred under this irradiation condition.
Fig. 3a showed the TG thermograms of both SR and ePOSS/SR6 under different absorbed doses. First, with the increasing absorbed dose, the thermal decomposition temperature of SR continued to improve due to the increasing crosslinking density. However, after γ-irradiation, the thermal decomposition temperature of irradiated ePOSS/SR6 nanocomposites were lower than that of the unirradiated sample. Subsequently, its thermal stability increased slightly with the increasing absorbed dose. It is possibly attributed to that under γ-ray irradiation, the physical interaction between ePOSS and the matrix was destroyed, leading to the reduction of thermal stability of the composites. At the same time, the chemical bond between ePOSS and the matrix formed, leading to a slight increase in thermal stability. By comparing Figs. 3b and c, it can be seen that the DTG curve of ePOSS/SR6 nanocomposites changed less than SR after irradiation, and its thermal stability was always higher than that of SR. As shown in Figs. 3d and e, the larger absorbed dose, the lower crystallization temperature (Tc), the lower melting temperature (Tm), the smaller ΔHm and the lower crystallinity of the samples existed (Table S2 in Supporting information). In addition, the crystallization and melting peaks were rarely observed because of high ve-total of samples at the absorbed dose of 500 kGy. Considering what we have discussed above, with the increasing absorbed dose, the ve-total of the samples increased, making the polymer chain difficult to move. As the amorphous region of the sample increased, the crystallinity of the sample decreased and its crystallization and melting peaks move toward lower temperatures.
|
Download:
|

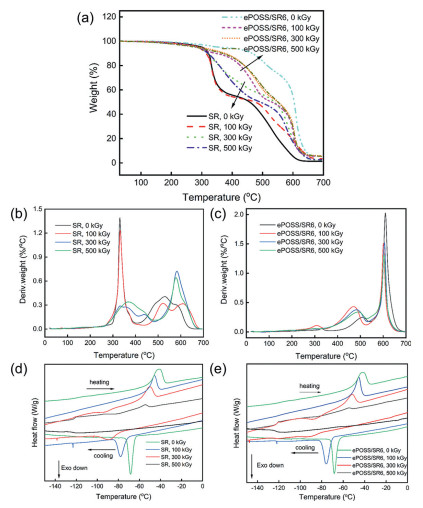

| Fig. 3. TG (a) and DTG thermograms (b, c) of both SR and ePOSS/SR nanocomposite with different absorbed doses in the nitrogen atmosphere; DSC curves (d, e) of SR and ePOSS/SR nanocomposite with different absorbed doses in helium atmosphere. | |
Due to the increasing ve-total of both SR and ePOSS/SR6 nanocomposites under irradiation, their tensile strength and elongation at break decreased, and Young's modulus increased (Figs. 4a–c). However, the rate of change in Young's modulus had distinct difference between irradiated SR and ePOSS/SR6 nanocomposites (Fig. 4d). During irradiation in the air, the oxygen would consume some free radicals of the samples, so their rate of changes rarely changed at the absorbed dose of 100 kGy. As the absorbed dose increasing, the oxygen in the air was not enough to consume all free radicals, and the left free radicals led to the chemical crosslinking inside the samples. Therefore, the Young's modulus of the samples gradually increased. When the rate of change of Young's modulus was 20%, the corresponding absorbed dose of SR and ePOSS/SR6 nanocomposite were 276.6 and 353.6 kGy, respectively. In general, the rate of change in Young's modulus of SR was always higher than that of ePOSS/SR6 nanocomposites, indicating the addition of ePOSS can improve the radiation resistance of SR. In addition, compared with irradiation in the air, both SR and ePOSS/SR6 nanocomposite had higher ve-total (especially e-chem) after irradiation in the nitrogen, which was consistent with previous studies [21]. Because the free radicals generated by irradiation would not be consumed by oxygen under the protection of nitrogen.
|
Download:
|

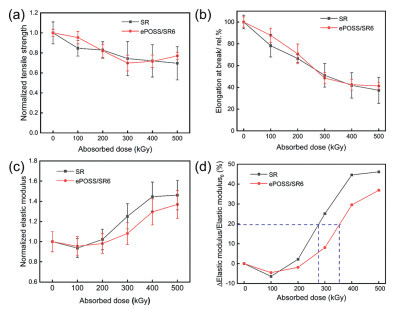

| Fig. 4. Tensilestrength (a), elongation at break (b), Young'smodulus (c) and the rate of change in Young's modulus (d) of both SR and ePOSS/SR6 nanocomposites with different absorbed doses (in air). | |
Fig. 5a showed the pressure in the sample tube fitted with SR, SR-N, ePOSS/SR6 and ePOSS/SR6-N (N represents irradiation in the nitrogen) after irradiation with different absorbed doses. The pressure change of the sample tubes containing SR and ePOSS/SR composite had the same tendency whether samples were irradiated in the nitrogen or air. In the nitrogen, the pressure in the sample tube increased slightly with the increasing absorbed dose, indicating that samples produced some radiolysis gas after irradiation. However, the pressure in the sample tube decreased with the increasing absorbed dose in the air, indicating that the oxygen participated in the reaction during the irradiation. Then GC was used to further detect the radiolysis gas generated during irradiation [22, 23]. It was found the main gaseous radiolysis products of both irradiated SR and ePOSS/SR nanocomposite were CH4, CO2, H2 and CO [23], whether irradiated in the air or nitrogen. As shown in Figs. 5c–f, the concentration (P) of these four gaseous radiolysis products increased with the increasing absorbed dose. Then the radiolysis gas yield (G) were calculated by linear fitting of relationship between the concentration of products with the dose (Fig. 5b and Table S3 in Supporting information). GH was independent of the irradiation atmosphere, but GCH, GCO and GCO were greatly affected by the irradiation atmosphere. SR-N and ePOSS/SR-N had higher GCH and SR and ePOSS/SR had higher GCO and GCO. The involvement of G2 inhibited the cross-linking of SR-N and ePOSS/SR materials and suppressed the formation of CH4. It indicates that oxygen is involved in the radiation degradation process of polymer chains. The change of CH4 content is closely related to the environment in which the material is exposed to, so it is speculated that CH4 can be used for the assessment of the radiation aging state of the material.
|
Download:
|

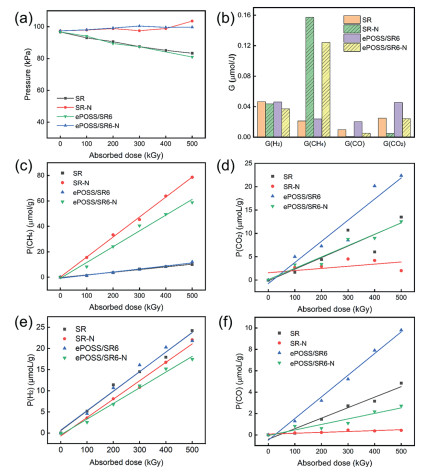

| Fig. 5. (a) The pressure in the sample tube fitted with SR, SR-N, ePOSS/SR6 and ePOSS/SR6-N after irradiation with different absorbed doses; (b) G-value of H2, CH4, CO and CO2 of SR, SR-N, ePOSS/SR6 and ePOSS/SR6-N; the output of CH4 (c), CO2 (d), H2 (e) and CO (f) produced by SR, SR-N, ePOSS/SR6 and ePOSS/SR6-N after irradiation with different absorbed doses. | |
Based on the above analysis, the radiation induced cross-linking and degradation mechanism of ePOSS/SR nanocomposite were proposed in Fig. 6. The radiation crosslinking and degradation mechanism of PDMS under vacuum has been reported in literatures. Initially, Miller found that the methyl side chain of PDMS would break to generate -Si• and -CH2• radicals to form H-type crosslinking during irradiation [21, 24]. Then Hill et al. found that the main chain Si-O-Si of PDMS would also break to generate free radicals to form Y-type crosslinking via recombination of Si-O bonds during irradiation, and Y-type crosslinking was the main type of the radiation crosslinking of PDMS (Fig. 6a) [25]. At the same time, the methyl side chain would also undergo a hydrogen pumping reaction to produce small molecular gasses such as H2 and CH4 during irradiation (Fig. 6b). If the samples were irradiated in the presence of oxygen, -Si• and -CH2• radicals would be converted into their corresponding peroxy group [26] and would not directly participate in the H-type crosslinking reaction, but decompose to produce CO2 and CO gas or form oxygen-containing groups on the surface of the material. In the nitrogen, the irradiated SR and ePOSS/SR6 nanocomposites mainly produced CH4 and H2, while the amount of CO and CO2 was very small. However, ePOSS had eight organic side chains, which would be decomposed or oxidized. So GCO and GCO of ePOSS/SR6 nanocomposites were higher than these of SR. In the air, GH of ePOSS/SR nanocomposite was nearly same as that of SR, and its GCH slightly increased. However, its GCO and GCO significantly increased due to the presence of ePOSS. Fig. 6c shows the schematic diagram of the mechanism of ePOSS/SR6 during irradiation in the nitrogen or air. Thus, in this work, we suggested that with the increase of the absorbed dose, the more free radicals generated in SR and ePOSS/SR nanocomposite, the higher ve-total was, the harder the material became, and the better thermal stability was. As for as ePOSS/SR nanocomposite, ePOSS had physical interaction with SR matrix. While the physical interaction was broken and new chemical bonds between fillers and matrix formed in composites during irradiation. Finally, ePOSS acted as a cross-linking point or pendant in composites, which could improve the radiation stability of SR.
|
Download:
|
| Fig. 6. (a) γ-Radiation induced crosslinking mechanism of PDMS; (b) The gas-releasing mechanism by the hydrogen pumping reaction of the methyl side chain of PDMS [27]. (c) The radiation induced crosslinking and degradation mechanism of ePOSS/SR6 at different atmosphere. | |
In summary, the radiation induced crosslinking and degradation mechanism of the ePOSS/SR nanocomposites under γ-irradiation was proposed comprehensively by analyzing the changes in the structure and properties of the materials and the radiolysis gasses (Fig. 6c), which provided the foundation for the application of this material in the nuclear radiation environment.
