As a new class of extended porous crystalline materials, covalent organic frameworks (COFs) have received tremendous attention in the past decades [1, 2]. The covalent linkage along with high surface area, uniform pore size, thermal and chemical stabilities, and tunable structural properties make COF a promising material for applications in catalysis, drug delivery, gas storage, and separation [3-5]. The structure and function relationship of the resulting frameworks depends on versatile synthetic strategy to develop the linker between building blocks [6, 7]. On the other hand, the geometry of building blocks determines both structural topology and functionality [8, 9]. In general, structurally rigid building blocks are required to produce polymeric crystalline frameworks [10-12]. In addition, to reach controllable pore size, large building blocks are needed, which often requires long synthesis [13-15]. Therefore, new COF systems constructed from readily available building blocks with good porosity and adsorption selectivity are of great interest.

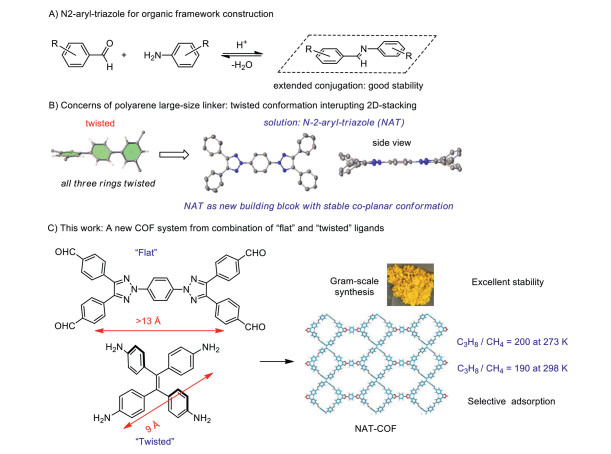

Among the literature reported polymerization strategies, aldehyde-amine condensation (formation of imine) is of the most popular approaches due to mild reaction condition (dehydration) and conformation control [16-19]. As shown in Scheme 1A, with aromatic aldehyde and aniline, the resulting Schiff base bearing extended conjugation of C=N with two arenes give good product stability. Moreover, although imine could give two different double isomers, the equilibrium nature of the reaction could lead to formation of more stable polymeric structures through building block conformation control [20-22]. Based on this strategy, various new COFs have been successfully prepared with interesting chemical and physical properties.

Clearly, the size and conformation of organic linker is crucial for the capability to form good COF materials [23-25]. To reach a desirable size of pore, rigid long linker is required. Linked aromatic hydrocarbon is one general strategy to achieve this goal. However, as shown in Scheme 1B, the arene could not form co-planar conformation due to the A-1, 3 repulsion [26]. The resulted twisted conformation often caused repulsion between 2D network, making it less ideal linkage for COF synthesis. Full conjugated aromatic system, such as pyrene, has been used to overcome this problem by keeping the flat conformation with large distance between binding units [27-30]. However, the synthesis and derivatization of those compounds could be high cost and made it less practical for large scale COF production. Our group recently developed the N-2-aryl-triazole (NAT) moiety as an alternative to reach co-planar conformation through readily available synthesis [31]. With this new conformationally rigid large linker, we proposed the combination of "flat" and "twisted" building blocks for construction of COF through simple Schiff-base formation process. Herein, we report the synthesis of a new COF from a flat building block NAT-CHO and a twisted building block ETTA amine. With these two readily available building blocks, NAT-COF could be easily prepared in large scale. This new organic framework showed excellent stability toward various solvents, acidic and basic aqueous solution (pH 5 to 13). The large pore size makes this new COF good material for gas adsorption, with 190:1 selectivity in adsorbing larger size C₃H₈ over CH₄ at 298 K, along with good adsorption selectivity toward CO₂ over N₂.

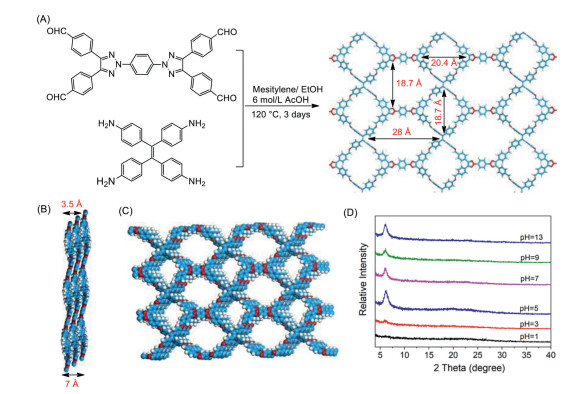

As shown in Fig. 1A, NAT-COF was synthesized with stoichiometric amount of NAT-CHO and ETTA in mixed solvents (mesitylene: EtOH: AcOH (6 mol/L) = 5:5:2, v/v/v) at 120 ℃ (Fig. 1A). After 3 days, yellow powder was obtained and washed by anhydrous THF, anhydrous trichloromethane and anhydrous methanol to obtain the pure NAT-COF powder in 90% yield. FT-IR was used to confirm imine formation (Fig. S3 in Supporting information). It can be found that characteristic C=N stretching at 1623 cm⁻¹ formed while typical bands of C=O at 1703 cm⁻¹ from NAT-CHO and N-H at 3357 cm⁻¹ from ETTA almost disappeared after new material formation.

Having successfully obtained the NAT-COF, its crystal structure was simulated through Materials Studio (Fig. S2 in Supporting information). The simulated structure showed a 2D AA stacking structure which was linked by imine functional groups. In each layer, two pores were identified, suggesting this extended backbone could provide large porosity for promising gas sorption ability (Fig. 1A). Simulated NAT-COF from Materials Studio represents the stacking of layers with ordered pore channels of NAT-COF and the distance between neighboring layers was calculated to be around 3.5 Å (Figs. 1B and C).

To explore the property and functionality of this new network, we first evaluated its thermal and chemical stability. Thermogravimetric analyses (TGA) revealed good thermal stability of NAT-COF (Fig. S4 in Supporting information). Then the stability of COF in solution was investigated. NAT-COF was immersed in aqueous media with wide range of pH for 15 days at room temperature. The PXRD patterns showed that NAT-COF maintained the structural integrity from pH 5 to 13 (Fig. 1D). For organic solvents, NAT-COF maintained good stability in various organic solvents (acetone, MeOH, EtOH, DMF, DCM, MeCN and THF) after being immersed over 15 days at room temperature (Fig. S5 in Supporting information).

The porosity of NAT-COF was first examined by N₂ adsorption at 77 K using activated samples. The Brunauer-Emmett-Teller (BET) and Langmuir surface area were calculated to be 785.3 m²/g and 945.6 m²/g (Fig. S6 in Supporting information). Pore width distribution of NAT-COF suggests that NAT-COF contained both micropores and mesopores which facilitate gas adsorption (Fig. S7 in Supporting information).

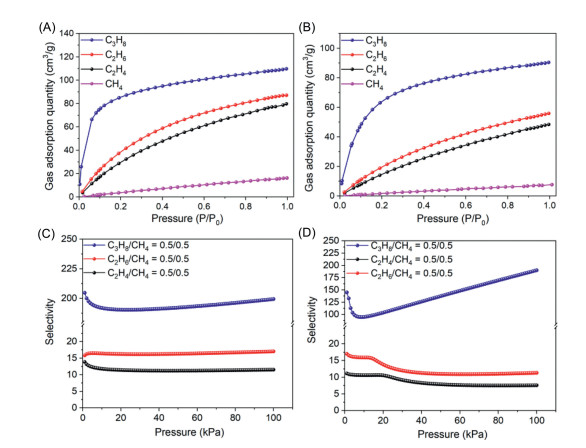

Impurities from natural gas usually contain ethane and propane, which limited CH₄ utilization in natural-gas processing industry [32, 33]. Considering good stability and moderate BET surface area, gas adsorption of NAT-COF for hydrocarbons including C₃H₈, C₂H₆, C₂H₄ and CH₄ at 273 K and 298 K were recorded with the trend of C₃H₈ > C₂H₆ > C₂H₄ > CH₄, highlighting the highest adsorption value of 109.8 cm³/g (4.9 mmol/g) at 273 K and 90.4 cm³/g (4.0 mmol/g) at 298 K for C₃H₈ among all tested gas, and detailed value for other gas are deposited in Figs. 2A and B).

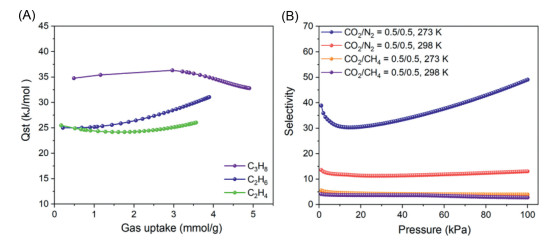

The selectivity of gas molecules was calculated by Ideal solution adsorbed theory (IAST) with a good correlation factor (R > 0.999). The selectivity curve of C3 hydrocarbon over CH₄ is shown in Figs. 2C and D. The results suggested a similar trend of C₃H₈ > C₂H₆ > C₂H₄ for the selectivity of C3 hydrocarbon over C1. The selectivity of C₃H₈/CH₄ is 200 at 273 K and 190 at 298 K. Both high sorption capability and selectivity towards C3 hydrocarbon over C1 could be attributed to size matching between C₃H₈ and large amount of micropores in the framework. Weak interactions between host and gas molecules (van der Walls forces) also have influenced on selectivity. Relatively more hydrophobic C3 hydrocarbon has stronger interaction with lipophilic ETTA. Isosteric heat of adsorption (Q_st) could also provide some insight for addressing this result. Q_st values C₃H₈, C₂H₆ and C₂H₄ were calculated and summarized in Fig. 3A. Among all tested gas, C₃H₈ gave the highest absolute Q_st value (34.7 kJ/mol) in all cases which could account for higher selectivity of C3 hydrocarbon over C1.

Carbon capture and sequestration (CCS) technology plays a crucial role in tackling environmental concerns related to growing atmospheric CO₂ emissions caused by fossil fuels [34-37]. Beside, CO₂ and CH₄ molecules have close kinetic diameters of 3.3 Å and 3.8 Å, which makes their separation via molecular sieving difficult. The nitrogen atoms in NAT-CHO could increase CO₂ adsorption capacity. Moderate selectivity between CO₂ and CH₄ (4 at 273 K and 2.8 at 298 K) was obtained (Fig. 3B), which can be contributed to higher Q_st value (Fig. S8 in Supporting information) of CO₂ (26.7 kJ/mol) compared with that of CH₄ (21.5 kJ/mol). Similarly, the selectivity of CO₂/N₂ is 49.1 at 273 K and 13.1 at 298 K, which is consistent with CO₂-philicity of NAT-COF owing to more dipole-dipole interactions.

In summary, combination of "flat" and "twisted" building blocks for the construction of COF was successfully achieved by tethering polar NAT-CHO and lipophilic ETTA through imine formation. Taking advantage of extended scaffold of co-planar NAT-CHO which was supported by "twisted" backbone of ETTA, NAT-COF exhibited excellent gas selectivity of hydrocarbons and CO₂. Notably, NAT-COF demonstrated efficient gas adsorption and selectivity in C3 propane over C1 methane, at the same time good with CO₂ over N₂, making it a promising candidate for both natural gas purification and CCS.
