Recent advances and trends of heterogeneous electro-Fenton process for wastewater treatment-review
Zining Wanga, Mingyue Liua, Fan Xiaoa, Georgeta Postoleb, Hongying Zhaoa,*, Guohua Zhaoa
a School of Chemical Science and Engineering, and Shanghai Key lab of Chemical Assessment and Sustainability, Tongji University, Shanghai 200092, China;
b Univ Lyon, Université Claude Bernard Lyon 1, CNRS, IRCELYON, F-69626 Villeurbanne, France
Abstract: Electrochemical advanced oxidation processes (EAOPs) are effective and environmentally friendly for the treatment of refractory organic pollutants. Among EAOPs, heterogeneous electro-Fenton (EF) process with in-situ formation of hydrogen peroxide (H2O2) is an eco-friendly, cost-effective and easy-operable technology to generate hydroxyl radicals (·OH) with high redox potential. The generation of ·OH is determined by the synergistic H2O2 formation and activation. The surface catalytic mechanisms for H2O2 activation in the heterogeneous EF process were discussed. Some required features such as heteroatom doping and oxygen groups for H2O2 formation via selective two-electron oxygen reduction reaction (ORR) with carbonaceous electrode are summarized. The solid Fenton catalysts and integrated functional cathodes that widely used in heterogeneous EF for wastewater treatment are grouped into few classes. And the brief discussion on catalytic activity and stability of materials over different experimental conditions are given. In addition, the application of heterogeneous EF process on the remediation of emerging contaminants is provided. The challenges and future prospects of the heterogeneous EF processes about catalytic fall-off and multi-step/complex techniques for water purification are emphasized.
Keywords: Heterogeneous electro-Fenton    Oxygen reduction reaction    Hydrogen peroxide    Cathodic materials    Refractory organic pollutants
1. Introduction

Nowadays, with the rapid development of economy and the explosive growth of population, the environmental pollution became an urgent global issue. Various emerging organics are frequently detected in urban sewage, drinking water surface and ground water, including dyes [1], endocrine disrupting chemicals (EDCs) [2-4], pesticides [5-7], pharmaceutical and personal care products (PPCPs) [8-11]. Although the concentration of organics and corresponding degradation intermediates is the order of ng/L to µg/L, such contaminants with stable chemical properties are highly cytotoxic, persistent and intractable [12-14]. Furthermore, after continuous accumulation and enrichment, the presence of refractory organics would cause serious pollution to water environment, and then gradually results in a potential threat to human life and health through the food chain [15, 16].

As an environmentally friendly advanced oxidation technology, electrochemical advanced oxidation processes (EAOPs) are promising and efficient methods for the elimination of organic pollutants. The most obvious feature of EAOPs is the production of strong oxidant hydroxyl radical (·OH, E0 (·OH/H2O) = 2.80 V), which can efficiently and unselectively attack a wide range of organics [17-21]. Electro-Fenton (EF) is one of the most widely used technology in EAOPs for wastewater treatment due to its fast reaction rate, low toxicity and environmental compatibility [22]. In EF process, the H2O2 is continuously generated via the two-electron oxygen reduction reaction, avoiding the risk of long-distance transportation of H2O2. The electrogenerated H2O2 would react with external added ferrous ions (Fe2+) to produce ·OH. Depending on the types of the Fenton catalysts, EF process can be divided into heterogeneous and homogeneous reaction [19, 23]. In homogeneous EF process, the Fenton catalysts are Fe2+ ions which react with the in-situ generated H2O2 via (Eq. 1). The catalytic efficiency of homogenous EF process is determined by the regeneration of Fe2+ (Eq. 2). Indeed, the rapid accumulation of Fe3+ and the slow rate of the Fe2+ regeneration result in low efficiency of decomposing H2O2 as well as undesirable precipitation of iron oxyhydroxides. The requirement of strong acidic conditions (pH 2.8–3.5) for achieving optimal efficiency limits its large-scale application for actual wastewater treatment, which needs final neutralization step to obtain tolerable effluents [24, 25].

(1)
(2)

Recently, heterogeneous EF technology by using solid catalysts or integral cathodes receives intensive research and development focus due to its environmental compatibility, excellent efficiency, and high versatility. Considering the main problems of homogeneous EF process, the most important advantages of heterogeneous EF are the extension of working pH range and the inhibition of iron sludge formation during heterogeneous EF process [26, 27]. In particular, Fe-containing synthetic solid catalysts (i.e., pyrite, iron oxides and spinel) are used alone or supported on the porous materials for the application in heterogeneous EF process. Of recent, functionalized cathodic materials (i.e., Fe-modified carbon/graphite felt and transition metal doped carbon aerogel) are directly applied as working electrodes in heterogeneous EF process [28-31]. The application of heterogeneous catalysts or cathodic materials can be efficiently recovered and reused, the overall cost of wastewater treatment can be reduced.

Hence, many studies have already been carried out concerning about the heterogeneous EF process for the remediation of wastewater. These processes can efficiently degrade and even mineralize real and synthetic wastewater contaminated by pesticides, dyes, endocrine disrupting chemicals, antibiotics, etc. [32, 33]. Up to now, in several reviews and book chapters, few reviews have comprehensively introduced the cathodic reaction mechanism, cathodic materials as well as the application of heterogeneous EF process. Thus, the selectively electrochemical mechanism of oxygen reduction reaction for H2O2 generation and H2O2 decomposition in the heterogeneous EF process were emphasized in this review. Different heterogeneous Fenton catalysts and functional cathodic materials and their application in the degradation of emerging contaminants were discussed. The current challenges and future trends were also proposed from the perspective of reactive oxygen species (ROS) generation and actual water purification application.

2. The main features and surface catalytic mechanism of heterogeneous electro-Fenton processes

The heterogeneous EF process is conducted with in-situ electrogenerated H2O2 and solid Fenton catalyst to form ·OH, which promotes the effective mineralization and removal of pollutants. Considering the security issues related to the storage and transportation of H2O2, the electrogeneration of H2O2 via two-electron reduction of input air or oxygen, which can avoid the costs and risks associated with handling, transportation and storage of H2O2 [9, 34]. Heterogeneous electro-Fenton process has some significant advantages over classical electro-Fenton process such as extending the working pH range, preventing the iron ions leaching, increasing the stability and reusability of catalysts. When applied in a wide pH window, the formation of iron hydroxides sludge during hetero-EF process or post-treatment neutralization stage can be eliminated or inhibited. This is important because the elimination of sludge could improve the efficiency of the process as well as reduce both overall cost and energy consumption [28, 35].

Most researchers propose that the catalytic hetero-EF reaction consists of the Haber-Weiss circle mechanism. In the surface-induced decomposition of electrogenerated H2O2 is mainly catalyzed by surface iron species (≡indicates surface-bound iron species in heterogeneous catalyst, as shown in Fig. 1). At the acidic working pH conditions, the decomposition mechanism of H2O2 on the solid catalyst surface is simplified as shown in (Eqs. 3–5). ≡Fe on the surface of the solid catalyst efficiently decompose H2O2 to form ·OH, and at the same time itself oxidizes to ≡Fe as the (Eq. 3). In addition, hetero EF process may accompany the dissolved Fe3+/Fe2+ released from the Fe-functionalized cathodic materials or solid catalysts, the reaction mechanism is similar to the homogeneous EF (Eq. 4). Finally, through ·OH attacking, the organic pollutants can be mineralized to H2O and CO2 (Eq. 5). The ·OH can also react with excess H2O2 to generate HO2· (quenching Eq. 6). Compared with ·OH, HO2· is a much weaker oxidant, hence the efficiency of the process will be reduced [36, 37].

(3)
(4)
(5)
(6)
Download:

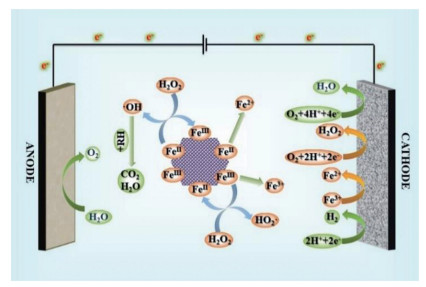

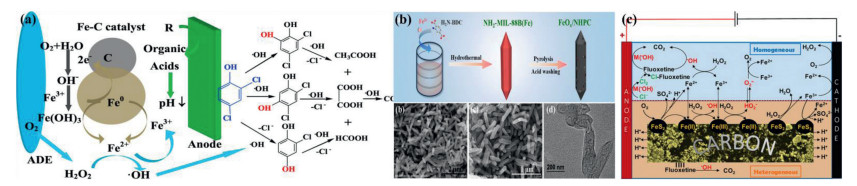

Fig. 1. Diagram of degradation mechanism for organic matter by heterogeneous electro-Fenton oxidation.

In natural or alkaline condition, a different surface catalyzed mechanism was proposed in (Eqs. 7–11). Initially, the electrogenerated H2O2 prefers to bind with the ≡Fe-OH/≡Fe-OH active sites of the iron based catalysts (Eqs. 7 and 8), forming a precursor surface complex ≡Fe-OH(H2O2)(s)/≡Fe-OH(H2O2)(s). Furthermore, ≡Fe-OH(H2O2)(s) in catalysts surface catalyzes the decomposition of adsorbed H2O2 into ·OH radicals and converted them to ≡Fe-OH during the reaction (Eq. 9). Then the surface H2O2 complex may transfer into ≡Fe-OH(HO2·)(s) through a reversible ground-state electron form the ligand to the central atom (Eq. 10), and then the successor complex would be activated to ≡Fe-OH through (Eq. 11). Obviously, the reaction rates of the (Eq. 10) can be significantly accelerated by increasing the pH value to the alkaline condition, because the rapid consumption of H+ will rapidly change the equilibrium, resulting in the formation of more ≡Fe-OH species. This cycle will continue to convert electrogenerated H2O2 to ·OH radicals [38-40].

(7)
(8)
(9)
(10)
(11)

As we have known, the regeneration of Fe from Fe dictates the performance of the whole heterogeneous electro-Fenton reaction, represented by the amount of produced ·OH. During the heterogeneous EF reaction, surface ≡Fe can be reduced to ≡Fe with H2O2 and HO2· by the following reactions (Eqs. 12 and 13). However, the regeneration rate of Fe is very slow with the rate constant of 0.001–0.01 L mol−1s−1, which is far less than of generation rate constant of Fe (40-80 L mol−1s−1) [41, 42]. The adopted strategy for enhancing the regeneration of Fe is the addition of cocatalysts such as inorganic metal compounds and organic acids. Most organic acids act as chelating and reducing agents to provide extra electrons for Fe complexes and promote Fe cycling [3, 43]. Inorganic metal compounds have been used to introduce a thermodynamically spontaneous Fe regeneration via the synergistic effect of other metals and Fe with different redox potentials [44, 45]. Besides, the current research indicates that the catalyst structure adjustment to accelerate catalyst interface electronic migration and circulation mainly include several aspects, metal and metal oxide compound, different types of metal oxide compound and the use of nonmetal materials with good conductivity (such as graphene) as the carrier of metal components etc [40, 46-48]. Furthermore, the regeneration of Fe can be directly accelerated by using electrochemical reduction method with functional electrode as reducing agent through (Eqs. 14 and 15). Carbonaceous electrodes with heteroatom doping to modify the surface and electronic structures can improve their electrocatalytic activity to realize regeneration Fe [39, 49].

(12)
(13)
(14)
(15)
3. Selectively electrochemical mechanism of oxygen reduction reaction in heterogeneous electron-Fenton process

Due to its unique characteristics, H2O2 has become a versatile and green agent for environmental remediation applications. In heterogeneous EF process, H2O2 can be generated through selective oxygen reduction reaction (ORR), which contains two types of reaction pathway: (ⅰ) Two-electron reduction as main reaction (Eqs. 16, 18, 20) and (ⅱ) four-electron reduction as competitive reaction (Eqs. 17, 19) [50-52]. Moreover, the reaction equation for selective ORR under different pathway and pH conditions is as follows [53].

In acid media (pH < 7):

(16)
(17)

In basic media (7 < pH < 11.7)

(18)
(19)

At pH > 11.7

(20)

where RHE represents reversible hydrogen electrode

In order to regulate the reduction pathway of ORR during EF process, it is important to elucidate the ORR mechanism. There are two steps process in 2e ORR for the production of H2O2 which involved proton-coupled electron transfer and the generation of HOO* intermediate on actives site [54]. The first step consists of the adsorption of O2 molecule on the active sites of catalyst, followed by its reaction with an H+ and an electron transfer to form a HOO** intermediate (Eq. 21). In the second step, the HOO* intermediate reacts with another H+ to complete the two-electron path and form H2O2 (Eq. 22). The 2e ORR involves the HOO* as intermediate species, hence, single-electron reduction of HOO* may lead to selective production of H2O2, which inhibits further reduction to H2O [55-57].

(21)
(22)

where * represents the active site on the catalyst surface.

According to the above-mentioned ORR mechanism, the reaction pathway is related to the adsorption mode of O2 on the surface of electrode. Three adsorption modes of oxygen can be summarized in Fig. 2, including griffiths, Pauling and bridge adsorption [58-60]. In the reduction of O2 to H2O2 through 2e transfer mechanism, O2 is "end-on" adsorbed by Pauling mode. During Pauling mode adsorption, only one oxygen atom interacts with the surface activate site, which is conducive to form HOO* intermediate, beneficial to the realization of 2e reduction of oxygen to generate H2O2. In Griffiths model, O2 molecule transversely interacts with an active site, which can weaken the O‒O bonding and further benefit to 4e ORR pathway. Bridge adsorption, known as "side-on" adsorption, favors the interaction between oxygen atoms and active sites, which is favorable for 4e ORR pathway. In conclusion, the adsorption modes of O2 on the surface of electrode play a decisive role in the determination of ORR pathway [53, 61, 62]. In addition, the binding energy between electrode and O2 molecules has a significant effect on the ORR activity. Obviously, the binding strength between the electrode and the adsorbed reactants, intermediates or products, should be neither too weak nor too strong. The moderate binding energy of the oxygen-containing species, the better ORR activity [63, 64].

Download:

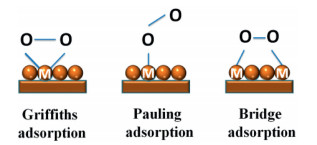

Fig. 2. The oxygen molecule adsorption on the catalyst surface.

Another major problem is selectivity issue, there are a number of side reactions that can occur during ORR process [65]. Firstly, the 4e ORR is a competitive reaction with more positive standard electrode potential than of 2e ORR process, indicating its thermodynamic favorability. Secondly, the further reduction of H2O2 to H2O may take place at the cathode-solution interface (Eq. 23), or O2 and H2O can be produced by disproportionation reaction (Eq. 24), or be oxidized at the anode in the cell, or through the generation of the HO2 intermediate (Eq. 25) [57, 66]. It is generally accepted that the highest yield of H2O2 is achieved at pH values between 2 and 3, with more acidic conditions favoring the reduction of H+, while the lack of protons with increasing pH reduces the rate of the reaction [67, 68].

(23)
(24)
(25)

In conclusion, both the selectivity and activity of ORR depend on the adsorption mode and binding energy of O2 molecules on the electrode surface. Moderate binding energy and Pauling adsorption are beneficial to the production of H2O2 via 2e ORR pathway. Therefore, we can modify the structure and composition of electrodes, adjust the adsorption mode and binding energy of O2 molecules, to achieve an efficient 2e ORR pathway. Besides, it is necessary to design electrodes and devices to make the generated H2O2 diffuse rapidly to avoid further oxidation or reduction.

4. Cathodes in heterogeneous electro-Fenton process for H2O2 generation

Generally, in order to increase the production of H2O2 in heterogeneous EF process, it is critical to developing suitable cathode materials with excellent 2e ORR catalytic performance. The cathode materials should have high catalytic activity, good stability, high conductivity, high specific surface area and so on [69, 70]. In addition, the performance of electrocatalyst is the key factor, has a great influence on the production yield of H2O2 from 2e ORR process. In recent years, many researchers have devoted to the development of electrocatalysts with high activity and selectivity of 2e ORR via introducing heteroatoms (N, B, S, O, F) and transition metals [71-74].

4.1. Carbon-based electrodes

Carbon-based materials are most widely used in EF system, including carbon felt (CF), activated carbon fiber (ACF), carbon nanotube (CNT) and ordered mesoporous carbon (MOC) [2, 9, 12, 75]. Carbon materials generally have a large specific surface area, high stability, strong electrical conductivity and high hydrogen evolution reaction overpotential, which can provide more active sites for ORR. CF is one of the best candidate materials for the removal of persistent organic pollutants due to its low cost and stable physical and chemical properties [76]. ACF is considered to be one of the most important nano porous carbon materials, which possess quasi three-dimensional structure and high specific surface area [77]. Recently, CNTs have become a research hotspot in the field of 2e ORR due to their unique properties, such as high surface area, mechanical strength, chemical stability and excellent conductivity [78, 79].

Due to the limited catalytic activity of carbon-based cathode, a high potential is required during ORR to produce H2O2, leading to low H2O2 generation efficiency [80]. Generally, the electrocatalytic activity of carbon materials derived from the electronic modulation of the prevalent conjugated sp2-sp2 linkages or the delocalization of π-orbital electrons in their graphitic. The incorporation of heteroatoms can change the localized electronic structure of carbon lattice and produce some positively and negatively charged groups, can refine the spin and charge distribution, greatly improving the hydrophobicity/hydrophilicity and turn the absorbability of key ORR intermediates, leading to an enhanced H2O2 production performance.

The heteroatom doping on the cathode surface mainly includes O, N, S, P and F. It has been reported that oxygen-containing functional groups such as quinonyl are the active sites of 2e ORR. Zhou's research group [81] used the electrochemical oxidation method (cyclic voltammetry, CV) to modify the graphite felt cathode with oxygen-containing functional groups in the voltage range of 0–2 V. The research found that the oxygen-containing functional groups C=O and COOH on the graphite felt were increased by 0.84% and 33.57%, respectively. The amount of accumulated H2O2 on the modified electrode is about 2.7 times that of the original electrode. In addition, the oxygen-containing functional groups can facilitate the mass transfer of dissolved dioxygen to the active sites of the electrode and its further absorption to form of O2abs, which can improve the 2e reduction pathway of ORR [82]. The electron delocalization of N-modified carbon material will change the adsorption status of oxygen on the electrode and thus change its ORR selectivity. Compared with C atom, N atom with higher electronegativity can activate π electrons and cause charge redistribution, which further regulates the electronic properties as well as adsorption capacity for O2 and its intermediates [83]. Peng et al. [84] found that the selectivity of H2O2 was volcano trend with N content. Both high and low N contents were not beneficial to the selectivity of H2O2. High content of N-functional groups may result in decreased isolated active sites for breakage of O‒O bond and then lead to the four electron ORR pathway. Low content of N-functionals leads to the decrease of active sites that beneficial for catalytic activity. Furthermore, the types of the N-functionals including quaternary-N, graphitic-N, pyrrolic-N, pyridinic-N and N-oxide are the critical parameters for the H2O2 selectivity via 2e ORR process [53]. Many previous studies have suggested that pyrrolic N species favored the two-electron pathway. In addition, under alkaline conditions, the pyridine-N sites were considered to have a four-electron ORR process due to pyridine-N has delocalized lone pair electrons that can be transferred to anti-bonding orbitals in O2 and weaken O-O bonds. Under acidic conditions, pyridine-N could be protonated through the formation of N‒H bonds, which makes the lone pair electrons occupied, thus hinder the weakening of O-O bonds and turn to the two-electron pathway to generate H2O2 [63, 85]. Zhang et al. [86] investigated the use of N-doped carbon derived from covalent organic frameworks with tunable N species and well-defined porous structure for electrocatalytic H2O2 production. Based on the control experiments and XPS findings, the graphitic N in N-doped carbons was proved as the active sites for synthesis of H2O2 via 2e ORR process. Generally, it is mostly that both specific N and carbon defects are responsible for promoting the 2e pathway. The doping of B, P, S, F can also regulate the electronegativity of C atoms to favor the generation of active sites for the 2e ORR. In addition, the heteroatoms doping can change the Fermi level and induce charge polarization, which can regulate the electron transfer characteristics and improve the catalytic activity [68, 87].

4.2. The transition metal modified carbon-based electrodes

Transition metal-based materials mainly include metal oxides, metal sulfide, and single metal atom catalyst [88-90. Compared with noble metals, transition metal-based materials not only have the advantages of high abundance, low cost, environmentally friendly. Besides, the presence of transition metals can facilitate the optimization of absorbate binding, and may enhance the activity and selectivity to generate H2O2 [53, 87].

Barros et al. [88] prepared Fe3O4/graphene and Fe3O4/Printex carbon electrocatalysts, in which Fe3O4 nanoparticles with square shape and average size of 20–30 nm. The number of exchanged electrons was close to 2.7 for the obtained catalysts within the potential range of -0.2 V to -0.7 V vs. SCE. Sheng et al. [89] used earth-abundant CoS2 for the electrocatalytic production of H2O2 with the H2O2 selectivity of ~70% in ORR process. Density functional theory (DFT) results show that modest bonding of HOO* adsorbate and the kinetically disfavored O-O bond scission leads the high activity and selectivity [91, 92]. Single atom catalyst (SAC) is a new research field in the catalysis community, in which the catalytically active metal is exclusively atomically dispersed as a single atom [93]. Sun et al. [94] revealed the trend of electrochemical production of H2O2 by a series of M-N-C materials (M = Mn, Fe, Co, Ni and Cu). The observation shows that Co-N-C catalyst with outstanding H2O2 productivity. The predicted binding energy of HO* intermediate on Co-N-C catalyst is located near the top of a volcano, which is a favorable two-electron ORR.

5. Solid Fenton catalysts in heterogeneous electron-Fenton process for decomposing H2O2

Heterogeneous EF process can efficiently expand the pH range of Fenton reaction, overcoming the main drawback of homogeneous Fenton process. Hence, a large variety of heterogeneous Fenton catalyst has been investigated, such as zero valent iron (ZVI), iron oxide, iron sulfide, and loaded iron-based materials [12, 46, 95-100]. It was found that the reactivity of heterogeneous Fenton reaction depends on the specific surface area, surface charge distribution, and surface functional groups in catalysts [29, 46, 101, 102]. In this part, several common heterogeneous Fenton catalysts are reviewed and their catalytic performance for the degradation of pollutants was discussed and summarized in Table 1.

Table 1

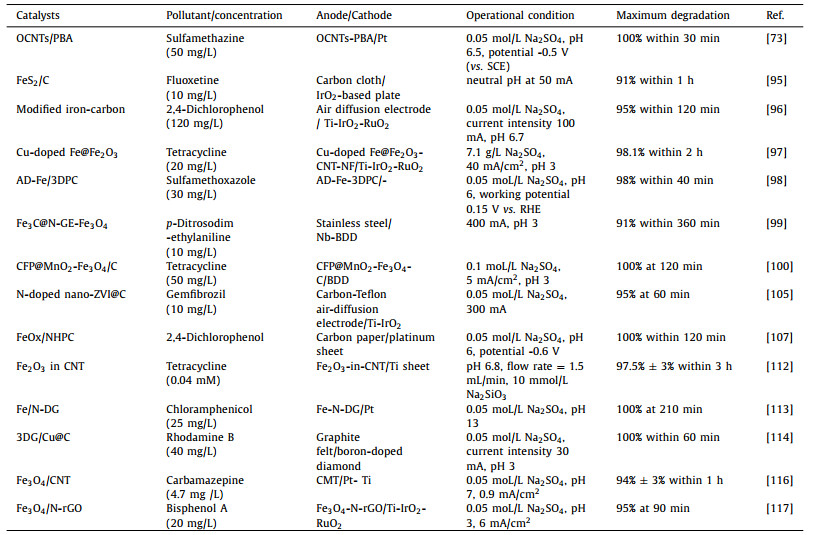

Overview of the studies reported in heterogeneous EF.
5.1. Zero valent iron

Zero valent iron (ZVI) received much attention as heterogeneous Fenton catalysts for the degradation of organic compounds [103-105]. In the ZVI Fenton catalytic system, the zero-valent metals are oxidized and then react with H2O2 to produce ·OH. The ZVI surface can be attacked by the following steps: Firstly, O2 reacts with ≡Fe0 to form ≡Fe in an acidic medium (Eq. 26) or in alkaline conditions (Eqs. 27 and 28). Secondly, the large production of ≡Fe potentiates the production of ·OH from heterogeneous Fenton's reaction (Eq. 3). Part of Fe2+ ion would be generated in acidic medium and then initiated homogeneous Fenton reaction (Eq. 4) [106, 107]. The regeneration of ≡Fe are achieved through the reducibility of Fe0 (Eqs. 29 and 30). In addition, it was shown that with the increasing specific surface area more active sites could be in-situ generated and consequently both catalytic activity and the reaction rate has been improved in the heterogeneous catalytic process [108, 109].

(26)
(27)
(28)
(29)
(30)

However, ZVI with a large specific surface area would prone to agglomeration during Fenton reaction especially in an aqueous solution. The introduction of support materials such as zeolites, mesoporous silica, carbon nanotubes, and activated carbon is a typical strategy to avoid the ZVI agglomeration [110]. Support materials can effectivity disperse ZVI nanoparticles, increase the specific surface areas, expose more activity sites, and ultimately improve the catalytic activity [110, 111]. Zhou's research group [95] used polytetrafluoroethylene modified Fe/C as heterogeneous EF catalyst to degrade 95% of 2, 4-dichlorophenol (2, 4-DCP) in 120 min under current intensity of 100 mA (Fig. 3a). The connection of carbon particles and iron existed in electrolyte would form a large number of microscopic galvanic cells, in which iron acted as anode and transferred to ferrous ions during Fenton reaction. While support carbon as cathode can accelerate the reduction by transferring electrons and the accepting electrons to the pollutants or oxygen.

Download:
Fig. 3. (a) Degradation pathway and proposed mechanism of 2, 4-DCP. Reproduced with permission [95]. Copyright 2015, Elsevier. (b) Scheme of the fabrication process for FeOx/NHPC, SEM image of NH2-MIL-88B(Fe), SEM and TEM images of FeOx/NHPC750. Reproduced with permission [114]. Copyright 2020, Elsevier. (c) Proposed mechanism for FeS2/C-catalyzed heterogeneous EF treatment at mild pH. Reproduced with permission [96]. Copyright 2020, American Chemical Society.
5.2. Iron oxide and iron sulfide

In addition to ZVI, iron compounds are attracting much attention as heterogeneous catalysts among the abundantly available materials, such as magnetite (Fe3O4), maghemite (γ-Fe2O3), feroxyhyte (δ-FeOOH), pyrite (FeS2) [28-31, 112, 113]. Niu's team [114] prepared a bifunctional catalyst with embedded FeOx nanoparticles into nitrogen-doped hierarchically porous carbon (FeOx/NHPC, Fig. 3b). By adjusting the N-doped configurations and contents, FeOx/NHPC showed excellent EF properties for degradation and mineralization of 2, 4-dichlorophenol, rhodamine B, atrazine, sulfamethoxazole and phenol in a neutral reaction solution. Zhang and Yang [38] found that the degradation of Rhodamine B (RhB) by supported FeOOH nanoparticles as heterogeneous EF catalyst showed a synchronous effect of electrocatalytic oxidation and coupled adsorption, the removal rate of RhB was 100% within 60 min. Özcan et al. [115] used Fe2O3 modified kaolin (Fe2O3-KLN) as catalyst to electrochemically oxidize enrofloxacin (ENXN) by heterogeneous EF process and the degradation rate constant of ENXN was determined as 1.24 (±0.04) × 109 L mol−1 s−1.

Magnetite gave much attention to in heterogeneous EF process. The presence of ferrous ions in magnetite is beneficial to initiate Fenton reaction via Haber-Weiss mechanism [116, 117]. In addition, the electron mobility in the spinal structure of magnetite is high enough to enhance the activity of Fenton reaction [35, 118]. Liu et al. [75] designed a flexible bifunctional nano electrocatalytic textile material (Fe3O4-NP@CNF) as heterogeneous EF cathode to degrade carbamazepine. Fe3O4 nanoparticles were loaded on the CNT textile which was highly dispersed on the whole fiber matrix. Fe3O4-NP@CNF exhibited efficient degradation performance of carbamazepine, which was completely mineralized within 3 h at pH=7.

Pyrite (FeS2) as one of the most abundant sulfide minerals found in the earth crust has been explored for heterogeneous EF processes [119]. The natural pyrite is both iron reagent and pH regulator. In the presence of O2, FeS2 can be oxidized with the accumulation of H+ in the solution. The corresponding mechanism is shown in the following (Eqs. 31–34) [120]. Ye et al. [96] prepared a FeS2 core-shell nanoparticles as Fenton catalyst to degrade urban wastewater containing fluoxetine, which can be completely removed at near-neutral pH after 60 min (Fig. 3c). Core-shell FeS2 nanoparticles provided active sites and nanoporous carbon for minimizing the mass transfer limitations and preventing excessive iron leaching. Ammar et al. [119] used pyrite power as the source of iron catalyst to degrade tyrosyl (TY), 76% mineralization was obtained after 6 h at 50 mA, and the high performance was due to self-regulation of soluble Fe2+ and adjustable pH by pyrite.

(31)
(32)
(33)
(34)
5.3. Iron-free Fenton catalysts

Recently, Fenton-like catalysts have been widely developed, such as Al, Mn, Co, Cu, Ru and Ag existing at least two oxidation states, to attain the efficient degradation of organic wastewater [121]. Cu-based catalysts are widely studied due to the Cu2+ reduction by H2O2 (4.6 × 102 L mol−1 s−1) is much easier than that in Fe-based redox system, and the reaction rate of Cu+ with H2O2 (1 × 104 L mol−1 s−1) is higher than Fe2+ with H2O2 (76 L mol−1 s−1), which favors the production of ·OH [122, 123]. Yang et al. [123] synthesized a 3DG/Cu@C catalyst to effectively remove a variety of persistent organic pollutants in a wide pH range, the mineralization rate of RhB can reach 81.5%. In addition, the electro-generated H2O2 was decomposed by surface ≡CuI to generate ·OH (Eq. 35), and generated ≡Cu existed on the surface of catalysts can be reduced and regenerates ≡CuI (Eq. 36). Based on the identification of O2· and ·OH radicals, an oxidation pathway coupling anodic oxidation with heterogeneous EF was proposed (Fig. 4).

(35)
(36)
Download:

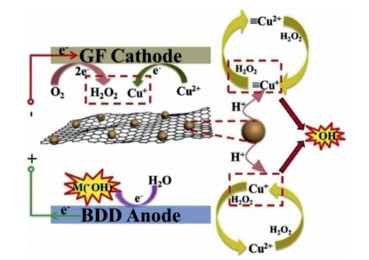

Fig. 4. Proposed mechanism of RhB degradation using 3DG/Cu@C as catalyst in heterogeneous EF process. Reproduced with permission [123]. Copyright 2020, Elsevier.

Comparing with the copper-based Fenton-like catalysts, manganese is more abundant in valence (0 ~ +7), the oxidation states of +2 to +4 have catalytic properties and environmental applications [121]. Both Mn2+ and Mn4+ can initiate the decomposition of H2O2 by interconversion of intermediate Mn3+ substance (Eqs. 37–40) [124, 125]. The reaction between H2O2 and heterogeneous manganese oxides (MnO, Mn3O4, MnOOH and MnO2) has been intensely investigated for AOP applications.

Depending on the chemical composition (mixed phase or pure phase), physical form (supported or unsupported), the decomposition of H2O2 generates different types of ROS including ·OH and superoxide (O2·−) [45, 126]. Mi et al. [127] have been successfully synthesized a mesoporous MnCo2O4-CF cathode to degrade ciprofloxacin, the removal of CIP achieved to 100% within 5 h. Compared with MnO2 andCo3O4, MnCo2O4-CF cathode exhibited higher degradation efficiency of CIP due to the synergistic effect of Mn and Co, enhanced redox couple and accelerated electron transfer.

(37)
(38)
(39)
(40)
6. Integral composite cathodes in heterogeneous electro-Fenton process for direct ·OH generation

Various functionalized materials are reported as EF cathodes for efficiently removing pollutants in aquatic environment such as Fe@Fe2O3/ACF [128], FeOOH/GF [129], CoFe-LDH/CF [130]. However, these functionalized EF cathodes were mainly fabricated on the conductive materials or immobilized iron source via multi-fabrication steps. The dissolution, agglomeration and fall off of supported catalysts would result in the decrease of degradation efficiency during EF reaction [36, 131]. To overcome these drawbacks, the integrated cathode based on carbon materials has been developed, in which the electrogeneration of H2O2 via two-electron pathway of oxygen reduction and the onsite decomposition H2O2 into ·OH radicals would be simultaneously occurred at the same interface of the intergraded cathode [24, 132-134]. Thus, how to achieve the high catalytic performance of 2e ORR for H2O2 generation and 1e H2O2 reduction would be the key parameters for ·OH formation with integrated cathodes in EF process.

Xiao et al. [135] reported the selective electrochemical reduction of O2 to ·OH through 3e pathway with carbon aerogel encapsulated FeCo alloy (Fig. 5a). The surface ‒COOH groups on graphite shell serves as the important role to induce the formation of H2O2 via the two-electron ORR. Simultaneously, H2O2 intermediate would be electrocatalytic reduced to ·OH by one-electron on the graphite shell enriched with electrons coming from inner FeCo alloy. The new strategy of electrocatalytic reduction of O2 to generate ·OH overcomes the rate-limiting step of electron transfer initiated by reduction/oxidation-state cycle in Fenton process. Shen et al. [132] proposed a novel electrocatalytic model for the generation of ·OH via (2 + 1) e oxygen reduction process (Fig. 5b). The PdFe alloy is dispersed in the carbon aerogel matrix, favoring the formation of carbon defects. Different from the 3e oxygen reduction pathway, the electrogenerated intermediate H2O2 was decomposed by PdFe alloy. Specifically, PdFe nanoalloys promote the generation of [H]ads as reduction sites for removing haloacetamides in drinking water.

Download:

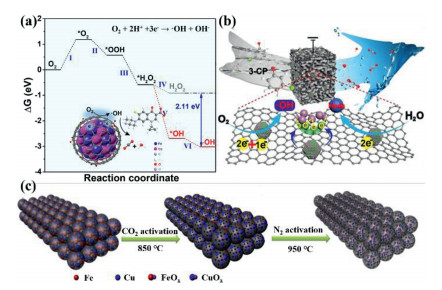

Fig. 5. (a) The thermodynamic activity of O2 reduction over FeCoC with ‒COOH and electron transfer mechanism. Reproduced with permission [135]. Copyright 2021, Wiley. (b) Proposed electron transfer mechanism of PdFe alloy/CA as catalyst in heterogeneous EF process. Reproduced with permission [132]. Copyright 2020, American Chemical Society. (c) Schematic illustration of the sequential activation of FeCuC aerogel by CO2 and N2. Reproduced with permission [131]. Copyright 2016, American Chemical Society.

The regeneration of Fe would be the rate-determing step in 1e H2O2 reduction reaction that initiated by reduction/oxidation-state cycle during EF process. Tian et al. [134] designed a novel Fe-sulfur doped carbon aerogel (FeSCA) cathode. The unsaturated surface sulfur accelerates the transformation of Fe/Fe. In addition, the evenly distributed sulfur favors the formation of –COOH groups to improve the selectivity of 2e oxygen reduction. Liu et al. [24] found that by boosting internal electron transfer to a nitrogen-conjugated Fe complex can accelerate the Fe regeneration in the EF process.

The catalytic activity of Fenton active sites in integrated cathode would be improved by the environmentally friendly activation way with CO2 and N2. Zhao et al. [131] prepared an iron-copper integrated carbon aerogel (FeCuC) cathode, in which ultradispersed Fe0 and Cu0 nanoparticles were embedded in 3D carbon matrix (Fig. 5c). The CO2 activation enhanced the accessibility of the aerogel's pores, and the secondary activation of N2 increased the porosity of aerogels and reductive carbon to regenerate ultradispersed Fe0. The activated FeCuC integrated cathode exhibited high Fenton catalytic activity and excellent stability in a wide pH range (3–9), the removal efficiency for methylene blue reached 98% within 30 min.

7. The applications of heterogeneous electro-Fenton process for degradation contaminants of emerging concerns 7.1. Degradation of pesticide

There are about 600 kinds of synthetic chemical pesticides, such as organochlorine, chlorophenoxy compounds, aniline derivatives [136]. Many pesticides are responsible for hypertension, cardiovascular disorders and other health-related problems in humans. The existence of pesticides in aquatic system and drinking water is a common occurrence, which is due to the leaching of pesticides from agricultural runoffs and industrial discharge into groundwater. Recently, heterogeneous EF technology serves as an attractive alternative way to deeply remove pesticides in municipal wastewater, Wang et al. [137] used electro-Fenton system with Fe-based magnetic activated carbon to degrade herbicide diuron. For 10 mg/L diuron solution, it can be completely degraded in 120 min at pH 6.7. Zhao et al. [131] applied EF process with FeCuC integrated as cathode and boron-doped diamond as anode to degrade the imidacloprid. 88% total organic carbon (TOC) removal was reached in 4 h at a wide pH range.

7.2. Degradation of antibiotics

Antibiotics are a class of pharmaceuticals used to treat bacterial and fungal infections both for human and animal [138]. Due to the inefficient removal of antibiotics in traditional sewage treatment plants, their long-term existence and migration in the environment pose a potential threat to aquatic organisms and human life [7, 139]. During the natural degradation process, such as hydrolysis, biodegradation and photo-degradation, antibiotics will react with other organic substances and convert to more complex by-products. Therefore, it is necessary to treat antibiotics to avoid surface water pollution and production of toxic by-products before they are released to natural water [140]. EF technology is new advanced oxidation technology that has been developed in recent decades, showing high efficiency of antibiotics oxidation [141, 142].

Jiang et al. [140] prepared an electro-Fenton catalytic membrane (EMFC) modified by graphene and iron oxide particles on a polytetrafluoroethylene substrate for in-situ degradation of antibiotic florfenicol with 10.2 ± 0.1 mg m‒2 h‒1 removal rate (Fig. 6). The degradation mechanisms of florfenicol were via the formation of several intermediates, undergo desulfuration, defluorination, and dehalogenation oxidation reactions which were later mineralized to CO2 and other different inorganic ions. Plakas et al. [139] reported the 85% diclofenac removal and corresponding 36% TOC removal in EF process with modified carbon felt with iron oxide at the applied potential of 2 V. This performance is considered satisfactory because the EF process occurs under unfavorable conditions of presence of natural organic matter and low electrical conductivity in real waste water.

Download:

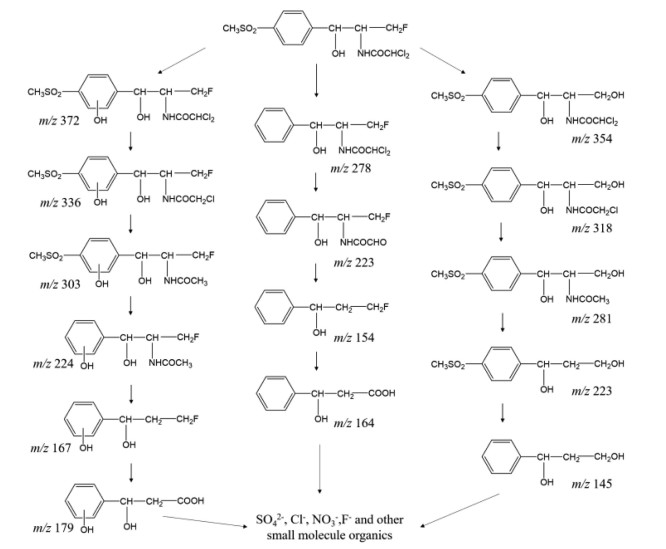

Fig. 6. Possible degradation pathways of florfenicol in heterogeneous EF process with EFCM. Reproduced with permission [140]. Copyright 2018, American Chemical Society.
7.3. Degradation of endocrine disrupting chemicals

Endocrine disrupting chemicals (EDCs) have been received significant attention due to their widely presence in environment, such as bisphenol A, phenols, phthalates. EDCs pollution can cause health issues by imitating or inhibiting the biology metabolic activities of the endocrine system [3, 4]. The removal of EDCs including activating carbon adsorption, membrane filtration, biological approach, photocatalytic oxidation were widely reported in the previous literatures. The heterogeneous EF is one of the promising ways due to its high pollutant's degradation and mineralization efficiency [143-146].

Liu et al. [75] used the composite binder-free Fe3O4-NP@CNF textile to generate H2O2 through O2 reduction. The TOC removal efficiency reached about 95% after 150 min, under the condition of pH 7. The results show that this process can remove carbamazepine with minimal energy consumption (0.239 kWh/g) and high pseudo-first-order rate constants (6.85 h‒1). Zhang et al. [117] prepared a novel three-dimensional (3D) heterogeneous EF system with magnetic nitrogen doped/reduced graphene oxide as catalytic particle electrodes and improved gas diffusion electrode as cathode for Bisphenol A (BPA) removal. The removal rate of BPA and TOC was respectively 93% and 60.5% within 90 min, and low catalyst loss after 5 cycles (less than 9.5%), indicating its excellent reusability and stability.

8. Conclusion and prospect

Heterogeneous EF is an efficient and environmentally friendly technology for wastewater treatment owing to its high applicability over a wide pH range, in which the H2O2 is in-situ formed by two-electron oxygen reduction reaction. The desirable features for potential cathodes and catalysts in EF process include high catalytic activity of cathodes for generation and activation of electrogenerated H2O2, as well as the easy separation and reusability of Fenton catalysts. In this review, the surface catalytic mechanism of heterogeneous EF reaction, electrocatalytic formation of H2O2 via 2e ORR, the generation of ·OH with solid catalysts and integrated cathodes, as well as the application of EF in the treatment of various pollutants sewage were summarized in detail. Heterogeneous EF reaction consists of the Haber-Weiss circle mechanism depending on the different working pH may accompany the dissolved Mn/Mn+1 released from the solid catalyst. The selectivity and activity of 2e ORR depend on the adsorption mode and binding energy of O2 molecules on the electrode surface. Moderate binding energy and Pauling adsorption are beneficial to the production of H2O2. The activity of heterogeneous iron-based Fenton catalyst can be effectivity enhanced by increasing specific surface area and dispensability, and exposing more active sites. The regeneration of Fe can be accelerated through interface electronic transfer and circulation by introducing bimetallic catalyst, inorganic ligands and electrochemical reduction. Inorganic metal compounds have been used to introduce a thermodynamically spontaneous Fe regeneration via the synergistic effect of Fe and other metals with different redox potentials. The applications of heterogeneous EF process are widely reported for the complete degradation and mineralization of wastewater contaminated with different classes of organic pollutants. In order to meet highly competitive requirement of actual wastewater treatment in the future, the spotlight of heterogeneous EF technology should be put in following aspects.

(ⅰ)The main challenges encountered in heterogeneous EF reaction are the limited Fenton activity. Due to the unique electronic properties of single metal active site, the atomically distributed active metal center has become a new research frontier to obtain the maximum atom efficiency in recent years. However, there are few studies on single atom catalysts as heterogeneous Fenton catalysts and it worth to be investigated in heterogeneous EF process for improving the catalytic activity of Fenton reaction during the degradation of organic pollutants.

(ⅱ)The efficiency of EF process is highly dependent on the synthesis of H2O2. However, development of electrochemical production of H2O2 is still challenging because of the low H2O2 yield and unsatisfactory Faradaic efficiency mainly deriving from the catalytic activity and selectivity of catalysts. And only a few implementations of practical devices for H2O2 production and water treatment exist, all of which involve low efficiencies and complex designs. Thus, improvements to catalyst and reactor designs are necessary for commercialization.

(ⅲ)The scavenging effect of ·OH by natural organic matters and inorganic ions in real wastewater leads a large amount of energy to be consumed and unsatisfactory reduction of targeting pollutants. Besides, ·OH-mediated heterogeneous EF process can nonselectively eliminate the recalcitrant organic pollutants. Specially, the selective removal of targeting pollutants with low concentration and high toxicity during the treatment of actual wastewater is challenging, which will undoubtedly broaden the application prospect of heterogeneous EF process.
