Recently, due to the fluctuation of fossil energy prices, global warming caused by the destruction of ecosystems, and fossil fuels are gradually drying up. Researchers have conducted a lot of work in the development of sustainable energy [1]. Solar energy, wind energy, and tidal energy stand out owing to their renewability, but there are many limitations in actual commercial applications [2]. Therefore, it is particularly important to use cheap, efficient and safe equipment to store the generated energy. Among the numerous energy storage systems, lithium-ion batteries (LIBs) are well developed with the advantages of light density, small size and high energy density. Also, LIBs have been widely applied in many commercial fields, from small digital products to automobiles [3]. However, there have obvious shortcomings of LIBs, such as the scarce resources and uneven distribution of lithium salts in the earth's crust. With the large-scale commercial application of LIBs, the price of lithium resources rises quickly, which significantly limits the applicability of LIBs in stationary energy storage [4-6]. Therefore, sodium-ion, potassium-ion batteries [7] and aqueous zinc-ion batteries [8] have gradually developed.

Sodium-ion batteries (SIBs) have become a promising candidate to LIBs owing to the similar electrochemical reaction mechanism [9]. In terms of material cost, the high abundance of sodium-based resources makes it indisputable have an advantage over lithium-based materials. However, Na⁺/Na couple has higher redox potential than that of Li⁺/Li. Due to the large mass and atomic radius of sodium, the energy density of SIBs is low and their cycling performance is poor [10-12]. Therefore, it is significant to find more suitable electrode materials [13], especially anode materials [14]. An ideal anode material should have the advantages of economy, high-capacity storage property, good rate capability and low reaction potential [15]. The electrode materials based on conversion reaction mechanism, especially the metal sulfides and phosphides [16] are the promising anode materials of SIBs. However, their drastic volume expansion and chemical instability seriously impede the rate and cycling performance, limiting their practical application. Because of the high theoretical specific capacity and relatively low redox potential, alloy anodes have attracted much attention for SIBs. At present, the research hotspots of alloy anodes mainly include the following two elements, Sn and Sb [17, 18]. But there is a serious problem in both of them. As the charge and discharge processes proceed, the electrode materials undergo huge volume change, which lead to the cracking of the electrode materials and the deterioration of battery cycling stability. Therefore, exploring novel anode materials with excellent electrochemical performance is urgently needed for practical applications.

Thiophosphate has come into the field of researchers due to its high conductivity and low Vander Waals force. It is widely used in supercapacitors, photocatalysts, and electrocatalysts [19, 20]. However, when used as electrode material, due to the presence of phosphorus and sulfur, it is accompanied by drastic volume change during cycling process. Therefore, alleviating volume change based on its excellent electrochemical performance is the top priority of current research. Among them, the modification of the material itself and the coating of carbon materials are considered effective methods. In this work, we use SbPS₄ as an anode for SIBs [21]. Due to the combination of alloying and conversion mechanisms, the theoretical specific capacity of SbPS₄ is 1335 mAh/g. In order to alleviate its volume effect, the tube cluster SbPS₄ is fragmented to form the short tube and composited with graphene oxide (GO). When used as an anode of SIBs, a splendid reversible capacity of 772.2 mAh/g was obtained at 0.1 A/g. While further improving the current density to 5 A/g, a charge capacity of 360 mAh/g has remained. When it returns original current density, the SbPS₄/GO can obtain a capacity of 637.33 mAh/g, proving the structural stability of the SbPS₄/GO at a high rate. The resultant SbPS₄/GO is considered to improve the electron/Na⁺ transport and relieve the volume change during charging/discharging process. The SbPS₄/GO material displays high competitiveness in comparison with binary metal sulfides and phosphides for SIBs.

Scheme 1 shows the detailed preparation process of SbPS₄/GO. Firstly, the tube cluster SbPS₄ is synthesized by the high-temperature calcination method. After that, SbPS₄ is transformed into a short tube by fragmentation. Lastly, SbPS₄/GO is obtained by composite with GO and freeze-drying. During the preparation process, the short tubular SbPS₄ is embedded in the spongy GO. Through the addition of GO, the conductivity of the material can be improved, the transmission distance of sodium ions and electrons can also be shortened, and the volume expansion during charging and discharging can be alleviated, resulting in the improvement of the electrochemical performance. The chemical composition and structure of the product are discussed in detail in Fig. 1a, and the diffraction peaks of SbPS₄ prepared by high-temperature calcination are well matched. The diffraction peak intensity of SbPS₄ decreased after adding GO, which was due to the reduction of the size of SbPS₄ and the compound of carbon. Raman results on SbPS₄/GO and GO show that the intensity ratio of D-band and G-band (I_D/I_G) of the two samples are 1.01 and 0.98, respectively (Fig. 1b). The higher I_D/I_G ratio indicates the amorphous state of the carbonaceous materials owing to the porous feature [22].

Tube cluster SbPS₄ can be clearly observed in the upright metallurgical microscope image (Fig. 2a). After fragmenting, its original tubules remain almost intact, and the size of each unit is significantly reduced (Fig. 2b). As displayed in the SEM image (Fig. 2c), GO glues together the nanosized short tubes of SbPS₄ to form a continuous conductive network that can significantly promote electron transfer. In addition, due to the presence of spongy graphene, there are obvious pore channels to guarantee the electrolyte complete penetration and the rapid ions migration. SbPS₄/GO has a large number of pore channels, which can also be determined through the pore size distribution diagram (Fig. S1 in Supporting information). The element mappings of SbPS₄/GO in Figs. 2d–h confirm the uniform distribution of Sb, P, S and C, which is consistent with the SEM image shown in Fig. S2 (Supporting information). The lattice spacing of 0.564 nm in the HRTEM image coincides with the (004) plane of the crystal SbPS₄ (Fig. 2i), indicating the good purity of SbPS₄.

Fig. 3a shows the discharge/charge profiles of SbPS₄, SbPS₄-X45 and SbPS₄/GO composite in the initial five cycles. SbPS₄-X45 was selected as the comparison material because it has the best electrochemical performance as shown in Fig. S3 (Supporting information). SbPS₄ composited with 10% GO has the highest ionic conductivity and the lowest resistance value (Fig. S4 in Supporting information). The specific capacities of SbPS₄, SbPS₄-X45, and SbPS₄/GO at 0.1 A/g are 356.6, 717.2 and 772.71 mAh/g, respectively. The improved electrochemical performance of SbPS₄/GO is ascribed to the nanominiaturization of tubular materials and the appropriate amount of composite with carbon materials (GO).

The electrochemical properties of SbPS₄/GO are studied by the CV tests at a sweep rate of 0.2 mV/s (Fig. 3b). At the first cathodic process, a peak located at 1.4 V can be indexed as the intercalation of Na⁺ into the SbPS₄/GO, while the distinct peak near 1.2 V is attributed to the conversion reaction of Na₂S. The peak at 0.8 V corresponds to the breaking of P-S bond and the production of Na₃P and Sb, while the peak at 0.23 V ascribes to the production of Na₃Sb [23]. During the initial anodic scan, the weak broad peak located at 0.25 V indicates Na₃P desodiation, and the peak at 0.77 V attributed to Na₃Sb dealloying. The next 1.5 V and 1.6 V peaks ascribe to Na₂S and Na⁺ further desodiation reaction [24]. Remarkably, the CV profiles remain almost overlapped, suggesting the excellent electrochemical reversibility. Therefore, the corresponding redox reactions mechanism of SbPS₄ can be listed as follows:

Fig. 3c shows the cycling performance of different samples at 1 A/g. The reversible capacity of SbPS₄/GO is 420.52 mAh/g after 100 cycles with the initial coulombic efficiency of 57%, which is superior to SbPS₄–X45 and SbPS₄. The Nyquist plots of the three samples consist of a depressed semicircle at the high frequency corresponding to the charge transfer process and an oblique line at the low frequency corresponding to the charge transfer process and an oblique line at the low frequency representing Na⁺ diffusion process, confirming a faster electronic and ionic transport of SbPS₄/GO than that of SbPS₄-X45 and bare SbPS₄ (Fig. 3d). The EIS plots of materials with different mixed graphene content are shown in Fig. S5a (Supporting information). It can be seen that SbPS₄ composited with 10% GO has the smallest resistance value. As expected, it exhibits the best electrochemical performance, which is consistent with the data shown in Fig. S4. The EIS analysis in Fig. S5b (Supporting information) shows that the charge transfer resistance (R_ct) of the 100th cycle is lower than that of before cycling state, which may be due to the formation of the stable SEI layer between the electrode material and the electrolyte after repeated cycles, which is conducive to the transport of Na⁺. As shown in Fig. 3e, the SbPS₄/GO has the capacity of 359.58 mAh/g at 5 A/g. Importantly, the capacity of SbPS₄/GO can return to 637.33 mAh/g when the current density returns to 0.1 A/g, indicating the structural stability of SbPS₄/GO at a high rate.

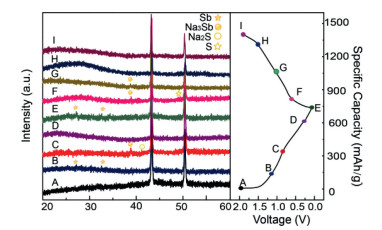

To further explore the possible reaction mechanism during the Na-insertion/extraction process, ex situ XRD and XPS analysis of SbPS₄/GO were performed at specific distinct potentials of the first charge/discharge curve. As shown in Fig. 4, when the cell was discharged to 1.3 V, the Na₂S was found [25]. The presence of Na₂S reveals that sodium ions react with sulfur after insertion into SbPS₄. When the discharge voltage reaches 0.9 V, the characteristic peak of Sb has appeared. Further discharging to 0.3 V, Na₃Sb was detected. After it was discharged to 0.05 V, the diffraction peak of Na₃Sb becomes stronger and Na₂S still exists. In the charging process, the diffraction peak of Sb appears again when the cell was charged to 1.0 V. With the extraction of sodium ions, the diffraction peaks of Na₃Sb and S indicated that the desodiation reaction of Na₂S and the dealloying process are not completed [26]. After charging to 2 V, the signal of Na₃Sb almost disappears. Compared with the original state, the diffraction peaks of fully charged state hardly change, further confirming the excellent reversibility of the SbPS₄/GO.

XPS studies of the electrodes were carried out at various discharge/charge states in the first cycle. Fig. 5 shows the high-resolution S 2p and P 2p spectra of SbPS₄/GO electrode with the SnP₂S₆ and Cu₃PS₄ as the references. In Fig. 5a, the peaks corresponding to the S 2p_3/2 and S 2p_1/2 signals at 161.6 and 162.8 eV can be assigned to Na₂S [27]. The binding energy of 168.8 eV corresponds to S. It indicates that Na₂S and S exist in the whole charge and discharge processes. Both the peak intensities of Na₂S and S increase during the discharge process [28]. There is still a tiny amount of Na₂S and S at the end of the charging stage, indicating that the transformation reaction of S is not completely reversible. In Fig. 5b, the two splitting peaks located at 132.6 and 133.7 eV were ascribed as the P-S bonding and 2p_1/2 of the P 2p spectrum, respectively [29]. It can be seen that P elemental substance increases with the discharge process. Upon charging, the amount of P is gradually decreased with forming P-S bonding. As shown in Fig. S6a (Supporting information), the Sb 3d spectrum overlaps with O 1s spectrum and shows two peaks at 531 and 539.8 eV, which are attributed to the presence of Sb 3d_3/2 [30]. In addition, 535 and 532.5 eV correspond to the presence of O-C and O = C functional group, respectively [31]. It can be seen from Fig. S6 (Supporting information) that a large amount of Sb is generated as discharged to 0.5 V. With further discharging to 0.05 V, the amount of Sb decreases due to the occurrence of alloying reaction. When charged to 1.0 V, the dealloying of Na₃Sb leads to an increase of Sb content. In the end, the charging is completed to 2.0 V, Sb still exists but the amount becomes less. In the C 1s spectrum of Fig. S6b, the peaks at 287.7 eV, 285.5 eV and 284.3 eV can be ascribed to O-C=O, C-O and C-C bonds, respectively.

To reveal the origin of high rate performance of SbPS₄/GO, the sodium storage mechanism was studied by analyzing CV profiles at various scan rates from 0.1 mV/s to 1.0 mV/s (Fig. 6a). The charge storage mechanism of SbPS₄/GO can be quantified by dividing the current (i) at a fixed potential (v) into two mechanisms: k₁v and k₂v^0.5. Here, a and b are adjustable parameters, v is scan rate, and k₁ and k₂ are constants.

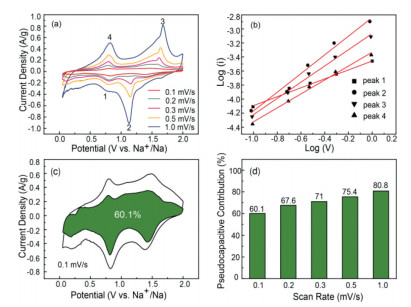

If the b value approaches to 1, the electrochemical process is a surface-controlled process, such as adsorption/resolution [32]. When the b value is 0.5, the process mainly relies on the diffusion-controlled process [33]. Fig. 6b shows the fitting results of log(i) to log(v). The values of b are 0.64, 1.37, 1.16 and 0.98, respectively. With the increase of scanning rate, the reaction of sodium ions is similar to the adsorption-desorption process, resulting in peak 2 being a surface-controlled process, and the same mechanism exists at peak 3 [34]. Fig. 6c shows the normalized contribution percentage of capacitive and diffusion-controlled capacities. When the scanning rate is 0.1 mV/s, the capacitive contribution ratio reaches 60.1%. The contribution rate of pseudo-capacitance is predominant with the increase of current density as shown in Fig. 6d. The results indicate that pseudo-capacitance plays a decisive role in Na-ion storage at high scan rates, thus resulting in excellent rate capability [35].

Motivated by such a superior specific capacity and an excellent rate capability of the SbPS₄/GO anode. Na-ion full cell was constructed by coupling with Na₃V₂O₂(PO₄)₂F (NVOPF) cathode for practical applications [36]. The NVOPF cathode exhibits a high discharge capacity of ~120 mAh/g at 0.1 C in a half-cell configuration. The typical charge/discharge curve of the Na-ion full cell shows an outstanding specific capacity of 119 mAh/g at 0.8 C between 1.2 V and 4.3 V (based on the weight of cathode) (Fig. 7a). The full cell possesses two discharge plateaus located at 3.8–3.0 V and 2.5–1.8 V, respectively. Moreover, the specific capacity of 63 mAh/g could be obtained at 4 C (Fig. 7b), indicating the superior rate capability of the Na-ion full cell. Furthermore, the full cell shows 62% capacity retention in comparison of the first cycle, exhibiting good cycling performance (Fig. S7 in Supporting information). Such a superior full cell performance indicates the potential application of SbPS₄/GO anode for SIBs.

In summary, the SbPS₄/GO composite has been intensively studied as anode material for SIBs in this work. The unique structure boosts rapid reaction kinetics, inhibits electrode structural failure and agglomeration for volume change, suppresses the polysulfides shuttle behavior, resulting in excellent rate capability and good cycling performance. As an anode material for the half-cell, the SbPS₄/GO exhibits a specific capacity of 772 mAh/g at 0.1 A/g. Moreover, a high capacity of 420.5 mAh/g could be also maintained after 100 cycles (1 A/g). Significantly, it has a high Na ion storage capacity of 119 mAh/g at 0.8 C in the full-cell configuration. The favorable advantages including low-cost composition, facile synthesis process, and excellent electrochemical performance enable the SbPS₄/GO to be a potential anode material for high performance SIBs.
