Antibiotics pollution has attracted extensive attention because of its great threat to ecosystem security and human health [1]. Traditional activated sludge process exhibited rather low removal efficiency and long processing cycle, which limited its application [2]. Recently, advanced oxidation processes (AOPs) including persulfate (PS) activation, photocatalysis and Fenton, have been proved to be promising methods for the removal of antibiotics [3-5]. Compared with PS activation and Fenton, heterogeneous photocatalysis technology has been a research hotspot due to the low energy consumption, mild reaction condition and free secondary pollution [6-10]. However, the fairly low photocatalytic efficiency and visible light utilization rate limited its further applications. Besides, nanoscale photocatalysts were facile to reunite and difficult to recycle, which was another problem for its development. Therefore, constructing photocatalysts with high photocatalytic efficiency and easy recycling ability is of great challenge.

Fe₂O₃ is an n-type semiconductor with the band gap of ~2.0 eV, which has been widely used in photocatalysis and photo-Fenton processes due to its natural abundance, non-toxicity and excellent visible light adsorption [11, 12]. Nevertheless, low surface area and high recombination rate of photo-generated carrier are the bottlenecks of Fe₂O₃ [13]. Coupling Fe₂O₃ with other semiconductor photocatalysts to construct heterojunctions, such as TiO₂, MIL-53(Fe) and Bi₂WO₆, is an efficient way to promote the separation of electron-hole pairs [14-16]. Compared with traditional type-Ⅱ heterostructure, the Z-scheme heterostructure has been a hotpot because of the high separation efficiency of photo-generated carrier and the unchanged photocatalytic abilities [17, 18]. Therefore, several Z-scheme photocatalysts based on Fe₂O₃ have been developed to obtain superior photocatalytic activities, such as Fe₂O₃/g-C₃N₄, Fe₂O₃/MIL-101(Cr) and Fe₂O₃/MoS₂ [11, 19, 20]. Co₃O₄ is a widely studied p-type semiconductor in CO₂ reduction and water oxidation, as the suitable energy band structure [21, 22]. Considering the different energy band structures between Fe₂O₃ and Co₃O₄, it is rational to design a Z-scheme heterojunction of Fe₂O₃/Co₃O₄.

To improve the stability and recycling performance of photocatalysts, common method is loading the photocatalysts onto suitable support, including hydrogel, aerogel, carbon materials, SiO₂, Al₂O₃ [23-27]. Generally, the photocatalytic efficiency sharply decreased due to the weak electrical conductivity and obstructive light adsorption of substrate. Recently, the growth of photocatalysts on the electrically conductive substrates with open framework structures, such as Ni foam, has been proved as an effective approach for preparing efficient self-supported photocatalysts [28-30].

Herein, in this study, Fe₂O₃ and Co₃O₄ nanosheet arrays were incorporated into a Z-scheme heterojunction and loaded on the Ni foam through facile method. The prepared Fe₂O₃/Co₃O₄@NF was further employed for the degradation of sulfamethoxazole (SMZ) under simulated solar light irradiation. Fe₂O₃/Co₃O₄@NF with different preparation parameters were also fabricated for comparison. Detailed synthesis procedure, characterization and photocatalytic performance evaluation were given in the Supporting information (SI).

X-ray Electron Diffraction (XRD) is a powerful approach to determine the crystal structure of the materials. The XRD patterns of Fe₂O₃ and Fe₂O₃/Co₃O₄ were shown in Fig. 1a. Two phases of Fe₂O₃ and Co₃O₄ could be observed from the XRD spectrum. The peaks at 2θ = 24.1°, 33.2°, 35.6°, 40.8°, 49.5° and 54.1° were indexed to the (012), (104), (110), (113), (024) and (116) planes of hexagonal Fe₂O₃ (JCPDS No. 333-0664), respectively [31]. The diffraction peaks of cubic Co₃O₄ (JCPDS No. 42-1467) at 2θ = 19.0°, 31.3°, 36.9°, 44.8°, 59.4° and 65.2° were attributed to the (111), (220), (311), (400), (511) and (440) planes [32].

Figure 1

	Download: JPG larger image
Fig. 1. XRD patterns of as-prepared samples (a), SEM images with different scales: 2 μm (b) and 1 μm (c) and the corresponding element mappings for Co, Fe, Ni and O of Fe2O3/Co3O4@NF (d).

The surface morphology of Fe₂O₃/Co₃O₄@NF was demonstrated in Figs. 1b and c via scanning electron microscope (SEM). Fe₂O₃/Co₃O₄@NF exhibited a hierarchical structure with Fe₂O₃/Co₃O₄ nanosheet arrays interconnected with each other, forming a highly open three-dimensional network. As shown in Fig. 1d, energy dispersive X-ray spectroscopy (EDS) mapping revealed uniform spatial distribution of Fe, Co, Ni and O elements in Fe₂O₃/Co₃O₄@NF.

The surface chemical compositions of Fe₂O₃/Co₃O₄@NF were obtained by X-ray photoelectron spectroscopy (XPS). The survey spectrum confirmed the existence of O, Fe, Ni and Co elements in the Fe₂O₃/Co₃O₄@NF (Fig. S1 in Supporting information), which was in well agreement with the elemental mapping results. As depicted in Fig. 2a, the peaks at the binding energy of 710.0 eV and 725.5 eV were ascribed to Fe 2p_3/2 and Fe 2p_1/2 of Fe 2p, respectively. As revealed in Fig. 2b, the high-resolution Co 2p spectrum was obtained by fitting into six components, including four peaks (776.2 eV, 780.8 eV, 796.5 eV, 802.1 eV) of Co 2p and two shakeup satellites (785.8 eV and 806.7 eV), which matched well with those characteristic peaks of Co₃O₄ [33]. As presented in Fig. 2c, the peaks of O 1s located at 530.6 eV, 531.4 eV and 532.3 eV were corresponded to lattice oxygen, hydroxyl oxygen and adsorbed oxygen in Fe₂O₃/Co₃O₄@NF, respectively. All of these indicated the successful fabrication of Fe₂O₃/Co₃O₄@NF.

Figure 2

	Download: JPG larger image
Fig. 2. XPS spectra of the Fe2O3/Co3O4@NF: high-resolution scan of (a) Fe 2p, (b) Co 2p and (c) O 1s.

The transient photocurrent and EIS (Electrochemical Impedance Spectroscopy) were employed to analyze the photogenerated carrier separation efficiency of fabricated samples. It can be seen that photocurrent density was obviously enhanced for Fe₂O₃/Co₃O₄ (Fig. 3a). Besides, the arc radius of Fe₂O₃/Co₃O₄ was smaller than that of Fe₂O₃ and Co₃O₄, indicating its small charge transfer resistance and the fast electron mobility (Fig. 3b). The fabrication parameters of materials seriously affect their photocatalytic degradation performance. Therefore, the photocatalytic activities of Fe₂O₃/Co₃O₄@NF with different fabrication parameters were investigated through degradation of SMZ in aqueous solution under simulated solar light irradiation. As presented in Fig. 3c, the Fe₂O₃/Co₃O₄@NF-2 obtained the optimal degradation performance, and the corresponding k value is 0.0538 min⁻¹, which is much higher than those for other samples. Additionally, the total organic carbon (TOC) removal efficiency for SMZ on Fe₂O₃/Co₃O₄@NF-2 was 31.5%. The effects of solution pH, inorganic anions and cations on SMZ removal were carried out and the results were presented in Fig. S2 (Supporting information). Reusability and stability of photocatalysts have remarkable influence on their practical applications. Therefore, five consecutive cycles for SMZ degradation experiment on the fabricated photocatalyst were performed. As shown in Fig. 3d, there was no obvious decay on SMZ degradation after five cycles, which indicated the excellent reusability and stability of Fe₂O₃/Co₃O₄@NF. River water and tap water was sampled and employed for the preparation of the spiked samples. As depicted in Fig. S3 (Supporting information), the degradation efficiency for SMZ by Fe₂O₃/Co₃O₄@NF in spiked water was 68.3% and 83.5%, respectively, indicating its excellent potential for practical applications.

Figure 3

	Download: JPG larger image

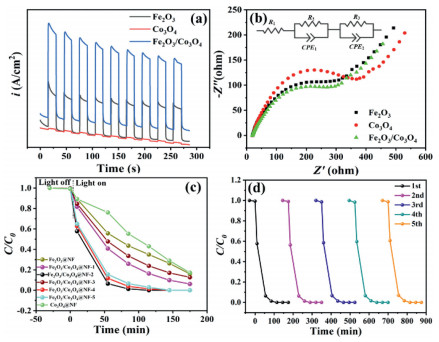

Fig. 3. (a) Transient photocurrent spectra and (b) EIS spectra of the as-prepared samples. (c) Photocatalytic performance for SMZ degradation on different photocatalysts and (d) recycling experiment of Fe2O3/Co3O4@NF towards SMZ degradation under simulated solar light irradiation.

To further explore the degradation mechanism of SMZ, active species trapping experiment was carried out to verify the primary free radicals in the photocatalytic process. According to the previous published literatures, AO (ammonium oxalate), NBT (nitroblue tetrazolium), FFA (furfuryl alcohol) and IPA (isopropanol) were employed as the scavengers of hole, ^·O₂⁻, ¹O₂ and ^·OH, respectively. As depicted in Fig. 4a, the degradation efficiency of SMZ decreased distinctly from 100% to 29.35% with the addition of NBT, indicating the important role of ^·O₂⁻ in the photo-degradation of SMZ. Meanwhile, the addition of IPA and FFA also has negative effect on the removal efficiency of SMZ. The above results of trapping experiment were consistent with the EPR characterization (Fig. S4 in Supporting information).

Figure 4

	Download: JPG larger image
Fig. 4. (a) Active species trapping experiment for SMZ degradation on the prepared Fe2O3/Co3O4@NF. Band gap of Fe2O3 (b) and Co3O4 (c). (d) Degradation mechanism of Fe2O3/Co3O4@NF towards SMZ under simulated solar light irradiation.

The degradation products of SMZ were analyzed by electrospray mass spectrometry (ESI-MS), and the possible degradation pathway of SMZ was presented in Fig. S5 (Supporting information). The cleavage of either N-S bond or N-C bond on SMZ is to yield 5-Methylisoxazol-3-amine (M_w = 98), benzene sulfonamide (M_w = 157) and 4-aminobenzenesulfonamide (M_w = 172). Besides, the product with a molecular weight of 213 is due to the destruction of isoxazole ring on SMZ. After that, the above intermediate products were transferred into acids with small molecular weight such as maleic acid (M_w = 116) and pyruvic acid (M_w = 88). Finally, these small acids are mineralized.

As depicted in Figs. 4b and c, the band gap for Fe₂O₃ and Co₃O₄ was 2.24 eV and 1.70 eV, respectively [34, 35]. Meanwhile, the potential of conduction band for Fe₂O₃ and valence band for Co₃O₄ was ‒0.21 eV and 1.0 eV, respectively (Fig. S6 in Supporting information). Herein, the potential of valence band for Fe₂O₃ and conduction band for Co₃O₄ was calculated to be 2.03 eV and ‒0.70 eV, respectively. According to the band gap structures of Fe₂O₃ and Co₃O₄, the enhanced photocatalytic mechanism was proposed in Fig. 4d. Because of the strong built-in electric field resulted from the different energy band structures, fast photo-generated carriers separation occurred in the interface of Fe₂O₃/Co₃O₄ heterojunction. Ni foam not only acted as support to enhance the stability of Fe₂O₃/Co₃O₄ heterojunction, but also worked as an electron mediator to boost photo-generated charrier separation as the good electrical conductivity.

In summary, a Z-scheme Fe₂O₃/Co₃O₄ heterojunction was fabricated on Ni foam by a facile method. The highest rate constant k (0.0538 min⁻¹) was of Fe₂O₃/Co₃O₄@NF-2, which was much higher than that of Fe₂O₃@NF (0.0098 min⁻¹) and Co₃O₄@NF (0.0094 min⁻¹). The unique Z-scheme heterojunction structure not only enhanced the absorption of visible light, but also boosted the transfer of photo-excited electrons and holes due to the well staggered energy band structures between Fe₂O₃ and Co₃O₄. Ni foam served as efficient electron mediator and supporter to enhance the activities and stability of Fe₂O₃/Co₃O₄ heterojunction. This work may provide a reference of utilizing Ni foam as a novel support and constructing Z-scheme heterojunction to obtain semiconductor photocatalysts with remarkable efficiency and strong stability.
