Electrical double-layer (EDL) capacitors store energy through the formation of EDL at a porous electrode surface, which is a promising energy storage device when high power density, long cycling life, and cycling efficiency is required [1, 2]. However, the typical cell-level energy density of a commercial supercapacitor is at the range of 10–20 Wh/kg, which is less than 10% of commercial Li-ion batteries [3-5]. Therefore, research has focused on increasing the energy density of supercapacitor without sacrificing the power and cycling life. Two major strategies are proposed and studied, which are developing electrolytes of wide electrochemical potential windows since the energy density is proportional to the square of cell voltage [6, 7], and optimizing electrode materials since at a given maximum voltage the energy density is proportional to the electrode capacitance [8, 9].

An electrode of excellent electrical conductance, large surface area, and suitable structure are critical to yield a large gravimetric capacitance [10-14]. For example, Zhu et al. [15] prepared the activated microwave exfoliated graphite oxide (a-MEGO) with an abundant nanopores and a large specific surface area (SSA) of up to 3100 m²/g using chemical activation method. They found that the gravimetric capacitance of the a-MEGO was as high as 166 F/g and the energy density was up to 70 Wh/kg in the 1-butyl-3-methyl-imidazolium tetrafluoroborate (BMIM BF₄)/AN electrolyte. Chmiola et al. [16]. studied the effect of pore size on the gravimetric capacitance using carbide-derived carbons (CDCs) with controlled pore sizes in the range of 0.6–2.25 nm, and found that CDCs with a pore diameter of less than 1nm showed abnormally large capacitance and was inversely proportional to the micropore diameter. These two works demonstrate that a carbon material of high SSA with suitable porous structure is critical to yield an advanced capacitance for energy storage. Besides the structure of the carbon materials, our previous studies highlight the critical role of the electronic structure of carbon materials on the EDL capacitance, in which we demonstrated that the low density of states (DOS) near the Fermi level renders a quantum capacitance lower than the EDL capacitance, thus limiting the gravimetric capacitance of the electrode [8]. Heteroatoms doping and topologic defects can shift the Fermi level and increase the DOS, respectively, both of which improve the gravimetric capacitance [17]. Therefore, tuning the electronic structure of carbon electrode materials through heteroatom doping is a promising strategy to improve the gravimetric capacitance of a carbon electrode.

In this work, we propose a simple yet environmental friendly method to synthesize cobalt and nitrogen atoms co-doped porous carbon (CoAT-NC) material. Our previous research indicates that the Co-N moieties embedded in graphene lattice considerably increase the DOS of graphene at the Fermi-level [18], therefore an improved gravimetric capacitance and capacitance retention at high current densities are expected when the CoAT-NC is served as the electrode material. The CoAT-NC contains Co-N moieties with Co atom concentration of 0.14 at% that can deliver a gravimetric capacitance of 160 F/g at current density of 0.5 A/g. Notably, a gravimetric capacitance of 144 F/g, corresponding to a capacitance retention of 90%, can be preserved at a high current density of 100 A/g when measured in 1 mol/L H₂SO₄ aqueous electrolyte. A high capacitance retention is also observed using 6 mol/L KOH aqueous electrolyte, and a good energy density of 30 Wh/kg is achieved using organic based electrolyte.

D(+)-Glucose monohydrate (C₆H₁₂O₆·H₂O), sodium chloride (NaCl), and cobalt(Ⅱ) chloride hexahydrate (CoCl₂·6H₂O) were purchased from Sinopharm Chemical Reagent Co., Ltd. The synthesis process is illustrated in Fig. 1a. First, 1 g C₆H₁₂O₆ H₂O and 8.6 g NaCl were dissolved in 22 mL deionized (DI) water with the assistance of magnetic stirring, which was followed by adding 2 mL CoCl₂ aqueous solution (3 mg/mL). Then, the aqueous solution was frozen in liquid nitrogen, and the yielded solid was transferred to a freeze dryer. After 3 days of drying, a fluffy mixture containing CoCl₂-NaCl glucose was obtained. Afterwards, the CoCl₂-NaCl glucose was heated at 750 ℃ for 2 h under a gas flow of 150 sccm Ar and 50 sccm NH₃. The carbonized product was washed with DI water and dried in an oven at 60 ℃ for 12 h to obtain CoAT-NC. In addition, two control samples, nitrogen doped porous carbon (NC) and cobalt nanoparticle decorated nitrogen doped porous carbon (CoNP-NC), were prepared by applying 0 and 8 mL of CoCl₂, respectively, when preparing the aqueous solution.

The scanning electron microscopy (SEM) image in Fig. 1b demonstrates that CoAT-NC presents a honeycomb crosslinked porous structure. These honeycombs are formed by ultrathin carbon walls and have a pore size of 1–2 μm (Fig. 1c). The large pores can facilitate the electrolyte transport during the charge-discharge process [19-21]. These honeycombs are not observed from the SEM images of NC and CoNP-NC (Fig. S1 in Supporting information). Whereas, the X-ray diffraction patterns (XRD) and Raman spectra (Fig. S2 in Supporting information) of the NC, CoAT-NC, and CoNP-NC are similar and show typical features of amorphous carbon with very low graphitic level [22], which is in accordance with the low thermal treatment temperature applied in this work. The dispersion state of cobalt is further evaluated by transmission electron microscopy (TEM). The lattice fringes that can be assigned to the metallic cobalt or cobalt oxides nanoparticles are not observed in the bright field TEM image (Fig. 1d); the selected area electron diffraction (SAED) pattern captured in a circle area of 1 μm in diameter presents only halo rings (inset of Fig. 1d); and the image obtained from a spherical aberration corrected TEM present bright spots, which are Co atoms, uniformly disperse in the carbon film (Fig. 1e). In comparison, nanocrystals of CoO_x are observed in the TEM image obtained from the CoNP-NC (Fig. S3 in Supporting information). In addition, the morphology observed in the annular dark-field image matches well with the element maps of carbon, nitrogen, and cobalt (Figs. 1f-i), indicating a uniform element distribution in the carbon sheets. Based on these TEM analysis, the formation of cobalt atom doped carbon material can be concluded.

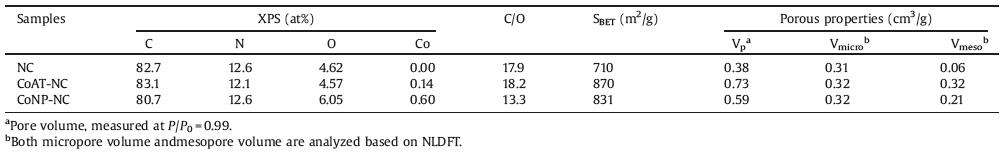

Spectroscopic studies were performed to analysis the chemical composition and the possible bonding configuration of the Co and N atoms in the graphene lattices. The X-ray photoelectron spectroscopy (XPS) survey spectra in Fig. 2a show that the NC, CoAT-NC, and CoNP-NC are composed of C, N and O elements, and Co is detected in the CoAT-NC and CoNP-NC. The content of the above elements measured by XPS is summarized in Table 1. A high N atom ratio of 12.6 at% is observed, which can improve the EDL capacitance by mediating the electronic conductivity and upper shifting the Fermi level of the carbon materials according to our previous research [17]. The atom concentrations of Co in the CoAT-NC and CoNP-NC are 0.14 and 0.60 at%, respectively, which are in agreement with that (0.15 at% for CoAT-NC and 0.60 at% for CoNP-NC) measured by inductively coupled plasma atomic emission spectrometer (ICP-AES) (Fig. 2b). Oxygen is observed in all of the three samples, and the C/O atom ratios are 18.2, 13.3 and 17.9 for the CoAT-NC, CoNP-NC and NC, respectively, indicating the effective reduction of the carbon-based materials through thermal annealing.

Fig. 2c shows the Co 2p XPS spectrum of CoAT-NC. Due to spin-orbit coupling, the Co 2p spectrum splits into two parts, 2p_1/2 and 2p_3/2. Characteristics of Co 2p can be assigned to Co²⁺ (2p_1/2, 797.6 eV and 2p_3/2, 782.0 eV) and Co³⁺ (2p_1/2, 795.9 eV and 2p_3/2, 780.6 eV), which are accompanied by two oscillating satellite peaks [23, 24]. The energy difference between the peak positions of 2p_1/2 (795.6 eV) and 2p_3/2 (780.6 eV) is 15.0 eV, indicating that Co(III) mainly exists in the CoAT-NC [25, 26]. The N 1s XPS spectrum of CoAT-NC is shown together with that of NC in Fig. 2d. Both the CoAT-NC and NC consist of pyridinic, pyrrolic, graphitic, and oxidized nitrogen. Note that the binding energy of pyridinic nitrogen in the CoAT-NC upper shifts by 0.3 eV comparing to that in the NC, which can be ascribed to the strong charge transfer from the pyridinic nitrogen to cobalt atom, indicating that cobalt atoms in the CoAT-NC mainly connect with pyridinic nitrogen [18]. Meanwhile, recent studies have also shown that nitrogen atoms are the coordination sites for transition metals in the nitrogen-doped carbon materials, which are widely used as electrocatalytic reactions [27-29].

The SSA and pore structure of the three samples were analyzed using nitrogen adsorption-desorption isotherms (Figs. S4a–c in Supporting information), from which the SSA calculated using Brunauer–Emmett–Teller (BET) theory are 710, 870 and 831 m²/g for the NC, CoAT-NC and CoNP-NC, respectively. Nonlocal density functional theory (NLDFT) was applied to calculate the pore size distribution, and the results are shown in Fig. S4d (Supporting information). Large pores with pore width of 20–60 nm are observed in both of the CoAT-NC and CoNP-NC, while they are absent in the NC, indicating that the presence of cobalt during the thermal annealing process also creates large pores. These large pores can accommodate electrolyte and facilitate the ion transport during the charge-discharge process [30]. Whereas, the total surface area of both the CoAT-NC and CoNP-NC are majorly contributed by the micro- and mesopores (Table 1).

To assess the electrochemical properties of the materials, NC, CoAT-NC, and CoNP-NC were first coated on glassy carbon electrodes and measured in 1 mol/L H₂SO₄ in a three-electrode system (Fig. S5 in Supporting information). It is obvious that the cyclic voltammetry (CV) curves of the three samples acquired at different scan rates are all rectangular in shape, typical of the EDL capacitive behavior [31].

The electrochemical performance of the materials were further evaluated using two-electrode cells (see Supporting information). From the galvanostatic charge-discharge (GCD) curves of all the samples measured at 10 A/g (Fig. 3a) in 1 mol/L H₂SO₄, one can see that the CoAT-NC-based supercapacitor has a IR drop of only 2 mV, significantly smaller than those of the NC (7 mV) and CoNP-NC (11 mV). The negligible IR drop of the CoAT-NC, indicating excellent electrical conductivity of the CoAT-NC, which is critical for a supercapacitor to maintain a high capacitance at high charge-discharge current densities [32]. As expected, though the CoAT-NC, NC, and CoNP-NC output the similar specific capacitance of 160 F/g at 0.5 A/g in the acidic electrolyte, the CoAT-NC can retain a specific capacitance of 144 F/g at a very high current density of 100 A/g, considerably larger than those of the NC and CoNP-NC (Fig. 3b). This result is consistent with the low series and charge transfer resistances of the CoAT-NC measured by electrochemical impedance spectroscopy (EIS) (Fig. 3c) and the negligible voltage hysteresis revealed by the CV curves (Fig. 3d). Note that the GCD tests performed with the CoAT-NC at current densities of 0.2–100 A/g (Fig. 3e and Fig. S6a in Supporting information) show symmetric curves with negligible IR drop even at the high current density of 100 A/g, while that of CoNP-NC is distorted (Fig. S6b in Supporting information). The low IR drop in the GCD curves and the high capacitance retention of the CoAT-NC are also observed in 6 mol/L KOH from 0 to 1 V (Fig. S7 in Supporting information), which should be due to the improved electrical conductivity of CoAT-NC. Our previous research indicates that the Co-N moieties doped in the carbon matrix can considerably increase the DOS of the carbon based material [18], which renders a higher electrical conductivity and quantum capacitance [8, 17]. It is reasonable to understand that the Co-N dopants and the associated change in the electronic structure of the carbon materials should be responsible for the improved electrochemical performance of the CoAT-NC observed in this work. Moreover, the better rate performance of CoAT-NC could be due to the unique honeycomb crosslinked porous structure, and the lack of faradaic reaction which is indicated by the rectangular shape of the CV profiles measured at high scan rates. Particularly, the CoAT-NC can maintain 96.3% of its original capacitance after cycling for 6500 times at 2 A/g in 1 mol/L H₂SO₄ aqueous electrolyte (Fig. 3f), indicating outstanding cycling stability.

Energy density is an important parameter for the supercapacitors. In order to evaluate the potential of the CoAT-NC as an electrode material for the supercapacitors, the capacitance behavior of CoAT-NC was also studied using BMIM BF₄/AN as the electrolyte in a two-electrode cell. Both the CV curves and the GCD curves (Fig. S8 in Supporting information) show typical EDL capacitive behavior in a voltage range of 0–3.5 V, which yield a specific capacitance of 70 F/g at 0.5 A/g (Fig. 4a). The calculated energy densities are 30 and 13 Wh/kg at the power densities of 0.4 and 23 kW/kg (Fig. 4b), respectively, based on the mass of the electrode material, which is promising for practical supercapacitors.

In summary, a porous carbon material doped with cobalt and nitrogen atoms is synthesized by carbonizing glycose at the presence of cobalt chloride under ammonia flow. Cobalt atoms connected with primarily pyridinic nitrogen atoms can uniformly dispersed in the amorphous carbon matrix, which is benefit for improving electrical conductivity and DOS of the carbon material. Electrochemical performance of the CoAT-NC measured in both the acidic and alkali aqueous electrolytes present good gravimetric capacitance of 160 F/g combing with outstanding capacitance retention of 90% at an extremely high current density of 100 A/g. A good energy density of 30 Wh/kg is achieved using organic based electrolyte. These results indicate that metal atom doping can be a promising way to optimize the electrochemical performance of the carbon based electrode materials for advanced supercapacitors.

Declaration of competing interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

The authors are thankful for financial support from the National Natural Science Foundation of China (Nos. 51761145046, 51672262, 21503064), 100 Talents Program of the Chinese Academy of Sciences, National Program for Support of Topnotch Young Professional, and Fundamental Research Funds for the Central Universities (No. WK2060140003) and iChEM.

Appendix A. Supplementary data

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.04.058.
