Due to the increasing concern on the global energy and environmental issues, titanium dioxide (TiO₂) has attracted great interest as the most promising photocatalyst used in solar energy conversion during the past decades [1-5]. However, pure TiO₂ can only absorbs the ultraviolet (UV) light, that is, only 5% of sunlight can be utilized, owing to its relatively wide bandgap (3.20 eV), which thwarted its practical applications [6, 7]. Thus, many efforts have been made to modify the electronic band structure of TiO₂ in order to enhance the visible light response by constructing hybrid materials through heteroatom doping, such as metal (e.g., Cr) and non-metal (e.g., N, B) doping as well as metal/non-metal co-doping [7-17]. The most commonly used method for deliberate insertion of the dopants into TiO₂ nanostructure is the versatile sol-gel method [18, 19]. Although doping has been demonstrated to be an effective way to modify the electronic properties of the bulk TiO₂ and significantly narrow the energy gap, the determination of the atom-precise doping structure and the realization of atomic-level structural modulation are still of great challenges [20].

Recently, titanium-oxo clusters (TOCs) have become one of the most appealing topics since it can not only give precise structural information at the atomic level but also act as the ideal molecular models for further theoretical calculations which thus help us fully understand the structure-property correlations and the fundamental mechanism of TiO₂ modification [21, 22]. What is more, the clusters stabilized by organic ligands can also serve as the nanosized building blocks for postfunctionalization and construction of organic-inorganic assemblies in practical applications [5, 23-26]. Interestingly, like the bulk TiO₂ nanomaterials, metal ion doping of TOCs can mediate the photochemical formation of holes and electrons. Therefore, large variety of metal ions have been incorporated into TOCs, such as alkali-metal ions [27], transition metal ions [20, 28-32], and lanthanum ions [33, 34], etc. Among those various metal ions, transition metal ions show excellent performance for activating TOCs since they can strongly absorb visible lights in a wider spectral range [28, 35-37].

Based on above considerations, we herein chose inexpensive, easily available copper as the metal doping ion to tune the structure of TOC as well as its bandgap and other properties (e.g., magnetism). Despite Cu^Ⅱ ion has already been anchored on TOCs, the Cu^Ⅱ ions are usually ligated by the outer ligands of TOCs and the doping concentration was also low [28, 35, 38-42]. Herein, we report the synthesis, structure and properties of such a novel Cu₄^ⅡTi₅^Ⅳ heterometallic cluster [Ti₅Cu₄O₆(ba)₁₆] (1, Hba = benzoic acid). Based on this cluster, we realized the inner core doping of Cu^Ⅱ ions into TOC with high doping concentration that allows close correlations by direct Cu-O-Ti bonding. Solid-state diffuse reflectance spectra studies indicate that copper ion doping can effectively reduce the bandgap of TOC. Moreover, 1 also shows almost purely paramagnetic behavior with the presence of weak antiferromagnetic interactions at low temperatures.

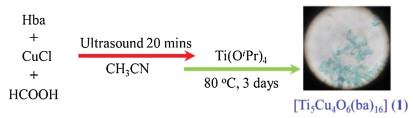

As shown in Scheme 1, the solvothermal reaction of Ti(OiPr)₄ with Hba and CuCl in the presence of 5 μL of HCOOH in CH₃CN at 80 ℃ for 3 days gave green crystals of Ti₅Cu₄O₆(ba)₁₆ (1), with the yield of about 65% based on Ti(OiPr)₄. Thermal gravity analysis (TGA, Fig. S2 in Supporting information) demonstrates that this cluster can be stable up to about 300 ℃. The slight weight loss before can be ascribed to the removal of the solvent molecules. The total mass loss of about 70% up to 800 ℃ results from the decomposition of the outer organic ligands.

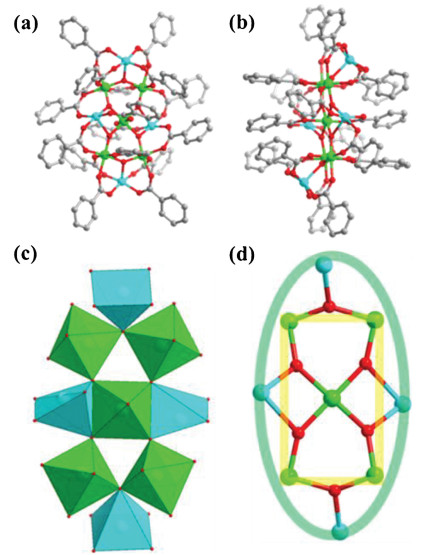

Single crystal X-ray diffraction study shows that 1 crystallizes in triclinic P-1 space group. The asymmetric unit of 1 contains two complete molecules with identical chemical composition for each. Due to the similar structure of two unique clusters, we took only one of them for discussion below. The precise formula of 1 was identified as [Ti₅Cu₄(μ₃-O)₆(ba)₁₆] containing five Ti^Ⅳ, four Cu^Ⅱ, and six μ₃-O^2- as the core, and sixteen ba^- as the ligand shell (Figs. 1a and b), thus the cluster is neutral. All Ti^Ⅳ atoms are coordinated by six oxygen atoms forming five octahedra with Ti-O bond of 1.77–2.08 Å; whilst all the Cu^Ⅱ are coordinated by five oxygen atoms forming four square pyramids with Cu-O bond lengths in the range of 1.92–2.32 Å (Fig. 1c). The CuO5 square pyramid and TiO6 octahedron connect together using vertex- or edge-sharing mode. The different coordination geometries also provided another evidence to distinguish two different 3d metal atoms. In the Ti₅Cu₄ core, each Cu^Ⅱ atom is bridged by μ₃-O^2- to connect the other two Ti^Ⅳ atoms (Fig. 1d). Five Ti^Ⅳ atoms arranged in a rectangle with one of them lying on the center, whereas four Cu^Ⅱ atoms encircled Ti₅ rectangle, although all Cu^Ⅱ atoms are not coplanar with it. Total 16 ba^- ligands are found in the same coordination mode of μ₂-η¹:η¹. Among them, two ba^- ligands bridge Ti^Ⅳ centers, whereas the remaining bridge both Cu^Ⅱ and Ti^Ⅳ centers. The Cu…Ti and Ti…Ti distances fall in the range of 2.96–3.60 and 3.40–3.54 Å, respectively. Compared to previously reported Cu^Ⅱ doped TOCs [38-40, 42], 1 shows very rare bimetal atom arrangement with higher Cu^Ⅱ ions doping concentration.

Solid-state UV–vis absorption spectrum of 1 was measured at room temperature. As shown in Fig. 2a, the absorption bands span from UV region (250–500 nm) to visible-infared region (500– 1100 nm). The absorptions maximum at 356 nm can be primarily attributed to the O 2p → Ti 3d charge transfer (CT) in the core of the cluster, whilst the broader absorption band starting from 500 nm can be ascribed to the d-d transition (²T_2g→ ²E_g) of the dopant ion Cu^Ⅱ and the penetration of the d electrons into the conduction band (CB) of Ti/O core. [28, 35, 41, 43, 44]. It is worth noting that the absorption in visible region displays strong intensity comparable to that in UV region, which is quite different from the observations of the reported ones [35, 39, 41], where the absorption in visible region is much weaker than that in UV region. Such special absorption behavior may facilitate the utilization of all-range sunlight for photocatalysis. Based on the Kubelka-Munk plot (Fig. 2b), the HOMO–LUMO gap was determined to 2.72 eV, which is lower than that of most reported transition metal doping TOCs [20, 32, 35, 37]. As we know, the bandgap is an essential optical property in coordination compounds, which is influenced by many factors such as metal ions, ligands, bonding behavior between them [45]. We inferred that the narrow bandgap of 1 is likely the result of the unique bimetal connection mode (Cu-O-Ti) in the cluster. What is more, the high doping concentration of Cu^Ⅱ that allows more electron injection into the CB of Ti/O core also influenced the electronic structure of 1.

The magnetic properties of the cluster 1 were measured with a Quantum Design MPMS XL-5 magnetometer. The temperature dependence of the magnetic susceptibility χ(T) was measured in external magnetic fields of 1 and 10 kOe both in the zero-field cooled (zfc) and field cooled (fc) regime. There was no splitting between the zfc and fc curves and no difference between the measured susceptibilities in 1 and 10 kOe. Thus, only the fc susceptibility curve measured in 10 kOe is shown for sake of clarity. The magnetization of the sample was measured at 5 K between magnetic field of -50 kOe and 50 kOe. All the presented data were corrected for the contribution of the sample holder and the diamagnetic susceptibility of inner shell electrons [46].

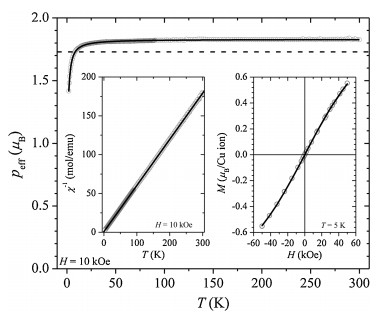

A paramagnetic-like behavior was found on the investigated temperature interval (left inset in Fig. 3). The inverse susceptibility χ^-1 was fitted with the Curie-Weiss model, described by the equation χ^-1 = (T-θ)/C. The best-fit line is shown as a black line in the left inset in Fig. 3 and was obtained with the fitting parameters C =1.68 emu K/mol and θ = -1.57 K. An effective magnetic moment per Cu ion p_eff = (8C/4)^1/2 = 1.83 μ_B was obtained, where the factor 4 stands for four Cu^Ⅱ ions in the cluster.

The low temperature magnetization curve M(H) is shown in the right inset of Fig. 3. The curve shows no hysteresis and was successfully fitted with the Brillouin function for the spin value S = 1/2 (black curve in the right inset in Fig. 3). A saturation magnetization M_s = 0.93 μ_B was obtained from fitting, which is in good agreement with the theoretical value M_s = gS = 1 μ_B.

Below 20 K the effective magnetic moment starts to decrease slightly and reaches a value of 1.4 μ_B at the lowest temperature of 2 K. This observation agrees with the calculated negative CurieWeiss temperature θ = -1.57 K. Both experimental results can be ascribed to a single ion effects (for example L-S coupling) and/or weak antiferromagnetic interaction between four Cu(Ⅱ) in a cluster. As the measured high temperature effective magnetic moment of 1.83 μ_B is quite close to the theoretical spin-only value of 1.73 μ_B [47], we tentatively contribute the deviation from perfect paramagnetic behavior at low temperatures to weak intramolecular antiferromagnetic interactions.

Based on the structural properties of the cluster a model for the interactions between Cu^Ⅱ ions was constructed. It is shown on Fig. 4 and described by the interaction Hamiltonian:

The experimental data were fitted using the PHI software [48]. Spin-only magnetic moments were assumed, and the only fitting parameters were the coupling constants J_i and the Landé g-factor g. The best-fit line is shown as a black curve on Fig. 3 and was obtained with the fitting parameters J₁ = -0.22 cm^-1, J₂ = -0.21 cm^-1, J₃ = -1.6 cm^-1 and g = 2.1. The reason for a g-value larger than 2 could be the non-zero orbital contribution to the total magnetic moment. The negative coupling constant confirm weak antiferromagnetic interactions between Cu^Ⅱ ions.

In magnetic systems which behave almost purely paramagnetic it is hard to distinguish between effect due to interactions between magnetic centers and single ions effects, like spin-orbit coupling. Simulations with the PHI software assuming non-interacting Cu^Ⅱ ions and the presence of spin-orbit coupling were performed but did not yield a satisfactory agreement with the measured data for any reasonable choice of parameters. This suggests that the presence of weak antiferromagnetic interactions is indeed the most probable reason for the decrease in p_eff at low temperatures.

In summary, we have successfully isolated a novel nonanuclear heterometallic with a Ti₅Cu₄ core stabilized by benzoates. The results reveal that high concentration doping of copper extends the absorption to visible and near-infrared regions with a narrowed bandgap of 2.72 eV. Moreover, the magnetism analysis shows that 1 displays almost pure paramagnetic interactions between Cu^Ⅱ ions with the presence of weak antiferromagnetic interactions at low temperatures.
