How long a C–C bond can be? An example of extraordinary long C-C single bond in 1, 2-diarylamino-o-carboranes
Yile Wu, Jie Zhang, Zuowei Xie*
Department of Chemistry and State Key Laboratory of Synthetic Chemistry, The Chinese University of Hong Kong, Hong Kong, China
Abstract: How long a C-C bond can be? A question has long fascinated chemists. This work reports an example of extraordinary long C-C bond distance of 1.990(4) Å observed in single-crystal X-ray structure of 1, 2-(NHMes)2-o-carborane (2; Mes=2, 4, 6-trimethylphenyl). DFT calculations show that hyperconjugation of lone pairs of the nitrogen atoms into the empty σ* orbital of the cage C-C bond is the origin of the bond elongation. Such hyperconjugation can be suppressed if the two nitrogen atoms in 2 are linked to a Lewis acidic germanium (Ⅱ) center.
Keywords: o-Carborane     C–C single bond     Hyperconjugation     Amine     X-ray structure

The C-C bonds are the basic building blocks in organic compounds and the carbon-based living things. Generally, the normal Csp3 - Csp3 bond length in organic compounds is about 1.54 Å [1]. However, C-C single bonds with deviant bond lengths have received much attention over the years [2-4]. The linear relationship between C-C bond length and the bond dissociation energies (BDE) reveals that the deviation of C-C bond lengths from the standard will cause significant changes in BDE [5]. Recently, substantial progress has been made in synthesizing compounds with elongated C-C bond lengths (Fig. 1). For example, hexaphenylethane (HPE) derivative A, reported by Mislow et al., features a long C-C bond length of 1.67(3) Å [6]. Other HPE derivatives B [7, 8] and C [9], prepared by the Toda and Herges groups, are proved to be stable compounds with long C-C bond lengths of 1.734(5) Å and 1.713(2) Å, respectively. Beyond HPE derivatives, Schreiner et al. demonstrated that the caged-alkane dimer D, with a C-C bond length elongated to 1.704(4) Å, is stabilized by attractive dispersion interactions [10]. Very recently, Suzuki et al. reported a series of dihydropyracylene with two spiro (dibenzocycloheptatriene) E having ultra-long C-C single bonds up to 1.806(2) Å in length [11].

Download:
Fig. 1. Reported compounds with elongated C-C bonds.

For 1, 2-disubstituted o-carboraness [12], previous reports suggest a possibility of elongating the cage C-C bonds by replacing the substituents on the cage carbon atoms [13, 14]. Both experimental [15, 16] and theoretical [17] results revealed that the aminosubstituting groups significantly elongated the corresponding cage C-C bonds due to the π-electron back-donation from the nitrogen lone pairs to the CC cage antibonding orbital. Especially, 1, 2-(NH2)2- 1, 2-C2B10H10 was predicted by DFT calculations to have longer C-C bonds than its –SH, OH, CH3 and PH2 derivatives [17]. However, the known method for synthesizing bisamino-o-carboraness was not known till very recently [18], and only mono-amino-substituted o-carboranes have been reported [19]. As an on-going project, we strive to continue with our effects in developing new methodologies for efficient functionalization of o-carboranes [19-22]. We report herein a novel one-pot synthesis of 1, 2-bis(arylamino)-o-carboranes that features the ultra long C-C single bond distance of 1.990(4) Å. While this paper was under preparation, the synthesis and structure of 1, 2-(NH2)2-o-carboranes and its derivatives were reported [18].

Inspired by the synthesis of arylamines from the reaction of aryl Grignard reagents with nitrosoarenes [23], we hypothesized the preparation of 1, 2-bis(arylamino)-o-carboraness directly from o-carboranes via a one-pot addition-reduction process. Hence, we started our investigation by reaction of 1, 2-(MgCl)2-o-C2B10H10 [24] with PhNO in THF, followed by treatment with LiBH4 and FeCl2, respectively. The desired product 1, 2-(phenylamino)2-o-C2B10H10 1 was isolated, after workup, in 26% yield. Replacement of 1, 2-(MgCl)2-o-C2B10H10 with 1, 2-dilitho-o-carboranes resulted in the isolation of 1 in 68% yield (Scheme 1).

Download:
Scheme 1. One-pot preparation of 1, 2-bis(arylamino)-o-carboranes.

Under the same manner, 1, 2-(NHMes)2-o-carboranes (2, Mes = 2, 4, 6-trimethylphenyl) was prepared in 58% yield (see the Supporting information for detail) (Scheme 1).

Both 1 and 2 were characterized by 1H, 13C and 11B NMR spectroscopy as well as HRMS. Their molecular structures are confirmed by single-crystal X-ray analyses (Fig. 2). Their key structure parameters together with other know analogues are compiled in Table 1. The most interesting structural feature is the especially long cage C-C bonds, 1.922(5) Å in 1 and 1.990(4) Å in 2. The latter is even longer than that of 1.931(2) Å observed in 1, 2- (MesCH2NH)2-o-C2B10H10 (F in Fig. 1) [18]. The average cage C-N bond distances of 1.380(4) Å in 1 and 1.388(3) Å in 2 are very close to that of 1.383(2) Å in F. The average B-B distances of 1.777 Å in 2, 1.774 Å in 3 and 1.777 Å in F are very comparable to each other.

Download:
Fig. 2. Molecular structures of 1 and 2 with the anisotropic displacement parameters depicted at the 30% and the 50% probability level, respectively. The H atoms are omitted for clarity.

Table 1

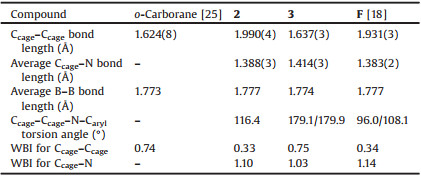

Key structural parameters for o-carborane, 2, 3 and F.

To gain more insight into the electronic structure of 2, DFT calculations were carried out for the structural optimization of o-carborane and 2 at the B3LYP/6-31G** level of theory [17]. Natural bond orbital (NBO) analyses (B3LYP/6-311G++**) indicate that the Wiberg bond index (WBI) of the cage C-C bond in 2 (0.33) is significantly smaller than that in o-carboranes (0.74), and is slightly smaller than that in F (0.34, Table 1). On the other hand, the WBI of 1.10 for Ccage–N bond in 2 suggests its multiple bonding characters. For the two nitrogen atoms in 2, the occupancies of long pairs (LPs) drop to a low value of 1.81e. Meanwhile, the empty σ* C-C orbital occupancy of 2 is calculated to be 0.44e, which is significantly larger than that of 0.07e in o-carboranes, indicating an electron transfer from the N atom to the empty σ* cage C-C orbital. These results are in line with the literature reports [17, 18], implying that the origin of the elongated cage C-C bonds in 1 and 2 results from the hyperconjugation between the LPs of the nitrogen atoms and the empty σ* C-C orbital, as illustrated in Scheme 2.

Download:
Scheme 2. Illustration of the hyperconjugation.

Furthermore, the Ccage–Ccage–N–Caryl torsion angles of 116.4(2)° in 2 are closer to an ideal torsion angel of 120° required to establish the parallelism between the LP orbital of nitrogen and σ* C-C orbital. In contrast, such torsion angles in 1 [83.9(4) to 87.9(4)°] and F [108.1(2) and 96.0(2)°] (Table 1) are largely off the ideal one. These results reveal that the observed parallelism between LP orbital of nitrogen and σ* C-C orbital in 2 enhances the hyperconjugation, leading to an extraordinary long C-C bond.

It is clear that the lengthening of the cage C-C bond is closely related to the hyperconjugation aforementioned. We anticipated that such hyperconjugation would be suppressed if both N atoms in 2 are bonded to a strong Lewis acidic center. In this connection, treatment of 2 with 2 equivalent of n-BuLi in toluene, followed by the addition of 1 equiv. of GeCl2·dioxane, gave a germylene 3 in 81% yield (Scheme 3). Compound 3 was fully characterized by 1H, 13C, 11B NMR and HRMS as well as single-crystal X-ray analysis.

Download:
Scheme 3. Synthesis and structure of germylene 3. The anisotropic displacement parameter is depicted at the 50% probability level. The H atoms are omitted for clarity.

The cage C-C bond distance of 1.637(3) Å in 3 is close to that of 1.624(8) Å in o-carboranes, but is significantly shorter than that of 1.990(4) Å observed in 2 (Table 1). Accordingly, the Ccage–N bond distance of 1.414(3) Å in 3 is much longer than that of 1.388(3) Å in 2. NBO analyses (at the B3LYP/6-311G++** level of theory) predict a WBI of 0.75 for the cage C-C bond in 3, which is very similar to that of 0.74 in o-carboranes (Table 1). On the other hand, a WBI of 1.03 for the Ccage–N bond in 3 is considerably smaller than that of 1.10 in 2. These results suggest that no hyperconjugation is observed between LPs of the nitrogen atoms and the σ* orbital of the cage C-C bond in 3. Instead, the nitrogen atoms donate their LPs to the empty p-orbital of the Ge(Ⅱ) center in 3, stabilizing such a germylene compound [26].

In summary, we describe a new one-pot synthesis of 1, 2-bis (arylamino)-o-carboraness 1 and 2, by treatment of 1, 2-dilithio-o-carborane with nitrosoarenes. Single-crystal X-ray analyses reveal that 1 and 2 have extraordinary long cage C-C bonds with distances of 1.922(5) Å and 1.990(4) Å, respectively. On the other hand, a WBI of 1.10 for Ccage–N in 2 suggests its multiple bonding characters. DFT calculations on 2 indicate that the hyperconjugation between the LPs of nitrogen atoms and the empty σ* C-C orbital is responsible for the elongated C-C bonds in 1 and 2.

How long a C-C bond can be? Though this is still an open question, the current work pushes the limit further out.
