Wen-Jing Lu, Shi-Ze Huang, Ling Miao, Ming-Xian Liu, Da-Zhang Zhu, Liang-Chun Li, Hui Duan, Zi-Jie Xu, Li-Hua Gan. Synthesis of MnO₂/N-doped ultramicroporous carbon nanospheres for high-performance supercapacitor electrodes[J]. Chin. Chem. Lett., 2017, 28(6): 1324-1329

Wen-Jing Lu^a, Shi-Ze Huang^b, Ling Miao^a, Ming-Xian Liu^a, Da-Zhang Zhu^a, Liang-Chun Li^a, Hui Duan^a, Zi-Jie Xu^a, Li-Hua Gan^a

Development of flexible, lightweight and environmentalfriendly energy-storage devices is urgently needed to satisfy the growing demand for sustainable and renewable power sources worldwide [1]. Of various energy-storage sources, supercapacitors with high power density, long cycling life and product safety have attracted significant attentions in mobile electronic devices, electric vehicles, etc. [2]. According to the energy storage mechanism, there are two typical types of supercapacitors: electric double-layer capacitors (EDLCs) and Faradaic supercapacitors (FSs). The common electrode materials for EDLCs are carbon-based materials, which are not electrochemically active, meaning that no electrochemical reaction occurs on the electrode materials, and exhibit excellent stability performance with relative lower capacitance [3]. And, transition mental oxides are most common electrode materials for FSs, which are electrochemically active, can directly store energy by a fast and reversible redox reactions taken place on the electrode surface and thus resulted in a far larger capacitance than EDLCs [4]. However, due to the faradaic processes slower than nonfaradaic processes, a FS normally exhibits relatively lower power density than an EDLC, and usually lacks long-term stability during cycling [5].

The capacitance of EDLCs comes from the pure physical charges stored at the electrode/electrolyte interface [6]. Porous carbon materials are commonly used as electrode materials for EDLCs due to their advantages of high surface area, good conductivity, and high electrochemical stability [7]. Pore structure in carbon electrodes is an important factor to determine the electrochemical performance of EDLCs [8]. Recently, it has been reported that ultramicropore (pore size less than 0.7 nm) can significantly improve the capacitance of carbon electrodes because that the < 1 nm micropores are related to an anomalous significant increase in specific capacitance, while, >0.5 nm pores are electroactively available in aqueous electrolytes for EDLCs [7b, 9]. On the other hand, the adjustable size and package among carbon spheres benefit the aggregation of electrolyte ion buffer reservoirs and decrease the resistance of electrolyte ion diffusion [10]. In addition, heteroatom (e.g., N, S and B) entrapped into carbon matrix facilitates the adsorption of electrolyte ions and therefore improves the electrochemical properties of the carbon-based electrodes [11]. Therefore, heteroatom functionally, ultramicroporous carbon spheres should be an optimum choice for tailoring high performance EDLC electrodes.

Transition metal oxides (e.g., RuO₂ and MnO₂), on the other hand, are considered as ideal candidates for FS electrode materials due to their variable oxidation states and high theoretical specific capacitances [12]. However, the toxic and high cost of RuO₂ leads to difficulty in its commercialization for supercapacitors. On the contrary, MnO₂ with low cost, natural abundance, environmental safety, and a high theoretical pseudocapacitance (1110 F/g), is an attractive electroactive material for FS electrodes [13]. However, MnO₂ is in general kinetically unfavorable and has poor electrical conductivity, which limits its application as commercial available electroactive materials for pseudocapacitors [4b, 14]. To achieve high-performance supercapacitor devices, it is important to make good use of the synergistic effect between carbon-materials and metal oxides [15]. For example, Yang et al. prepared MnO₂/ graphene nanocomposite electrodes which exhibit a high specific capacitance of 372 F/g at 0.5 A/g in 1.0 mol/L Na₂SO₄ aqueous electrolyte [15b]. In our previous work, we designed the combination of micro-and mesoporous carbon microsphere with MnO₂ as high performance electroactive materials for energy storage system [4a].

Considering the aspects mentioned above, hybrid materials combined with nitrogen-doped, ultramicroporous carbon nanospheres, and MnO₂ should be particularly interest for supercapacitor electrodes. To achieve that target, in this work, we present a facile and efficient approach to prepare MnO₂/N-UCNs for supercapacitors. N-UCNs were prepared via a template-free polymerization process, in which resorcinol/formaldehyde were polymerized on the surface of phloroglucinol/terephthalaldehyde nanoparticles with hexamethylenetetramine (HMTA) acted as both catalyst and nitrogen resource. Then, MnO₂ were grown on NUCNs by a redox reaction between KMnO₄ and carbons. Asprepared MnO₂/N-UCNs possess regular ultramicropores, high surface area, nitrogen heteroatoms, and high content of MnO₂. The ultramicropores benefit fast electrolyte ion transfer and diffusion, and N heteroatom incorporated into carbon matrix can improve the electric conductivity, meanwhile the introduction of MnO₂ contributes pseudocapacitance. Consequently, a typical MnO₂/NUCNs as a supercapacitor electrode exhibits excellent electrochemical performance such as high specific capacitance (401 F/g at 1.0 A/g in 1.0 mol/L Na₂SO₄ electrolyte) and excellent charge/ discharge stability (86.3% of the initial capacitance after 10, 000 cycles at 2.0 A/g).

Phloroglucinol and terephthalaldehyde are polymerized to prepare polymer colloids, which can produce ultramicropores after carbonization [7b]. Resorcinol and HMTA were reacted on the surfaces of phloroglucinol/terephthalaldehyde polymer colloids to obtain N-UCNs, in which HMTA acted as catalyst and nitrogen source. N-UCNs were served as both supporting substrate and reductant, and MnO₂ was directly grown on the surfaces of N-UCNs by a simple redox reaction between carbon and KMnO₄: 4 KMnO₄ + 3 C + H₂O = 4MnO₂ + 2KHCO₃ + K₂CO₃. TGA curves of MnO₂/N-UCNs shown in Fig. S1 (Supporting information) indicate the mass percentages of MnO₂ in the samples are 36, 57 and 83 wt.%, respectively, which depends on different concentrations of KMnO₄ during the fabrication process. The obtained MnO₂/N-UCNs were denoted as MnO₂(x%)/N-UCNs in which x% represents the mass percentage of MnO₂ in the nanohybrids. Fig. 1 and Fig.S2 (Supporting information) shows SEM images of N-UCNs and MnO₂/N-UCNs. N-UCNs have a uniform spherical morphology with a mean diameter of ~40 nm, as shown in Fig. 1a. A typical SEM image of MnO₂/N-UCNs shown in Fig. 1b suggests that nanorodlike MnO₂ is grown onto the N-UCNs.

Figure 1

	Download: JPG larger image
Fig. 1. SEM images of N-UCNs (a) and MnO2(57%)/N-UCNs (b).

XRD patterns of N-UCNs and MnO₂/N-UCNs were shown in Fig. S3 (Supporting information). For N-UCNs, two broad peaks with 2θ at about 24° and 44° indicate the amorphous carbon. In the patterns of MnO₂/N-UCNs, peaks can be ascribed to MnO₂ (PDF 65-2861) besides some relatively weak diffraction peaks indexed to Mn₂O₃ (PDF 24-0508), indicating the successful introduction of MnO₂ into carbon matrix via the redox reaction of KMnO₄ and carbon [15a, 16]. With the increasing doping content of MnO₂, the diffraction peaks were weak and broad, suggesting the poor crystallization of the nanocomposites and the crystallization transformation from α-MnO₂ to δ-MnO₂ [17]. A TEM image of N-UCNs shown in Fig. 2a indicates that N-UCNs have a uniform diameter of about 40 nm which is consistent with that of SEM observation. Fig. 2b shows a typical TEM image of MnO₂(57%)/NUCNs. It is clearly to observe the marked contrast between N-UCNs and nanorod-like MnO₂. The inset image of Fig. 2b shows the lattice fringes with interplanar distance of ~0.7 nm which corresponds to the (110) plane of tetragonal a-MnO₂ structure [18].

Figure 2

	Download: JPG larger image
Fig. 2. TEM images of N-UCNs (a) and MnO2(57%)/N-UCNs (b). The inset of (b) is the HRTEM image of MnO2.

To further characterize the surface chemical states of MnO₂/NUCNs, XPS spectra were conducted, and the results were shown in Fig. 3. The wide XPS spectrum demonstrates that there are C, N, O, and Mn atoms in the MnO₂/N-UCNs samples (Fig. 3a). The compositions of these elements are 56.76, 1.20, 28.29 and 13.74 wt.%, respectively. Fig. 3b presents a fitted high-resolution XPS spectrum of N 1s in MnO₂(57%)/N-UCNs. The nitrogen species can be fitted as pyridinic N (398.5 eV), pyrrolic N (400.1 eV), and graphitic N (401.2 eV). Pyridinic N and pyrrolic N are indexed as electrochemically active and electron donor tendency and thus improve electrochemical capacitance of the electrode [19]. And the graphitic N can efficiently accelerate electron transfer and enhance the conductivity of carbon materials [20]. Fig. 3c exhibits the highresolutionspectrumofMn2p.Thepeaks at642.2 and653.7 eVcanbe indexed as Mn 2p_3/2 and Mn 2p_1/2, respectively. The spin-energy separation of 11.5 eV is a typical characteristic of MnO₂, and also suggests that the predominant oxidation of Mn is +4 [21].

Fig. 4 exhibits nitrogen adsorption and desorption isotherms and pore size distribution curves of N-UCNs and MnO₂/N-UCNs. The isotherms of N-UCNs and MnO₂/N-UCNs shown in Fig. 4a can be classified to type I curves. The increasing steep in the adsorbed volume at very low relative pressure (P/P₀ < 0.05) indicates the presence of abundant micropores in the samples [7b]. Besides, at a relative pressure (P/P₀) of 0.90, a nitrogen condensation step with a hysteresis loop was appeared, suggesting the existence of mesopores due to the interparticle cavities resulted from the packing of MnO₂/N-UCNs nanohybrids. N-UCNs and MnO₂/NUCNs exhibit regular ultramicropores at ~0.5 nm and secondary micropores (or supermicropores) at ~1.27 nm, as shown in Fig. 4b.The ~0.5 nm ultramicropores are resulted from phloroglucinol/ terephthalaldehyde derived carbons, and the ~1.27 nm secondary micropores can be ascribed to the decomposition of resorcinol/ formaldehyde polymer during carbonization [7b, 9b]. MnO₂/NUCNs shows smaller specific surface area of 697 (MnO₂(36%)/NUCNs), 341 (MnO₂(57%)/N-UCNs) and 102 (MnO₂(83%)/N-UCNs) m²/g than that of N-UCNs (1439 m²/g), as shown in Table 1. And the pore volumes also show the same trend in N-UCNs and MnO₂/NUCNs. With the increasing doping content of MnO₂, the pore structure parameters of MnO₂/N-UCNs nanohybrids are systematically decreased, suggesting the blockage of some pores in N-UCNs.

Figure 3

	Download: JPG larger image

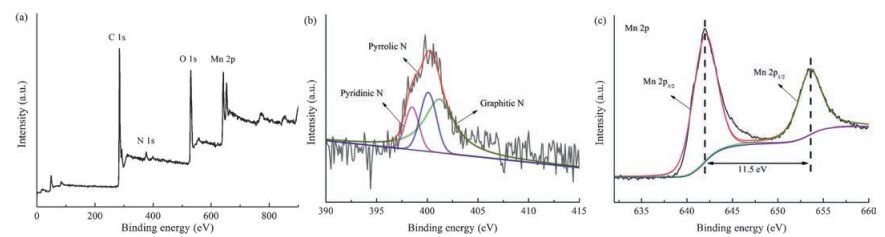

Fig. 3. XPS spectrum of MnO2(57%)/N-UCNs (a), fitted high-resolution XPS spectra of N 1s (b) and Mn 2p (c) in MnO2(57%)/N-UCNs.

Figure 4

	Download: JPG larger image
Fig. 4. Nitrogen adsorption/desorption isotherms (a) and pore size distribution (b) of N-UCNs and MnO2/N-UCNs.

Table 1

Table 1 Pore structure parameters of N-UCNs and MnO2/N-UCNs.a

Table 1 Pore structure parameters of N-UCNs and MnO2/N-UCNs.a

Fig. 5 shows the Nyquist plots of N-UCNs and MnO₂/N-UCNs. Each plot consists of a straight line, a nearly 45° diagonal line, and a quasi-semicircle, suggests that both N-UCN and MnO₂/N-UCNs can be well used as the electrode materials for supercapacitors. A nearly vertical line in the low-frequency region indicates that MnO₂/N-UCNs electrode has a Warburg resistance of charge saturation, and conductive network of N-UCNs benefits rapid electron transferation. The semicircle in high-frequency region represnts the charge transfer resistance (R_ct) and bulk electrolyte resistance (R_s). And the first intersection point on the Z' axis denotes the equivalent series resistance (ESR) of the electrode including R_s, the internal resistance and the interfacial contact resistance of active material/current collector. N-UCNs shows a lower ESR value of 4.59Ω. With the increasing doping content of MnO₂, MnO₂/M-UCNs exihibit an incremental ESR values of 5.04 (MnO₂(36%)/N-UCNs), 8.53 (MnO₂(57%)/N-UCNs) and 10.64V (MnO₂(83%)/N-UCNs) because of the poor conductivity of MnO₂.

Figure 5

	Download: JPG larger image
Fig. 5. Nyquist plots of N-UCN and MnO2/N-UCNs electrodes in 1.0 mol/L Na2SO4 aqueous solution.

Fig. S4a (Supporting information) shows CV curves of N-UCNs and MnO₂/N-UCNs electrodes at a scan rate of 5 mV/s. The N-UCNs electrode show good rectangular shapes, which is characteristic of the EDLCs performance. The shape of the CV curves of MnO₂/NUCNs electrodes is pseudo-rectangular as expected for MnO₂ presenting capacitive behavior with an unclear redox peaks at about 0.2-0.4 V [15a]. The CV curves of MnO₂(57%)/N-UCNs at different scan rates were shown in Fig. S4b (Supporting information). When the scan rate increasing to 100 mV/s, the CV curve of MnO₂(57%)/N-UCNs electrode shows a obvious shuttle type, resulted from a large polarization.

GCD curves of N-UCNs and MnO₂/N-UCNs at current density of 1.0 A/g in the voltage window from 0 to 1 V are shown in Fig. 6a.These GCD profiles exhibit relatively triangular symmetrical distribution versus Ag/AgCl electrode, indicating good capacitive properties for supercapacitor. N-UCNs electrode shows a specific capacitance of 195 F/g. The good electrochemical performance of N-UCNs electrode is due to the unique pore structure that a developed network of ultramicropores and secondary micropores is particularly suitable for charging the double layer [9b]. Besides, N functional group can efficiently accelerate electron transfer and improve the conductively of samples. The specific capacitances of MnO₂/N-UCNs, calculated from the discharge curves, are 328, 401 and 201 F/g for MnO₂(36%)/N-UCNs, MnO₂(57%)/N-UCNs, and MnO₂(83%)/N-UCNs, respectively. The electrochemical capacitances of MnO₂/N-UCNs electrodes are larger than that of N-UCNs due to the introduction of MnO₂. When increasing the Mn source, MnO₂/N-UCNs should show a higher capacitance resulted from the pseudocapacitance of MnO₂. However, in this case MnO₂/N-UCNs have decreased specific surface areas due to the blockage of ultramicropores and micropores in N-UCNs caused by MnO₂ (Table 1), which significantly reduces the double layer capacitance.In addition, the conductivity of the nanohybrids are also decreased, as shown in Fig. 5. MnO₂(57%)/N-UCNs electrode achieves an optimum balance between pseudocapacitance and double layer capacitance due to the synergistic effect of N-UCNs and MnO₂, leading to the best electrochemical performance.

Figure 6

	Download: JPG larger image
Fig. 6. GCD curves of N-UCN and MnO2/N-UCNs electrodes at 1.0 A/g (a), and MnO2(57%)/N-UCNs electrode at different current densities (b) in 1.0 mol/L Na2SO4 aqueous solution.

Fig. 6b exhibits the GCD curves of MnO₂(57%)/N-UCNs electrode at various densities. MnO₂(57%)/N-UCNs electrode shows a specific capacitance of 283 F/g at 2.0 A/g and 124 F/g at 10 A/g. The excellent electrochemical performances of MnO₂/N-UCNs nanostructures can be ascribed to the introduction of MnO₂, the N-doping and unique ultramicropore structure. The MnO₂ grown on the surface of N-UCNs can make full use of active material, shorten the transportation path of the electrolyte ion and thus enhance the intercalation of ions at the interface of electroactive material/ electrolyte [16b] MnO₂ provides high pseudocapacitance. The existent of N element improves the surface properties and enhances electric conductivity [19, 20]; while the unique ultramicropore structure benefits the fast transportation and diffusion of electrolyte ions [7b]. The MnO₂(57%)/N-UCNs electrode shows a higher specific capacitance than many other MnO₂/carbon electrodes reported in the literatures (Table S1 in Supporting information). The electrode durability is an important for practical application. Fig. 7 shows the cycle stability of MnO₂/N-UCNs electrodes performed by GCD measurement up to 10, 000 cycles at 2.0 A/g. The specific capacitance of MnO₂(57%)/N-UCNs electrode retains 244 F/g (86.3% retention) after 10, 000 charge/discharge cycles (Fig. 7 and Fig. S5 in Supporting information), suggesting an excellent cycle stability; While MnO₂(36%)/N-UCNs and MnO₂(83%)/N-UCNs have a capacitance retention of 87.9 and 78.0%, respectively.

Figure 7

	Download: JPG larger image
Fig. 7. Cycle stability of MnO2/N-UCNs electrodes at 2.0 A/g in 1.0 mol/L Na2SO4 aqueous solution.

In conclusion, we demonstrate a highly efficient fabrication of MnO₂/N-UCNs through a simple and template-free polymerization of resorcinol/formaldehyde on phloroglucinol/terephthalaldehyde colloids with the presence of hexamethylenetetramine, followed by carbonization and then a redox reaction between KMnO₄ and carbons. The resultant MnO₂/N-UCNs nanostructure combines the advantages of regular geometry (~40 nm in diameter) and ultramicropores, high surface area, nitrogen functional heteroatoms, and high content of MnO₂. With a suitable doping content of MnO₂ (57 wt.%), the obtained MnO₂(57%)/N-UCNs have a surface area of 341 m²/g, regular ultramicropores of 0.50 nm, and nitrogen heteroatom (1.20 at.%), and achieve an optimum balance between pseudocapacitance and double layer capacitance due to the synergistic effect of N-UCNs and MnO₂. As a result, MnO₂(57%)/ N-UCNs electrode shows a high specific capacitance of 401 F/g at 1.0 A/g in 1.0 mol/L Na₂SO₄ electrolyte solution. Besides, the electrode exhibits good rate capability and excellent cycling stability (86.3% retention at 2.0 A/g after 10, 000 cycles). Highperformance MnO₂/N-UCNs electrode material synthesized by a simple and efficient approach provides new opportunities for advanced energy storage.

All reagents used in this experiment are of analytical grade. NUCNs were fabricated using an extended Stöber method [22] with some modifications. Typically, 0.126 g phloroglncinol and 0.10 g terephthalaldehyde were mixed in 56 mL distilled water and further stirred at 70 ℃ for 1 h, followed by 0.33 g resorcinol adding into the mixture and stirring for 30 min. Then, 0.0939 g HMTA and 0.3 mL formaldehyde solution (37 wt. %) were added and stirred for 24 h at 35 ℃. After a hydrothermal process in an autoclave (100 ℃ for 24 h), polymer nanospheres were obtained by filtering, washing and drying. The polymer nanospheres were carbonized at 850 ℃ (5 ℃/min) for 4 h in N₂ atmosphere flow to obtain N-UCNs. 100 mg of as-prepared N-UCNs were dispersed into 35 mL of KMnO₄ aqueous solution (0.01-0.05 mol/L) under ultrasonication for 60 min. Then, the suspension was transferred to an autoclave and maintained at 180 ℃ for 1 h. Finally, MnO₂/N-UCNs were obtained by centrifugation and cleaned by three centrifugation/ washing/re-dispersion cycles in water, followed by drying. The resultant MnO₂/N-UCNs were denoted as MnO₂(x%)/N-UCNs in which x% represents the mass percentage of MnO₂ in the hybrids.

Thermogravimetric analysis (TGA) was achieved by using a STA409 PC instrument with a heating rate of 5 ℃/min in air. Scanning electron microscopy (SEM) images were obtained using a Hitachi S-4800 equipment. AJEM-2100 equipment operated at 200 kV was used to obtain the transmission electron microscopy (TEM) images of samples. X-ray photoelectron spectroscopy (XPS) spectra (Kratos Axis Ultra DLD) were employed using monochromatic Al Kα X-rays. Power X-ray diffraction (XRD) datum were collected on a Focus D8 Advance diffractometer (Bruker, Germany) with Cu Kα radiation (40 kV, λ = 0.154 nm) source. N₂ adsorption-desorption isotherms were obtained using the Micromeritics ASAP 2460 gas adsorption analyzer at -196 ℃. The Brumauer-Emmett-Teller (BET) method was used to calculate the specific surface area of samples. And the micropore volume was achieved from a Dubinin-Radushkevich plot. Nonlocal density functional theory (NLDFT) was adopted to obtain pore size distribution of samples.The electrochemical performance (electrochemical impedance spectroscopy (EIS), cyclic voltammetry (CV), galvanostatic charge/ discharge (GCD), and life cyclability) of MnO₂/N-UCNs was measured by a conventional three-electrode system in a 1.0 mol/L Na₂SO₄ aqueous solution on a CHI660D workstation. A Pt wire and Ag/AgCl electrodes were served as the counter electrode and reference electrode, respectively. The working electrode was fabricated as follows: MnO₂/N-UCNs, graphite and polytetrafluoroethylene graphite (PTFE, 60 wt.%) were mixed in a mass ratio of 8:1:1 and dispersed in ethanol to form a slurry. Then, the slurry was pressed into a nickel foam at 20 MPa to obtain an electrode, followed by dried at an oven (>100 ℃) for more than 24 h. The typical mass loading of the electrode materials was about 2.1 mg/cm². The potential window of CV and GCD measurement were 0-1 V.The specific capacitance (Cm, F/g) of the electrode was calculated from GCD curves using the equation of C = I△t/(△Vm), where C represents the calculated capacitance (F); m represents the mass of electroactive material (g); t is the discharge time (s); and △V represents the potential window of the charge/discharge process (Ⅴ).
