1. Introduction

Uranium oxides, including UO₂, UO₃, U₃O₈, and so on, are not only a class of key nuclear materials, but also a kind of important catalysts [1-3]. In the last decade, some nano-sized uranium oxides were found to have a much better catalytic performance [4, 5]. Thus, uranium oxide nanomaterials have attracted much attention. By far, quasi-spherical UO₂ nanoparticles [5-7], flowerlike U₃O₈ nanostructures [8], U₃O₈ nanorods [5, 9], U₃O₈ nanotubes [10], hierarchical uranium oxides nano/microspheres [8, 11] were obtained by thermochemical and electrochemical methods. Besides, ionizing irradiation was applied to prepare UO₂ nanoparticles using UO₂(NO₃)₂ as precursor in acidic solution [12-14]. In the fields of catalysis, gas-storage, and so on, uniform hollow structures within nanometer-to-micrometer dimensions have been of intense interest for their tailored structural, mechanical, surface, and penetration properties [15-17]. And many preparation methods were developed, including templates (i.e., hard templates and soft templates) methods, and template-free processes based on Kirkendall effect, Ostwald ripening or Galvanic replacement [15, 16]. Meanwhile, as a kind of soft templates, gas bubbles were used to synthesize hollow ZnS nanospheres [18] and Nih-QD nanospheres [19] free away from impurities. However, to the best of our knowledge, there have been no any reports about the formation of hollow uranium oxides structures. Therefore, there exists a great challenge.

In the last decade, we tried our best to control the radiolytic syntheses of nanoparticles and nanostructures, and obtained mesoporous BaSO₄ microspheres, octahedron Cu₂O nanocrystals, solid and hollow Cu₂O nanocubes, and prismatic PbSO₄ microcrystals [20-22]. Herein, hollow UO₂ nanospheres are prepared by the radiolytic reduction of alkaline (NH₄) ₄UO₂(CO₃) ₃. Then, the mechanism based on gas bubble template is proposed.

2. Experimental

Ammonium uranyl tricarbonate (AUC) crystal was prepared according to Ref.[23] (Supporting information). A typical solution containing 5 mmol·L^-1 AUC, 100 mmol·L^-1 HCOONH₄, and 15 mmol·L^-1 Na₂CO₃ was prepared, where Na₂CO₃ was used as stabilizer. After bubbling with ultrapure N₂ for 20 min, the solution at room temperature was irradiated in the Gamma Irradiation Facility of Peking University using ⁶⁰Co γ-ray source for a fixed time at a special location whose dose rate was determined by a ferrous sulfate dosimeter. After irradiation, black colloid solution or precipitates were obtained. The pH values of the solution before and after irradiation were measured to be 8.75 and 8.86, respectively.

The black precipitates were collected by centrifugation immediately and thoroughly washed by water, dried in a vacuum oven overnight at room temperature, and then black powders were achieved. The well washed powders were dispersed in water, and were dropped onto a carbon-coated copper grid. After the solvent was evaporated at room temperature, transmission electron microscopy (TEM) images, and selected area electron diffraction (SAED) were carried out on a FEI Tacnai G2 T20 microscope operated at 200 kV. Energy dispersive X-ray spectrum (EDS) was obtained on a FEI NanoSEM 430 microscope operated at 15 keV. Powder X-ray diffraction (XRD) patterns were recorded on a Rigaku Dmax-2000 diffractometer with Cu Ka radiation (λ= 0.15418 nm).

3. Results and discussion

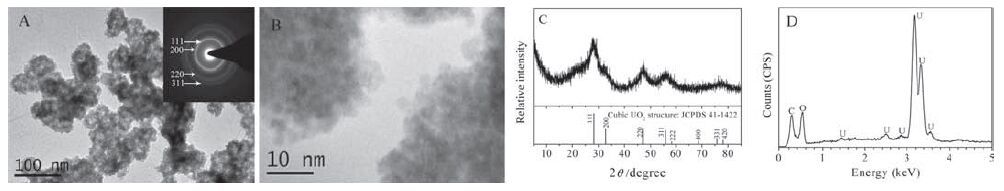

Fig. 1 A shows the TEM image of the precipitate prepared with a dose rate of 40 Gy·min^-1 and an irradiation time of 900 min at the HCOONH₄ concentration of 100 mmol·L^-1. It can be seen that the product is composed of nanospheres with a diameter of 30-50 nm. It is noteworthy that the brightness of the edge is different from that of the center, indicating their hollow nature. The wall thickness and cavity diameter are estimated to be 8-15 nm and 10-20 nm, respectively. Besides, the margin of the particles is quite coarse. From the related TEM image in a higher magnification (Fig. 1B), it could be clearly found that they are composed of some smaller nanoparticles, with a diameter ranging from 2 nmto 5 nm.

The related SAED pattern (inset, Fig. 1A) exhibits four diffraction rings with plane distance of 0.320, 0.281, 0.198, and 0.168 nm, consistent with the cubic phase UO₂ (111) , (200) , (220) , and (311) plane distances of 0.3153, 0.2733, 0.1933, and 0.1647 nm (JCPDS No. 41-1422) . This confirms the formation of polycrystalline UO₂ nanospheres. In the relevant XRD pattern (Fig. 1C), three broaden (111) , (220) , and (311) diffraction peaks corresponding to cubic phase UO₂ (JCPDS No. 41-1422) are observed, further validating the generation of UO₂. Moreover, based on the (111) diffraction peak, the average size is estimated to be about 3 nm by using Scherrer’s formula, consistent with the result of the TEM image in a higher magnification. According to the EDS analysis (Fig. 1D), the presence of U and O in a ratio of 1.00:1.98, close to the stoichiometry of UO₂ within experimental error. Therefore, the as-prepared product is UO₂ hollow nanospheres.

Fig. 2 exhibits the TEM images of the products prepared at different HCOONH₄ concentrations with a dose rate of 40 Gy·min^-1 and an irradiation time of 900 min. The products synthesized at a lower HCOONH₄ concentration are solid nanospheres (Fig. 2A and B). A higher HCOONH₄ concentration favors the generation of hollow UO₂ nanospheres (Fig. 2C and D).

Besides the concentration of HCOONH₄, the irradiation time could also affect the morphology of the UO₂ nanospheres. In this work, the dose rate was fixed at 40 Gy·min^-1. At an irradiation time of 100 min, only colloid solution was generated. In the correspond-ing TEM image (Fig. 3A), it is found that the product consists of some incompact and irregular aggregates of nanoparticles. When the irradiation time increased to 200 min, the obtained sample was still colloid solution. The related TEM image (Fig. 3B) exhibits that there appear hollow nanospheres with a diameter of 20-30 nm, a wall thickness of 4-8 nm and a cavity diameter of 10-15 nm, besides a few incompact and irregular aggregates. As the irradiation time extended to 900 min, the incompact and irregular aggregates disappeared, and the hollow nanospheres were precipitated, whose diameter and wall thickness increase to 30-50 nm and 8-15 nm, respectively. It is worth noting that the cavity diameter is in the range of 10-20 nm, close to that of the sample obtained at the irradiation time of 200 min. Moreover, the change of dose rate does not affect the hollow structure of nanospheres (Fig. S1 in Supporting information).

In our experiment, when the aqueous solution was irradiated by γ-rays, the water molecules absorbed most of the irradiation energy and generated many reactive species, such as hydrated electrons (eaq ^-), ·H, ·OH, and so on (Eq. 1) [24].

${{\text{H}}_{\text{2}}}\text{O }\overset{\text{irradiated}}{\mathop{\to }}\,\text{ e}_{\text{aq}}^{-}\text{, }\!\!\cdot\!\!\text{ H, }\!\!\cdot\!\!\text{ OH,}{{\text{H}}_{\text{2}}}\text{,}{{\text{H}}_{\text{2}}}{{\text{O}}_{\text{2}}}\text{,}{{\text{H}}_{\text{3}}}\text{O+ }\ldots \ldots $

(1)

Then, the oxidative ·OH and the reductive ·H were eliminated by HCOO^- with the rate constants of 3.2 × 10⁹ and 2.1 × 10⁸ L·mol^-1·s^-1, respectively (Eq. 2) [24].

$\text{HCO}{{\text{O}}^{\text{-}}}\text{ }\!\!~\!\!\text{ + }\!\!\cdot\!\!\text{ OH}\left( \text{ }\!\!\cdot\!\!\text{ H} \right)\to \text{ }\!\!\cdot\!\!\text{ CO}_{2}^{-}\text{+ }{{\text{H}}_{\text{2}}}\text{O(}{{\text{H}}_{\text{2}}}\text{)}$

(2)

The reducing species, e.g., eaq ^-, reduced the precursors UO₂(CO₃)₃^4- ions to U(IV) ions. Whereafter, U(OH)₄ was generated in the basic aqueous solution, which was transformed to UO₂ via dehydration (Eq. 3) .

$\text{U}{{\text{O}}_{\text{2}}}\text{(C}{{\text{O}}_{\text{3}}}\text{)}_{3}^{4-}\overset{\text{e}_{\text{aq}}^{-}}{\mathop{\to }}\,\text{ U}\left( \text{IV} \right)\overset{\text{O}{{\text{H}}^{\text{-}}}}{\mathop{\to }}\,\text{ U}\left( \text{OH} \right)\text{4}\overset{\text{-}{{\text{H}}_{\text{2}}}\text{O}}{\mathop{\to }}\,\text{ U}{{\text{O}}_{\text{2}}}\left( \text{s} \right)$

(3)

It may be the low solubility of U(OH)₄ (pK_sp = 52) [25] that leads to the quick formation of colloidal nanoparticles and the following aggregates.

In the literature, hollow spheres were always synthesized with the assistance of hard templates (e.g., silica spheres and polystyrene spheres) and soft templates (e.g., normal micelles, block copolymer micelles, and (micro) emulsion droplets) [15]. However, in our experiments, no normal additive or template was added. It is noteworthy that H₂ molecules are generated by the radiolysis of water (Eq. 1) and the hydrogen abstraction reaction between ·H and HCOO^- (Eq. 2) in the irradiation course. A higher HCOONH₄ concentration and the extending of irradiation time favor the generation of H₂. Because the diameter and wall thickness increase continuously and the cavity diameter does not change obviously with the prolonging of irradiation after the formation of hollow nanospheres, Ostwald ripening may play a minor role if any. Therefore, it can be assumed that the hollow nanospheres are a result of the assemblies of nanoparticles around the gas-water interface of the nano-sizedH₂ gas bubbles generated in situ [18, 19], which is shown in Scheme 1.

4. Conclusion

Hollow nanospheres (φ: 30-50 nm, wall thickness: 8-15 nm, and cavity diameter: 10-20 nm), consisted of UO₂ nanoparticles (φ: 3-5 nm), were successfully obtained by the radiolytic reduction of AUC in the HCOONH₄ aqueous solution. A higher HCOONH₄ concentration and the extending of irradiation time favored the formation of hollow nanospheres, while the effect of dose rate was inconspicuous. The results suggested that the assemblies of UO₂ nanoparticles around the gas-water interface of the nano-sized H₂ gas bubbles generated in situ lead to the formation of hollow nanospheres. To the best of our knowledge, this is the first report about the hollow uranium oxides nano/ microspheres. It is believed that the results reported herein will not only make the morphologies of uranium oxides more abundant, but also favor the exploration in the field of catalysis with uranium oxides as catalyst.

Acknowledgment

This work was supported by National Natural Science Foundation of China (No. 91226112) and the specialized research fund for the Doctored Program of Higher Education of China (No.20110001120121) . Sincere thank are due to Mr. Deliang Sun and Mr. Jiuqiang Li for assistance in the γ-irradiation experiments.

Appendix A. Supplementary data

Supplementary material related to this article can be found, in the online version, at http://dx.doi.org/10.1016/j.cclet.2016.06.035.
