2,4,6-Trinitrotoluene (TNT),a leading example of a nitroaromatic explosive,detrimentally affects the environment and human health,and threatens the safety of society. Traditional assays for TNT detection,such as gas chromatography and mass spectroscopy (MS),are accurate. However,these assays cannot be field-deployed and need bulky and expensive instruments,time-consuming sample preparation,and well-trained technicians ^{[1, 2, 3]}. For onthe-spot detection of TNT,dramatic improvements in detection methods are essential.

Recently,nanomaterials with various functionalities have been widely employed as reliable analytical platforms for TNT. For example,nanomaterial-based optical sensors for TNT detection exhibit improved sensitivity and selectivity ^{[4, 5, 6, 7, 8, 9]}. A cysteinemodified Au nanoparticle (Au NPs) can serve as a surface-enhanced Raman probe for TNT recognition based on the formation of a Meisenheimer complex between TNT and cysteine ^[9],and amine group-functionalized mesoporous silica nanocomposites containing fluorescent polymers have been used as sensors to detect TNT by emission quenching ^[10]. Also,nanostructures containing fluorescent Ag nanoclusters (NCs) have been employed to sense and image TNT ^[11],and various quantum dots (QDs) have been exploited to detect TNT ^{[7, 12, 8]}. However,most of these strategies involve time-consuming nanomaterial preparation and functionalization and require special instruments. For promoting safety and environmental conscientiousness,visualized colorimetric probes enabling on-the-spot detection of TNT are preferred.

Visual colorimetric methods are extremely attractive because the detection results can be easily read out by the naked eye. The surface plasmon absorption band of gold nanoparticles,which is located in the visible region with a very high extinction coefficient (2.7×10⁸L mol^-1 cm^-1 at 520 nm for 13 nm Au NPs),provides promising visualized colorimetric platforms ^{[13, 14, 15, 16]}. All these colorimetric sensors are based on the color change of Au NPs caused by their controllable dispersion/aggregation states. Au NPbased colorimetric probes are often achieved by carefully tailoring the surface chemistry of the Au NPs for identification of specific analytes. Particularly,cysteamine-functionalized Au NPs has been developed into a colorimetric sensor for determination of TNT ^[17].

The electron donor-acceptor (D-A) interaction between the primary amine of cysteamine and TNT allows aggregation of the initially dispersed Au NPs,resulting in color change from red to blue. Also,ethylenediamine (EDA)-capped Au NPs can serve as similar probes for TNT ^[18]. These probes for TNT involve surfacemodification of the Au NPs and a time-consuming separation process.

Here,a new strategy based on supramolecular chemistry has been described for colorimetric determination of TNT using unmodified Au NPs. MA alone readily makes dispersed red Au NPs aggregate into gray/blue assemblies while the preformed MA- TNT supramolecular disenable aggregation of the Au NPs,which still remain red in color. These new observations provide a facile colorimetric TNT assay in aqueous solution. By naked eye inspection,identification of TNT is established. By spectrophotometer tools,quantification of TNT is accomplished. In contrast to previous sensing strategies with surface-modified Au NPs,here a new sensing strategy for TNT has been developed with the advantages of convenience,rapidity,and cost effectiveness. 2. Experimental details 2.1. Materials

2,4,6-Trinitrotoluene (TNT) was obtained from the local security department. Chloroauric acid tetrahydrate (HAuCl4·4H2O),trisodium citrate dehydrate,and melamine were purchased from Sinopharm Chemical Reagent Co.,Ltd. (Shanghai, China) and used as received. All other chemicals were of analytical grade and were used without further purification. 2.2. Instruments

UV-vis spectra were recorded with a PerkinElmer Lambda 35 spectrophotometer. Transmission electron microscopy (TEM) images were taken with a JEM 2100F field emission transmission electron microscope,and atomic force microscopy (AFM) images were performed with a Bruker Dimension Icon atomic force microscope. Hydrodynamic diameter of the MA-TNT supramolecule was analyzed by dynamic light scattering (DLS) (zetasizer, Malvern Instruments Ltd). Resonance scattering spectrum was measured with a Hitachi F4500 fluorescence spectrophotometer. 2.3. Preparation of Au NPs

Au NPs were synthesized by the conventional reduction of HAuCl4with trisodium citrate. Typically,25 mL of trisodium citrate (38.8 mmol L^-1 ) was injected into a boiling solution containing HAuCl4(250 mL,1 mmol L^-1 ),and the mixed solution was further refluxed for another 15 min into a wine-red sample. After equilibrium to room temperature under stirring,the sample was dialyzed (cut off 1 kDa). The size of the citrate-capped AuNPs as determined by TEM image was about 13 nm. The particle concentration of the AuNPs (ca. 15 nmol L^-1 ) was determined according to Beer’s Law using an extinction coefficient of ca. 2.43×10⁸L mol^-1 cm^-1 at 520 nm ^[19]. 2.4. TNT determination

Au NP solution was 3-fold diluted with deionized water. The TNT stock solution was prepared with alcohol as solvent. For detection of TNT,100mL of the premixed MA and TNT solutions were first prepared. These mixtures contained constant amount of 1.2 mmol L^-1 MA and various TNT concentrations such as 0,80, 250,500,1000,1200,and 1500mmol L^-1 . Then these mixtures were added into 100mL of the as-diluted Au NPs. The change in color of the sensing system was observed with the naked eye,and the absorption spectrum of the sensing system was recorded with a UV-vis spectrometer. 3. Results and discussion

3.1. Supramolecule of melamine and trinitrotoluene

The electron donor-acceptor (D-A) interaction between different molecules enables the formation of supramolecular structures ^{[20, 21, 22]}. For instance,TNT is prone to form supramolecules through electron donor-acceptor interactions ^[22]. We found here that a supramolecule consisting of MA and TNT can form in aqueous solution through the similar electron D-A interaction between electron-rich MA and electron-deficient TNT. The dried MA-TNT supramolecules can be characterized by AFM analyses (Fig. 1A). These dried supramolecule nanoparticles are mostly spherical with diameters in 4.5-12 nm. No such nanoparticles were observed with the dried TNT or MA alone under the same conditions,presumably due to these small single molecules being coated evenly on the mica sheet substrate such that they are too small to be observed. Also,such supramolecules can be further characterized by DLS analyses,and a significant DLS spectrum appeared with the MA-TNT solutions. The measured hydrodynamic diameter distribution of the formed MA-TNT supramolecule was in the range of 5.0-18 nm (Fig. 1B). However, no such effective scattering spectrum was observed in solutions containing only MA or TNT,confirming that the scattering spectrum is caused by the formation of MA-TNT supramolecules. A melamine molecule contains three primary amine groups and its specific structure facilitates the electron donor-acceptor interaction with TNT.

Fig. 1

Download: JPG larger image

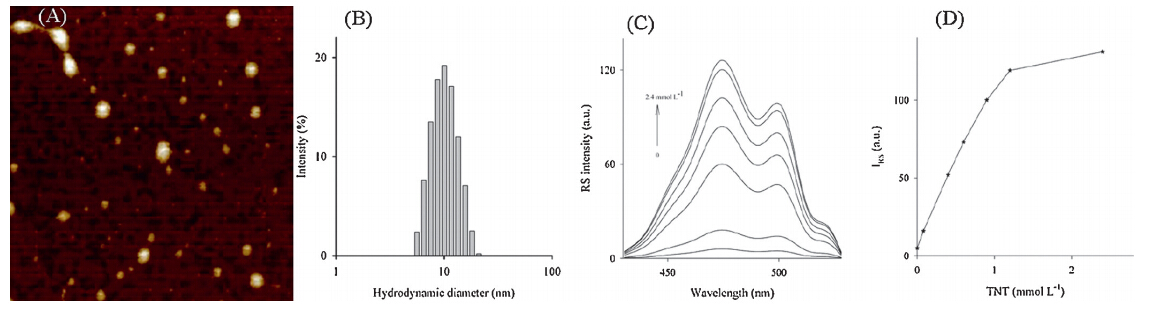

Fig. 1. (A) AFM image and (B) hydrodynamic diameter distribution of MA-TNT supramolecule derived from DLS analyses. (C) The resonance scattering spectra ofmelamine (1.2 mmol L-1 ) in the presence of various concentrations of TNT (from bottom to top: the concentration of TNT is 0,0.08; 0.4,0.6,0.9,1.2,and 2.4 mmol L-1 ,respectively),and (D) the plot of the RS intensity at 473 nmversusthe concentration of TNT.

Moreover,the stoichiometry of the MA-TNT supramolecule can be determined by resonance scattering analyses. Fig. 1C shows that the RS intensity of the system increases with increasing amounts of MA-TNT,which indicates the increasing of the amount of the as-formed MA-TNT supramolecules. When the mole ratio of MA to TNT is up to 1:1,however,the RS intensity approaches an obvious plateau,as shown in Fig. 1D. This result implies the stoichiometry of the MA-TNT supramolecule isca.1:1. The pH changes (from 5.0 to 10) of the system do not influence the RS intensity,and suggest that these supramolecules can form in a wide pH range. 3.2. Sensing mechanism

Citrate-stabilized Au NPs are wine red,whereas their aggregates appear gray,purple,or blue due to the shift of the surface plasmon absorption bands to a longer wavelength. Amines are well-known to bind well to noble metal particles ^[23]. MA molecules (contains triamine and triazine groups) can bind with Au NPs by formation of Au-N bonds and cross-link with Au NPs by offering multiple ligand sites. As depicted in Fig. 2A,the MA molecule can cross-link citrate-stabilized Au NPs,resulting in aggregation of Au NPs along with color change from red to gray/ blue ^{[24, 25, 26]}. The absorption spectrum of MA-induced Au NP aggregates is shown in Fig. 2B (solid curve). Compared with the initial Au NPs,the absorbance at 520 nm of the Au NP aggregates essentially decreased along with the appearance of a new absorbing peak at ca. 700 nm. The color of the MA-induced Au NP aggregates is gray/blue [Fig. 3A(a)] while that of the citrate-stabilized Au NPs is red. In contrast,the preformed MA-TNT supramolecules disenable aggregation of the Au NPs,and there is no obvious change in either the color or absorption spectrum of the Au NPs upon addition of the MA-TNT [Fig. 2B (dotted line) and Fig. 3A(e)].

Fig. 2

Download: JPG larger image

Fig. 2. (A) Schematic representation of the sensing mechanism of the proposed Au NPs probes for colorimetric detection of TNT. (B) The UV-vis absorption spectra of the Au NPs (3-fold dilution) in the absence (long dash line) and in the presence of MA-TNT supramolecules (formed by mixing MA and TNT both with 1.2 mmol L-1 ,dotted line) and only MA (solid line). MA enables aggregation of the Au NPs and changes its absorption spectrum while MA-TNT disenables aggregation of the Au NPs. The TEM images of the Au NPs in the presence of MA (C) and MA-TNT (D).

Fig. 3

Download: JPG larger image

Fig. 3. (A) The photographs of Au NPs upon the addition of MA (1.2 mmol L-1 ) mixed with various amounts of TNT (from a to e,the TNT concentration is 0,80,250,500,and 1000mmol L-1 ,respectively). (B) The TNT-dependent absorption spectra of Au NPs. From bottom to top,the TNT concentration is 0,80,250,500,1000,1200,and 1500mmol L-1 ,respectively. (C) Plot of the linear response of Au NPs toward TNT. Error bars were derived from triplicate separate measurements.

The aggregation and dispersion of the Au NPs by MA and MA- TNT were further studied by TEM analyses. As shown in Fig. 2C and D,Melamine allows aggregation of the Au NPs,while MA-TNT supramolecules disenable aggregation of the Au NPs. There is a significant color change with the alteration between dispersion and aggregation states of the Au NPs due to the sensitive interparticle-distance-dependent SPR properties of the Au NPs. Such color change allows Au NPs as colorimetric sensing platforms for various targets ^{[27, 28, 29, 30, 31, 32]}. 3.3. TNT determination

Fig. 3A shows that Au NPs exhibit different colors upon the addition of the solutions containing constant MA (1.2 mmol L^-1 ) and various concentrations of TNT (0-1.0 mmol L^-1 ). Due to the formation of MA-TNT supramolecules,the concentrations of the free MA subsequently reduce with the increasing of the TNT.

Melamine alone makes initially individual reddish Au NPs aggregate into gray/blue Au NP assemblies while the preformed supramolecule (MA-TNT) disenables aggregation of the Au NPs, and the Au NP solution still remains red. Therefore the colors of the Au NPs gradually change from gray to wine red with the increasing of TNT. These results indicate that the identification of TNT can be performed by naked eye inspection. Compared with the previous aggregation-based method (red-to-blue),the color change from gray/blue to red seems more eye-sensitive,especial in low concentration of targets ^[14]. Identification of TNT by naked eyes is promising for the on-the-spot detection.

By using photospectrometers as analytical tools,sensitive detection of TNT has been established. As indicated in Fig. 3B,the absorbance of the Au NPs at 520 nm significantly increased with the increasing of the concentration of TNT,while that at 700 nm decreased. To quantify TNT,absorbance ratio at 520 and 700 nm (A520/A700) of the sensing system is calculated. The plot of A520/A700versusTNT concentration is shown in Fig. 3C. A linear range of 80mmol L^-1 to 1.2 mmol L^-1 and a detection limit of 27mmol L^-1 for TNT detection are obtained.

The selectivity of the proposed sensor was further tested. Common possible interferants,such as 2,4-dinitrotoluene,nitrobenzene,and toluene did not result in an obvious change in the color or in the spectrum of the MA-induced Au NP aggregates, suggested the proposed probes are applicable in practical applications. Further,experiments to test feasibility of the proposed modification-free Au NP probes for detection of TNT in real samples were also done. By spiking 250mmol L^-1 TNT into the three pond water samples,an average recovery of 97% was obtained,implying that this probe is applicable. 4. Conclusions

In conclusion,a melamine-TNT supramolecule can form through their electron donor-acceptor interactions. Melamine alone readily makes initially dispersed red Au nanoparticles aggregate into gray/blue aggregates while the preformed supramolecule disenables aggregation of the Au NPs,thus providing a visual colorimetric assay for TNT. By naked eyes,identification of TNT is accomplished,and by using spectrophotometer tools, accurate TNT detection is accomplished. In contrast to the prior sensors based on the TNT-induced aggregation of the surface functionalized Au NPs,the proposed method based on melamine competitive binding between TNT and Au NPs simplifies and shortens the experimental process. Acknowledgment
