1   Introduction

Accident scenarios such as fires and explosions, hazardous material releases, vessel collisions, ship allisions and crane accidents are persistent safety concerns in offshore and maritime industries. These events have repeatedly caused fatalities, structural damage to the facility and environmental consequences (EMSA, 2023; HSE, 2023; Havtil, 2023; USCG, 2023). Disasters like the Piper Alpha, the BP Deepwater Horizon and the Cidade de São Mateus FPSO have compelled the offshore industry to adopt structured approaches to risk assessment and management (UK Oil and Gas, 2010; Norazahar et al., 2014; Bhardwaj et al., 2021). A thorough understanding of both the causes and occurrence probabilities of accidents is fundamental to enhancing the safety performance of offshore installations(Bhardwaj et al., 2017, 2022b). While probabilistic methods are well established for high-frequency, high-impact events like fires and explosions (Bhardwaj et al., 2021; Khakzad and Reniers, 2018; Spouge, 2017; Wang et al., 2018), allision remain underexplored despite being low frequency but high consequence events. Between 2013 and 2020, allision incidents accounted for 15% of all recorded accidents in China's coastal waters, making it the second most frequent accident category (Liu et al., 2021).

An allision occurs when a moving vessel strikes a fixed or floating structure such as an offshore platform, FPSO, bridge pier or wind turbine. This differs from a collision, which involves two moving vessels (UK Oil and Gas, 2010; Zhao et al., 1994. Due to their high frequency and severe consequences, ship collisions are among the most thoroughly investigated types of maritime accidents. (Graziano et al., 2016; Silveira et al., 2013), subsequently quantified through a range of frequency estimation models integrating statistical datasets and experts' elicitation (Čorić et al., 2021) and, thus, not subject to analysis in the present study. This paper focuses on allision accidents, which are rare yet significant for seagoing vessels and stationary platforms. The allision is sometimes known as "contact (with fixed and floating structure)" and "collision" in ship accident databases such as European Maritime Safety Agency (EMSA, 2023), Marine Accident Investigation Branch, (MAIB, 2023) and United States Coast Guard, (USCG, 2023); however, "allision" is the terminology uses is primarily based on the authors preference. Regulators such as the Norwegian Ocean Industry Authority (Havtil, 2023) and the Health and Safety Executive (HSE, 2023) UK classifies allision as a major accident hazard requiring targeted risk assessment.

Subsequently, researchers and industrials have put effort into understanding and modelling allision scenarios to prevent and mitigate them. UK Oil and Gas Industry Association (UK Oil and Gas, 2010) provides guidelines for contingency plans and measures to avoid allision incidents. More emphasis is placed on the use of collision detection systems.

Formal risk assessment of allision has been attempted for more than three decades (Xiao et al., 2022). Earlier, Zhao et al. (1994) developed a human error focused probabilistic framework, where causation probabilities are calculated through fuzzy methods. Other probabilistic allision models, such as Ship Offshore Platform Collision Risk Assessment (SOCRA), have been designed to integrate scenarios involving both ramming and drifting collisions (van der Tak and Glansdorp, 1995). COLLIDE model considers navigation errors arising from equipment faults, weather effects and human factors (Haugen, 1994). More commercial software, such as CRASH by DNV, COLRISK by Anatec, and MANS from MSCN (Netherlands), exists that utilises shipping traffic databases for probabilistic modelling of allision (Geijerstam and Svensson, 2008; UK Oil and Gas, 2010). These software are susceptible to model assumptions, which require significant upgrading with the advancement of technology (Geijerstam and Svensson, 2008; Hassel et al., 2021; Mujeeb-Ahmed et al., 2018). In general, such models provided a baseline but were limited in scope and increasingly outdated.

Recent contributions have applied modern probabilistic tools, simulations and data-driven approaches. Bayazit and Kaptan (2024) analysed 112 allisions using the well-known human factor taxonomy for classification. Later, Kaptan and Bayazit (2024) adopted a data-driven BN approach and identified ship type, wind, and ship age as the most influential factors in predicting the severity of accidents in port areas. While these studies are comprehensive, their findings primarily focus on the probability of allision during port manoeuvres. Ceylan et al. (2021) also used a human factors-oriented approach, applying the System Theoretic Accident Model and Process to ship allision accidents. Using a real-time case study of an allision in narrow waters, they emphasised that such accidents are system-based, dynamic and complex. Hörteborn et al. (2025) developed a Monte Carlo-based ship bridge simulator showing its value for early design phases. Son and Carlo studied ship allision with offshore wind turbines, suggesting a minimum safe route width of 8 943 m, considering future traffic demands.

Different perspectives and techniques in the literature have analysed allision scenarios. For example, the Automatic Identification System (AIS) that provides ship trajectory data, and has been employed extensively for the probabilistic allision assessment (Hassel et al., 2021; Mujeeb-Ahmed et al., 2018). Hörteborn and Ringsberg (2021) analysed bridge allision probability using ship maneuvering information and AIS data to identify accident scenarios. However, these models, being simulation-based, generally target a specific extreme event and therefore leave multiple key risk factors insufficiently considered or unaddressed. That said, there are alternative models that probabilistically evaluate particular scenarios or isolated risk elements. For example, Chen and Moan (2004) focused on FPSO and tanker allision events during offloading operations, analyzed through drive-off frequency assessment.

Another common approach to modeling allision scenarios involves using the likelihood of a vessel being on a collision course combined with the causation probability (probability that the vessel stays on a collision course) (Chen and Moan, 2004; Haugen, 1991; Haugen and Moan, 1992). These probabilistic accident models emphasise the spatial distribution of maritime traffic and the locations of offshore installations (Xiao et al., 2022).

Geometric representations and dynamic characteristics due to the use of current traffic data are the advantages that make these models very practical. However, their main limitation lies in the simplistic estimation of causation factors and probabilities, as observed in studies such as Hörteborn and Ringsberg (2021) and Pedersen (2002).

These studies highlight the important shift from deterministic to probabilistic and data-driven approaches; however, several limitations remain to be addressed. For instance, most probabilistic models often treat human error, environmental conditions and ship/traffic characteristics in isolation. Integrated frameworks that can capture interdependencies remain scarce (Xiao et al., 2022). It is clear that Software-based, geometric and AIS-based models emphasise the final allision probability rather than inherent causal factors.

Xiao et al. (2022) have presented a comprehensive review, revealing that almost all allision risk models overlook key risk factors necessary for a holistic representation of such scenarios. They further emphasized the need for an in-depth analysis of causal factors, particularly human elements and weather influences to more accurately predict incident probabilities. Challenges such as larger vessels, denser offshore wind farms and climate weather variability are rarely explicitly addressed, leaving gaps in inadequate assessment (Son and Cho, 2024). Eliminating the probability of allision is challenging, as procedural violations often become normalized within routine operations and are difficult to incorporate effectively into an organization's safety management system (Oltedal, 2012). Industrialists require tangible information, including the probability of accidents and their basic causes, to allocate investments in safety management.

Since allision accidents are less frequent than collisions, and incident databases are incomplete or inconsistent. This results in uncertain prior probabilistic models and general adaptability across regions (Zhen et al., 2023).

Recent developments have introduced more flexible tools like Bayesian networks (BNs) for portraying causal frameworks and characterising probabilistic dependencies among the variables. Bayesian networks are more flexible and sophisticated than traditional causal analysis techniques. Therefore, BNs have been used in many sectors as a tool for risk modelling and analysis with uncertainty (Amin et al., 2018; Cai et al., 2012; Khakzad et al., 2011, 2013). BNs have a profound application among the approaches used for maritime accident analysis as they can easily represent dependencies among the events (Zhang et al., 2013; Zhang et al., 2016). Fan et al. (2020) collected maritime accident data from the Marine Accident Investigation Branch (MAIB) and the Transportation Safety Board of Canada (TSB) between 2012 and 2017, and developed a data-driven BN that emphasised the importance of the human factor in addition to other risk-influencing factors on accident type. In a similar approach, Liu et al. (2021) have trained BN with machine learning algorithms to develop a maritime accident model. They have gathered accident data on China's coastal area to analyse the impact of risk-influencing factors on accident severity.

These BN models have generally addressed maritime accidents in aggregate rather than focusing on specific types. a major challenge with BN is the high uncertainty in prior and conditional probabilities. To address this, expert elicitation is often combined with historical data (Zhang et al., 2013; Zhang et al., 2016). However, reliance on expert opinion introduces subjectivity. This limitation can be reduced by carefully integrating reliable historical data (Hassel et al., 2021).

To bridge the above-stated gaps, this study integrates several causal factors in a single BN model. The main intricacy of the use of BN is estimating prior probabilities of the parent nodes (Li et al., 2014). Therefore, this study adopts a novel probabilistic technique for prior distribution, reducing subjectivity (Bhardwaj et al., 2024). The methodology proposes a balance of the use of historical data in probabilistic modelling to strengthen both reliability and interpretability.

2   Methodology

This section presents the proposed probabilistic framework for ship allision accidents with offshore installations. Figure 1 shows the methodology outline with the main steps explained as follows. The probability of accident occurrence can be estimated using probability methods and historical data (HSE Books, 2017; Yin et al., 2021). The offshore industry is responsible for recording major accidents, minor incidents, and precursor events to the national authorities so that they can adopt safety measures (BSEE (Bureau of Safety and Environmental Enforcement), 2023; eMARS, 2023). However, offshore accident data suffer from scarcity and underreporting of incidents; thus, any adopted methodology should address these issues (Zhen et al., 2023). Offshore scenarios involve different risk factors to the initiating events than onshore scenarios; thus, the accidents have distinct characteristics (Almeida and Vinnem, 2020; Bhardwaj et al., 2018, 2022a; Song et al., 2016).

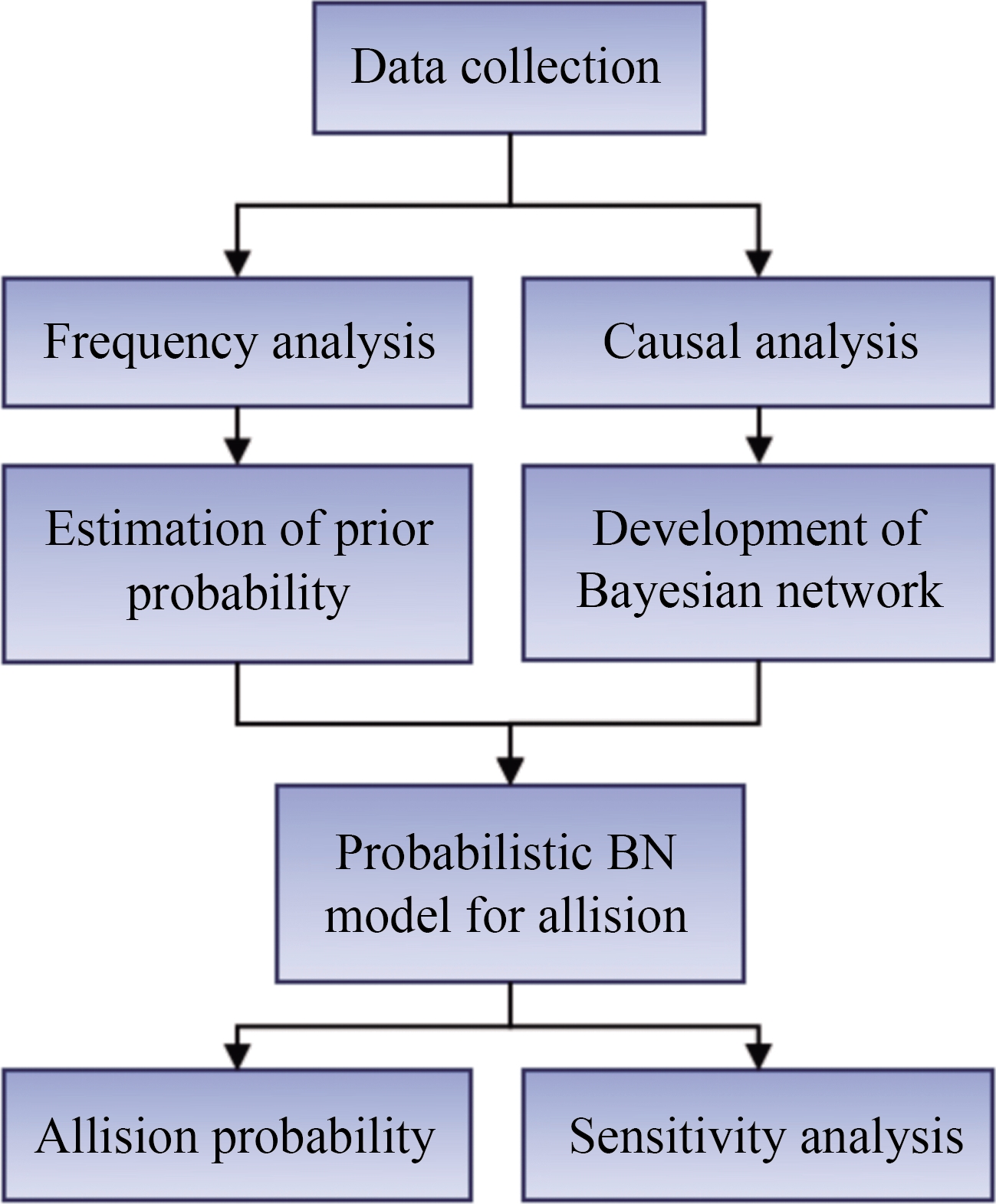

Figure  1  Proposed methodology

Download: Full-Size Img

The first step consists of collecting allision incidental data from offshore databases and investigation reports from the literature. Secondly, the data is interpreted in two ways: the data is thoroughly analysed to reveal significant insights about the circumstances. This leads to the development of a causal framework among the main event (allision), intermediate events and last identified causes (basic causes).

This information is further utilised to develop a causal network using a BN model. The different nodes can be positioned with identified basic causes, intermediate causes and main allision events. Connections are established to represent causal relationships as per the data analysis.

From the analysis of the data, the frequency of each basic cause can be calculated from the number of occurrences in the database. A recent approach (Bhardwaj et al., 2024) This paper utilises prior frequencies in the posterior probability of basic causes. Once the BN is characterised with prior probabilities and conditional probabilities, it can be used to perform probabilistic analyses such as allision probability prediction and sensitivity analysis of basic causes. A brief introduction to the probability estimation approach and Bayesian theory is provided in the following subsections.

2.1   Estimation of the prior probability

In the previous study (Bhardwaj et al., 2024), an approach for prior probabilities of allision is proposed, which has two major steps: 1) ranking of allision basic causes from incident data collection 2) posterior probability estimation of basic causes of allision accidents.

As per the relative frequency, each basic cause is ranked from least to highest observed. This approach has the added advantage of identifying and placing more causes as per the expert's experience. A method known as the Deck of Card Method (DCM) (Corrente et al., 2021a; Figueira and Roy, 2002) is employed to assign normalized weights to these fundamental causes. This method introduces a novel framework that converts accident occurrences into occurrence rates of the basic causes, utilizing normalized weights derived from the DCM. The annual frequency of accidents is converted into occurrence rates of each basic cause. Finally, Hierarchical Bayesian Analysis (Kelly and Smith, 2009) is carried out to estimate the probability of the basic causes based on the posterior mean of their annual occurrence rates.

Due to space limitations, this approach is not discussed in details here; further information can be gathered from (Bhardwaj et al., 2024). For completeness, a generic application of the method is provided in Appendix A.

2.2   Bayesian network

Formal risk assessment involves probabilistic techniques that develop causal relationships among leading events and their precursors. Fault tree analysis, event tree analysis, bow-tie method, and reliability block diagrams are examples of commonly used methods in the offshore sector. Moreover, international standards (IEC 31010, 2019) emphasise hazard identification as the primary step in accident scenario modelling. This study adopts a Bayesian Network (BN) model to describe allision accidents in the offshore sector. The Bayesian Network (BN) is a probabilistic framework for making inferences under uncertain information and is capable of analysing complex interrelations and dependencies among model parameters. Compared to traditional methods, BN is acknowledged for its capability of assimilating empirical data with expert elicitation and presenting causal relationships while showing graphical means.

A Bayesian Network (BN) is a directed acyclic graph (DAG) consisting of nodes and arcs that form a probabilistic framework. The nodes represent basic random variables, while the arcs illustrate the dependencies among them by linking child nodes to their parent nodes. These connections in a BN define the probabilistic relationships between basic and dependent variables.

The basic structure of a BN network provides a qualitative description of the problem. The Conditional Probability Tables (CPTs) of discrete variables define the quantitative relationships among the variables. A CPT offers a comprehensive representation of the probabilistic interactions, capturing all potential dependencies between parent and child nodes. The Bayesian Network is fundamentally based on Bayes' theorem, expressed as

Here, y denotes the observed data, and θ represents the model parameter capable of generating that data. $p\left(|\right)$ denotes the probability density function under given conditions. Specifically, $p(\theta )$ is the prior probability, $p\left(y\left|\theta \right.\right)$ is the likelihood function, and $p\left(\theta \left|y\right.\right)$ is the posterior distribution.A BN expresses the joint probability distribution over a set of discrete random variables Y where Y can be represented as

where n is the total number of discrete random variables. The joint probability distribution of Y (as shown in Eq. 2) can be obtained by multiplying all prior probabilities and their corresponding conditional probability distributions.

where the term $P(y_i/\mathrm{p}\mathrm{a}(y_i))$ is the conditional probability of y_i given its parent variables $(\mathrm{p}\mathrm{a}(y_i))$.

The first use of BN is qualitative, describing the logical structure of the events. Then, a quantitative analysis is conducted to estimate the probability of the top event occurring, which requires predicting the probability of the occurrence of the basic causes. To achieve this objective, relevant data is collected as described in the following subsections.

3   Results

This section presents the results of applying the proposed methodology to estimate the allision accident probability.

3.1   Analysis of the incidental data

Information on offshore accidents and incidents can be obtained from research studies, official and industrial reports, news articles, and accident databases (Christou and Konstantinidou, 2012). The collected information may provide significant insights into the causal evolution of an accident. Aiming to collect and analyse some data as described below.

3.1.1   Data collection

The information from (Norwegian Ocean Industry Authority (Havtil), 2023) and (BSEE (Bureau of Safety and Environmental Enforcement), 2023) databases is collected to comprehend the trend of reporting for allision incidents in the offshore sector. Moreover, broad ship accident data from (EMSA (European Maritime Safety Agency), 2023; MAIB (Marine Accident Investigation Branch), 2023; USCG (United States Coast Guard), 2023) has also been studied. These publicly available reports reveal primary accident indicators, such as the number of occurrences, ships lost, and casualties, with respect to time and ship type. However, these reports often overlook in-depth causal factors (immediate causes) and basic causes of the accidents, which are often not described. In addition, extensive information from the literature review of scientific papers (discussed in the Introduction section) is collected to understand and characterise allision accidents.

This paper utilises two comprehensive allision incident data sets from UK Continental Shelf (UKCS) (Robson, 2003; Loughney et al., 2019) as primary information for frequency analysis. The HSE is a pioneer organisation and authority based in the UK responsible for health and safety-related issues onshore and offshore.

These data sets are consulted since they provide more layers of investigation that can lead to better and more credible accident scenarios. This section aims to provide complete statistics on allision incidents involving offshore oil and gas platforms on the UKCS between 1975 and 2016. It should be noted that the available data are limited and cover only a small share of global accidents.

3.1.2   Vessel types involved in allisions

The data sets are scrutinized for the vessel type involved in the allision incidents. Figure 2 shows that supply vessels account for 61% of involvement in allision incidents, followed by standby vessels (15%) and other vessels (15%). Earlier studies also identified that allision risk is more apparent on general supply (cargo) vessels (Liu et al., 2021). The types of other vessels are further displayed by their distribution as driver support (6%), Anchor handler (3%), Merchant tanker (2%) and Tug (2%). The remaining vessel types have a distribution of around 1% each.

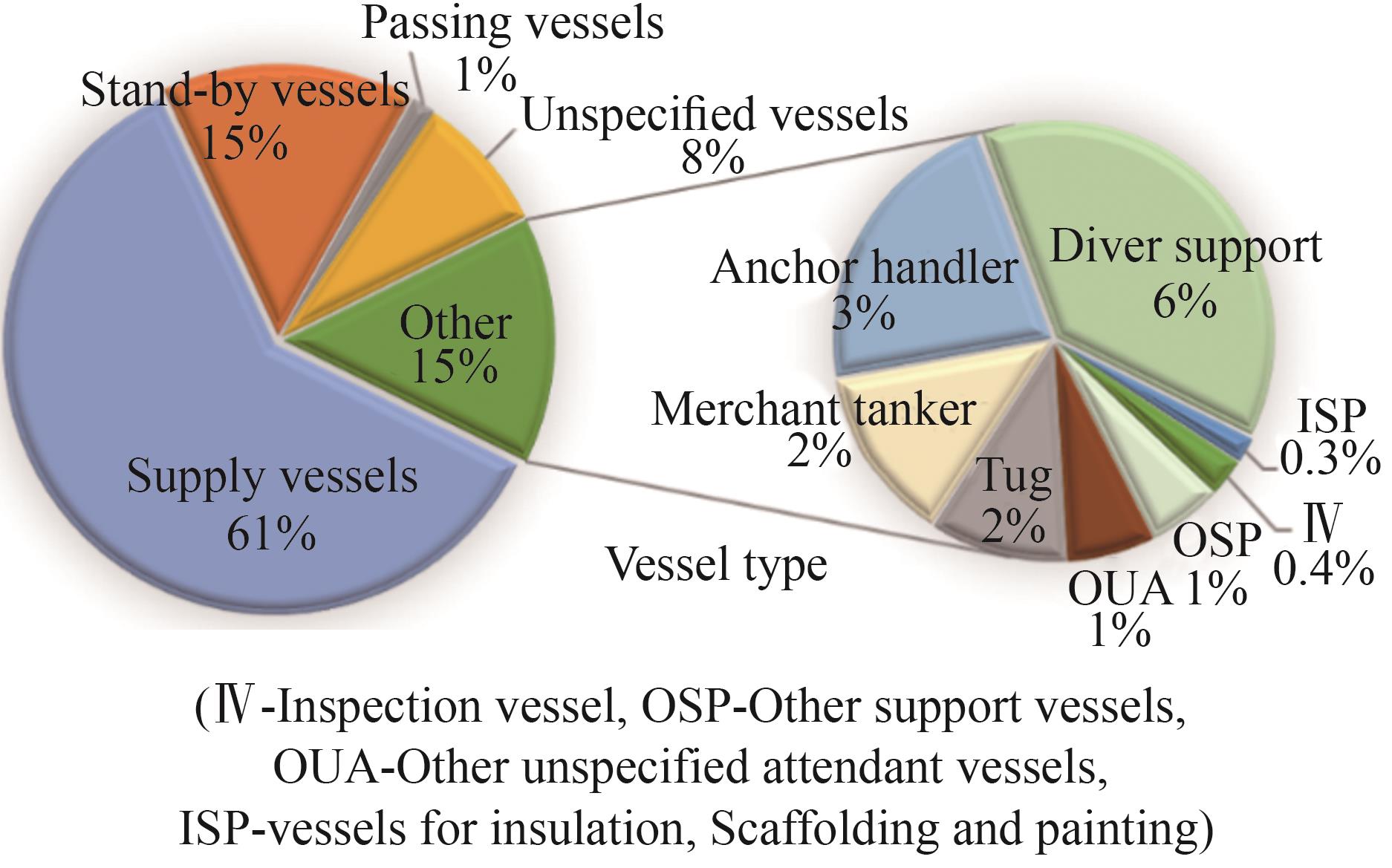

Figure  2  Distribution of vessel types involved in allision

Download: Full-Size Img

This section further uses the chi-square test to check the dependence between the month of the year and vessel type. The chi-square test distinguishes the observed and expected frequencies by statistical difference. The independence test using chi-square is applied to the statistical dependence between these two variables. First, two hypotheses (H_null and H) are adopted as H_null There is no significant relationship between the month of year and the type of vessel. H There is a significant relationship between the month of year and the type of vessel.

The chi-square statistic ( χ²) was calculated as 75.21 based on the observed and expected frequencies. The critical value of χ² at a 95% significance level was determined to be 60.48. Since the calculated χ² exceeds the critical value, the null hypothesis (H_null) is rejected. This indicates that the occurrence of allisions involving different vessel types is statistically dependent on the month of the year.

3.1.3   Vessel's operating circumstances

The basic operating circumstances during the allision incidents are shown in Figure 3. It is evident from the figure that most of the incidents occur during cargo transfer (23%), approaching installation (18.5%) and cargo unloading (11%). Other important operations, according to their distribution in allision events are Close Support (5%), Diving Operations (4%), Anchor Handling (3%), Cargo Unloading–Containers (2%) and Cargo Loading (2%).

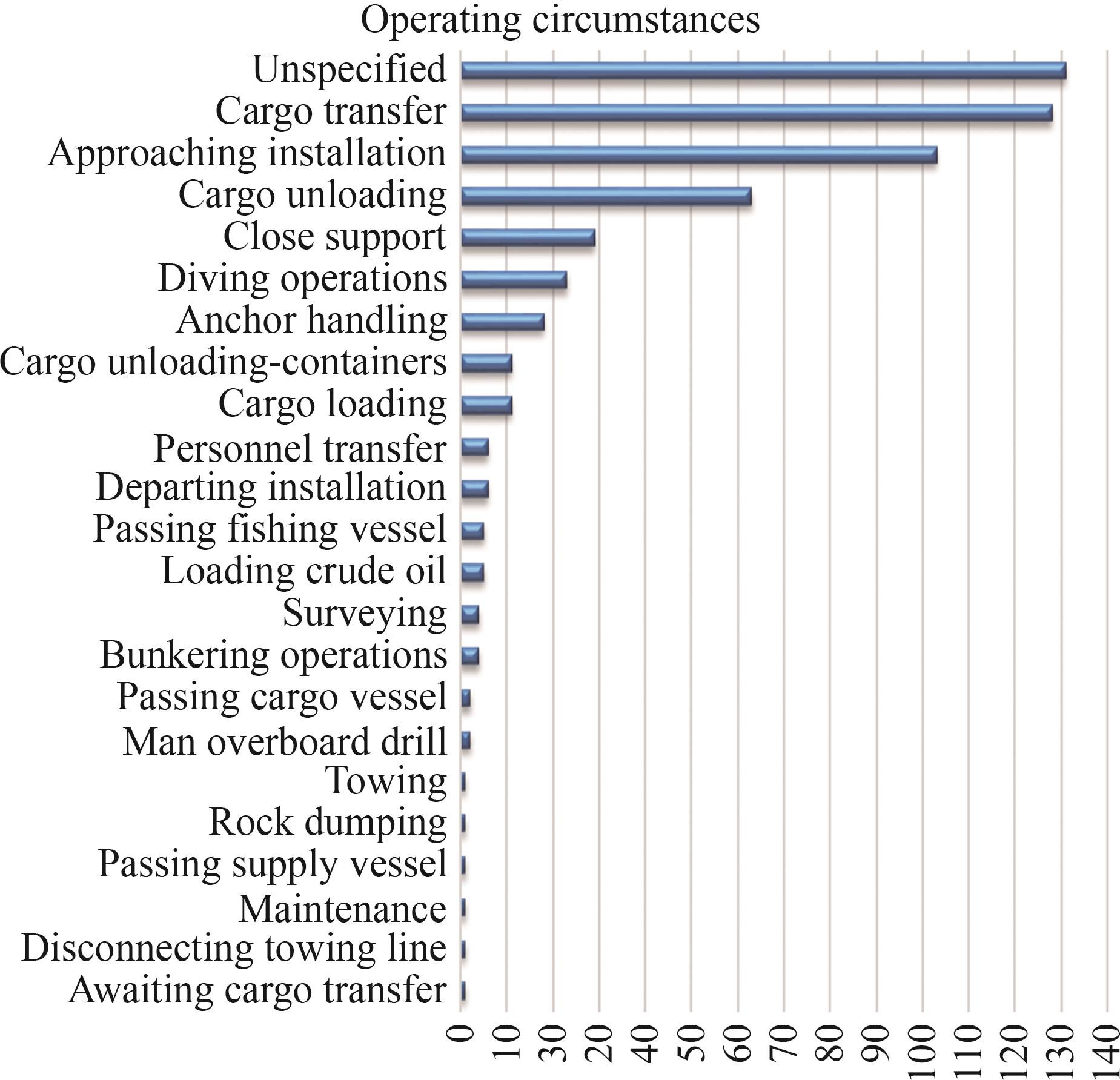

Figure  3  Distribution of vessel's operating circumstances

Download: Full-Size Img

3.1.4   Installation types involved in allision

Furthermore, the database is scrutinised for offshore installations involved in incidents related to allisions with vessels. The results of this analysis are presented in Figure 4 for the involved installation. Notably, fixed installations (fixed steel, fixed concrete, jacket, and tension leg) account for a significant share of incidents, followed by floating installations. Further, the breakdown of the floating installations is provided in the figure. Semi-submersible drilling units are involved in 27% of the incidents followed by Semi-submersible crane support 4% and Floating production units 4%.

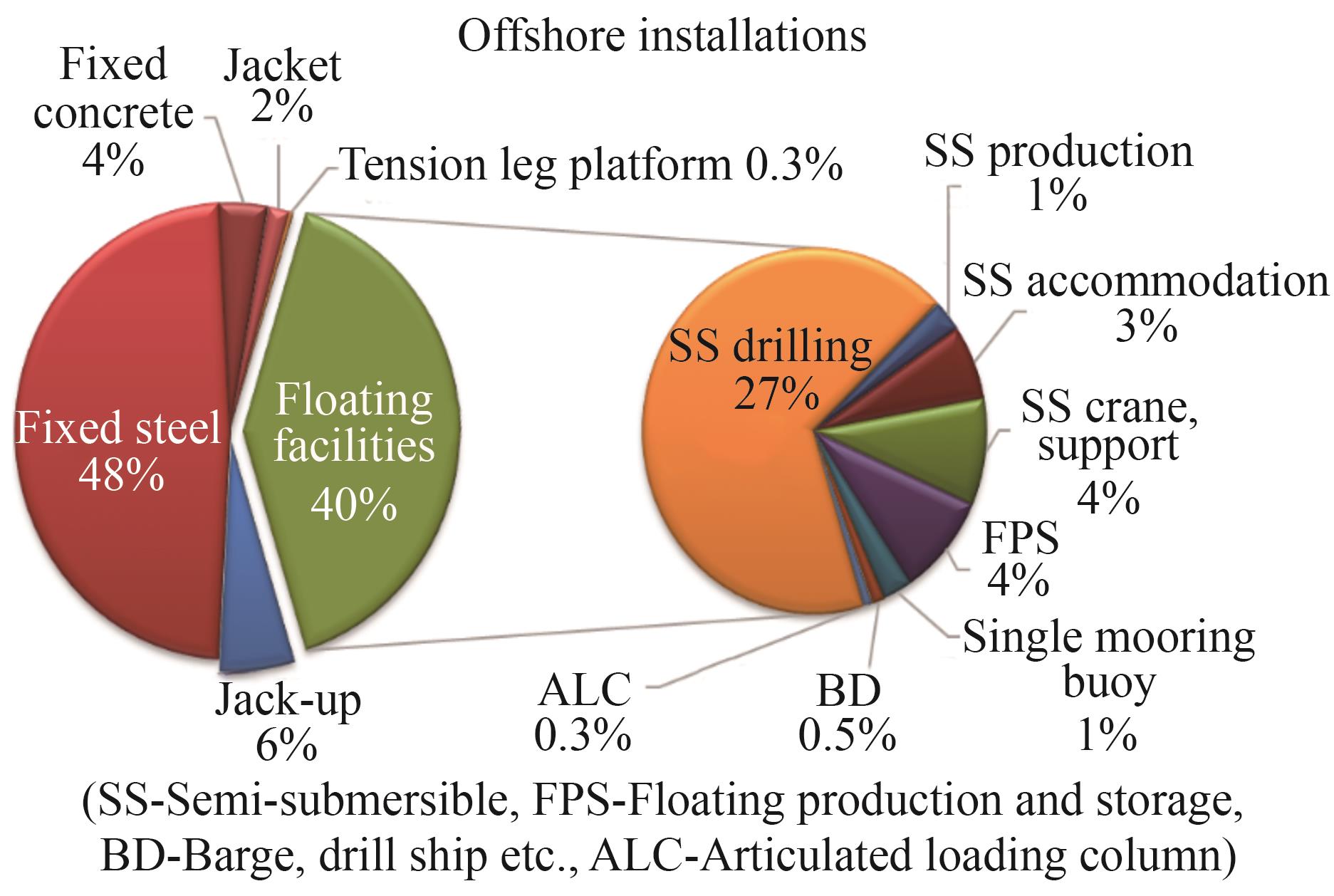

Figure  4  Distribution of allision incident with type of offshore installations

Download: Full-Size Img

3.1.5   Distribution of incidents by severity

Different databases classify the severity of incidents in different ways. This study organizes incidents into groups for analysis, mainly using the HSE taxonomy described in the reports (Robson, 2003; Loughney et al., 2019). The impact of allision on offshore installation (damage) is acknowledged as severe, moderate, minor and none.

Though 3% of incidents are heightened to serrious accidents and 10% are moderate, yet the major concern is that 53% of them are minor incidents. 15% of causes remained unknown and thus unspecified in the database (Figure 5).

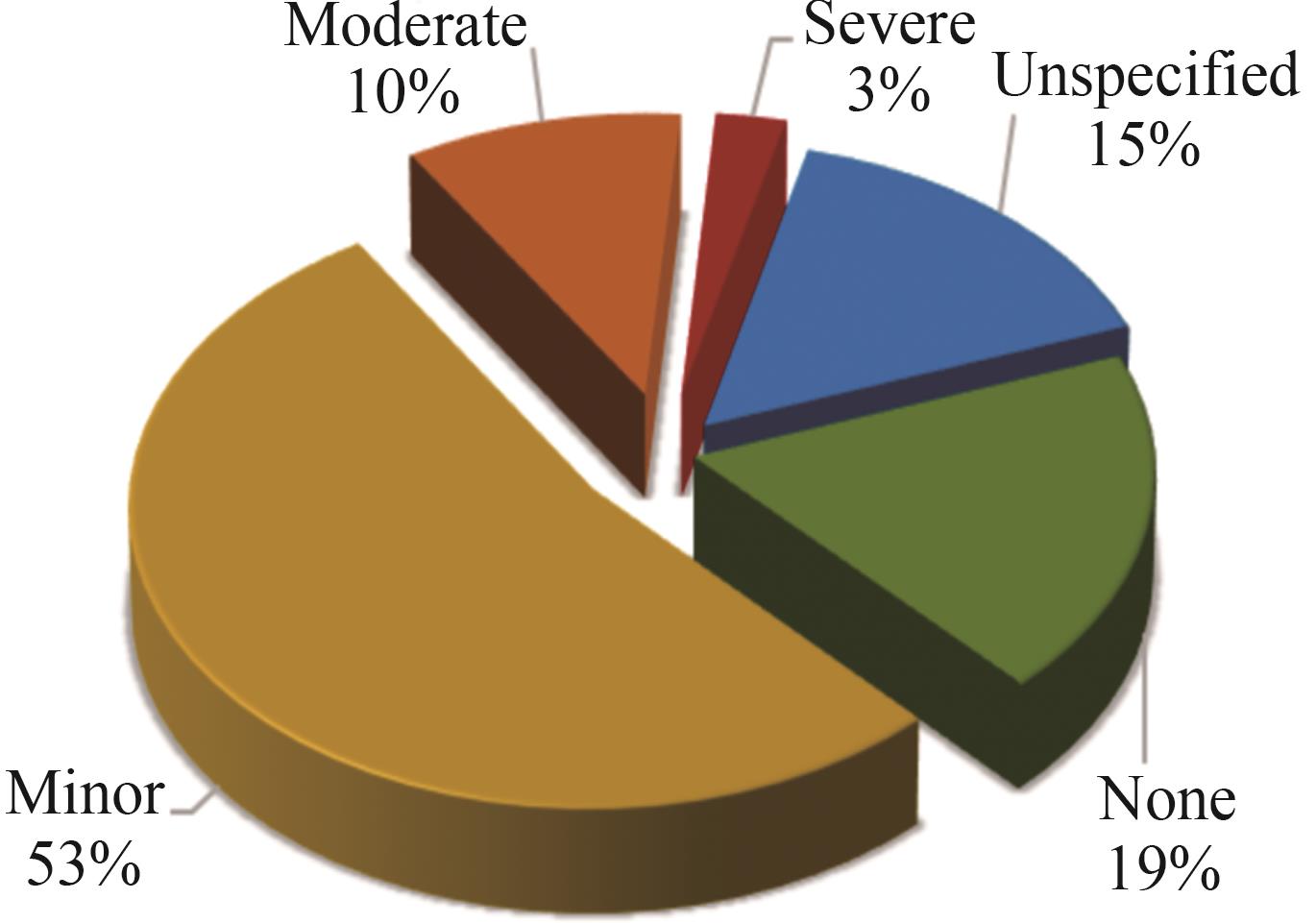

Figure  5  Distribution of offshore installation damage class

Download: Full-Size Img

3.1.6   Causal factors of allisions

The analysis of results in terms of causal factors of allision incidents is shown in Figure 6, which displays their distribution in the dataset. Human errors contribute to most accidents (30%), while equipment failures account for 22% and external factors for 15%. This study aims to identify the causes of these incidents; however, the limited information in the data means that 33% of the immediate causes remain unknown. This is a common issue with the analysis of incidental data, as a significant portion of incidents remains unanalyzed due to a lack of reporting, inadequate understanding of the incident, or insufficient resources.

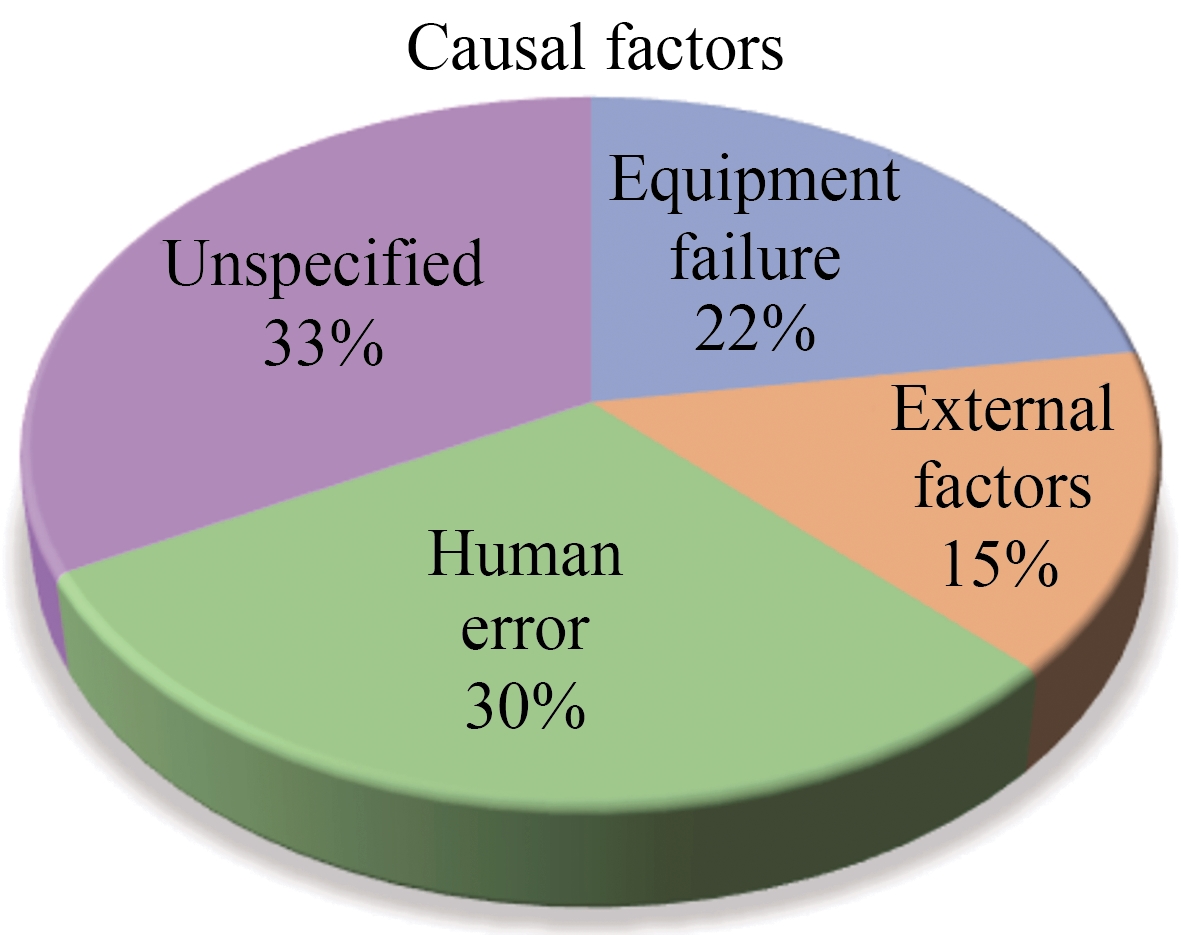

Figure  6  Causal factor of allisions

Download: Full-Size Img

3.1.7   Basic causes of allisions

Risk assessment can be effectively carried out if a good understanding of the basic causes leading to an accident is achieved. The thorough analysis of compiled data produces a generic causation structure, exposing the next layer of hazard identification. It is improvised to break down further possible weather elements that are vital for allision scenarios. As discussed in section 3.1.1, other databases were consulted, which identified that heavy rain, thick fog, extreme waves and wind conditions are the main weather conditions causing allision. The quantitative details are derived from expert elicitation from the author's previous study (Bhardwaj et al., 2024).

Of the 557 allision incidents analyzed, basic causes were identified for 375 (Figure 6). These have been slightly revised according to the authors' interpretation. However, the basic causes reflect only the final recorded factors and may not represent the underlying root causes that contributed to the events.

First, in Figure 7, the distribution of basic causes for equipment failure are depicted. Engine failures are mostly due to control equipment failures, constituting 21%, while engine power failures include 10% of overall equipment failures. Failures of Dynamic Positioning (DP) equipment include control failures (6%), computer failures (1.6%), electrical failures (1.6%), and remote-control failures (0.8%). Other critical equipment requiring particular attention due to their susceptibility to failure includes thrusters, steering systems, mooring equipment, and electrical or power-related components. Other causes, such as propeller, crane, and rudder failures, each account for approximately 0.8%.

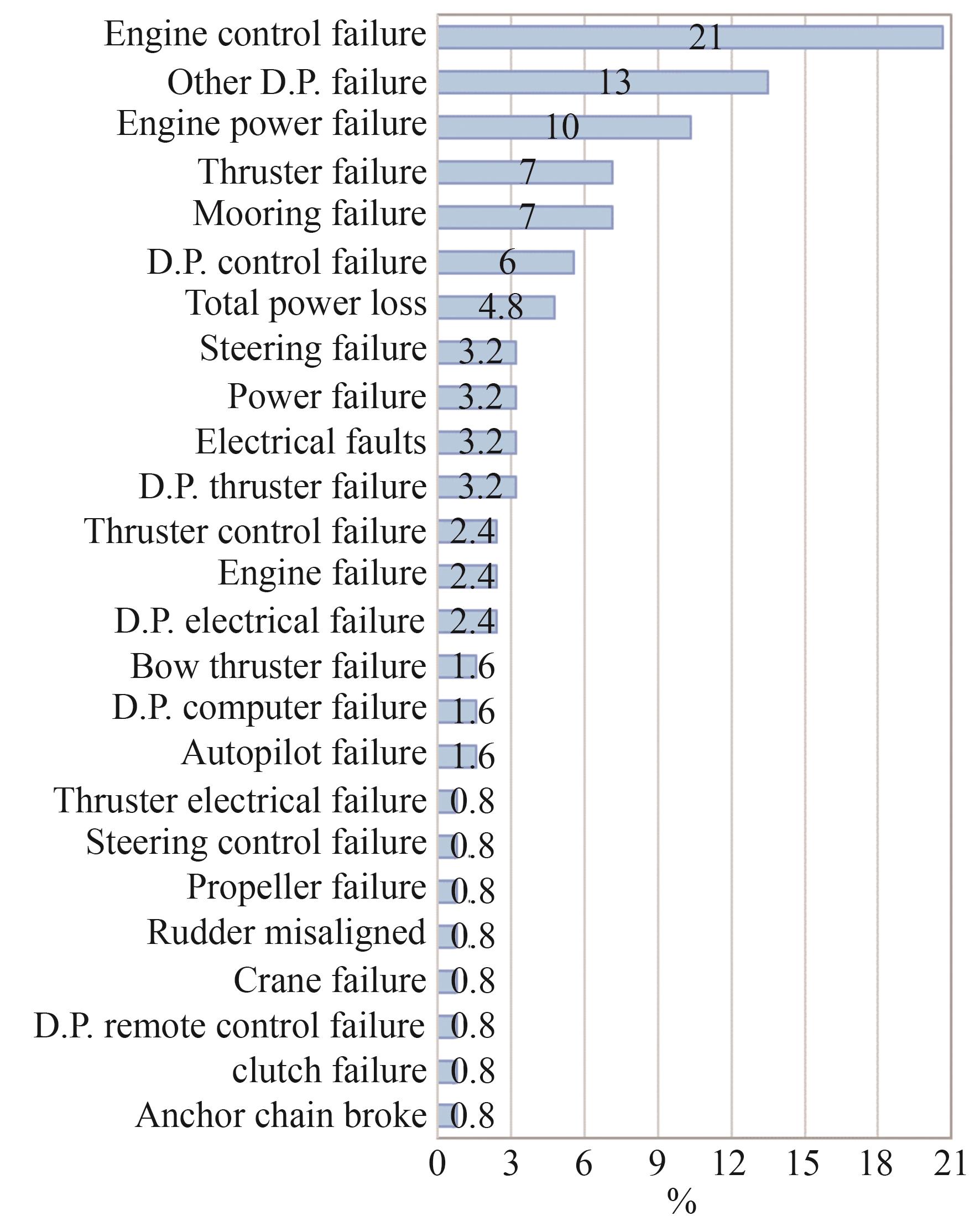

Figure  7  Basic causes of equipment failure

Download: Full-Size Img

The other two crucial causal factors, external factors and human errors, are analysed for the basic causes. In both cases, a large share of basic causes has been found to be associated with a single cause. Therefore, these are classified further by experts. Figure 8 presents the basic causes, split into two frames, distributed based on observed data (Data) and expert elicitation (Expert).

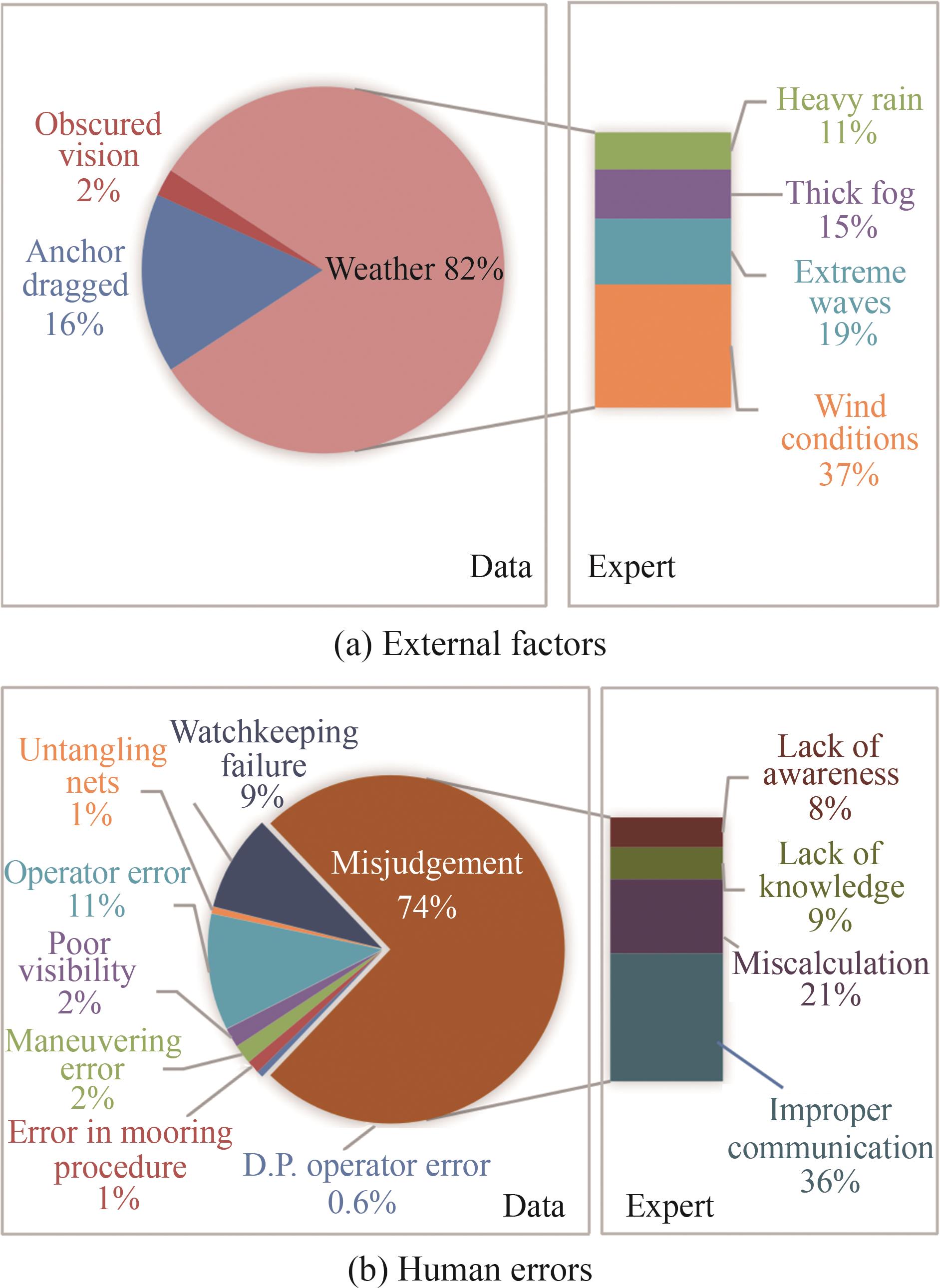

Figure  8  Basic causes

Download: Full-Size Img

As shown in Figure 8(a), external factors are the primary cause of events resulting from adverse weather conditions (82%), followed by anchors being dragged (16%) and obscured vision (2%).

The distribution of common human errors involved in allision incidents is depicted in Figure 8(b). Three-fourths of the errors come under misjudgments, while other significant ones are operator error (11%) and watchkeeping failure (9%). Following the above scheme, misjudgments are further classified as lack of awareness, lack of knowledge, miscalculation and improper communication. Future research will extend the current framework to more precisely identify the nature of errors and root causes through a secondary level of analysis.

3.2   Estimation of the prior probabilities of basic causes

This section primarily builds upon the results from the previous study, focusing on the key inputs for the present approach. As summarized in Section 2.1 and further detailed in Bhardwaj et al. (2024), the main input for the calculation of prior probabilities is annual allision frequency data.

From the analysis conducted in section 3.1, the basic causes are ranked from most important to least important based on the occurrence in the dataset. Table 3 presents the rankings of basic causes.

For the sake of simplicity in the analysis, a smaller set of annual allision frequency data is gathered from the HSE (Loughney et al., 2019), as shown in Table 2. It is to be noted that the last 16-year evidential data is used here to keep calculations simple and as adopted in Bhardwaj et al. (2024). The annual occurrence rate is found by comparing the number of allision incidents reported with the number of installations operating in that year.

Based on the rationale that the annual allision occurrence rate ($N_t$) can be distributed among all identified basic causes (h = 1, 2, …, 42), the corresponding annual contributing occurrence rates (${\lambda }_h^t$, h = 1, 2, …, 42, t = 1, 2, …, 16) are defined as follows

The equation above applies to time t and can be expressed in normalized form as follows

The left-hand ratio is independent of time and reflects the normalized contribution of each basic cause to the overall occurrence of the final event. There can be multiple ways to deduce these weights, such as through the results of simple statistical analysis. Nonetheless, this study builds upon the expert-based methodology employing the DCM, as detailed in the preceding research (Bhardwaj et al., 2024), which implies

where $w(l_h)$ is the weight deduced from DCM for a basic cause $(l_h)$.

For the given weights $w(l_h)$ from the previous study (Bhardwaj et al., 2024), and the annual occurrence rates $(N^t)$ from Table 2, occurrence rate contributed by each cause for each year can be determined as follows ${\lambda }_h^t=w(l_h)\times N^t$. Some steps of the estimations of this section are shown in Appendix A.

Across 16 years, contributing occurrence rates for each basic cause were calculated and analyzed using Hierarchical Bayesian Analysis (HBA). The analysis resulted in posterior predictive distributions of the basic event occurrence frequencies, which can be regarded as prior probabilities of their occurrence. The complete results are presented in the last column of Table 3. Thereby, the prior probabilities of basic causes are calculated using evidential data, DCM and HBA.

3.3   BN allision model

The initial process in section 3.1 identifies basic causal factors that are included in the risk assessment of allision accidents. The purpose is to construct a hierarchical representation of the risk-influencing factors underlying allision accident scenarios. The information is used to relate the allision, the intermediate and the basic causes. After understanding the incident's causation, a directed acyclic graph (DAG) BN model is structured based on the structure and relationship among the contributory parameters. The BN model in this study is built using GeNIe (Langseth et al., 2009; Langseth and Portinale, 2007) software developed by the Decision Systems Laboratory at the University of Pittsburgh.

Figure 9 presents the probabilistic allision model. Furthermore, consequences are also modelled. The framework consists of 42 root nodes indicating the basic causes of the allision accident. In the investigation reports, the basic cause is recorded as the last identified factor. While this may not always be the actual root cause, it may still be influenced by deeper contributory factors. For the purpose of this study, the final listed cause is assumed to be the basic cause.

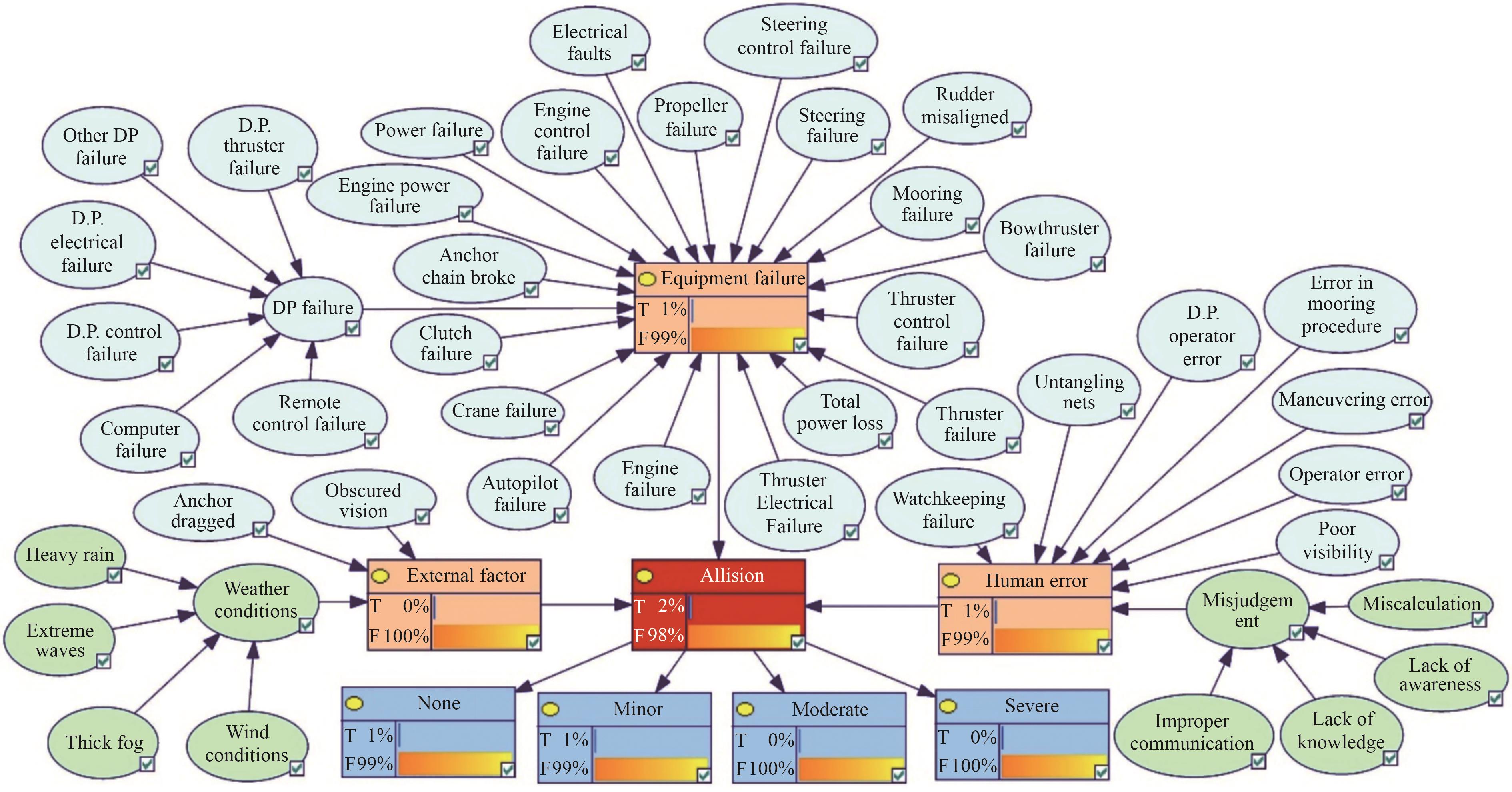

Figure  9  BN model for allision accident (consequences are represented by blue nodes, immediate causes by orange nodes, and assumed factors by green nodes)

Download: Full-Size Img

Intermediate nodes represent the principal causal factors and intermediate causes. Figure 9 shows the BN allision model with green nodes identified by expert knowledge. It is important to highlight that the model incorporates only the factors that were actually observed in accident reports, along with those considered most probable based on expert judgement.

After establishing the qualitative framework, the model must be quantified by defining states and assigning probabilities. Each node in the Bayesian Network is given two states "T" for True (present) and "F" for False (absent) to indicate whether a particular causal factor exists.

The prior probabilities applied in the model were obtained from the evaluation detailed earlier and are presented in Table 3. For the node D.P. Operator Error, the probability of occurrence is $\mathrm{2.24}\times {\mathrm{10}}^{-\mathrm{4}}$, which is fed to BN as $\mathrm{T}=\mathrm{2.24}\times {\mathrm{10}}^{-\mathrm{4}}$ and $\mathrm{F}=\mathrm{1}-\mathrm{2.24}\times {\mathrm{10}}^{-\mathrm{4}}$. Similarly, all root nodes are assigned probabilities of occurrence and non-occurrence of associated basic cause.

A key aspect of this BN model is the computation of conditional probability tables (CPTs). To minimise complexity, Noisy-OR gates (Langseth et al., 2009; Langseth and Portinale, 2007) are applied at the intermediate nodes, while a simple OR gate is used for the final event, allision.

If interdependencies among failure causes need to be represented, more advanced CPT formulations such as those presented in Adedigba et al. (2016) may be consulted. This study focuses on constructing a practical allision scenario using realistic, although limited, data. The authors do not claim absolute numerical precision; the model can be refined as more data become available, serving both qualitative and quantitative purposes.

The probability of allision is estimated as $\mathrm{3.40}\times {\mathrm{10}}^{-\mathrm{3}}$, while the probabilities of various consequence classes are calculated as $\mathrm{7.48}\times {\mathrm{10}}^{-\mathrm{3}}$ for None, $\mathrm{2.13}\times {\mathrm{10}}^{-\mathrm{3}}$ for Minor $\mathrm{4.11}\times {\mathrm{10}}^{-\mathrm{4}}$ for Moderate and $\mathrm{1.05}\times {\mathrm{10}}^{-\mathrm{4}}$ for Severe.

3.4   Sensitivity analysis model

A key component of BN analysis is identifying the most influential input parameters through sensitivity analysis. Its purpose is to evaluate how variations in the input parameters affect a selected model output. This step is essential in risk assessment, as it helps determine model robustness and supports model validation (Tarantola et al., 2007). The simplest form of sensitivity is expressed as the partial derivative of an output with respect to an input parameter, which represents a local sensitivity measure, since it is evaluated at a specific point within the input space.

Another important approach for assessing model properties and robustness is sensitivity to evidence. This method examines changes in the posterior probability distribution of the BN under different conditions, typically using entropy or mutual information (also termed variance reduction for continuous variables). Based on this approach, a sensitivity metric is adopted in this study as follows.

The change in the probability of basic events (variable Y_i) from prior to posterior is measured when the target node (final event) is fixed to a 100% occurrence. This variation is expressed as a change ratio ($\mathrm{C}{\mathrm{R}}_{Y_i}$) given by:

Where Pr (100%) is the probability of Y_i after setting the final event to 100%.

The overall influence of variable $Y_i$ on the final event is quantified by a global sensitivity index, calculated from the change ratio as follows:

A sensitivity analysis is also performed to investigate how the root node probability would affect the final node. The final event "Allision" is set to True = 100%, indicating its occurrence, and the basic causes now correspond to the posterior probabilities. Figure 10 shows the BN when the allision event is set to 100%. The posterior probability values are used to calculate the sensitivity factors $S_{Y_i}$ of the variables as per Eqs. (7) and (8). The results of the sensitivity analysis are presented in Table 4.

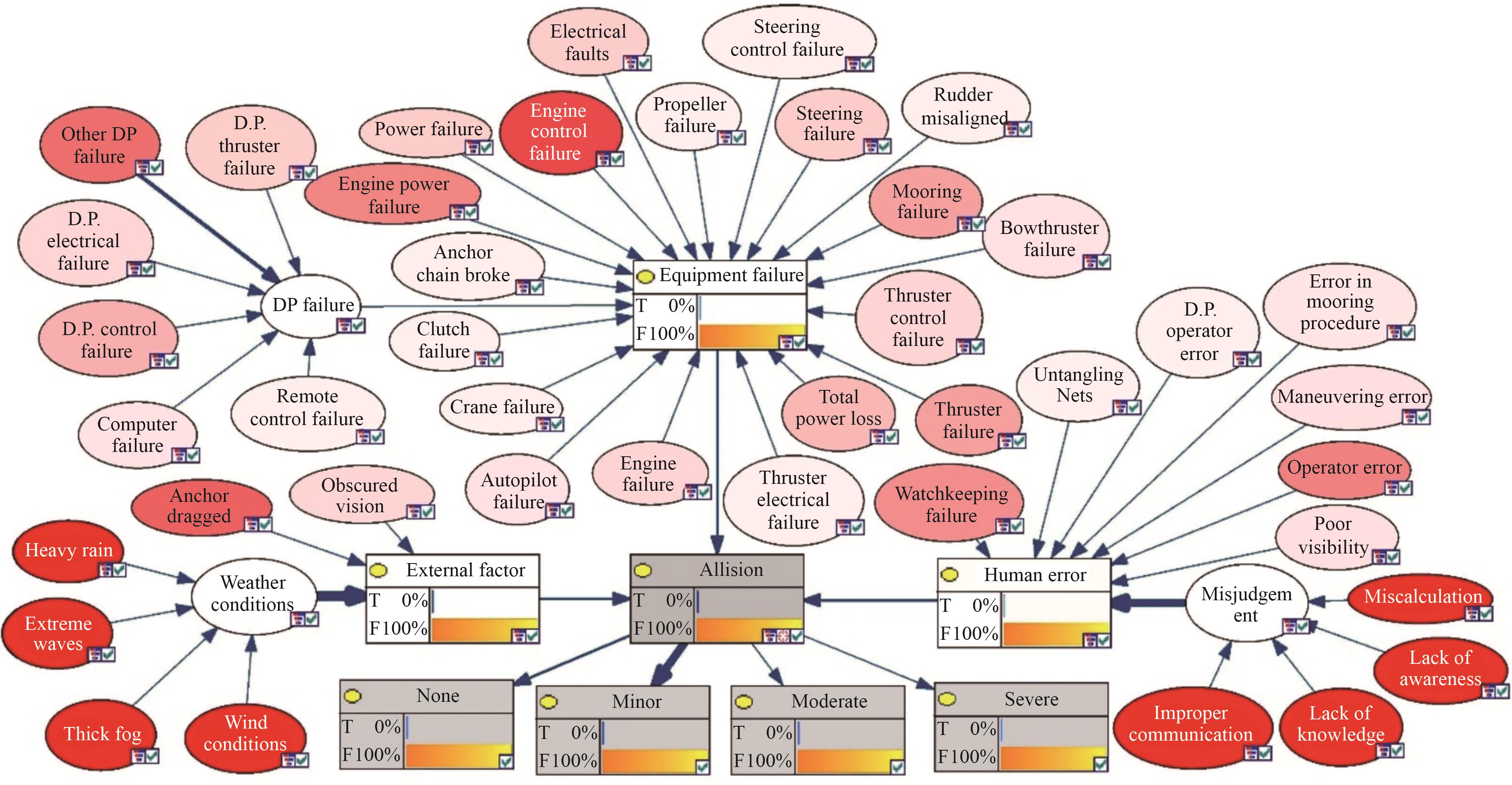

Figure  10  BN when evidence is set to allision (The relative importance of the causes is illustrated using varying intensities of red, with deeper shades representing higher significance)

Download: Full-Size Img

A sensitivity analysis is provided in Figure 10, which shows the node changes maximum in the sensitivity analysis. The colour changes indicate more visual relative sensitivity.

The causes related to weather, such as heavy rain, extreme waves, wind conditions, and thick fog, have the greatest effect, making the allision probability worse by a power of two.

The second group of causes that significantly influence the allision probability are miscalculation, improper communication, lack of knowledge and awareness. These causes have a significantly greater influence on the final event compared to other causes, as indicated by the dark red nodes in Figure 10 and the sensitivity values in Table 4. Other important causes are engine control failure, anchor dragged, engine power failure, other DP failure and operator error. The information provided in this section may be useful for decision-makers to prioritize their resources.

4   Conclusions

This study proposes an integrated approach for risk assessment and probabilistic modelling of allision accidents of vessels with offshore installations.

The methodology consists of data collection and analysis, development of a causal framework, and estimation of prior probabilities as the main steps. Data is collected from UK Health and Safety Executives describing allision accidents around the UK continental shelf. Further sources of allision accidents are consulted to understand the causation phenomenon. The following are some key findings from the statistical analysis of the data.

• Supply vessels account for 61% of involvement in allision incidents;

• allision happening in a type of vessel is specific to the month of the year;

• most of the incidents are developed during cargo transfer (23%), approaching installation (18.5%) and cargo unloading (11%);

• fixed installations account for 48% of incidents while Semi-submersible drilling units are involved in 27% of the incidents;

• 3% of incidents are escalated to severe accidents, 10% are moderate and 53% of them are minor incidents.

The result of causal analysis revealed that the main contributors to accidents are human errors (30%), followed by equipment failures (22%) and external factors (15%). The next layer of analysis identified the basic causes and last identified causes in the datasets.

By the application of Bayesian networks, the causal network is framed, representing the main event as an allision accident, intermediate causes and basic causes. The issue of prior probabilities of basic causes is addressed using a novel technique that synthesises historical data and an expert's subjective knowledge.

Some insights for the allision risk model are provided via probabilistic analysis. Finally, a sensitivity analysis is conducted, which suggests that weather-related causes, such as heavy rain, extreme waves, wind conditions, and thick fog, have the greatest effect on allision probability.

This study addresses data scarcity and reporting bias by developing a BN model that also incorporates consequence nodes. Despite its value, limitations remain: human error is dominant yet still underrepresented, and the model requires more data for robust representation. Moreover, BNs are not universally transferable and must be calibrated to regional conditions. Future work will integrate temporal variability, AIS data, near-miss reports, and simulation outputs to mitigate underreporting, while hybrid BN models combined with human reliability analysis will be explored to enhance predictive capacity and practical applicability.

The present methodology provides much detailed information about allision scenarios for the stakeholders in the offshore sector, which is useful in policy-making to ensure safety.

Appendix A

1   Application of DCM

There are 42 identified basic causes, which are ranked in consecutive levels l₁ to l₄₂ (where l1 corresponds to the least important cause and vice versa) based on the number of occurrences in databases. The number of blank cards is placed between two consecutive levels (say "1" between l₁ and l₂ …. say "6" between l₄₁ and l₄₂) in the comparison table, while rest of the entries are filled using the consistency condition (Corrente et al., 2021b). The end result of this analysis yields the relative weight of basic causes- $w\left(l_{\mathrm{2}}\right)$, $w\left(l_{\mathrm{3}}\right)$ … $w\left(l_{\mathrm{42}}\right)$ which are estimated as 0.010 3, 0.011 2, … 0.040 9, respectively.

Table  A1  Comparison table

	l1	l2	l3	l4	.	.	l42
l1		1	4	7			102
l2			2	5			100
l3				2			97
.					.
.						.
l41							6
l42

2   Estimation of the occurrence rate of basic causes (${\lambda }_h^t$, h = 1 to 42 basic causes)

If $N^t$ be the annual occurrence rate of allision, the annual contributing occurrence rates can be calculated for each cause per year as ${\lambda }_h^t=w\left(l_h\right)\times N^t$.

3   Estimation of probability of occurrence using HBA

The probability of a basic cause $({\theta }^t)$ can be derived from contributing occurrence rates (${\lambda }_h^t$, h = 1 to 42 basic causes, t = 1 to 16 years) observed against time using the HBA. The ${\theta }^t$ is considered to follow a gamma distribution with α and β being its hyperparameters, that is ${\theta }^t$ ~ gamma (α, β). Furthermore, hyperparameters are also assumed diffusive gamma distribution as α ~ gamma (0.000 1, 0.000 1) and β ~ gamma (0.000 1, 0.000 1).

Assuming the basic causes to be an event-based process and thus, the contributing occurrence rates in each time interval (year) follow a Poisson distribution as ${\lambda }^t$~ Poisson (${\theta }^t$, t). The corresponding values of ${\lambda }^t$ for each basic cause are listed in Table A2.

The corresponding estimations are done in OpenBugs which uses Markov Chain Monte Carlo simulations. Figure A2 illustrates the posterior distribution $\overline{\theta }$ inferred as probability density function of a sample basic cause–Untangling nets (i.e. h = 2).

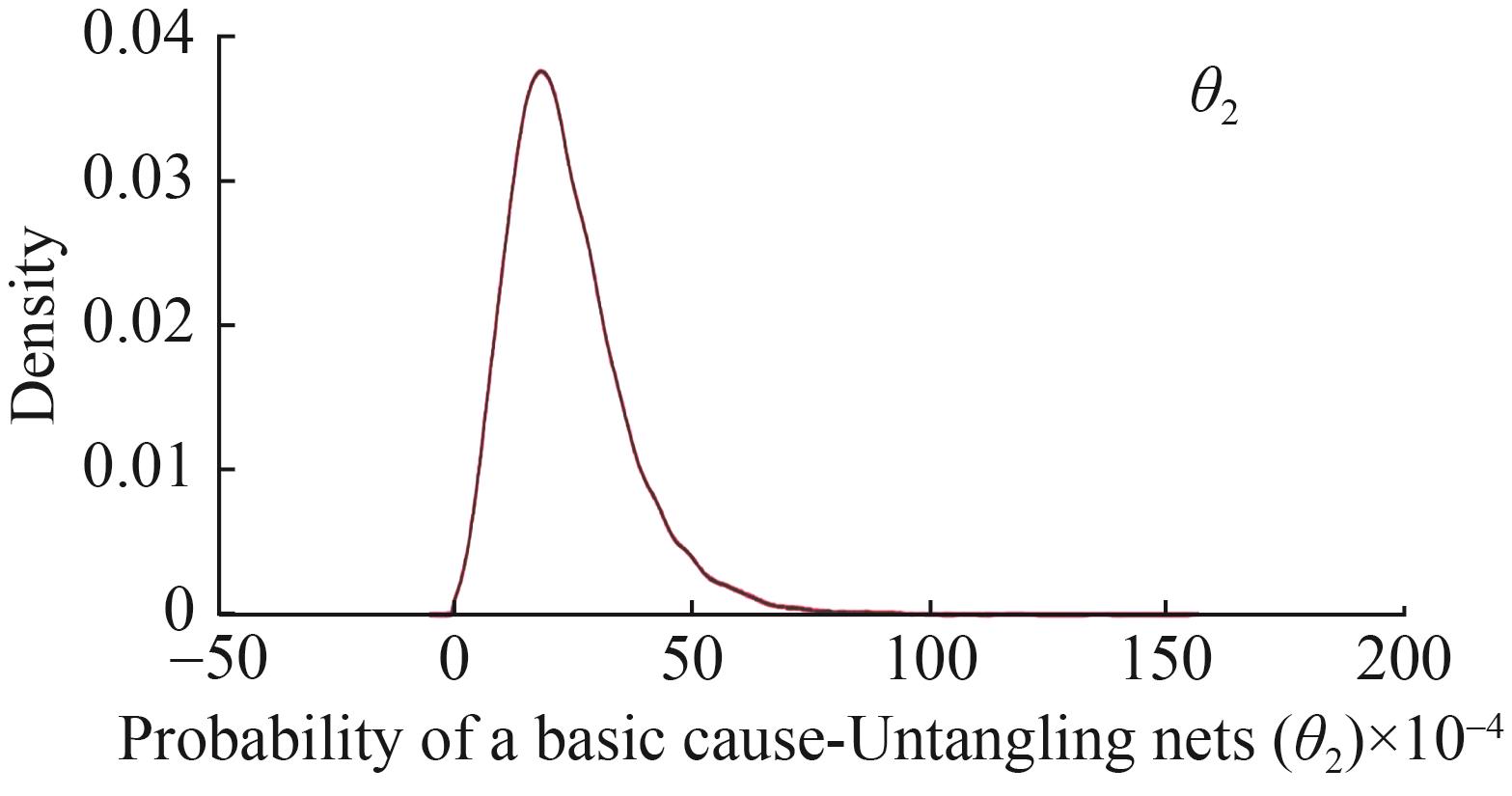

A1  Posterior distribution (${\overline{\theta }}_{\mathrm{2}}$) of basic cause–Untangling nets
