地球物理学报  2021, Vol. 64 Issue (5): 1496-1507   PDF
地球电子外辐射带的数据同化建模与分析
朱佳楠1,2, 郭建广3, 倪彬彬1,2, 曹兴1, 项正1, 付松1, 顾旭东1, 马新1
1. 武汉大学电子信息学院空间物理系, 武汉 430072;
2. 中国科学院比较行星学卓越创新中心, 合肥 230026;
3. 中国气象局国家空间天气监测预警中心, 北京 100081
摘要:地球电子外辐射带对太阳与地磁活动呈现高度动态变化的响应,了解外辐射带的全球动态变化过程对于近地空间粒子辐射环境的理解认知和预测预报具有重要意义.基于卡尔曼滤波数据同化方法,本文利用范阿伦A星、B星和GOES-13和GOES-15四颗卫星的辐射带电子观测数据,分别利用三种不同维度的辐射带物理模型,将观测结果与数值结果有机融合,对2013年3月地球外辐射带电子通量的径向分布与变化进行数据同化分析.结果表明,考虑了磁层波动与辐射带电子共振作用引起的径向扩散、投掷角扩散以及能量扩散过程的三维同化模型可有效、合理地重现外辐射带电子通量的径向分布.本文进一步利用该三维同化模型对2013年一整年外辐射带电子的相空间密度分布进行重构与分析,得到了不同绝热不变量和不同地磁活动条件下电子辐射带的时空演化过程,从而为深入理解外辐射带电子的变化过程和动力学机制提供了强有力信息.通过分析同化过程中的新息矢量以及度量同化过程中观测数据在多大程度上修改了物理模型结果,还有助于定量分析现有辐射带物理模型中的源项和损失项的相对贡献以及可能忽略的物理机制或过程.
关键词: 范艾伦卫星      GOES卫星      地球电子外辐射带      多维数据同化      电子相空间密度
Multi-dimensional data assimilation and analyses of Earth's outer electron radiation belt
ZHU JiaNan1,2, GUO JianGuang3, NI BinBin1,2, CAO Xing1, XIANG Zheng1, FU Song1, GU XuDong1, MA Xin1
1. School of Electronic Information, Wuhan University, Wuhan 430072, China;
2. Chinese Academy of Sciences Center for Excellence in Comparative Planetology, Hefei 230026, China;
3. Key Laboratory of Space Weather, National Center for Space Weather, China Meteorologic Administration, Beijing 100081, China
Abstract: Responses of Earth's outer electron radiation belt to solar and geomagnetic activities are highly dynamic. Exploration of the dynamic variability of the outer radiation belt is of significance to comprehending, nowcasting and forecasting the complex particle radiation environment in geospace. Using the Kalman filter method, we combine the radiation belt electron observations from four satellites, i.e., Van Allen Probes A and B, GOES-13 and GOES-15, with three physical models of the outer electron radiation belt with different dimensions to assimilate the radial distributions and variations of outer radiation belt electron fluxes in March 2013. Detailed analyses of the assimilative results demonstrate that the three-dimensional (3-D) assimilation model that includes the effects of radial diffusion, pitch-angle diffusion and energy diffusion can reproduce effectively and reasonably the radial distributions and temporal changes of outer radiation belt electron fluxes. We further adopt this 3-D outer radiation belt data assimilation model to reconstruct and evaluate the dynamic variations of outer radiation belt electron phase space densities (PSD) for different values of the adiabatic invariants under different geomagnetic conditions over the entire year of 2013. The assimilative spatio-temporal evolution of outer radiation belt electron PSD provides robust information of the long-term radial profiles of outer radiation belt electrons to understand the underlying physical processes and dynamic mechanisms. In terms of calculations of the innovation vector and evaluations of how satellite observations can alter the simulation results of the physical radiation belt model, we can quantitatively evaluate the relative contributions of the source, acceleration and loss terms considered in the physical model and explore as well the physical processes/mechanisms that may be missing in it.
Keywords: Van Allen Probes    GOES satellites    Earth's outer radiation belt    Multi-dimensional data assimilation    Electron phase space density
0 引言

地球辐射带由地球磁场捕获的高能带电粒子构成,被槽区分割为内辐射带和外辐射带.其中内辐射带(距地心1.1~2.5RE)主要由质子组成,其通量水平相对稳定,外辐射带(距地心3~8RE)主要由电子组成,其通量呈现着复杂、剧烈的动态演化特征.由于外辐射带中高能电子对卫星仪器和宇航员健康存在潜在威胁,研究辐射带电子的分布与演化过程有着十分重要的意义.

辐射带电子的分布和演化与磁暴发生关系密切.Reeves等(2003)通过分析1989—2000年期间276个磁暴事件得出,磁暴可以增加或减少辐射带相对论电子的通量,也会使电子通量保持不变.电子通量的变化过程是电子输运、加速和损失过程的平衡.由ULF波驱动的向内的径向扩散被认为是电子加速的重要机制(Ozeke et al., 2012, 2014),向外的径向扩散则造成电子损失(Shprits et al., 2008; Bortnik et al., 2006).波粒相互作用引起的能量和投掷角扩散也能够有效地加速和损失电子(Meredith et al., 2002; Horne et al., 2005; Thorne et al., 2005; Cao et al., 2019; Ma et al., 2020).一系列研究表明,合声波既可以加速电子也能导致电子的散射损失(Summers et al., 2007a, b; Thorne et al., 2007, 2013),嘶声波通过投掷角散射可损失几十千到几兆电子伏特的电子(Meredith et al., 2007, 2009; Baker et al., 2007; Ni et al., 2013; Cao et al., 2017, 2020).

研究辐射带电子相空间密度(Phase Space Density,简记为PSD)分布可以分析潜在的电子动态变化机制(Xiang et al., 2017, 2018; 刘泽源等, 2020).但是卫星观测受限于轨道的时空位置和有限的投掷角、能量范围.模拟辐射带的物理模型存在计算方程简化处理、初值和边界值难以确定等不足.数据同化技术将有限的卫星观测与物理模型结合起来,得到辐射带电子分布的最佳估计.

Naehr和Toffoletto等(2005)首先将基于卡尔曼滤波的数据同化方法使用于辐射带粒子分布的模拟与预测上,验证了该方法的可行性.Koller等(2007)Shprits等(2007)Kondrashov等(2007)的工作进一步表明,利用数据同化方法可以准确地再现辐射带电子PSD分布.后续的工作丰富了数据同化方法,Ni等(2009a)表明同化过程中使用多个卫星的观测数据较使用单个卫星误差更小,并发现同化结果对于磁场模型的选择相对不敏感(Ni et al., 2009b).Daae等(2011)研究了边界条件和损耗模型,表明卡尔曼滤波对各种模型参数都具有鲁棒性.使用上述只考虑径向扩散的同化模型,Shprits(2012)Ni等(2013)细致分析了辐射带电子的动态变化过程.考虑径向扩散、投掷角扩散、能量扩散的三维同化模型也被运用于辐射带研究工作中,并在此基础上提出了集成卡尔曼滤波(Bourdarie and Maget, 2012)、分裂算子卡尔曼滤波等方法(Shprits et al., 2013; Kellerman et al., 2014).数据同化中一个重要的研究对象是新息矢量,它是同化过程中观测对物理模型修改程度的度量.Shprits等(2012)利用新息矢量进行统计分析,发现槽区存在局部加速机制.Cervantes等(2020)通过对比各种损失机制下的新息矢量,得出了不同损失机制的作用范围及其与地磁活动间的关系.

本文首先利用范艾伦A星、B星GOES-13、GOES-15四颗卫星的数据对2013年3月的辐射带电子通量进行了同化分析,细致对比了一维、二维、三维不同辐射带物理模型下的同化结果,并利用三维同化模型重现了2013年一整年电子PSD的长期演化.通过分析同化过程中的新息矢量,本文进一步讨论了所使用同化模型的性能.

1 同化方法与数据 1.1 卫星观测数据

本文使用了范艾伦双星和GOES-13、GOES-15四颗卫星2013年一整年的辐射带电子观测数据.需将卫星电子通量数据在相空间坐标(μ, K, L*)下转换为PSD作为同化过程的输入,转化过程借鉴了Ni等(2009a)的方法.并参考Kellerman等(2014)的工作,使用PSD匹配算法对来自不同卫星的观测数据进行相互校准.

范艾伦卫星包括A星、B星两颗运行轨道和携带仪器完全相同的卫星,其轨道倾角约10°,近地点高度约1.1RE,远地点为约5.9RE,运行轨道周期约9 h.本研究使用范艾伦卫星搭载的高能粒子、成分分析与热等离子体(ECT, Energetic Particle, Composition, and Thermal Plasma)科学探测单元,其中磁化电子离子分光仪(MagEIS, The Magnetic Electron Ion Spectrometer)提供了能量范围约10 keV~4 MeV的电子通量数据,相对论电子质子探测器(REPT, Relativistic Electron Proton Telescope)提供了能量范围约1.8~20 MeV的粒子数据.卫星投掷角分布在均匀网格中插值,步长为5°.GOES系列卫星为一系列地球同步轨道卫星,用于对近地空间气象学和空间天气的监测.本研究使用了GOES-13和GOES-15两颗卫星的数据,其上搭载的粒子辐射探测仪器EPEAD(Energetic Proton, Electron, and Alpha Detector)可用于探测0.6~4 MeV的电子,MAGED(MAGnetospheric Electron Detector)用于探测30~600 keV的电子.

1.2 辐射带扩散模型

借鉴Shprits等(2008)Subbotin(2010)等的工作,本文使用VERB-3D程序,通过求解三维Fokker-Planck扩散方程模拟电子PSD的演化,三维Fokker-Planck扩散方程的表达式为

(1)

其中f表示电子PSD;μ为第一绝热不变量,与电子的回旋运动有关;J为第二绝热不变量,与电子的弹跳运动有关;L*与第三绝热不变量Φ成反比关系,沿粒子漂移路径保持不变;DL*L*DppDαα分别是弹跳平均下径向、能量和投掷角扩散系数;T(α0)为与粒子弹跳频率有关的函数.

求解Fokker-Planck扩散方程需要已知扩散系数.参照Brautigam和Albert(2000)的方法,径向扩散系数表示为与Kp指数相关的函数.本研究只考虑嘶声波和合声波引起的电子散射,使用FDC程序(Full Diffusion Code)计算得到(Ni et al., 2008, 2015; Shprits et al., 2009; Cao et al., 2016, 2020)电子投掷角扩散和能量扩散系数,用以量化磁层波动对辐射带电子的影响.

1.3 卡尔曼滤波和新息矢量

卡尔曼滤波是一种对线性系统状态量进行最小方差无偏估计的算法,被用于数据同化过程.假设模型和观测误差是无偏的,且服从高斯分布.在更新时刻,卡尔曼滤波对当前时刻的观测值和扩散模型的预测值进行比较,在知道前一时刻分析误差和前一时刻模型误差的情况下最优地估计出当前时刻的预测误差,从而对预测值进行调整.卡尔曼滤波的计算方法如下:

假设k时刻系统的状态变量为wkf, 系统的状态方程写为

(2)

在辐射带模型中,w为相空间密度值,M为三维Fokker-Planck扩散方程.上标f指模型预测值,k为时间步长.wkt的演变写为如下式,上标t值指观测值.

(3)

其中bkm为模型误差.观测值同样存在误差,写为

(4)

bko为观测误差.通过人为设定观测误差和模型误差,可以调整同化效果.观测矩阵Hk将模型空间映射到观测空间上.在更新时间,使用预测状态向量和观测向量可产生分析状态向量wka

(5)

其中wki=Kk(wkoHkwkf)被称为新息矢量.Kk为卡尔曼增益矩阵,由每个步长中的误差协方差矩阵计算得到.新息矢量通过比较观测值与模型值之间的误差,对模型值加入附加值加以更改,以产生状态向量的最优估计.

与三维Fokker-Planck扩散方程相对应,本文将考虑一种、两种及三种扩散机制的辐射带物理模型描述为一维、二维、三维扩散模型.三组辐射带扩散模型的计算结果被用做本文同化过程的输入,分别为一维纯径向扩散模型,二维径向扩散加投掷角扩散模型,三维径向扩散、投掷角扩散加能量扩散模型.经过卡尔曼滤波的同化处理,分别对应了下文所述的一维、二维、三维同化模型.

2 同化结果与分析 2.1 2013年3月不同扩散模型下辐射带电子通量的同化结果

采用上述数据同化的方法,本文首先计算了2013年3月辐射带电子通量的观测及多维同化结果,如图 1所示.同化过程中设定的观测误差和模型误差均为0.5,即观测误差与模型误差的比值为100%.图 1a展示了在L*=3~7范围内Ek=0.6 MeV,αeq=30°电子通量的卫星观测结果.图 1b—d展示了该能量和投掷角下一维、二维、三维不同扩散模型的同化结果.与上述类似,图 1e—h展示了Ek=1 MeV,αeq=55°电子通量的卫星观测及同化结果.图 1i给出了该时间段内KpDst指数的变化情况.图中的黑线表示由Carpenter和Anderson(1992)模型计算得到的等离子体层顶位置.如Kp指数所示,3月1日和3月17日分别发生了两次磁暴,其中3月17日的磁暴较强.图 1a的观测结果显示,磁暴主相期间辐射带电子通量快速损失,在恢复相通量有所增强并形成峰值.图 1b—d所示三组不同扩散模型下的同化结果均模拟出了磁暴前后电子通量的变化过程,且填补了L*=5.5附近和L*>6.5时观测值的空缺,较为精确地重现了辐射带电子通量的径向分布.图 1e—h所示Ek=1 MeV,αeq=60°电子的通量值略小于Ek=0.6 MeV,αeq=30°的电子通量值,同化模型在该能量和投掷角下也可以模拟出电子通量的分布和变化.

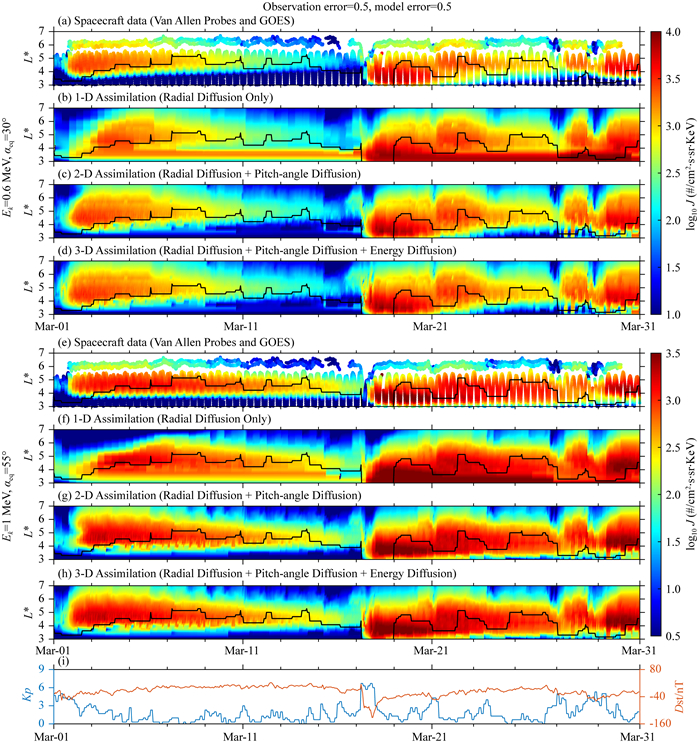

图 1 设定观测误差和模型误差均为0.5时,2013年3月辐射带电子通量的观测结果和一维、二维、三维不同辐射带扩散模型下随时间和L*分布变化的同化结果. (a—d) 对应Ek=0.6 MeV,αeq=30°的辐射带电子;(e—h) 对应Ek=1 MeV,αeq=55°的辐射带电子;(i) KpDst地磁指数随时间的变化.(a—h)中黑线表示等离子体层顶位置 Fig. 1 For the case that both the observation error and model error are 100%, observations of radiation belt electron fluxes and the corresponding data assimilation results using the 1-D, 2-D and 3-D radiation belt diffusion models over the month of March 2013 for radiation belt electrons with (a—d) Ek= 0.6 MeV, αeq=30° and (e—h) Ek=1 MeV, αeq=55°. (i) The time series of Kp and Dst indices. Black curves in (a—h) show the plasmapause location

为进一步展示采用不同维度扩散模型对同化结果的影响,我们在图 1结果的基础上重新设置观测误差为1,模型误差为0.5,即观测误差与模型误差的比值为200%,其余参数与图 1相同,结果如图 2所示.需要说明的是,观测误差与模型误差的比值越大,同化结果越忽视观测对扩散模型的修改,而更关注扩散模型本身的模拟效果.由图 2所示同化结果可以看出,磁暴发生前后电子通量的变化趋势与图 1基本一致,但三组扩散模型的模拟效果表现出明显的差异.与观测相比,图 2b图 2f所示的一维同化结果在磁暴主相期间高L*区域的电子通量值远小于观测值,在磁平静期低L*的电子通量远高于观测值.二维扩散模型在纯径向扩散的基础上加入了投掷角扩散,可以从图 2c和和2g所示的同化结果观察到低L*电子的显著损失,即嘶声波可以对等离子体层顶以内的辐射带电子有效散射.图 2d图 2h在二维扩散模型的基础上加入了能量扩散,可以在L*>4的区域观察到磁暴后电子通量的迅速增加,即在等离子体层顶以外合声波能对辐射带电子有效加速.对比三组维度扩散模型下的同化结果,三维同化模型提供了有效的加速和损失机制,其同化结果能最优地模拟出辐射带电子通量的径向分布.

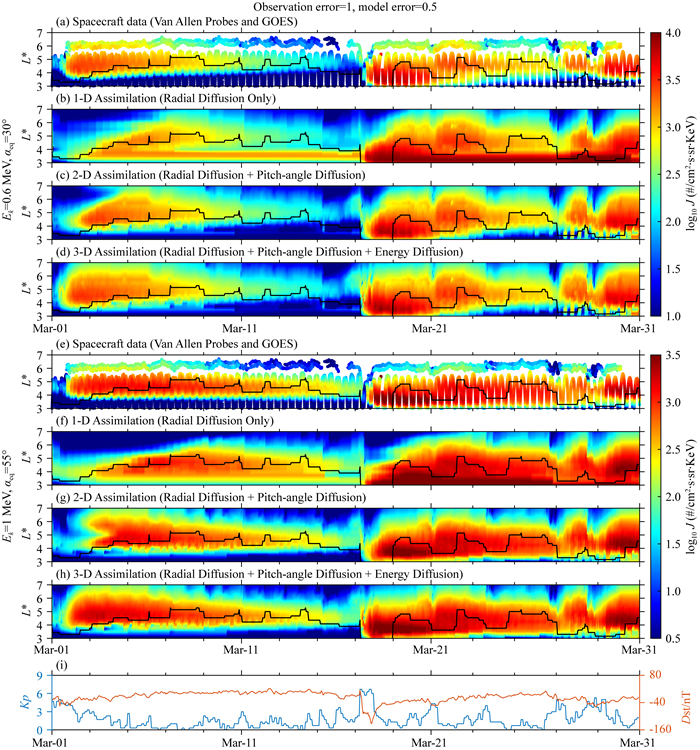

图 2图 1类似,但是设定观测误差为1,模型误差为0.5 Fig. 2 Same as in Figure 1, except for the setting that the observation error is 1 and the model error is 0.5

对应于图 1图 2图 3展示了不同维度扩散模型下的同化结果在不同L*的模拟效果.从左至右对应两组能量和投掷角,从上至下对应两组观测和模型误差,子图自上而下分别为L*= 4、5、6时电子通量的观测和三组同化结果随时间的变化.与图 1图 2的结论一致,L*= 4时,一维同化结果在3月1日磁暴后的磁平静期高于观测结果,L*= 5、6时,一维、二维同化结果在磁暴后均低于观测结果.三维同化结果在两组能量、投掷角和三组L*下均与观测结果很好地吻合,有效修正了一维和二维同化结果的误差,说明除了径向扩散和投掷角扩散,能量扩散对辐射带电子演化也发挥着重要作用.还可以看出,三组同化结果与观测的吻合度随时间的推移变高,由于同化过程会在每个时间步长更新误差矩阵,同化的时间越长模型的同化效果越好.

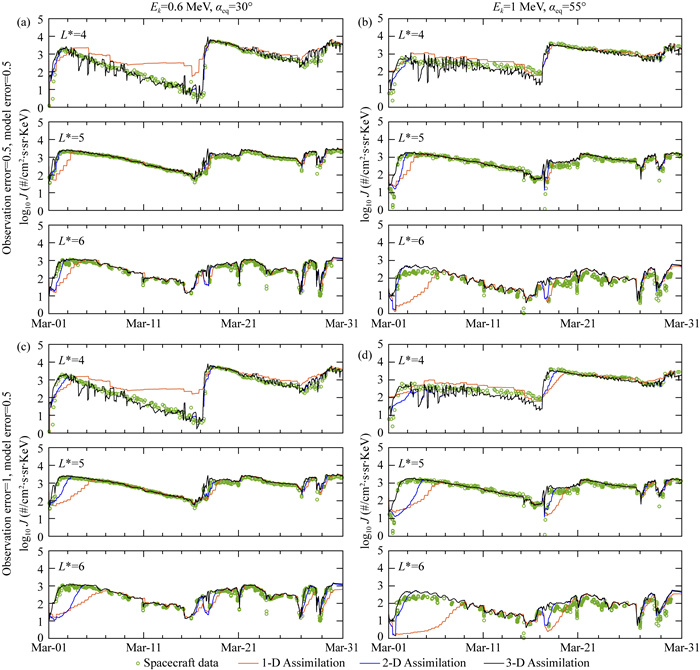

图 3 对应于图 1图 2,当L*=4、5、6时,辐射带电子通量的观测和不同维度辐射带扩散模型下的同化结果的比较 Fig. 3 Corresponding to Figures 1 and 2, comparisons between the observations of radiation belt electron fluxes and the assimilation results in March 2013 for the indicated two at L*=4, 5 and 6

增大观测误差与模型误差的比值可以展示不同维度扩散模型下同化结果的显著差异,减小观测误差与模型误差的比值可以得到与观测更为吻合的同化模型.通过一系列测试,当观测误差与模型误差均为0.5时,三维同化结果已经可以精确地重现辐射带电子的分布和变化.

2.2 2013年全年辐射带电子PSD的同化结果分析

为了展示三维辐射带同化模型对较长时间辐射带电子动态演变的模拟效果,本文对2013年一整年辐射带电子PSD进行了同化分析.通过研究以三个绝热不变量(μ, K, L*)构成相空间坐标系下电子PSD的长期演化,可以区分非绝热效应和绝热效应、局部加速和径向传输过程,有助于理解辐射带电子加速、输运和损耗过程之间的平衡.如章节1.2所述,μ是第一绝热不变量;第二绝热不变量J通常用K来代替,K只与背景磁场的强度和结构有关,与带电粒子质量和电荷数无关.我们选取两组固定K值下不同μ值的四个有代表性的绝热不变量结果进行分析,其中第一组为K=0.5 G0.5REμ=100 MeV/G和μ=400 MeV/G,第二组为K=0.11 G0.5REμ=300 MeV/G和μ=1300 MeV/G,偶极磁场下它们与αeqEkL*的对应关系如图 4所示.通过选取这四组绝热不变量,可以获得在较高和较低投掷角、较大能量范围下的电子PSD.

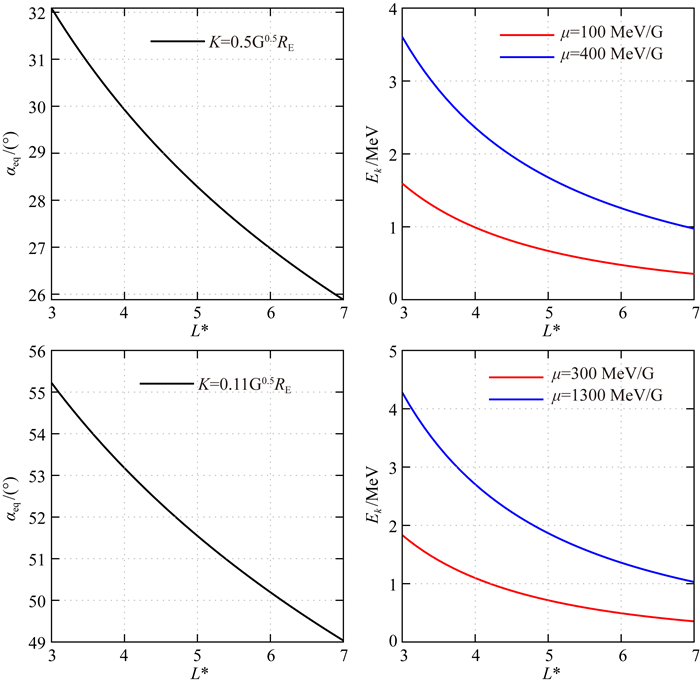

图 4 偶极地磁场下绝热不变量Kμ与赤道投掷角αeq、电子能量EkL*的对应关系 Fig. 4 Dependence of equatorial pitch angle and electron kinetic energy on L* in a dipole geomagnetic field for the indicated four pairs of (K, μ)

图 5K=0.5 G0.5RE时,2013年全年辐射带电子PSD的卫星观测和三维同化结果随L*和时间的变化.图 5a—5b中电子μ=100 MeV/G,图 5c—5d电子μ=400 MeV/G,图 5e为地磁指数KpDst.如图 5a5c所示,范艾伦卫星提供了L*<5.8的观测数据,GOES卫星提供了L*>6的观测数据,建立了辐射带电子PSD观测值的径向覆盖.虽然可以从观测结果中看到PSD的损失和增加,但其时空分布仍很稀疏且高L*的数据缺失严重,不足以研究PSD的长期演化.图 5b5d所示的三维同化结果与已有的观测相吻合,精确地模拟出L*=3~7上的辐射带电子PSD.从同化结果可以看出,辐射带电子PSD的变化与磁暴发生有很强依赖性.磁暴主相阶段所有L*上电子PSD迅速减少,电子被快速耗尽.磁暴恢复相电子PSD较磁暴前大幅增强,并在等离子体层顶外L*=4~6的区域出现PSD峰值,且磁暴越剧烈峰值位置越低.对比图 5b5d,高能量电子的PSD值小于低能量电子,但PSD增强的事件更多,磁暴后PSD的峰值也更明显.由于PSD峰值的出现与局部加速过程有关,同化结果表明高能量电子的局部加速过程更为显著.磁暴过后PSD峰值逐渐下降并消失,较高能量电子在较低L*(L*=3.5~5)的损失慢于较低能量电子.

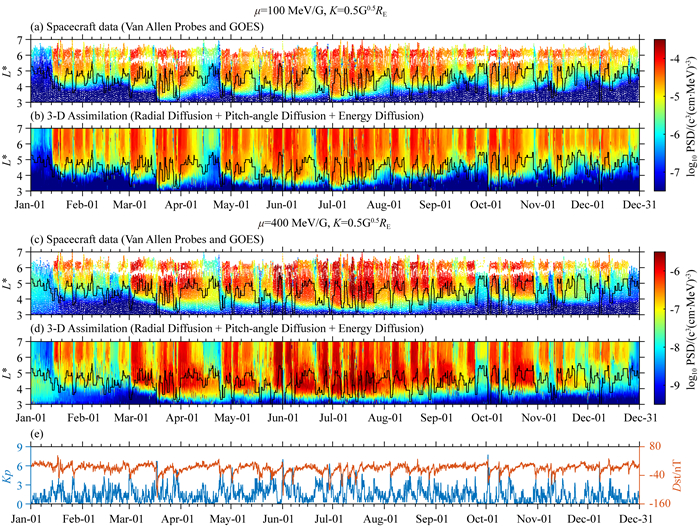

图 5 设定K=0.5 G0.5RE,2013年全年辐射带电子相空间密度随L*和时间分布的观测和三维同化结果 (a—b) 对应μ=100 MeV/G的辐射带电子;(c—d) 对应μ=400 MeV/G的辐射带电子;(e) 地磁指数KpDst. (a—d)中黑线表示等离子体层顶位置. Fig. 5 For the case that K=0.5 G0.5RE, observations of radiation belt electron PSD and the corresponding data assimilation results using 3-D radiation belt diffusion models during 2013 with (a—b) μ=100 MeV/G and (c—d) μ=400 MeV/G. (e) Kp and Dst indices. Black curves in (a—d) show the plasmapause location

图 5类似,图 6显示了设定K=0.11 G0.5REμ=300 MeV/G和μ=1300 MeV/G时辐射带电子PSD的观测和同化结果.电子的投掷角更高,其PSD值也更高,但PSD的变化趋势基本不变.在该组绝热不变量下,三维同化结果仍可以很好地模拟出电子PSD的径向分布和长期演化过程.四组绝热不变量下的同化结果表明,磁暴造成的电子PSD损失与增加可以发生在广泛的能量和投掷角范围中.

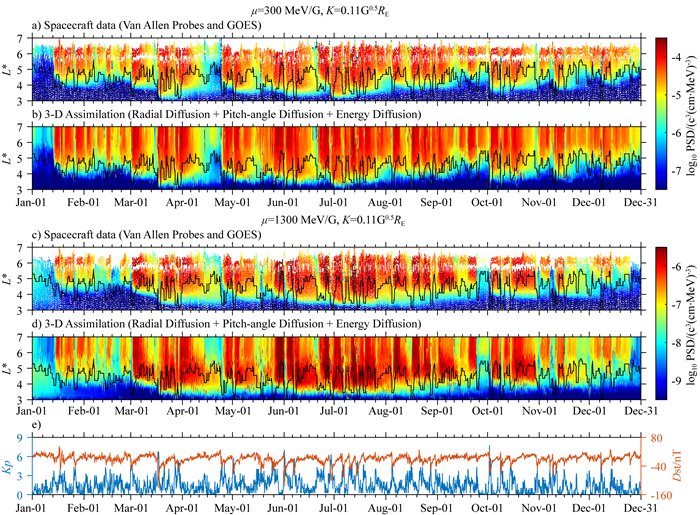

图 6图 5类似,但设置K=0.11 G0.5REμ=300 MeV/G和μ=1300 MeV/G Fig. 6 Same as in Fig. 5, except for the setting that K=0.11 G0.5RE, μ=300 MeV/G and μ=1300 MeV/G

本文计算了2013年一整年的平均新息矢量,结果如图 7所示:从左至右分别代表三个不同维度的同化模型,从上至下对应不同的μK.如章节1.3所述,新息矢量反映了同化过程在多大程度上修改了模拟值,新息矢量为正(负)值表示卫星观测值大于(小于)扩散模型模拟值,即模拟值与观测值相比缺少了一些加速(损失)机制,同化过程通过从模拟值中加入(减去)附加PSD值修正模拟值与观测值之间的误差.新息矢量还可以作为模型中电子损耗与源的指标,当模型中加入不同扩散机制后,同一绝热不变量条件下的新息矢量由正值变为负值,表明模型加入了有效的加速机制;新息矢量由负值变为正值,表明加入了有效的损失机制.

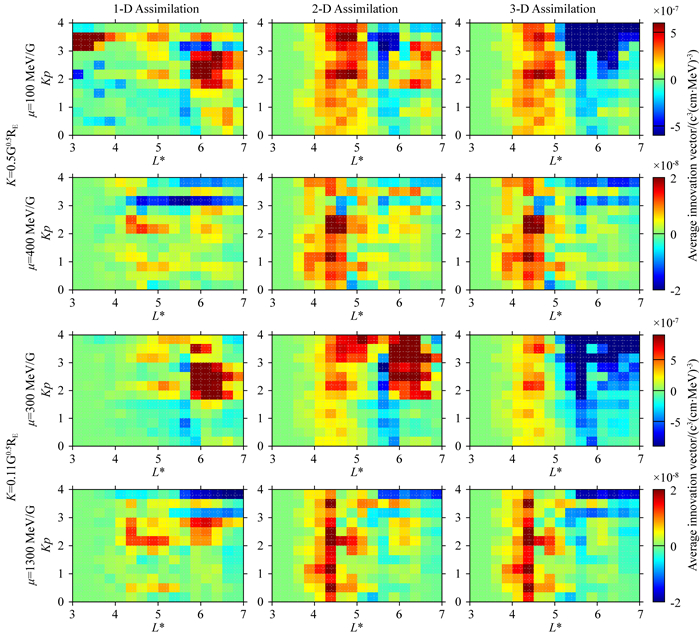

图 7 2013年一整年的平均新息矢量,横坐标为L*,纵坐标为Kp指数.从左至右:一维、二维、三维扩散模型. 从上至下:K=0.5 G0.5REμ=200 MeV/G和400 MeV/G;K=0.11 G0.5REμ=300 MeV/G和1300 MeV/G. Fig. 7 For the indicated adiabatic invariants (K=0.5 G0.5RE, μ=200 MeV/G and 400 MeV/G; K=0.11 G0.5RE, μ=300 MeV/G and 1300 MeV/G), average innovation vector as a function of L* and Kp using the 1-D, 2-D and 3-D radiation belt diffusion models.

图 7可以看出,一维同化结果的新息矢量在L*>5.8的区域为正,在低L*趋于零,同化过程未对模型值有效修正.比较一维和二维的结果,L*=4~5的新息矢量由趋于零变为正,模型中加入了损失机制,表明投掷角扩散对电子有效损耗;比较二维和三维的结果,L*>5.2的新息矢量由正变为负,模型中加入了加速机制,表明能量扩散对电子有效加速.三维同化结果的新息矢量在L*=4~5为正,即观测值高于模拟值,因此同化过程在模拟值上加入了一定PSD;新息矢量在L*>5.2为负,观测值低于模拟值,因此同化过程从模拟值中减去了一定PSD.观测值与模型之间的误差表明本文数值模拟阶段使用的波动经验模型可能不够精确,加入了过多的损失和加速,也可能是模拟过程中忽略了一些物理机制.高L*处三维同化结果的新息矢量值随着Kp指数增大而增大,说明同化过程在地磁活动剧烈时对模型值的修正更多,此时波动经验模型的模拟效果较差.

3 总结与讨论

本文使用了基于卡尔曼滤波的数据同化方法,将范艾伦A、B星和GOES-13、GOES-15四颗卫星的观测数据与不同维度的辐射带物理模型相结合,重构了2013年外辐射带电子的径向分布和时空演化过程,得到以下主要结论:

(1) 与一维纯径向扩散数值模型和二维径向扩散加投掷角扩散数值模型相比,加入了能量扩散的三维数值模型下的数据同化结果与卫星观测结果的吻合度最好,这说明在外辐射带电子动力学变化过程中,除了径向扩散和投掷角扩散,能量扩散对电子的加速过程也发挥着重要作用.

(2) 通过对不同绝热不变量组合的同化模拟,发现三维辐射带同化模型可以合理地获取L*=3~7范围内的地球外辐射带不同投掷角、不同能量上的电子相空间密度分布,能填补现有观测数据在空间分布上的不足,提供电子相空间的完整径向分布.

(3) 随着地磁活动的变化,三维辐射带同化模型较好地重构了外辐射带电子长期的动态演化过程.同化结果表明,电子相空间密度的时空变化与磁暴事件具有很强的依赖性:磁暴主相期间会经常发生电子相空间密度在大多数L*上的快速降低,而在磁暴恢复相期间电子相空间密度一般会增强并达到峰值.

(4) 通过分析同化过程中的新息矢量,可以看出辐射带物理模型常在低L*处低估观测值而在高L*处高估观测值.这些差异可能由物理模型中考虑的波动模型不完善造成,也可能由模拟过程中一些物理机制的缺失引起.新息矢量的数值随地磁活动增强而增大,说明本文采用的辐射带物理模型在磁扰期的模拟效果与地磁平静期相比不确定性增加,有待进一步深入研究.

综上,本文开展的地球电子辐射带三维数据同化建模具有有效、合理重构外辐射带电子的径向分布以及长期时空演化过程的能力.我们会在后续的研究中依据新息矢量提供的重要信息对模型加以改进,包括建立更加真实合理的磁层波动全球分布模型、考虑波动对辐射带电子的混合扩散机制以及加入更多卫星数据到同化过程.我们希望通过多维度数据同化的方法获取关于地球辐射带动态变化的更多详细信息,进一步加深对近地空间粒子辐射环境动力学过程与机制的理解认知,服务于空间天气过程与效应的预测预报.

致谢  感谢范艾伦卫星团队提供数据.范艾伦卫星电子通量数据来源于(https://www.rbsp-ect.lanl.gov/data_pub).地磁活动指数来自NASA OMNIWEB (https://omniweb.gsfc.nasa.gov).感谢德国地学研究中心(GFZ)Yuri Shprits教授给予的帮助.
