Six pairs of enantiomeric prenylated flavonoids with cytotoxic activities from Epimedium sagittatum Maxim
Abstract
In this work, six pairs of undescribed enantiomeric prenylated flavonoids, (±)-epimesatines J–O (1a/1b–6a/6b), were isolated from the aerial parts of Epimedium sagittatum Maxim. Their structures and absolute configurations were determined based on spectroscopic data, quantum chemical calculations of electronic circular dichroism (ECD) and 13C NMR, as well as ECD experiments induced by Mo2(OAc)4 and Rh2(OCOCF3)4. The cytotoxicity assay revealed that compounds 1a/1b, 2a/2b, and 4a/4b–6a/6b demonstrated significant inhibitory effects on the viability of human breast cancer cells MCF-7 while exhibiting no obvious toxicity towards human breast epithelial cells MCF-10A. Additionally, these compounds were found to decrease the expression of sphingosine kinase 1 (Sphk1) in MCF-7 cells. Notably, compounds 4a and 5b exhibited IC50 values of 7.45 and 8.97 μM, respectively, in MCF-7 cells.Graphical Abstract
Keywords
Epimedium sagittatum Maxim Enantiomeric prenylated flavonoids ECD Cytotoxicity Sphk11 Introduction
Flavonoids represent a significant class of natural specialised metabolites widely distributed in plants, showcasing diverse biological properties such as cytotoxicity, anti-inflammatory, antiviral, antimicrobial, and antioxidant activities [1–5]. Prenylated flavonoids are characterized by the prenyl side chains in the flavonoid skeleton, resulting in enhanced lipophilicity and structural diversity compared to nonprenylated forms [6, 7]. Notably, prenylated flavonoids have demonstrated promising pharmacological properties, particularly in terms of their potential cytotoxic effects against various types of cancer cells [8, 9].
Epimedium sagittatum Maxim. (Berberidaceae) is a traditional Chinese medicine with a long history of use in treating various conditions such as sexual dysfunction, osteoporosis, cardiovascular diseases, asthma, and chronic nephritis [10, 11]. Flavonoids have been identified as the primary bioactive constituents of this plant, with several isolated from E. sagittatum demonstrating efficacy against various types of cancer cells [11–14]. Notably, icaritin, a prenylated flavonoid derived from E. sagittatum, has been commercialized as an anti-hepatocellular carcinoma drug [15, 16].
In our ongoing dedication to the exploration of structurally fascinating prenylated flavonoids with anticancer properties derived from E. sagittatum [17, 18], six pairs of enantiomers, designated as (±)-epimesatines J–O, were isolated and characterized (Fig. 1). The elucidation of their structures with absolute configurations, which was a challenging task, was successfully accomplished by means of spectroscopic techniques (HRESIMS and NMR), quantum chemical calculations (ECD and 13C NMR), and chemical methods (ECD experiments induced by Mo2(OAc)4 and Rh2(OCOCF3)4 transition metal complexes) [19–21]. The evaluation of cell viability of the isolated compounds on human breast cancer cells MCF-7 was conducted by MTT method, and their effects on human breast epithelial cells MCF-10A were also evaluated. Furthermore, the impact of these compounds on the expression levels of sphingosine kinase 1 (Sphk1), an enzyme implicated in cancer development [22], was investigated in MCF-7 cells. Herein, the isolation, structural elucidation, and biological activity evaluation of these metabolites are described.
Chemical structures of compounds 1a/1b–6a/6b
2 Results and discussion
Compound 1a was obtained as a yellow amorphous powder. The molecular formula of 1a was established as C25H28O7 based on the high–resolution electrospray ionization mass spectrometric (HRESIMS) (m/z 463.1725 [M + Na]+, calcd. for 463.1727) and 13C NMR data, indicating twelve degrees of unsaturation. The 1H NMR data of 1a (Table 1) revealed the presence of six olefinic/aromatic protons (δH 7.71, 7.69, 6.60, 6.50, 6.24, 5.38; 1H each), one oxygenated methine (δH 3.71, 1H), two methylene groups (δH 3.40, 2H, d, J = 7.3 Hz; 3.02, 1H, d, J = 14.5 Hz and 2.87, 1H, dd, J = 14.5, 9.9 Hz), and four methyl singlets (δH 1.75, 1.74, 1.30, and 1.28). The 13C NMR and DEPT-135 spectra of 1a indicated 25 carbon signals, including four methyls (δC 25.9, 25.5, 25.2, and 17.9), two methylenes (δC 35.2 and 29.4), seven methines (including one oxygenated, δC 81.7), and twelve nonprotonated carbons (including one ketone carbonyl, δC 182.9). Based on the above data, compound 1a was identified as a prenylated flavone derivative [23–25]. The 1H − 1H COSY interaction (Fig. 2) between H2-1″ (δH 3.02 and 2.87) and H-2″ (δH 3.71), along with HMBC correlations (Fig. 2) from Me-4″/Me-5″ to C-2″ (δC 81.7) and C-3″ (δC 72.7), confirmed the presence of a 2,3-dihydroxy-3-methylbutyl unit.
1H NMR spectroscopic data for compounds 1a/1b–6a/6b (δ in ppm, J in Hz)

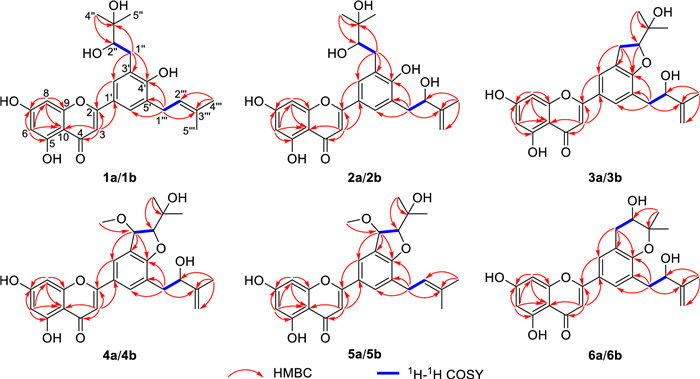

1H–1H COSY and Key HMBC correlations of compounds 1a/1b–6a/6b
In addition, the spin coupling system of H2-1′′′/H-2′′′ according to the 1H − 1H COSY spectrum, together with the HMBC correlations from Me-4′′′/Me-5′′′ to C-2′′′ and C-3′′′, indicated the existence of a prenyl group. Then, the key HMBC correlations from H2-1″ to C-2′, C-3′, and C-4′, and from H2-1′′′ to C-4′, C-5′, and C-6′ verified the location of these two substituents at C-3′ and C-5′, respectively. Consequently, the planar structure of 1a was established as 5,7,4′-trihydroxy-3′-(2,3-dihydroxy-3-methylbutyl)-5′-prenylflavone.
The Mo2(OAc)4-induced circular dichroism (ICD) experiment represents a highly valuable method for determining the absolute configuration of carbon atoms in the vicinal diol subunit, based on the helicity rule proposed by Snatzke [26–28]. According to the empirical rule, the observed ICD curve at approximately 310 nm corresponds to the same torsion angle of the (HO)-C–C-(OH) moiety. Specifically, a positive CD band corresponds to a positive torsional angle, while a negative CD band corresponds to a negative torsional angle. Consequently, the ICD curve of 1a exhibits a negative Cotton effect at 306 nm (Fig. 3A), suggesting a negative torsional angle (Fig. 3B), and thus deducing an R configuration of C-2″. Therefore, the structure and absolute configuration of 1a was conclusively defined and assigned the trivial name (R)-epimesatine J.

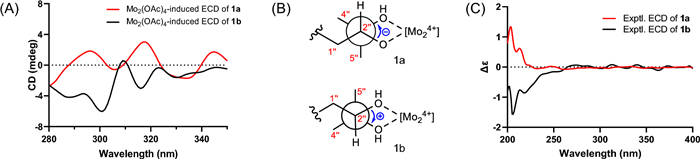

A ICD spectrum of the Mo24+ complex of 1a and 1b in DMSO. B Conformation of the Mo24+ complex of 1a and 1b. C Experimental ECD spectra of compounds 1a and 1b
A comparison of the 1H NMR data of 1b with those of 1a indicated that they shared the same planar structure. Given the presence of a chiral center in compound 1a, a comparative analysis of optical rotation and ECD spectra between compounds 1a and 1b was conducted. Their mirror-image ECD spectra (Fig. 3C) and opposite-sign optical rotation values ([α]D20: − 4 for 1a and + 6 for 1b) demonstrated that compound 1b is the enantiomer of compound 1a. Moreover, further support for this conclusion came from the Mo2(OAc)4-induced ECD spectrum of 1b, which demonstrated a positive Cotton effect at 309 nm (Fig. 3A), indicating a positive torsional angle (Fig. 3B), and leading to the deduction of an S configuration of C-2″. Thus, we determined that 1b is indeed an enantiomer of 1a and named it (S)-epimesatine J.
Compound 2a was isolated as a yellow amorphous powder, and the molecular formula of 2a was identified as C25H28O8 based on its HRESIMS and NMR data, indicating twelve degrees of unsaturation. The 1H and 13C NMR data (Tables 1 and 2) of 2a were similar to those of 1a/1b, suggesting that compound 2a was also a flavone derivative. The primary difference between 2 and 1a/1b was the absence of a methyl signal and the presence of the signals of a methylene group [δH 4.97, 4.78 (each 1H, s, H2-4′′′)] in 2a, indicating the replacement of the prenyl group in 1a/1b with a 2-hydroxy-3-methylbut-3-enyl moiety. The 1H − 1H COSY correlation of H2-1′′′ (δH 3.00, 1H, dd, J = 14.1, 3.7 Hz and 2.93, 1H, dd, J = 14.1, 8.2 Hz)/H-2′′′ (δH 4.44, 1H, dd, J = 8.2, 3.7 Hz), along with the HMBC correlations (Fig. 2) from Me-5′′′ to C-2′′′, C-3′′′, and C-4′′′ support above speculation. Additionally, the key HMBC correlations from H2-1′′′ to C-4′, C-5′, and C-6′ confirmed the positioning of the substituent at C-5′. Similarly to 1b, 2b was identified as an enantiomer of 2a.
13C NMR spectroscopic data for compounds 1a/1b–6a/6b (δ in ppm)
Due to the existence of a vicinal diol moiety in their side chains, the Mo2(OAc)4-induced ECD experiments were conducted to determine the absolute configuration of C-2″ in both compounds 2a and 2b, following the same approach as that for 1a/1b. Based on these experiments (Fig. 4A), the configurations of C-2″ in 2a and 2b were assigned as R and S, respectively. Additionally, the absolute configurations of C-2′′′ in 2a and 2b were elucidated by performing ECD calculations at the B3LYP/6-31G(d) level in MeOH. As shown in Fig. 4B, the experimental ECD spectra of 2a and 2b show reasonable alignment with the calculated conformations of (2″R,2′′′S)-2 and (2″S, 2′′′R)-2, respectively. These computational correlations support the assignment of 2a and 2b as (2″R,2′′′S)-epimesatine K and (2″S,2′′′R)-epimesatine K, respectively.
A Mo2(OAc)4-induced ECD spectra of compounds 2a and 2b. B Experimental and calculated ECD spectra of compounds 2a and 2b
The molecular formula of 3a was established as C25H26O7 based on its HRESIMS (m/z 461.1568 [M + Na]+, calcd. for 461.1571) and 13C NMR data, requiring thirteen degrees of unsaturation. Upon detailed analysis, it was found that the NMR data (Tables 1 and 2) of 3a resembled those of 2a/2b, with the presence of 2-hydroxy-3-methylbut-3-enyl and 2,3-dihydroxy-3-methylbutyl units still evident in 3a. This conclusion could be deduced by the 1H − 1H COSY spin coupling system of H2-1″/H-2″ and H2-1′′′/H-2′′′, along with the HMBC correlations from Me-4″ and Me-5″ to C-2″ and C-3″ and from Me-5′′′ to C-2′′′, C-3′′′, and C-4′′′. Subsequently, 3a exhibited one additional degree of unsaturation compared to 2a/2b, which means 3a formed an extra ring compared to 2a/2b. In addition, the molecular mass of 3a was lower by 18 amu than that of 2a/2b, indicating a loss of H2O, suggesting that 3a is a dehydration product of 2a/2b. By combining the diagnostic HMBC correlation from H-2″ to C-4′ and the chemical shifts of C-2″ (δC 91.0) and C-3″ (δC 71.5), a furan ring was constructed. The stereochemical assignment of 3a was investigated through comparative 13C NMR computational analysis employing DP4 + probability assessment at the B3LYP/6-311G(d, p) level of theory with acetone-d6 solvent modeling. Statistical analysis suggests the (2″S,2′′′S)-3 configuration demonstrates an apparent high probability of 99.87% (Figures S1 and S2) and a relatively higher correlation coefficient value (R2) of 0.9985 (Fig. 5). Therefore, the (2″S,2′′′S)-configuration currently represents the most computationally supported stereochemical interpretation. Subsequently, the ECD spectra of the (2″R,2′′′R) and (2′′S,2′′′S) isomers of 3 were calculated, and the absolute configuration of 3a was assigned as 2″R,2′′′R based on the comparison between its experimental and calculated ECD spectra (Figure S3). Compound 3b was determined to be the enantiomer of 3a based on their identical 1H NMR spectra, mirror-image ECD curves (Fig. S3), and opposite-sign optical rotation values ([α]20D: − 12 for 3a and + 11 for 3b). Therefore, 3aand 3b were named as (2″R,2′′′R)-epimesatine L and (2″S,2′′′S)-epimesatine L, respectively.

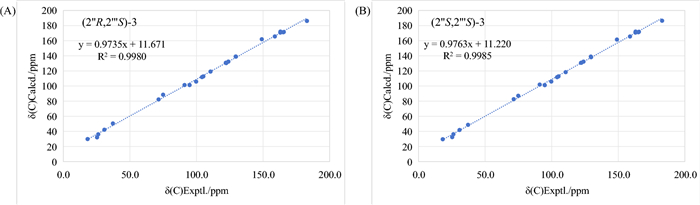

Regression analyses of experimental vs calculated 13C NMR chemical shifts of (2″R,2′′′S)-3 and (2″S,2′′′S)-3 at the B3LYP/6-311G(d,p) level; linear fitting was shown as a line
Compounds 4a and 4b were identified as enantiomers similar to 1a/1b–3a/3b. Their molecular formulas were determined as C26H28O8 through positive ion HRESIMS data analysis, indicating a mass 30 Da higher than 3a/3b, suggesting the existence of an additional methoxy group in 4a and 4b. Detailed NMR spectral analysis further confirmed that 4a/4b shared a similar planar structure with 3a/3b, except for the methoxy group at C-1″ in 4a/4b. The relative configuration of the two oxygenated methine protons on the furan ring of 4a/4b was determined to be trans by evaluating the coupling constant between H-1″ and H-2″ (J = 2.8 Hz) [29–31]. The configurations of C-2′′′ in 4a/4b were determined through analysis of the ECD spectra of the Rh2(OCOCF3)4-complex, with the inherent contribution subtracted. According to the bulkiness rule [32], the positive and negative Cotton effects of the complex at around 350 nm correspond to the "bS" and "bR" configurations (Fig. 6A), respectively. Therefore, based on their respective positive and negative Cotton effects (Fig. 6B), the configurations of C-2′′′ in 4a and 4b were assigned as R and S, respectively. Subsequently, the absolute configurations of 4a and 4b were determined through ECD calculations (Fig. 6C) and designated as (1″R,2″R,2′′′R)-epimesatine M and (1″S,2″S,2′′′S)-epimesatine M, respectively.

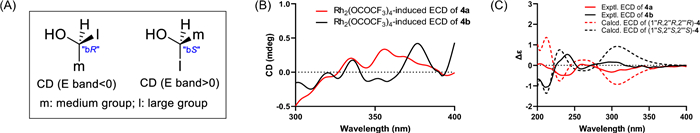

A Bulkiness rule for correlation of the alcohol geometry with the sign of the CD band E (around 350 nm) according to Gerards and Snatzke. B Rh2(OCOCF3)4-induced ECD spectra of compounds 4a and 4b. C Experimental and calculated ECD spectra of compounds 4a and 4b
Compounds 5a and 5b were separated using chiral HPLC and were also confirmed to be enantiomers. Preliminary analysis of the 2D NMR data indicated that 5a/5b shared similar planar structures with 4a/4b, except for the different substituent at C-5′, which was identified as a prenyl group instead of a 2-hydroxy-3-methylbut-3-enyl group. Similarly, the relative configurations of H-1″/H-2″ in 5a/5b were determined to be trans based on their coupling constant (J = 2.7 Hz). Then, their absolute configurations were ascertained through ECD calculations, of which the experimental and calculated ECD curves displayed good agreement (Figure S4). Therefore, the structures of 5a/5b were verified and named as (1″S,2″S)-epimesatine N and (1″R,2″R)-epimesatine N, respectively.
Compounds 6a and 6b were also recognized as enantiomers and shared the same molecular formula as 3a/3b based on their HRESIMS data. Detailed analysis of the 1D and 2D NMR spectroscopic data revealed that 6a and 6b are structural analogs of 3a/3b, with the main difference being the presence of a pyran ring fused between C-3′ and C-4′ positions instead of a furan ring. This deduction was supported by the HMBC correlations from H2-1″ to C-2′ (δC 127.4), C-3′ (δC 121.5), and C-4′ (δC 155.6) and from Me-4″/Me-5″ to C-2″ (δC 69.3) and C-3″ (δC 79.2), along with the 1H − 1H COSY correlation of H2-1″ (δH 3.11, 1H, dd, J = 16.6, 5.1 Hz and 2.83, 1H, dd, J = 16.6, 7.4 Hz)/H-2″ (δH 3.87, 1H, dd, J = 7.4, 5.1 Hz). Consequently, the structures of 6a/ 6b were established based on the aforementioned evidence. Subsequently, the relative configurations of 6a/6b were evaluated through 13C NMR analysis using methodology consistent with that employed for 3a/3b. DP4 + probability evaluation suggested a strong preference for the (2″S,2′′′R)-configuration with a statistical probability of 99.79% (Figures S5 and S6) and a higher R2 value (Figure S7). Moreover, ECD calculations (Figure S8) were utilized to determine the absolute configurations of 6a/ 6b, leading to their designation as (2″S,2′′′R)-epimesatine O and (2″R,2′′′S)-epimesatine O, respectively.
Chiral compounds occurring in nature are typically found in an optically pure state, while, sometimes there are instances present in enantiomeric form within the same or different genera [33–35]. The chiral separation is usually conducted on mixtures with null ECD or optical rotation values, where these mixtures often exhibit similar ratios. However, in cases where enantiomers display varying ratios or are not separated as enantiomeric mixtures, there exists a potential risk of overlooking enantiomers of natural products. It has been verified that there are notable differences or even contradictory effects in the biological activity of two enantiomeric forms of certain compounds [35, 36]. This underscores the importance of meticulous analysis during the separation and identification of chiral compounds to ensure accurate determination of their structures.
All compounds, with the exception of 3b due to its limited availability, were evaluated for their cytotoxicity. The results indicated that all tested compounds significantly inhibited the viability of MCF-7 cells (Fig. 7A) and did not exhibit cytotoxic effects on human breast epithelial cells MCF-10A, with the exception of 3a (Fig. 7B).

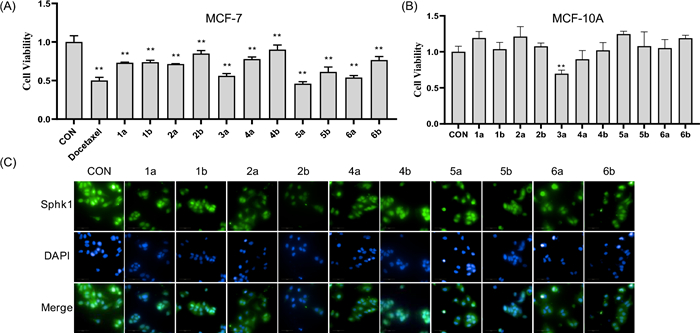

A Viability of MCF-7 cells after treated by isolated compounds at the concentration of 10 μM. B Viability of MCF-10A cells after treated by isolated compounds at the concentration of 10 μM. C Effects of 1a/1b, 2a/2b, and 4a/4b–6a/6b on the expression of Sphk1 in MCF-7 cells at the concentration of 10 μM. Docetaxel was used as positive control. **P < 0.01 compared to CON group. Each bar and vertical line represents the mean ± SD of the values from three independent experiments
Subsequently, the expression levels of Sphk1 in MCF-7 cells treated with these compounds were assessed through immunofluorescence. The results (Fig. 7C) indicated that all tested compounds effectively inhibited Sphk1 expression in MCF-7 cells, suggesting that Sphk1 may serve as a target for breast cancer treatment. Notably, compounds 4a and 5b demonstrated IC50 values of 7.45 and 8.97 μM, respectively, in MCF-7 cells (Table S1), highlighting their potential as therapeutic agents for breast cancer. Then, Sphk1 (PDBID 4v24) was subjected to molecular docking analyses with compounds 4a and 5b. As shown in Fig. 8, both 4a and 5b demonstrated hydrophilic interactions with the amino acid residues ASP-167, ASP-264, and ASN-108 of Sphk1. Especially, the hydrogen bond distances for both 4a and 5b were found to be less than 3.2 Å, indicating robust interactions between the compounds and Sphk1. These three amino acid residues are likely to serve as significant active sites for the treatment of breast cancer.

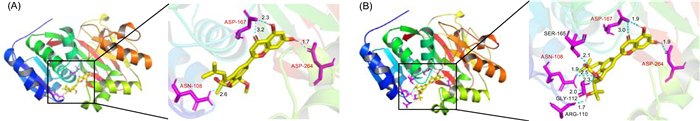

The molecular docking of Sphk1 for 4a (A) and 5b (B). Low-energy binding conformations of compounds 4a and bound to Sphk1 generated by virtual ligand docking. Compounds were exhibited as the ball-and-stick model showing carbon (yellow), hydrogen (grey) and oxygen (red). The key hydrogen bonding interactions with the enzymes were shown with the cyan line
3 Conclusions
In conclusion, six pairs of undescribed enantiomeric prenylated flavonoids, (±)-epimesatines J–O, were isolated and identified from the aerial parts of Epimedium sagittatum Maxim. Compounds 1a/1b, 2a/2b, and 4a/4b–6a/6b not only exhibited significant inhibitory effects on the viability of human breast cancer cells MCF-7 but also showed no cytotoxicity towards human breast epithelial cells MCF-10A. Therefore, these compounds show considerable promise as therapeutic agents against breast cancer. Furthermore, their pronounced ability to significantly reduce Sphk1 expression in MCF-7 cells highlights the potential of Sphk1 as a therapeutic target for breast cancer. Consequently, E. sagittatum is proposed as a valuable source for the development of breast cancer treatments.
4 Experimental section
4.1 General experimental procedures
Column chromatography (CC) was performed with silica gel (100–200 and 200–300 mesh, Marine Chemical Industry, Qingdao, China) and ODS (50 μm, YMC Group, Kyoto, Japan). Semipreparative high performance liquid chromatography (HPLC) separations were carried out on a Shimadzu LC-40 HPLC system, equipped with a DAD detector, using a reversed-phase (RP) C18 ODS column (10ID × 250 mm and 4.6ID × 250 mm, Cosmosil 5C18-MS-Ⅱ Packed column, Nacalai Tesque, Japan). HRESIMS data were collected in the positive-ion mode on a Bruker Maxis HD mass spectrometer (Bruker, Germany). UV and IR spectra were obtained on an Evolution 300 instrument (Thermo Scientific, MA, USA) and a Nicolet IS 10 spectrophotometer (Thermo Scientific, MA, USA), respectively. Optical rotations and CD spectra were acquired by a Rudolph AP-Ⅳ polarimeter (Rudolph, Hackettstown, NJ, USA) and a Chirascan qCD spectrometer (Applied Photophysics Ltd, Surrey, U.K), respectively. The NMR spectra were measured on a Bruker Advance Ⅲ 500 spectrometer (Bruker, Germany), and chemical shifts were referenced to the residual acetone-d6 (δH 2.05/δC 29.84) signals. Incubator and microplate reader used in activity experiments were carbon dioxide incubator 3111 and Multiskan MK3 microplate reader (Thermo Scientific, USA).
4.2 Plant material
The aerial parts of Epimedium sagittatum Maxim. (Berberidaceae) were collected from Fenghui Epimedium herb GAP Base, Zhumadian, Henan Province, People's Republic of China (GPS data: 114.496128, 33.018587), in September 2020. A voucher specimen (no. 20200960) was deposited in the Department of Pharmacy, Henan University of Chinese Medicine.
4.3 Extraction and isolation
The air-dried aerial parts of E. sagittatum (80 kg) were extracted with 70% EtOH in three cycles, resulting in the production of an extract weighing 6.5 kg. Then, the extract was suspended with distilled water and successively partitioned into CH2Cl2 and EtOAc sequentially to obtain CH2Cl2, EtOAc, and aqueous fractions. Subsequently, the CH2Cl2 fraction (2.1 kg) was subjected to silica gel column chromatography (CC, 100–200 mesh) and eluted with a petroleum ether/ethyl acetate mixture (v:v, 50:1–0:1) to obtain eight fractions (Fr. A–H).
Fraction F (13.7 g) was subjected to silica gel CC (200–300 mesh) using a petroleum ether/EtOAc elution gradient (v:v, 35:1–0:1) to afford fifteen subfractions, Fr. F1–F15. Then, Fr. F15 (1.8 g) was further separated by ODS CC (MeOH: H2O = 40:60–100:0) and semipreparative HPLC to obtained a mixture of 5a and 5b. This mixture was then separated using a Chiralpak IC column (5 μm, 10 × 250 mm, Daicel Chiral Technologies Co., Ltd., Japan) with elution using MeOH: H2O (v:v, 80:20) to yield enantiomers of 5a (1.3 mg, tR = 39.3 min) and 5b (1.2 mg, tR = 33.3 min).
Fraction G (100.0 g) was separated through silica gel CC (100–200 mesh) eluting with petroleum ether/EtOAc (v:v, 50:1–0:1) to yield eighteen subfractions, Fr. G1–G18. Then, Fr. G17 (65.0 g) was separated by silica gel CC (200–300 mesh) to obtain nineteen fractions, Fr. G17.1–G17.19. Subsequently, Fr. G17.15 (38.9 g) was separated by ODS CC (MeOH: H2O = 40:60–100:0) to obtain twelve fractions, Fr. G17.15.1–G17.15.12. Further purification of Fr. G17.15.9 by semipreparative HPLC yielded six subfractions, Fr. G17.15.9.1–G17.15.9.6. Subsequent purification of subfraction Fr. G17.15.9.5 through HPLC (MeCN-H2O, 60:40, 1 mL/min) afforded compound 1b (9.9 mg, tR 13.7 min), while compound 1a (5.6 mg, tR 14.0 min) was isolated from subfraction Fr. G17.15.9.6 under identical chromatographic conditions. Fr. G17.15.10 was isolated by ODS CC (MeOH:H2O = 50:50–100:0) to obtain Fr. G17.15.10.1–G17.15.10.13, and then Fr. G17.15.10.6 was purified by HPLC to yield Fr. G17.15.10.6.1–G17.15.10.6.7. Compounds 2a (2.2 mg, tR 42.2 min) and 2b (1.9 mg, tR 48.9 min) were isolated from Fr. G17.15.10.6.1 via HPLC (MeCN–H2O, 40:60, 2 mL/min). Fr. G17.15.10.6.2 was subjected to HPLC separation to obtain Fr. G17.15.10.6.2.1–G17.15.10.6.2.6. Compounds 4a (3.6 mg, tR 63.1 min) and 4b (2.1 mg, tR 59.1 min) were purified from Fr. G17.15.10.6.2.2 and Fr. G17.15.10.6.2.3, respectively. Fr. G17.15.10.6.2.4 was further separated by HPLC (MeCN–H2O, 60:40, 2 mL/min) into five subfractions, Fr. G17.15.10.6.2.4.1–G17.15.10.6.2.4.5, with the third and fifth fractions identified as 3a (1.0 mg, tR 58.8 min) and 6b (11.2 mg, tR 63.6 min), respectively. Compounds 3b (1.4 mg, tR 20.8 min) and 6a (9.0 mg, tR 19.3 min) were purified from Fr. G17.15.10.6.2.4.4 (MeOH–H2O, 80:20, 2 mL/min).
1a and 1b: UV (MeOH) λmax (log ε): 207 (4.24), 242 (3.89), 268 (3.82), 342 (3.96) nm; IR (νmax): 3400, 2976, 1653, 1616, 1477, 1439, 1359, 1166, 1031, 842 cm–1; 1H and 13C NMR data, see Tables 1 and 2.
(R)-epimesatine J (1a): Yellow amorphous powder; [α]D20 − 4 (c 0.4, MeOH); HRESIMS m/z 463.1725 [M + Na]+ (calcd. for C25H28O7Na, 463.1727).
(S)-epimesatine J (1b): Yellow amorphous powder; [α]D20 + 6 (c 0.4, MeOH); HRESIMS m/z 463.1713 [M + Na]+ (calcd. for C25H28O7Na, 463.1727).
2a and 2b: UV (MeOH) λmax (log ε): 208 (4.32), 240 (3.98), 268 (3.93), 341 (4.01) nm; IR (νmax): 3444, 2975, 1699, 1653, 1436, 1363, 1260, 1170, 1052 cm–1; 1H and 13C NMR data, see Tables 1 and 2.
(2″R,2′′′S)-epimesatine K (2a): Yellow amorphous powder; [α]D20 − 3 (c 0.2, MeOH); HRESIMS m/z 479.1665 [M + Na]+ (calcd. for C25H28O8Na, 479.1676).
(2″S,2′′′R)-epimesatine K (2b): Yellow amorphous powder; [α]D20 + 3 (c 0.2, MeOH); HRESIMS m/z 479.1669 [M + Na]+ (calcd. for C25H28O8Na, 479.1676).
3a and 3b: UV (MeOH) λmax (log ε): 204 (4.43), 238 (4.11), 269 (4.04), 344 (4.14) nm; IR (νmax): 3408, 2933, 1653, 1606, 1367, 1166, 1035, 843 cm–1; 1H and 13C NMR data, see Tables 1 and 2.
(2″R,2′′′R)-epimesatine L (3a): Yellow amorphous powder; [α]D20 − 12 (c 0.1, MeOH); HRESIMS m/z 461.1568 [M + Na]+ (calcd. for C25H26O7Na, 461.1571).
(2″S,2′′′S)-epimesatine L (3b): Yellow amorphous powder; [α]D20 + 11 (c 0.1, MeOH); HRESIMS m/z 461.1567 [M + Na]+ (calcd. for C25H26O7Na, 461.1571).
4a and 4b: UV (MeOH) λmax (log ε): 202 (4.34), 269 (3.96), 336 (4.05) nm; IR (νmax): 3388, 2932, 2860, 1654, 1608, 1365, 1167, 1048, 843 cm–1; 1H and 13C NMR data, see Tables 1 and 2.
(1″R,2″R,2′′′R)-epimesatine M (4a): Yellow amorphous powder; [α]D20 − 3 (c 0.3, MeOH); HRESIMS m/z 491.1672 [M + Na]+ (calcd. for C26H28O8Na, 491.1676).
(1″S,2″S,2′′′S)-epimesatine M (4b): Yellow amorphous powder; [α]D20 + 4 (c 0.2, MeOH); HRESIMS m/z 491.1675 [M + Na]+ (calcd. for C26H28O8Na, 491.1676).
5a and 5b: UV (MeOH) λmax (log ε): 203 (4.45), 268 (4.19), 335 (4.18) nm; IR (νmax): 3415, 1653, 1608, 1475, 1437, 1364, 1168, 1033, 981 cm–1; 1H and 13C NMR data, see Tables 1 and 2.
(1″S,2″S)-epimesatine N (5a): Yellow amorphous powder; [α]D20 − 7 (c 0.1, MeOH); HRESIMS m/z 475.1728 [M + Na]+ (calcd. for C26H28O7Na, 475.1727).
(1″R,2″R)-epimesatine N (5b): Yellow amorphous powder; [α]D20 + 10 (c 0.1, MeOH); HRESIMS m/z 475.1730 [M + Na]+ (calcd. for C26H28O7Na, 475.1727).
6a and 6b: UV (MeOH) λmax (log ε): 202 (4.50), 244 (4.15), 268 (4.08), 341 (4.26) nm; IR (νmax): 3368, 2975, 1655, 1614, 1475, 1439, 1362, 1166, 1044, 841 cm–1; 1H and 13C NMR data, see Tables 1 and 2.
(2″S,2′′′R)-epimesatine O (6a): Yellow amorphous powder; [α]D20 − 11 (c 0.4, MeOH); HRESIMS m/z 461.1570 [M + Na]+ (calcd. for C25H26O7Na, 461.1571).
(2″R,2′′′S)-epimesatine O (6b): Yellow amorphous powder; [α]D20 + 16 (c 0.5, MeOH); HRESIMS m/z 461.1568 [M + Na]+ (calcd. for C25H26O7Na, 461.1571).
4.4 Preparation of the Mo2(OAc)4 complex of compounds 1a, 1b, 2a, and 2b
Firstly, Mo2(OAc)4 (1.65 mg) was dissolved in DMSO (1 mL) at room temperature. Then, this solution was added to compound 1a (0.50 mg) and thoroughly mixed. The initial ECD spectrum was recorded immediately to establish a background absorption, followed by the recording of the complex-induced ECD spectra at ten minute intervals. The preparation of the Mo2(OAc)4-complex and ECD spectra of 1b, 2a, and 2b followed a similar procedure as that of 1a. The absolute configurations of these compounds were determined based on the Cotton effect observed in the complex-induced ECD spectra, in accordance with the helicity rule.
4.5 ECD calculations
The conformations of 2a/2b–6a/6b were analyzed by GMMX software using the MMFF94 force field. The geometry optimizations and predictions of the ECD spectra of the conformers were conducted through density functional theory (DFT) at the B3LYP/6-31G(d) level using the Gaussian 16W software [37]. The ECD curves were simulated by SpecDis software (version 1.71) based on the Boltzmann distribution theory [38].
4.6 Preparation of the Rh2(OCOCF3)4 complex of compounds 4a and 4b
Firstly, Rh2(OCOCF3)4 (1.20 mg) was dissolved in anhydrous CH2Cl2 (800 μL) at room temperature. Then, this solution was combined with compound 4a (0.63 mg) and thoroughly mixed. The first ECD spectrum was immediately recorded as a baseline, after which complex-induced ECD spectra were recorded at ten minute intervals until reaching a stable state. The preparation of the Rh2(OCOCF3)4-complex and ECD spectra of 4b (0.55 mg) followed a similar procedure as that of 4a. The absolute configurations of 4a and 4b were determined by the Cotton effect observed in the E band around 350 nm in the complex-induced ECD spectra.
4.7 Cytotoxicity assay
4.7.1 Cell culture
Take frozen MCF-7 and MCF-10A cells (Shanghai Cell Bank, China) and melt them in a 37 ℃ water bath until the state of ice and water coexisted. Then, the mixture was centrifuged immediately at 1000 rpm for 5 min. Subsequently, discard the supernatant and transfer the cells to a DMEM medium containing 10% FBS (100 kU/L for both penicillin and streptomycin). Cultivate in a 37 ℃ constant temperature incubator containing 5% CO2 until the cells grow to 80% ~ 90% of the dish for passage. Replace fresh culture medium every 24 h.
4.7.2 Cell viability of isolated compounds on MCF-7 and MCF-10A cells using MTT method
The MCF-7 and MCF-10A cells were cultured until the logarithmic growth phase in an incubator containing 5% CO2 at 37 ℃. Then, the cells were inoculated into a 96-well plate (E190236X, PerkinElmer, United States) at a density of 2 × 104 cells/mL and 200 μL per well. After 24 h of incubation, these wells were divided into normal control (CON) group and sample (10 μM) groups to culture for another 24 h. Subsequently, 20 μL of MTT (Solarbio life sciences, Beijing, China) solution (5 mg/mL) were added to each well and continue to culture for 4 h. Then, the culture medium was aspirated carefully and 150 μL of DMSO were added to each well to dissolve the blue-violet crystals. The OD values of each well were measured by a microplate reader at 490 nm, and the cell viability was calculated.
4.7.3 Cellular immunofluorescence
The assay for cellular immunofluorescence was performed in 96-well plates, with MCF-7 cells seeded at a density of 2 × 104 cells/mL. After 24 h, the cells were divided into control (CON) and various sample groups (10 μM) and cultured for an additional 24 h. The cells were then fixed with 4% paraformaldehyde for 15 min and permeabilized with 0.25% Triton X-100 for 10 min. Subsequently, 1% BSA was added for blocking for 30 min, after which the primary antibody Sphk1 (ab262697, Abcam) was introduced and incubated overnight at 4 ℃. The cells were subsequently washed three times with PBST, counterstained with DAPI for 4 min, washed once with PBS, and then imaged using the OperettaCLS high-content imaging analysis system (Opera Phenix, PerkinElmer, United States).
4.7.4 Real time cellular analysis (RTCA)
Baseline measurements were conducted using culture medium. MCF-7 cells in logarithmic growth phase were seeded into E-plate plates at a density of 2 × 104 cells/mL per well. After 24 h of incubation, these wells were divided into control (CON) group and sample (1 μM, 5 μM, 10 μM, 20 μM, 50 μM, and 100 μM) groups, and their growth curves were continuously measured. After completion, the Sigmoidal dose–response (Vanable slope) algorithm was employed to determine the target time for calculating the IC50 values of the analyzed compounds. Docetaxel (Shanghai yuanye Bio-Technology Co., Ltd, Shanghai, China) was used as positive control.
4.7.5 Statistical analysis
The experimental data were expressed as mean ± standard deviation (SD) and analyzed by SPSS 26.0 software. One-way analysis of variance was used for comparison between groups. *P < 0.05 indicates a significant difference, while **P < 0.01 indicates an extremely significant difference.
4.8 Molecular docking
Molecular docking simulations were performed using the software AutoDock Tools (1.5.7). The crystal structures of Sphk1 was obtained from the RCSB Protein Data Bank (http://www.pdb.org/) and embellished through PyMOL (3.0.3) and the AutoDock Tools softwares.
Notes
Acknowledgements
We are deeply grateful for the funding support from the National Natural Science Foundation of China (No. 32200319); Postdoctoral Research Grant in Henan Province (No. 202102073); The National Key Research and Development Project (The Major Project for Research of the Modernization of TCM) (No. 2019YFC1708800); and the Central Leading Local Science and Technology Development Special Foundation ([2016]149).
Author contributions
FWS conceived and designed the research; XSS carried out the experiment and wrote the manuscript; YX and ZJK assisted in the isolation and calculation experiments; TQM, ZBB, and ZMN performed a portion of the pharmacological experiments; ZXK supervised the whole study. All authors read and approved the final manuscript.
Funding
This work was financially supported by the National Natural Science Foundation of China (No. 32200319); Postdoctoral Research Grant in Henan Province (No. 202102073); The National Key Research and Development Project (The Major Project for Research of the Modernization of TCM) (No. 2019YFC1708800); and the Central Leading Local Science and Technology Development Special Foundation ([2016]149).
Availability of data and materials
The data that support the findings of this study are openly available in the Science Data Bank at.
Declarations
Competing interests
The authors declare that they have no financial conflicts of interest in this study.
References
-
1.Badshah SL, Faisal S, Muhammad A, Poulson BG, Emwas AH, Jaremko M. Antiviral activities of flavonoids. Biomed Pharmacother. 2021;140: 111596. CrossRef PubMed Google Scholar
-
2.Ullah A, Munir S, Badshah SL, Khan N, Ghani L, Poulson BG, Emwas A-H, Jaremko M. Important flavonoids and their role as a therapeutic agent. Molecules. 2020;25(22): 5243. CrossRef PubMed Google Scholar
-
3.Maleki SJ, Crespo JF, Cabanillas B. Anti-inflammatory effects of flavonoids. Food Chem. 2019;299: 125124. CrossRef PubMed Google Scholar
-
4.Jucá MM, Cysne Filho FMS, de Almeida JC, Mesquita DdS, Barriga JRdM, Dias KCF, Barbosa TM, Vasconcelos LC, Leal LKAM, Ribeiro JE, Vasconcelos SMM. Flavonoids: biological activities and therapeutic potential. Nat Prod Res. 2018;34(5): 692-705. CrossRef PubMed Google Scholar
-
5.Pietta P-G. Flavonoids as antioxidants. J Nat Prod. 2000;63: 1035-42. CrossRef PubMed Google Scholar
-
6.Shi S, Li J, Zhao X, Liu Q, Song S-J. A comprehensive review: Biological activity, modification and synthetic methodologies of prenylated flavonoids. Phytochemistry. 2021;191: 112895. CrossRef PubMed Google Scholar
-
7.Chen X, Mukwaya E, Wong M-S, Zhang Y. A systematic review on biological activities of prenylated flavonoids. Pharm Biol. 2013;52(5): 655-60. CrossRef PubMed Google Scholar
-
8.Molčanová L, Janošíková D, DallAcqua S, Smejkal K. C-prenylated flavonoids with potential cytotoxic activity against solid tumor cell lines. Phytochem Rev. 2019;18(4): 1051-100. CrossRef PubMed Google Scholar
-
9.Šmejkal K. Cytotoxic potential of C-prenylated flavonoids. Phytochem Rev. 2013;13(1): 245-75. CrossRef PubMed Google Scholar
-
10.Hsueh T, Wu Y-T, Lin L-C, Chiu A, Lin C-H, Tsai T-H. Herb-drug interaction of epimedium sagittatum (Sieb. et Zucc.) maxim extract on the pharmacokinetics of sildenafil in rats. Molecules. 2013;18(6): 7323-35. PubMed Google Scholar
-
11.Ma H, He X, Yang Y, Li M, Hao D, Jia Z. The genus epimedium: an ethnopharmacological and phytochemical review. J Ethnopharmacol. 2011;134(3): 519-41. CrossRef PubMed Google Scholar
-
12.Li W, Wang L, Chu X, Cui H, Bian Y. Icariin combined with human umbilical cord mesenchymal stem cells significantly improve the impaired kidney function in chronic renal failure. Mol Cell Biochem. 2017;428(1–2): 203-12. CrossRef PubMed Google Scholar
-
13.Chen X-J, Tang Z-H, Li X-W, Xie C-X, Lu J-J, Wang Y-T. Chemical constituents, quality control, and bioactivity of Epimedii Folium (Yinyanghuo). Am J Chin Med. 2015;43(05): 783-834. CrossRef PubMed Google Scholar
-
14.Li J, He Y, Zheng X, Li S, Wu Y, Shi W, Pan K, Sun J, Wang Z, Xu J, Zheng X. Flavonoids and prenylhydroquinones from the prepared folium of Epimedium sagittatum Maxim and their inhibition against phosphodiesterase5A. Fitoterapia. 2023;168: 105465. CrossRef PubMed Google Scholar
-
15.Huong NT, Son NT. Icaritin: a phytomolecule with enormous pharmacological values. Phytochemistry. 2023;213: 113772. CrossRef PubMed Google Scholar
-
16.Seyedi Z, Amiri MS, Mohammadzadeh V, Hashemzadeh A, Haddad-Mashadrizeh A, Mashreghi M, Qayoomian M, Hashemzadeh MR, Simal-Gandara J, Taghavizadeh Yazdi ME. Icariin: a promising natural product in biomedicine and tissue engineering. J Funct Biomater. 2023;14(1): 44. CrossRef PubMed Google Scholar
-
17.Wei J-J, Zhang J-K, Li M, Xie S-S, Tao S-Q, Yang Y, Yang M, Zhu D-H, Zheng X-K, Feng W-S. A new flavonoid glycoside from Epimedium sagittatum. Acta Pharm Sin. 2023;58: 180-5. PubMed Google Scholar
-
18.Xie SS, Zeng MN, Zhang JK, Liu JJ, Wei JJ, Wang R, Li M, Hao ZY, Ji BY, Zheng XK, Feng WS. Epimesatines A-I, nine undescribed prenylated flavonoids with SPHK1 inhibitory activities from Epimedium sagittatum maxim. Phytochemistry. 2022;202: 113314. CrossRef PubMed Google Scholar
-
19.Hiep NT, Kwon J, Hong S, Kim N, Guo Y, Hwang BY, Mar W, Lee D. Enantiomeric isoflavones with neuroprotective activities from the fruits of Maclura tricuspidata. Sci Rep. 2019;9(1): 1757. CrossRef PubMed Google Scholar
-
20.Slade D, Ferreira D, Marais JPJ. Circular dichroism, a powerful tool for the assessment of absolute configuration of flavonoids. Phytochemistry. 2005;66(18): 2177-215. CrossRef PubMed Google Scholar
-
21.Frelek J, Klimek A, Ruskowska P. Dinuclear transition metal complexes as auxiliary chromophores in chiroptical studies on bioactive compounds. Curr Org Chem. 2003;7: 1081-104. CrossRef PubMed Google Scholar
-
22.Zheng X, Li W, Ren L, Liu J, Pang X, Chen X, Kang D, Wang J, Du G. The sphingosine kinase-1/sphingosine-1-phosphate axis in cancer: Potential target for anticancer therapy. Pharmacol Ther. 2019;195: 85-99. CrossRef PubMed Google Scholar
-
23.Yang QQ, Yang Y-F, Chen X-Q, Li R-T, Zhang Z-J. Flavonoids from the aerial parts of Sophora tonkinensis and their potential anti-inflammatory activities. Chem Biodivers. 2024;21: e202400399. CrossRef PubMed Google Scholar
-
24.Nur EAM, Yousaf M, Parveen I, Hafizur RM, Ghani U, Ahmed S, Hameed A, Threadgill MD, Al-Rehaily AJ. New flavonoids from the Saudi Arabian plant Retama raetam which stimulates secretion of insulin and inhibits alpha-glucosidase. Org Biomol Chem. 2019;17(5): 1266-76. CrossRef PubMed Google Scholar
-
25.Nakashima K, Miyashita H, Yoshimitsu H, Fujiwara Y, Nagai R, Ikeda T. Two new prenylflavonoids from Epimedii Herba and their inhibitory effects on advanced glycation end-products. J Nat Med. 2016;70(2): 290-5. CrossRef PubMed Google Scholar
-
26.Górecki M, Jabłońska E, Kruszewska A, Suszczyńska A, Urbańczyk-Lipkowska Z, Gerards M, Morzycki JW, Szczepek WJ, Frelek J. Practical method for the absolute configuration assignment of tert/tert 1,2-diols using their complexes with Mo2(OAc)4. J Org Chem. 2007;72: 2906-16. CrossRef PubMed Google Scholar
-
27.Di Bari L, Pescitelli G, Pratelli C, Pini D, Salvadori P. Determination of absolute configuration of acyclic 1,2-diols with Mo2(OAc)4 1 Snatzke’s method revisited. J Org Chem. 2001;66: 4819-25. CrossRef PubMed Google Scholar
-
28.Frelek J, Ikekawa N, Takatsuto S, Snatzke G. Application of [Mo2(OAc)4] for determination of absolute configuration of brassinosteroid vic-diols by circular dichroism. Chirality. 1997;9: 578-82. CrossRef PubMed Google Scholar
-
29.Zhang L-B, Ji J, Lei C, Wang H-Y, Zhao Q-S, Hou A-J. Isoprenylated flavonoid and adipogenesis-promoting constituents of Dodonaea viscosa. J Nat Prod. 2012;75(4): 699-706. CrossRef PubMed Google Scholar
-
30.Han XH, Hong SS, Jin Q, Li D, Kim HK, Lee J, Kwon SH, Lee D, Lee CK, Lee MK, Hwang BY. Prenylated and benzylated flavonoids from the fruits of Cudrania tricuspidata. J Nat Prod. 2009;72: 164-7. CrossRef PubMed Google Scholar
-
31.Yap SP, Shen P, Butler MS, Gong Y, Loy CJ, Yong EL. New estrogenic prenylflavone from Epimedium brevicornum inhibits the growth of breast cancer cells. Planta Med. 2005;71: 114-9. CrossRef PubMed Google Scholar
-
32.Gerards M, Snatzke G. Circular dichroism, XCⅢ’ determination of the absolute configuration of alcohols, olefins, epoxides, and ethers from the CD of their “in suit” complexes with [Rh2(O2CCF3)4]. Tetrahedron Asymmetr. 1990;1: 221-36. CrossRef PubMed Google Scholar
-
33.Meng LH, Awakawa T, Li XM, Quan Z, Yang SQ, Wang BG, Abe I. Discovery of (±)-penindolenes reveals an unusual indole ring cleavage pathway catalyzed by P450 monooxygenase. Angew Chem Int Ed. 2024. CrossRef PubMed Google Scholar
-
34.Li F-F, Sun Q, Wang D, Liu S, Lin B, Liu C-T, Li L-Z, Huang X-X, Song S-J. Chiral separation of cytotoxic flavan derivatives from Daphne giraldii. J Nat Prod. 2016;79(9): 2236-42. CrossRef PubMed Google Scholar
-
35.Finefield JM, Sherman DH, Kreitman M, Williams RM. Enantiomeric natural products: occurrence and biogenesis. Angew Chem Int Ed. 2012;51(20): 4802-36. CrossRef PubMed Google Scholar
-
36.Tiritan ME, Fernandes C, Maia AS, Pinto M, Cass QB. Enantiomeric ratios: why so many notations. J Chromatogr A. 2018;1569: 1-7. CrossRef PubMed Google Scholar
-
37.Frisch MJ, Trucks GW, Schlegel HB, Scuseria GE, Robb MA, Cheeseman JR, Scalmani G, Barone V, Petersson GA, Nakatsuji H, Li X, Caricato M, Marenich AV, Bloino J, Janesko BG, Gomperts R, Mennucci B, Hratchian HP, Ortiz JV, Izmaylov AF, Sonnenberg JL, Williams Ding F, Lipparini F, Egidi F, Goings J, Peng B, Petrone A, Henderson T, Ranasinghe D, Zakrzewski VG, Gao J, Rega N, Zheng G, Liang W, Hada M, Ehara M, Toyota K, Fukuda R, Hasegawa J, Ishida M, Nakajima T, Honda Y, Kitao O, Nakai H, Vreven T, Throssell K, Montgomery JA, Peralta JE, Ogliaro F, Bearpark MJ, Heyd JJ, Brothers EN, Kudin KN, Staroverov VN, Keith TA, Kobayashi R, Normand J, Raghavachari K, Rendell AP, Burant JC, Iyengar SS, Tomasi J, Cossi M, Millam JM, Klene M, Adamo C, Cammi R, Ochterski JW, Martin RL, Morokuma K, Farkas O, Foresman JB, Fox DJ. Gaussian 16 Revision. CT: Wallingford; 2016. PubMed Google Scholar
-
38.Bruhn T, Schaumlöffel A, Hemberger Y, Pescitelli G. SpecDis version 1.71. Berlin, Germany. 2017. PubMed Google Scholar
